Haier HHX7030 - 05-05 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

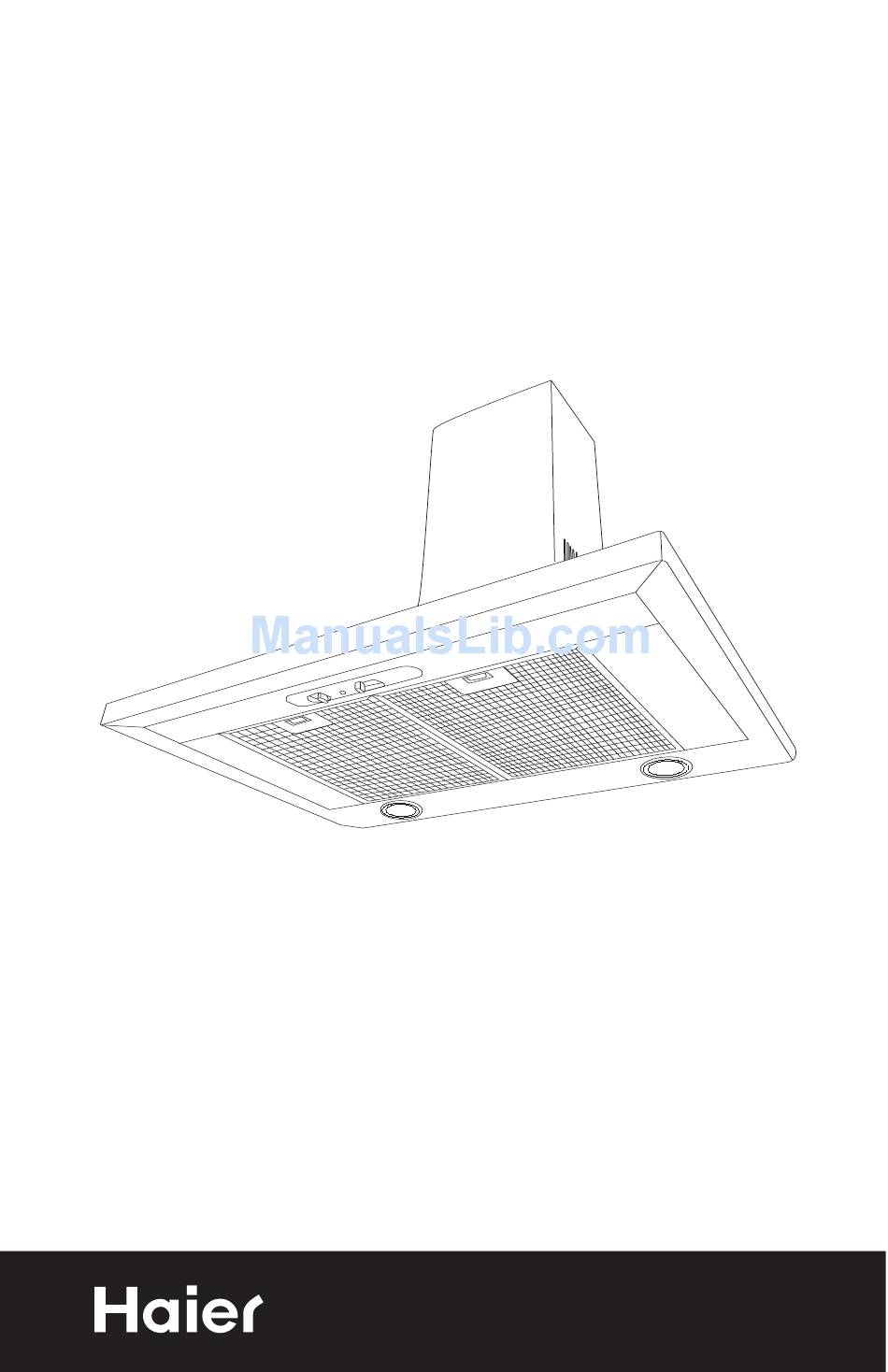

Cooker Hood
User Manual model
HHX7030
Quality
Innovation
Style
■
■

Advertisement

Table of Contents
loading

Related Manuals for Haier HHX7030 - 05-05

Summary of Contents for Haier HHX7030 - 05-05

  • Page 1 Cooker Hood User Manual model HHX7030 Quality Innovation Style ■ ■...

  • Page 2: Safety Precautions

    English SAFETY PRECAUTIONS Warning! – To reduce the risk of fire, electric shock, or injury to persons, always exercise basic safety precautions, including the following: 1. Read all instructions before using the appliance. 2. Use this appliance only for its intended purpose as described in this user manual.
  • Page 3 4. Clean ventilation fans frequently. Do not allow grease to accumulate on the fan or the filter. To reduce the risk of personal injury in the event of a range top grease fire: 1. NEVER pick up a flaming pan, as you may be injured.

  • Page 4: Table Of Contents

    1 User Manual Check to make sure that all parts and accessories are present and in good condition. If you find that they are not in good condition or are missing, please contact our customer service department for assistance. Our Toll-Free number is 1-877-337-3639.

  • Page 5: Important Safeguards

    CAUTION To reduce the risk of fire, use only metal ductwork. CAUTION To reduce the risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust air into spaces within walls or ceilings, or into attics, crawlspaces, or garages.

  • Page 6: Installation Preparation

    3. Remove the 2 grease filters from the hood. Place them somewhere safe so they will not be damaged. 4. Install two 40 Watt light bulbs. 5. Turn the hood right side up so you can see the duct knockouts and mounting holes.

  • Page 7: Cabinet Preparation For Hoods Support

    Another option, if your kitchen has a soffit above the cabinet, is to run the duct up into the soffit and then discharge the air horizontally through the outside wall to a wall cap.

  • Page 8: Wiring Diagrams

    Wiring Diagrams Installing Ductwork • Your new range hood will operate at the highest efficiency if the number of elbow and the length of the duct are kept to a minimum. The back draft damper flap attached to the damper frame assembly, which is supplied with the hood, does not impede airflow significantly.
  • Page 9 English 5. Attach the ducting to the hood. 6. Temporary mount the stainless steel chimmey and mark the top. 7. Attach the mounting clamp to the wall with supplied screws. 8. Connect the chimmey to the mounting clamp.

  • Page 10: Use And Care

    All parts may be obtained from service centers authorized by Haier, or may be ordered directly from Haier. When ordering parts, please specify the range hood model number on the rating label, which is located on the inside of the range hood.

  • Page 11: Troubleshooting

    If you see a metal duct leading away from the vent hood, then you have a system that vents to the outdoors. If you do not see a duct, your unit may be venting through the back wall.

  • Page 12: Limited Warranty

    The mechanical and electrical parts (including • Damages from shipping labor costs) contained in this Haier product, for a period of 12 months, from the date of • Damages from misuse, abuse, accident, purchase (for commercial or rental applications, alteration, lack of proper care and the warranty is 90 days).
  • Page 13 IMPORTANT Do Not Return This Product To The Store If you have a problem with this product, please contact the "Haier Customer Satisfaction Center" at 1-877-337-3639. DATED PROOF OF PURCHASE, MODEL # AND SERIAL # REQUIRED FOR WARRANTY SERVICE Made in China...

This manual is also suitable for:

Hhx7030
