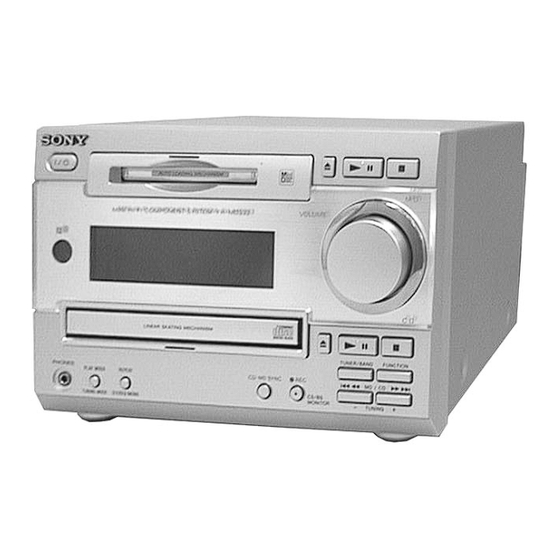

Compact disc deck receiver
Hide thumbs Also See for HCD-MD333 - Hi Fi Cd/minidisc Component:
Table of Contents

Advertisement

Quick Links

Download this manual

SERVICE MANUAL

Ver 1.1 2001. 06
HCD-MD333 is the amplifier, CD, MD and
tuner section in DHC-MD333.
9-922-935-12
Sony Corporation
Home Audio Company
2001F0200-1
Shinagawa Tec Service Manual Production Group
© 2001.6
HCD-MD333
Model Name Using Similar Mechanism
CD
Mechanism Type
SECTION
Base Unit Type
Optical Pick-up Type
Model Name Using Similar Mechanism
MD
Mechanism Type
SECTION
Optical Pick-up Type
SPECIFICATIONS
COMPACT DISC DECK RECEIVER
– 1 –
US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model
Tourist Model
NEW
CDM13C-5BD19
BU-5BD19
KSS-213B/K-N
NEW
MDM-3J
KSM-260A-JIN
— Continued on next page —

Advertisement

Table of Contents
loading

Related Manuals for Sony HCD-MD333 - Hi Fi Cd/minidisc Component

Summary of Contents for Sony HCD-MD333 - Hi Fi Cd/minidisc Component

  • Page 1: Service Manual

    Canadian Model AEP Model UK Model Ver 1.1 2001. 06 E Model Australian Model Tourist Model HCD-MD333 is the amplifier, CD, MD and tuner section in DHC-MD333. Model Name Using Similar Mechanism Mechanism Type CDM13C-5BD19 SECTION Base Unit Type BU-5BD19...
  • Page 2 – 2 –...
  • Page 3 The self-diagnosis function consists of error codes for users which are displayed automatically when errors occur, and error codes which show the error history in the test mode during servicing. For details on how to view error codes for users, refer to the following box in the instruction manual.
  • Page 4 Displays the recording time in the form of “rππππππh”. The displayed time is the total number of hours the laser is high power, which is about one-fourth of the actual recording time. The time is displayed in decimal digits between 0h to 65535h.
  • Page 5 • Keep the temperature of soldering iron around 270˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering.

  • Page 6: Table Of Contents

    3-11. Slider Complete ASSY ............15 3. Measuring the voltage drop across a resistor by means of a VOM 3-12. Shutter ASSY ..............16 or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate low-voltage scale.

  • Page 7: Servicing Note

    POWER SUPPLY IS OFF OR BASE UNIT 1. Insert the tweezers to a hole on bottom of the chassis as shown a The laser diode in the optical pick-up block may suffer electrostatic figure, then tern fully it toward direction 2.

  • Page 8: General

    Location of Parts and Controls 1 1/u button 2 MD indicator 3 MD disc slot 4 6 (MD) button 5 ^ (MD) button and indicator 6 p (MD) button 7 VOLUME knob 8 ^ (CD) button and indicator 9 p (CD) button...
  • Page 9 This section is extracted from instruction manual. – 9 –...

  • Page 10: Disassembly

    SECTION 3 DISASSEMBLY Note: Follow the disassembly procedure in the numerical order given. 3-1. CASE 3 Case 1 Two screws (CASE3 TP2) 2 Two screws (CASE3 TP2) 3-2. FRONT PANEL/MD MECHANISM DECK SECTION 7 Six screws (BVTT3x6) 8 Wire 9 MD mechanism...

  • Page 11: Back Panel, Jack Board

    3-3. BACK PANEL, JACK BOARD 2 Four screws (BVTP3x10) 7 JACK board 6 Wire (flat type)(15core) (CN401) 3 Two screws (BVTP3x10) 8 Connector (CN402) 1 Connector (CN590) 5 Back panel 4 Five claws 3-4. MD MECHANISM DECK (MDM-3D) 1 Two screws...

  • Page 12: Cd Mechanism Deck (Cdm13C-5Bd19)

    3-5. CD MECHANISM DECK (CDM13C-5BD19) 4 Two screws (BVTT3x6) 8 CD mechanism deck (CDM13C-5BD19) 5 Bracket (CD) 6 Two screws (BVTT3x6) 7 Two hooks 3 Two screws (BVTT3x6) 2 Connector (CN291) 1 Wire (flat type)(19core) (CN801) 3-6. BD (MD) BOARD...

  • Page 13: Disc Table

    3-8. SUB CHASSIS 3 Two step screws 1 Two step screws 2 Two insulators 4 Two insulators Part A Part A Part A 5 Sub chassis Take care so that the part A may be right position when installing. – 13 –...

  • Page 14: Optical Pick-Up (Kss-213B/K-N)

    3-9. OPTICAL PICK-UP (KSS-213B/K-N) 4 Remove the optical pick-up (KSS-213B/K-N) in the direction of the arrow C . 3 Wire (flat type)(16 core) (CNU101) 1 Move the claw in the direction of the arrow A . 2 Remove the sled shaft in the BD board (CD) direction of the arrow B .

  • Page 15: Slider Complete Assy

    3-11. SLIDER COMPLETE ASSY 3 Set the shaft of gear (LB) to be at the Claw position in the figure. Claw 45˚ 4 Remove the slider complete assembly 1 Special screw in the direction of arrow with putting out 2 Retainer (gear) (M1.7x1.4)

  • Page 16: Shutter Assy

    Shaft (shutter) B Hole B 3 Shutter assembly Shaft (shutter) A Hole A When installing, install the shaft (shutter) A into the hole as show in the figure before installing the shaft (shutter) B into the hole B. – 16 –...

  • Page 17: Service Mode

    However, once a button is pressed, it is no longer taken into account. “JOG=” Value increases like 1, 2, 3 ... if rotating VOLUME knob in clockwise direction, or it decreases like 10, 9, 8 ... if rotating in counterclockwise direction.

  • Page 18: Test Mode

    With the power off, press the ^ (MD) button while pressing the PLAY MODE button. 5-3. EXITING THE TEST MODE Press the REPEAT button. The STANDBY state will be set and the test mode will be cleared. 5-4. BASIC OPERATIONS OF THE TEST MODE All operations are performed using the VOLUME knob, p (CD) button, and ^ (CD) button.
  • Page 19 There are altogether 26 test modes, shown in the following table. Rotating the VOLUME knob to the right switches to the mode below the current mode in the table while rotating to the left switches to the mode above. Each time the ^ (CD) button is pressed, the display changes in the following order;...
  • Page 20 2 Press the 6 (MD) button to remove the disc. Note : The playback start addresses for IN, MID, and OUT are as follows. To display the playback position address on the display, press the 1/u button to display “CPLAY ( )”.
  • Page 21 5-7. DISPLAYS DURING TEST MODE The display changes according to the following sequence each time the 1/u button is pressed. 1. Mode display “TEMP ADJUST” and “CPLAYMODE” are displayed. Mode display 2. Error rate display Error rate display The error rate is displayed as follows.
  • Page 22 In this mode, MD and CD operations are performed alternately according to the following sequence. Aging will be carried out continuously unless an error occurs. If an error occurs, the status and number of cycles are displayed alternately, and operations stop. (Refer to Table 1.) Aging Mode Sequence...
  • Page 23 4. To end, press the p (CD or MD) button. *Note 1: Any CD can be used, but one with a short last track is recommended. The time of one aging cycle will be longer if the last track is long.

  • Page 24: Electrical Adjustments

    Specifications: 3) Perform the adjustments in the order shown. TEMP= should be E0 to EF. F0 to FF, 00 to 0F, 10 to 1F and 20 4) Use the following tools and measuring devices. to 2F. • Check disc (MD) TDYS-1 (Parts No.
  • Page 25 (Read power traverse adjustment) 4. Rotate the VOLUME knob so that the laser power meter reads 0.86 to 0.92 mW. Set the range knob of the laser power meter to (Traverse Waveform) 10 mW, press the p (CD) button, and save the adjustment results in the non-volatile memory.
  • Page 26 10. Press the p (CD) button to display “ ”. 14. Load the check disc (MD) TDYS-1. 11. Check that the C1 error rate is below 50 and that ADER is 00. 15. Press the p (CD) button to display “EFB = CD”. The servo and press the p (CD) button.
  • Page 27 9. Press the ^ (CD) button, press the 6 (MD) button next, and remove the continuously recorded disc. Note 1 : If the C1 error is above 220 or ADER is above 00 only for point a (step 8 above) and point b (step 7 above), the focus bias may not adjusted properly.
  • Page 28 6-11. ADJUSTING POINTS AND CONNECTING POINTS [BD (MD) BOARD] (SIDE A) D101 IC192 [BD (MD) BOARD] (SIDE B) TP (IOP) TP (I + 3V) Q163 IC316 IC171 (VC) IC101 (TEO) Q102 IC121 – 28 –...
  • Page 29 5. Check the oscilloscope waveform (S-curve) is symmetrical be- oscilloscope tween A and B. And confirm peak to peak level within 2.4 ± 0.7 BD (CD) board Vp-p. TP (RF) S-curve waveform TP (VC) –...
  • Page 30 RV102 3. Put disc (YEDS-18) in to play the number five track. 4. Press the “P (Pause)” button. (Becomes the 1 track jump mode) 5. Confirm that the oscilloscope waveform is symmetrical on the top and bottom in relation to 0Vdc, and check this level.

  • Page 31: Diagrams

    AUDIO board MAIN board MD LED board HP board ENCAPSULATED COMPONENT (US, Canadian, Malaysia, Singapore, HongKong, Argentine, Australian, Tourist) TUNER (FM/MW/LW) (AEP, UK, EE) PANEL board TRANS board JACK board ST TERMINAL board SW board BD (MD) board BD (CD) board LOADING board –...

  • Page 32: Block Diagrams

    ROUT 13 IC103 C.OUT CNIN SENS SEIN RV102 RV101 FOCUS FOCUS GAIN BIAS 56 57 59 3 1 64 51 52 53 43 46 47 49 26 28 27 FE BIAS 37 FE-O FE-M TA-M MAIN S101 D OUT SECTION...

  • Page 33: Md Section

    HCD-MD333 – MD SECTION – OVER WRITE HEAD DRIVE DIGITAL SERVO SIGNAL PROCESSOR, DIGITAL SIGNAL PROCESSOR EFM/ACIRC ENCODER/DECODER, SHOCK-PROOF MEMORY CONTROLLER, IC181 (2/4) IC181 (3/4) ATRAC ENCODER/DECODER, 2M-BIT DRAM • SIGNAL PATH IC121 HR901 : PB (MD) SCTX OVER WRITE...

  • Page 34: Main Section

    LRCK R-CH LRCK INTERPOLATOR 76 82 83 84 85 86 87 88 34 22 46 48 49 50 51 52 53 59 60 55 56 57 58 18 19 25 – 27 66 – 70 • 72 • 73 MCLK...
  • Page 35 (The other layers' patterns are not indicated.) Caution: 5.1 Vp-p Pattern face side: Parts on the pattern face side seen from the (Side B) pattern face are indicated. Parts face side: Parts on the parts face side seen from the 22.8 s...

  • Page 36: Schematic Diagram - Cd Section

    HCD-MD333 7-3. SCHEMATIC DIAGRAM – CD SECTION – • See page 39 for Waveforms. • See page 81 for IC Block Diagrams. (Page 55) – 41 – – 42 –...

  • Page 37: Printed Wiring Board - Cd Section

    HCD-MD333 7-4. PRINTED WIRING BOARD – CD SECTION – • See page 31 for Circuit Boards Location. (Page 59) • Semiconductor • Semiconductor Location Location Ref. No. Location Ref. No. Location IC103 IC101 IC102 Q101 IC104 Q103 Q102 – 43 –...

  • Page 38: Schematic Diagram - Md (1/3) Section

    HCD-MD333 7-5. SCHEMATIC DIAGRAM – MD (1/3) SECTION – • See page 40 for Waveforms. • See page 84 for IC Block Diagrams. • See page 51 for Printed Wiring Board. • See page 88 for IC Pin Functions. (Page 48)

  • Page 39: Schematic Diagram - Md (2/3) Section

    HCD-MD333 7-6. SCHEMATIC DIAGRAM – MD (2/3) SECTION – • See page 40 for Waveforms. • See page 51 for Printed Wiring Board. • See page 85 for IC Block Diagrams. • See page 89 for IC Pin Functions. (Page 45)

  • Page 40: Schematic Diagram - Md (3/3) Section

    HCD-MD333 7-7. SCHEMATIC DIAGRAM – MD (3/3) SECTION – • See page 40 for Waveforms. • See page 83 for IC Block Diagrams. • See page 92 for IC Pin Functions. (Page 47) (Page 47) (Page 48) (Page 53) – 49 –...

  • Page 41: Printed Wiring Board - Md Section

    HCD-MD333 7-8. PRINTED WIRING BOARD – MD SECTION – • See page 31 for Circuit Boards Location. (Page 54) (Page 59) • Semiconductor • Semiconductor Location Location Ref. No. Location Ref. No. Location Ref. No. Location D181 IC316 D183 D101...

  • Page 42: Schematic Diagram - Md Switch Section

    HCD-MD333 7-9. SCHEMATIC DIAGRAM – MD SWITCH SECTION – 7-10. PRINTED WIRING BOARD – MD SWITCH SECTION – • See page 31 for Circuit Boards Location. (Page 51) (Page 50) – 53 – – 54 –...

  • Page 43: Schematic Diagram - Main (1/3) Section

    HCD-MD333 7-11. SCHEMATIC DIAGRAM – MAIN (1/3) SECTION – • See page 86 for IC Block Diagrams. • See page 40 for Waveforms. • See page 94 for IC Pin Functions. • See page 59 for Printed Wiring Board. (Page 73)

  • Page 44: Schematic Diagram - Main (2/3), (3/3) Section

    HCD-MD333 7-12. SCHEMATIC DIAGRAM – MAIN (2/3), (3/3) SECTION – • See page 86 for IC Block Diagrams. (Page 77) (Page 56) (Page 75) – 57 – – 58 –...

  • Page 45: Printed Wiring Board - Main Section

    HCD-MD333 7-13. PRINTED WIRING BOARD – MAIN SECTION – • See page 31 for Circuit Boards Location. (Page 44) (Page 63) (Page 52) (Page 64) (Page 72) (Page 79) (Page 76) (Page 67) • Semiconductor Location (Page 74) (Page 74) Ref.

  • Page 46: Schematic Diagram - Audio Section

    HCD-MD333 7-14. SCHEMATIC DIAGRAM – AUDIO SECTION – • See page 87 for IC Block Diagrams. (Page 55, 56) (Page 56) (Page 69) – 61 – – 62 –...

  • Page 47: Printed Wiring Board - Audio Section

    HCD-MD333 7-15. PRINTED WIRING BOARD – AUDIO SECTION – • See page 31 for Circuit Boards Location. • Semiconductor Location Ref. No. Location D701 D1501 IC701 IC702 IC1500 IC1501 Q701 Q702 Q703 Q751 Q752 (Page 72) (Page 59) (Page 59) –...

  • Page 48: Schematic Diagram - Panel Section

    HCD-MD333 7-16. SCHEMATIC DIAGRAM – PANEL SECTION – (Page 55) (Page 70) – 65 – – 66 –...

  • Page 49: Printed Wiring Board - Panel Section

    HCD-MD333 7-17. PRINTED WIRING BOARD – PANEL SECTION – • See page 31 for Circuit Boards Location. • Semiconductor Location Ref. No. Location D901 D902 D903 D904 D906 D907 D908 IC901 IC902 Q901 Q902 Q904 Q905 Q906 Q907 Q908 Q909...

  • Page 50: Schematic Diagram - Jack Section

    HCD-MD333 7-18. SCHEMATIC DIAGRAM – JACK SECTION – (Page 65) (Page 61) (Page 55) (Page 78) – 69 – – 70 –...

  • Page 51: Printed Wiring Board - Jack Section

    HCD-MD333 7-19. PRINTED WIRING BOARD – JACK SECTION – • See page 31 for Circuit Boards Location. (Page 67) (Page 79) (Page 63) (Page 59) • Semiconductor Location Ref. No. Location D422 D430 D447 D497 IC470 Q400 Q410 Q420 Q431...

  • Page 52: Schematic Diagram - St Terminal/Loading Section

    HCD-MD333 7-20. SCHEMATIC DIAGRAM – ST TERMINAL/LOADING SECTION – 7-21. PRINTED WIRING BOARD – ST TERMINAL/LOADING SECTION – • See page 31 for Circuit Boards Location. (Page 55) (Page 59) LOADING BOARD (Page 55) S292 (LOAD IN) S291 (LOAD OUT)

  • Page 53: Schematic Diagram - Trans Section

    HCD-MD333 7-22. SCHEMATIC DIAGRAM – TRANS SECTION – 7-23. PRINTED WIRING BOARD – TRANS SECTION – • See page 31 for Circuit Boards Location. (Page 78) (Page 58) (Page 79) (Page 60) – 75 – – 76 –...

  • Page 54: Schematic Diagram - Power Amp Section

    HCD-MD333 7-24. SCHEMATIC DIAGRAM – POWER AMP SECTION – (Page 70) (Page 57) (Page 75) – 77 – – 78 –...

  • Page 55: Printed Wiring Board - Power Amp Section

    HCD-MD333 7-25. PRINTED WIRING BOARD – POWER AMP SECTION – • See page 31 for Circuit Boards Location. (Page 71) • Semiconductor Location Ref. No. Location D1201 D1202 D1203 D1213 D1251 D1263 D1300 (Page 60) IC1201 Q1201 Q1202 Q1231 Q1232...

  • Page 56: Ic Block Diagrams

    HCD-MD333 IC102 BA6397FP 7-26. IC BLOCK DIAGRAMS • CD section IC101 CXA1782BQ DRIVE DRIVE DRIVE BUFFER BUFFER BUFFER DRIVE BUFFER – REGULATOR LEVELS DRIVER MUTE 24 SENS – MIRR RF IV AMP1 DFCT 23 C. OUT DRIVE DRIVE DRIVE DRIVE...
  • Page 57 LOW-PASS FILTER LOW-PASS FILTER RIGHT LEFT EXT1R EXT1L 3-STAGE AMP 3-STAGE AMP EXT2R EXT2L LEFT RIGHT VOUTR VOUTL GND1 – MD Section – IC153 LB1830-S-TE-L IC201 AK4520A-VF-E2 VREF VCONT VREF LOGIC PREDRIVER CLOCK MODULATOR INTERPOLATOR DIVIDER MODULATOR INTERPOLATOR COMMON SERIAL I/O...
  • Page 58 – 29 ADFM – –1 28 SE PTGR – –2 – – 27 CSLED – –1 TESW 26 TE –2 – – 25 WBLADJ VI CONV FBAL GSW IV AUXSW COMMAND VREF SCRI - PARA DECODE APCREF – 84 –...
  • Page 59 IC121 CXD2652AR 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 AUX2 SPINDLE GENERATOR SERVO 74 TE MNT0 73 SE MNT1 MONITOR EACH...
  • Page 60 – MAIN Section – IC570 LA5620 IC603 M62016L INTERRUPT SIGNAL – – GENERATING BLOCK STBY RESET SIGNAL ANA5 – GENERATING BLOCK – SYS3.3 – RESET – 3.3V BACK – DELAY P. DOWN CIRCUIT – DELAY S. RESET CIRCUIT VREF IC801 LB1641 T.S.D...

  • Page 61: Audio Section

    – AUDIO Section – IC1500 BU1922F TEST LOGIC AND OUTPUT SELECTOR SWITCH 57kHz ANTI- OSCILLATOR QUALITY BIT RECONSTRUCTION BANDPASS ALIASING GENERATOR FILTER (8th ORDER) FILTER DIVIDER CONTAS LOOP BIPHASE DEFFERENTIAL CLOCKED SYMBOL VARIABLE AND DECODER COMPARATOR DECODER FIXED DIVIDER CLOCK REGENERATION...

  • Page 62: Ic Pin Functions

    User comparator input terminal Not used (fixed at “L”) ADDC Connected to the external capacitor for cutting the low band of the ADIP amplifier User operational amplifier output terminal Not used (open) User operational amplifier inversion input terminal Not used (fixed at “L”)
  • Page 63 DVDD — Power supply terminal (+3.3V) (digital system) Address signal output to the external D-RAM (IC124) * I (A) for analog input, O (3) for 3-state output, and O (A) for analog output in the column I/O. – 89 –...
  • Page 64 Serial clock signal output to the CXA2523AR (IC101) DTRF Writing data output to the CXA2523AR (IC101) * I (A) for analog input, O (3) for 3-state output, and O (A) for analog output in the column I/O. – 90 –...
  • Page 65 Pin No. Pin Name Function Control signal output to the reference voltage generator circuit for the laser automatic APCREF power control LDDR PWM signal output for the laser automatic power control Not used (open) TRDR Tracking servo drive PWM signal (–) output to the BH6511FS (IC152)
  • Page 66 REMCON Remote control signal input De-emphasis control signal output to the AK4520 (IC201) BYTE External data bus line byte select signal input terminal “L”:16bit “H”: 8bit (fixed at “L”) CNVSS Processor mode select signal input terminal (fixed at “L”) XIN-T Sub system clock input tarminal Not used (fixed at “L”)
  • Page 67 MD loading-in signal output to LB1830M (IC153) LDOUT MD loading-out signal output to LAB1830M (IC153) LD-LOW Loading motor voltage control signal output to the loading motor driver PROTECT MD PROTECT switch (S683) detect signal input terminal REFLECT MD REFLECT switch (S682) detect signal input terminal...
  • Page 68 Reference voltage input terminal (+5V) (for A/D converter) KEY0 Key input terminal (A/D input) POWER key (S902) input Key input terminal (A/D input) p (CD), ^ (CD), § (CD), p (MD), ^ (MD), KEY 1 § (MD) keys (S903 to S908) input Key input terminal (A/D input) FUNCTION, ) + +, TUNER/BAND, = 0 –,...
  • Page 69 Serial data latch pulse signal output to the PCM1710U (IC104) SENCE Internal status (SENSE) signal input from the CXD2507AQ (IC103) Test mode input terminal “H’: normal (fixed at “H” in this set) IN-SW Disc tray close complete signal input terminal “L”: Completed OUT-SW Disc tray open complete signal input terminal “L”...

  • Page 70: Exploded Views

    EXPLODED VIEWS NOTE: The components identified by • Abbreviation • Items marked “*” are not stocked since they are mark ! or dotted line with mark CND : Canadian model seldom required for routine service. Some delay ! are critical for safety.

  • Page 71: Chassis Section

    EXCEPT US,CND,AR CNP1601 Les composants identifiés par une The components identified by mark ! or dotted line with mark marque ! sont critiques pour la ! are critical for safety. sécurité. Replace only with part number Ne les remplacer que par une specified.

  • Page 72: Md Mechanism Deck Section-1 (Mdm-3J)

    8-3. MD MECHANISM DECK SECTION-1 (MDM-3J) not supplied not supplied Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * 101 A-4699-808-A BD (MD) BOARD, COMPLETE 4-986-959-01 WASHER, STOPPER 1-660-966-11 OP RELAY FLEXIBLE BOARD 4-987-327-01 INSULATOR 1-782-683-11 WIRE (FLAT TYPE) (14 CORE)

  • Page 73: Md Mechanism Deck Section-2 (Mdm-3J)

    HR901 Les composants identifiés par une The components identified by marque ! sont critiques pour la mark ! or dotted line with mark ! are critical for safety. sécurité. Replace only with part number Ne les remplacer que par une specified.

  • Page 74: Cd Mechanism Deck Section-1 (Cdm13C-5Bd19)

    8-5. CD MECHANISM DECK SECTION-1 (CDM13C-5BD19) not supplied BU-5BD19 M904 not supplied Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * 201 1-634-461-11 LOADING BOARD 4-944-012-01 TABLE, DISC 4-927-654-01 WASHER (LIMITER) A-4604-752-A HOLDER (MG) ASSY 3-659-338-00 SPRING, COMPRESSION...

  • Page 75: Cd Mechanism Deck Section-2 (Bu-5Bd19)

    (including r C) Les composants identifiés par une The components identified by marque ! sont critiques pour la mark ! or dotted line with mark ! are critical for safety. sécurité. Replace only with part number Ne les remplacer que par une specified.

  • Page 76: Electrical Parts List

    ! are critical for safety. uPC...: µ PC..., uPD...: µ PD... • -XX, -X mean standardized parts, so they may have Replace only with part number • CAPACITORS some difference from the original one.
  • Page 77 1-579-900-21 VIBRATOR, CRYSTAL (4.332MHz)(AEP,UK,EE) Q702 8-729-141-30 TRANSISTOR 2SC3623A-LK Q703 8-729-422-57 TRANSISTOR UN4111 ************************************************************** Q751 8-729-620-05 TRANSISTOR 2SC2603-EF Q752 8-729-141-30 TRANSISTOR 2SC3623A-LK A-4673-402-A BD (CD) BOARD, COMPLETE *********************** < RESISTOR > < CAPACITOR > R702 1-249-433-11 CARBON 1/4W R703 1-247-903-00 CARBON 1/4W...
  • Page 78 Part No. Description Remark < CONNECTOR > R144 1-216-073-00 METAL CHIP 1/10W R145 1-216-097-91 RES,CHIP 100K 1/10W CNU101 1-770-014-11 CONNECTOR, FFC/FPC 16P R146 1-216-097-91 RES,CHIP 100K 1/10W CNU102 1-770-013-11 CONNECTOR, FFC/FPC 19P R147 1-216-049-91 RES,CHIP 1/10W R148 1-216-049-91 RES,CHIP 1/10W <...
  • Page 79 100PF < CONNECTOR > C144 1-163-251-11 CERAMIC CHIP 100PF C151 1-126-206-11 ELECT CHIP 100uF 6.3V CN101 1-766-508-11 CONNECTOR, FFC/FPC (ZIF) 22P C152 1-163-038-91 CERAMIC CHIP 0.1uF CN104 1-778-283-11 CONNECTOR, FFC/FPC 4P C153 1-163-021-91 CERAMIC CHIP 0.01uF CN106 1-774-771-11 CONNECTOR, FFC/FPC 14P...
  • Page 80 BD (MD) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < TRANSISTOR > R182 1-216-089-91 RES,CHIP 1/10W R183 1-216-089-91 RES,CHIP 1/10W Q101 8-729-028-91 TRANSISTOR RT1P441M-TP-1 R184 1-216-073-00 METAL CHIP 1/10W Q102 8-729-026-53 TRANSISTOR 2SA1576A-T106-QR R188 1-216-073-00 METAL CHIP...
  • Page 81 X101 1-767-286-11 VIBRATOR, CRYSTAL (22.5792MHz) CN402 1-564-506-11 PLUG, CONNECTOR 3P X302 1-767-670-11 VIBRATOR, CERAMIC (7MHz) CN404 1-770-379-11 CONNECTOR, BOARD TO BOARD 6P * CN420 1-565-561-11 PIN, CONNECTOR 3P * CN430 1-565-500-11 CONNECTOR, BOARD TO BOARD 9P ************************************************************** 1-671-020-21 HP BOARD...
  • Page 82 6.3V C572 1-126-960-11 ELECT Les composants identifiés par une The components identified by mark ! or dotted line with mark marque ! sont critiques pour la ! are critical for safety. sécurité. Replace only with part number Ne les remplacer que par une specified.
  • Page 83 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C573 1-126-965-11 ELECT 22uF CN872 1-779-820-11 CONNECTOR, BOARD TO BOARD 14P C574 1-126-934-11 ELECT 220uF * CN873 1-568-839-11 SOCKET, CONNECTOR 23P C575 1-126-934-11 ELECT 220uF C576 1-126-964-11 ELECT 10uF <...
  • Page 84 1-247-887-00 CARBON 220K 1/4W Les composants identifiés par une The components identified by mark ! or dotted line with mark marque ! sont critiques pour la ! are critical for safety. sécurité. Replace only with part number Ne les remplacer que par une specified.
  • Page 85 Part No. Description Remark Ref. No. Part No. Description Remark R874 1-249-421-11 CARBON 2.2K 1/4W F D903 8-719-058-17 DIODE LNG401NPYJA (p (MD)) R875 1-249-441-11 CARBON 100K 1/4W D904 8-719-057-09 DIODE LNJ801LPDJA (r REC) R876 1-247-887-00 CARBON 220K 1/4W D906 8-719-057-10 DIODE LNJ301MPUJAB (^ (CD))
  • Page 86 C1304 1-136-165-00 FILM 0.1uF < SWITCH > < CONNECTOR > S901 1-473-392-11 ENCODER, ROTARY (VOLUME) * CN1202 1-565-485-11 CONNECTOR, BOARD TO BOARD 9P S902 1-762-875-21 SWITCH, KEYBOARD (1/u) S903 1-762-875-21 SWITCH, KEYBOARD (p (CD)) < DIODE > S904 1-762-875-21 SWITCH, KEYBOARD (^ (CD))
  • Page 87 CN1600 1-564-321-00 PIN, CONNECTOR 2P 1-783-113-11 WIRE (FLAT TYPE) (25 CORE) Les composants identifiés par une The components identified by mark ! or dotted line with mark marque ! sont critiques pour la ! are critical for safety. sécurité. Replace only with part number Ne les remplacer que par une specified.
  • Page 88 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3 7-685-871-01 SCREW +BVTT 3X6 (S) 7-685-850-04 SCREW +BVTT 2X3 (S) 7-685-851-04 SCREW +BVTT 2X4 (S) 7-627-553-17 PRECISION SCREW +P 2X2 TYPE 3 7-627-552-27 SCREW,PRECISION +P 1.7X2 7-624-105-04 STOP RING 2.3, TYPE -E 7-685-234-19 SCREW +KTP 2.6X8 TYPE2NON-SLIT 7-621-775-10 SCREW +B 2.6X4...
  • Page 89 AEP Model UK Model E Model 1999 . 11 Australian Model Tourist Model SUPPLEMENT-1 File this supplement with the service manual. Subject: PARTS CHANGED Sony Corporation 9-922-935-81 99K09013-1D Printed in Japan © 1999. 11 Home Audio Division Company Published by Quality Assurance Dept.
  • Page 90 (MY,SP,JE,HK,AR,AUS) (MY,SP,JE,HK,AR,AUS,KR) * 67 A-4414-821-A AUDIO BOARD, COMPLETE * 67 A-4414-821-A AUDIO BOARD, COMPLETE (MY,SP,JE,HK,AR,AUS) (MY,SP,JE,HK,AR,AUS,KR) 0 CNP1601 1-768-079-21 CORD, POWER (KR) CNP1601 ELECTRICAL PARTS LIST ELECTRICAL PARTS LIST A-4414-821-A AUDIO BOARD, COMPLETE A-4414-821-A AUDIO BOARD, COMPLETE ********************** ********************** (MY,SP,JE,HK,AR,AUS)
  • Page 91 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark ELECTRICAL PARTS LIST ELECTRICAL PARTS LIST A-4417-130-A POWER AMP BOARD, COMPLETE A-4417-130-A POWER AMP BOARD, COMPLETE *************************** *************************** (MY,SP,JE,HK,AR,AUS) (MY,SP,JE,HK,AR,AUS.KR) < RESISTOR > < RESISTOR > R1227 1-247-854-11 CARBON 9.1K...

  • Page 92: Revision History

    HCD-MD333 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 2001.06...
