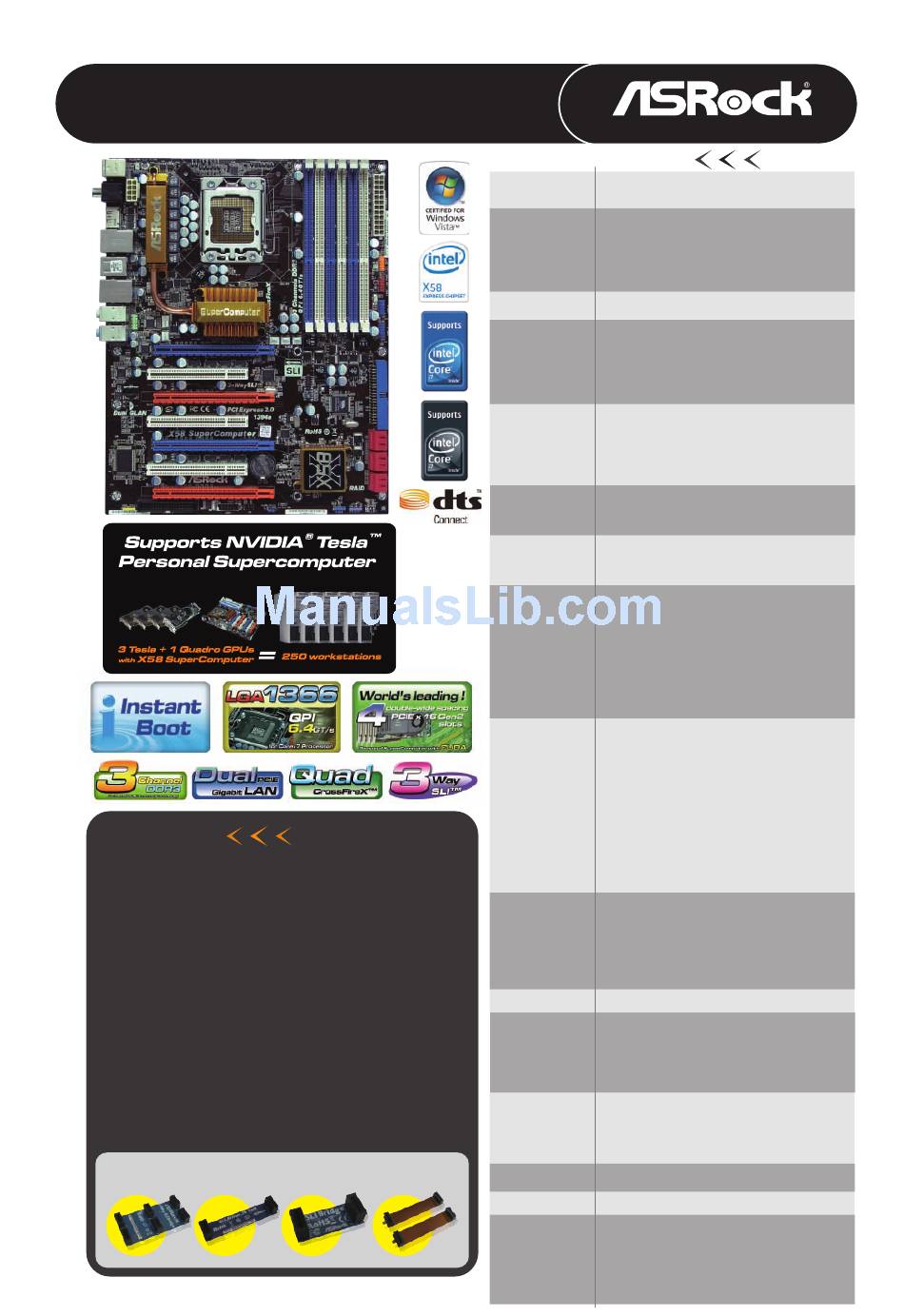

ASROCK X58 SUPERCOMPUTER Brochure

X58 SuperComputer
Intel ® X58 + ICH10R Chipsets
Product Brief
- System Bus up to 6400 MT/s; Intel
Interconnect
- Triple Channel DDR3 2000 (OC) with 6 DIMM
slots
- 4 x PCI Express 2.0 x16 slots
(Double-wide slot spacing between each PCI-E slot)
- Dual PCIE Gigabit LAN, support teaming
function
- NVIDIA ® Quad SLI TM
TM TM
- ATI CrossFireX , up to Quad CrossFireX
- 7.1 CH, ALC890 Audio Codec, DTS support
- ASRock Instant Boot
Free Bundle
3-Way SLI SLI_Bridge_3S
Bridge Card Card
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
® QuickPath
, 3-Way SLI TM and SLI TM
SLI Bridge XFire_Bridge_3S
Cards
Detail Specification
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Platform
- All Solid Capacitor design (100% Japan-made high-
quality Conductive Polymer Capacitors)
CPU - Intel
/ Core™ i7 Processor Supports Intel
Technology
- System Bus up to 6400 MT/s; Intel
Interconnect
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU
Chipset - Northbridge: Intel
- Southbridge: Intel
- Triple Channel DDR3 memory technology
Memory
- 6 x DDR3 DIMM slots
- Supports DDR3 2000(OC)/1866(OC)/1600(OC)/1333
(OC)/1066 non-ECC, un-buffered memory
- Supports DDR3 ECC, buffered memory with Intel
Workstation 1S Xeon
- Max. capacity of system memory: 24GB
- Supports Intel
- 4 x PCI Express 2.0 x16 slots (blue @ x8 / x16 mode,
Expansion Slot
orange @ x8 / N/A mode)
(Double-wide slot spacing between each PCI-E slot)
- 3 x PCI slots
- Supports ATI
- Supports NVIDIA
- Supports NVIDIA
three Tesla and one Quadro graphics cards
Audio - 7.1 CH Windows
Content Protection
- DAC with 110dB dynamic range (ALC890 Audio Codec)
- DTS (Digital Theater Systems) support
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111DL
- Supports Wake-On-LAN
- Supports Dual LAN with Teaming function
I/O Panel
Rear Panel I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 7 x Ready-to-Use USB 2.0 Ports (1 USB 2.0 port shared
with eSATAII port)
- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED
LED)
- 1 x IEEE 1394 Port
- HD Audio Jack: Side Speaker / Rear Speaker / Central /
Bass / Line in / Front Speaker / Microphone
Connector - 6 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0,
RAID 1, RAID 10, RAID 5 and Intel
AHCI and Hot Plug functions
* 2 SATAII 3.0 Gb/s connectors can be used as eSATAII connectors
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- 1 x IEEE 1394 header
- CPU/Chassis/NB/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- CD in header
- Front panel audio connector
- 3 x USB 2.0 headers (support 5 USB 2.0 ports)
- 8Mb AMI BIOS
BIOS Feature
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU, DRAM, NB, SB,VTT Voltage Multi-adjustment
- Supports I. O. T. (Intelligent Overclocking Technology)
- Supports Smart BIOS
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)
- ASRock OC Tuner
Unique Feature
- Intelligent Energy Saver
- Instant Boot
- Hybrid Booster:
TM
- CPU Temperature Sensing
Hardware Monitor
- Chassis Temperature Sensing
- CPU/Chassis/NB/Power Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
OS
- Microsoft
64-bit compliant
Certifications - FCC, CE, WHQL
- 2 x ASRock XFire_Bridge_3S Cards
Accessories
- 1 x ASRock SLI Bridge
- 1 x ASRock SLI_Bridge_3S Card
- 1 x ASRock 3-Way SLI Bridge Card
- Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 133 Cables
- 6 x SATA Data Cables (Optional)
- 2 x SATA 1 to 1 Power Cables (Optional)
