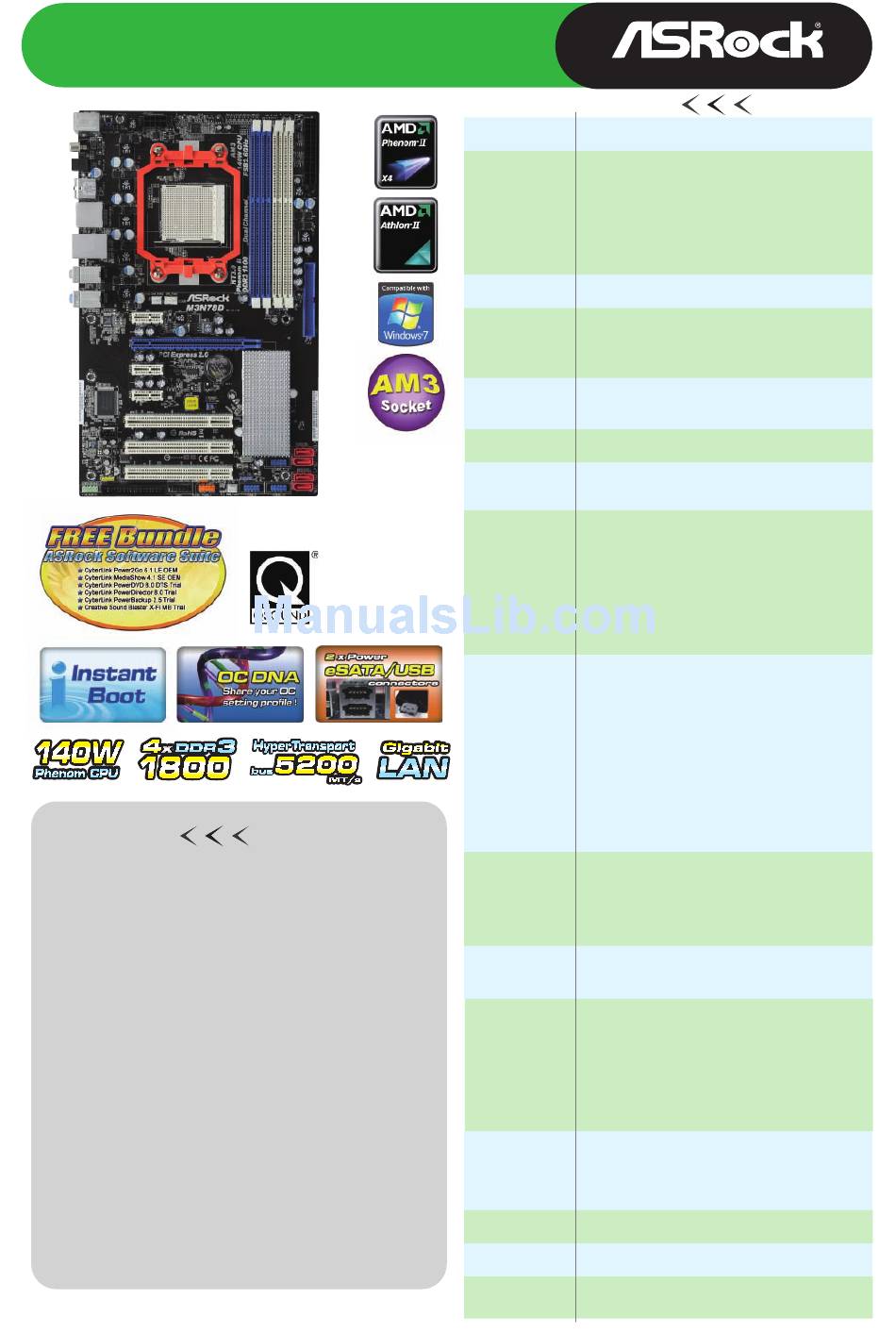

ASROCK M3N78D Brochure

M3N78D
NVIDIA nForce 720D Chipset
®
Product Brief
- Solid Capacitor for CPU power
- Supports CPU up to 140W
- Hyper Transport Bus 5200 MT/s
- Dual Channel DDR3 1800 (OC)
- 2 x Powered eSATAII/USB Connectors
- Gigabit LAN 10/100/1000 Mb/s
- 7.1 CH HD Audio (VIA
with QSound)
- Supports ASRock Instant Boot, Instant Flash,
ASRock OC Tuner, IES, OC DNA
- Free Bundle : CyberLink DVD Suite - OEM and
Trial; Creative Sound Blaster X-Fi MB - Trial
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
VT1718S Audio Codec
®
ww w.a s ro ck. c o m
Detail Specification
- ATX Form Factor: 12.0-in x 7.5-in, 30.5 cm x 19.1 cm
Platform
- Solid Capacitor for CPU power
CPU
- Support for Socket AM3 processors: AMD Phenom
X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron
processors
- Supports CPU up to 140W
- AMD LIVE! TM
- Supports AMD's Cool 'n' Quiet Technology
- FSB 2600 MHz (5.2 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport 3.0 (HT 3.0) Technology
Chipset
- NVIDIA ® nForce 720D
- Dual Channel DDR3 memory technology
Memory
- 4 x DDR3 DIMM slots
- Supports DDR3 1800(OC)/1600(OC)/1333/1066/800
non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB
- 1 x PCI Express 2.0 x16 slot (blue @ x16 mode)
Expansion Slot
- 3 x PCI Express x1 slots
- 3 x PCI slots
Audio - 7.1 CH HD Audio (VIA
LAN - Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Realtek RTL8211CL
- Supports Wake-On-LAN
I/O Panel
Rear Panel I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 4 x Ready-to-Use USB 2.0 Ports
- 2 x Powered eSATAII/USB Connectors
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass
/ Line in / Front Speaker / Microphone
Connector
- 4 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0,
RAID 1, RAID 0+1, RAID 5 and JBOD), NCQ, AHCI and
Hot Plug functions
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x COM port header
- 1 x HDMI_SPDIF header
- 1 x Chassis Intrusion header
- 1 x Power LED header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- CD in header
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
BIOS Feature - 8Mb AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- VCCM, NB Voltage Multi-adjustment
- Supports NVIDIA
- Drivers, Utilities, AntiVirus Software (Trial Version),
Support CD
ASRock Software Suite (CyberLink DVD Suite - OEM and
Trial; Creative Sound Blaster X-Fi MB - Trial)
Unique Feature
- ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Hardware Monitor - CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- CASE OPEN detection
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
OS
- Microsoft Windows
®
/ XP Media Center / XP 64-bit compliant
Certifications
- FCC, CE, WHQL
- Quick Installation Guide, Support CD, I/O Shield
Accessories
- 2 x SATA Data Cables (Optional)
Ready
VT1718S Audio Codec)
®
NVCC (NVIDIA Clock Calibration)
® ®
7 / 7 64-bit / Vista / Vista
® TM TM
II X4 /
TM
64-bit / XP
