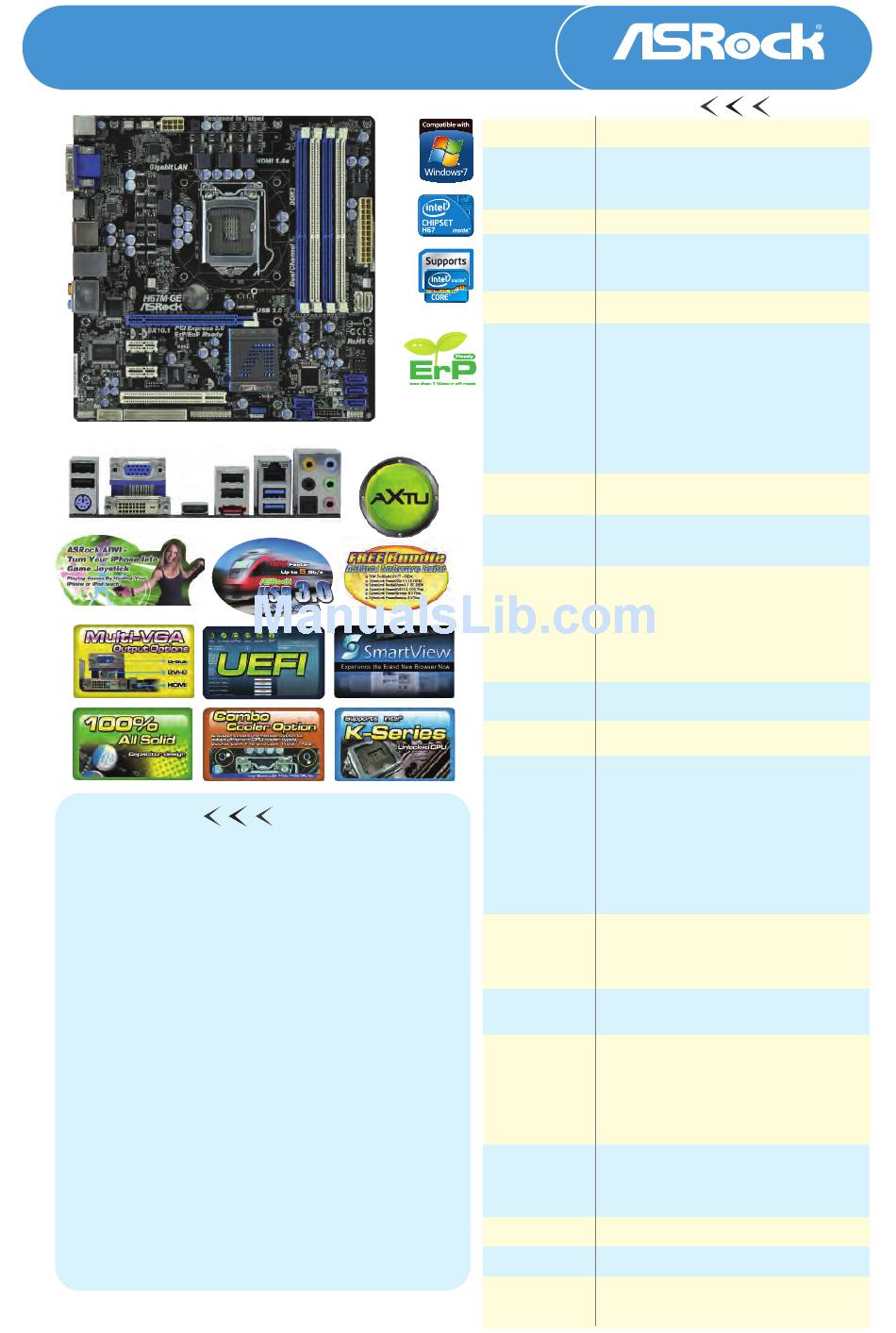

ASROCK H67M-GE Brochure & Specs

H67M-GE
®
Intel H67 Chipset
Product Brief
- 100% All Solid Capacitor design
- Supports Intel ® K-Series unlocked CPU
- Supports Dual Channel DDR3 1333
- Intel ® HD Graphics 2000/3000 and new Visual
Features, DX10.1, Pixel Shader 4.1
- Supports Blu-ray Stereoscopic 3D with HDMI 1.4a
- Multi VGA Output options: D-Sub, DVI-D and
HDMI
- 2 x USB 3.0 ports, 2 x SATA3 connectors,
1 x eSATA2 connector
- Supports ASRock Extreme Tuning Utility (AXTU),
Instant Boot, Instant Flash, Good Night LED,
Multi-Fan Speed Control, AIWI, APP Charger,
SmartView
- Combo Cooler Option (C.C.O.)
- 7.1 CH HD Audio with Content Protection
(Realtek ALC892 Audio Codec), Premium Blu-ray
audio suppport
- Free Gift: 1 x 3D Red/Cyan Anaglyph Glasses
- Free Software : CyberLink DVD Suite - OEM and
Trial; Creative Sound Blaster X-Fi MB - Trial
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
w w w. a s rock . co m
Detail Specification
Platform
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
- All Solid Capacitor design
CPU
- Supports 2 nd Generation Intel
Package
- 4 + 1 Power Phase Design
- Supports Intel
- Supports Intel
- Supports Hyper-Threading Technology
Chipset
®
- Intel H67
- Dual Channel DDR3 memory technology
Memory
- 4 x DDR3 DIMM slots
- Supports DDR3 1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 32GB
- 1 x PCI Express 2.0 x16 slot (blue @ x16 mode)
Expansion Slot
- 2 x PCI Express 2.0 x1 slots
- 1 x PCI slot
- Intel ® HD Graphics 2000/3000 and new Visual Features
Graphics
- Pixel Shader 4.1, DirectX 10.1
- Max. shared memory 1759MB
- Multi VGA Output options: D-Sub, DVI-D and HDMI
- Supports HDMI 1.4a Technology with max. resolution up to
1920x1200 @ 60Hz
- Supports DVI with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR
(High Bit Rate Audio) with HDMI
(Compliant HDMI monitor is required)
- Supports Blu-ray Stereoscopic 3D with HDMI 1.4a
- Supports HDCP function with DVI and HDMI ports
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI
and HDMI ports
Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio
Codec)
- Premium Blu-ray audio support
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
LAN
- Realtek RTL8111E
- Supports Wake-On-LAN
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
I/O Panel
Rear Panel I/O
- 1 x PS/2 Keyboard Port
- 1 x VGA/D-Sub Port
- 1 x VGA/DVI-D Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x eSATA2 Connector
- 2 x Ready-to-Use USB 3.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker /
Microphone
- 2 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1,
SATA3
RAID 10, RAID 5 and Intel
"Hot Plug" functions
- 2 x USB 3.0 ports by Etron EJ168A, support USB 1.0/2.0/3.0 up to
USB 3.0
5Gb/s
- 3 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1,
Connector
RAID 10, RAID 5 and Intel
"Hot Plug" functions
- 2 x SATA3 6.0 Gb/s connectors
- 1 x Floppy connector
- 1 x IR header
- 1 x CIR header
- 1 x Print Port header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- 1 x Power LED header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
BIOS Feature
- 64Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- IGPU, DRAM, PCH, CPU PLL, VTT, VCCSA Voltage
Multi-adjustment
- Drivers, Utilities, AntiVirus Software (Trial Version),
Support CD
ASRock Software Suite (CyberLink DVD Suite - OEM and Trial;
Creative Sound Blaster X-Fi MB - Trial)
Unique Feature - ASRock Extreme Tuning Utility (AXTU)
- Instant Boot
- ASRock Instant Flash
- ASRock AIWI
- ASRock APP Charger
- SmartView
- Hybrid Booster:
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Combo Cooler Option (C.C.O.)
- Good Night LED
- CPU Temperature Sensing
Hardware Monitor
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by
CPU or MB Temperature)
- CPU Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
OS
- Microsoft ® Windows
64-bit compliant
Certifications
- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
- Quick Installation Guide, Support CD, I/O Shield
Accessories
- 2 x SATA Data Cables (Optional)
- 1 x 3D Red/Cyan Anaglyph Glasses (Optional)
® Core TM i7 / i5 / i3 in LGA1155
® Turbo Boost 2.0 Technology
® K-Series unlocked CPU
® Rapid Storage), NCQ, AHCI and
® Rapid Storage), NCQ, AHCI and
® 7 / 7 64-bit / Vista TM / Vista TM 64-bit / XP / XP
