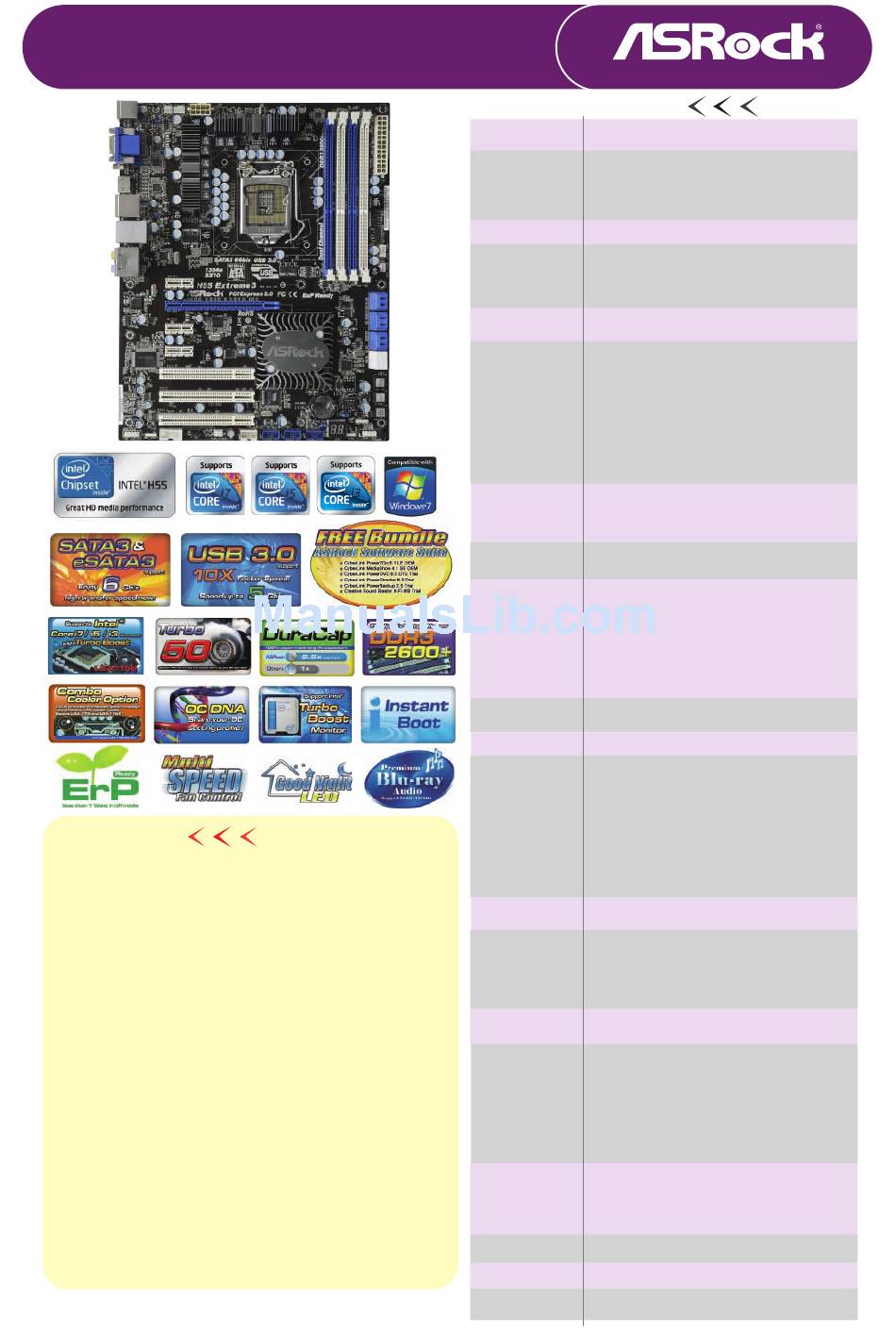

ASROCK H55 EXTREME3 Brochure

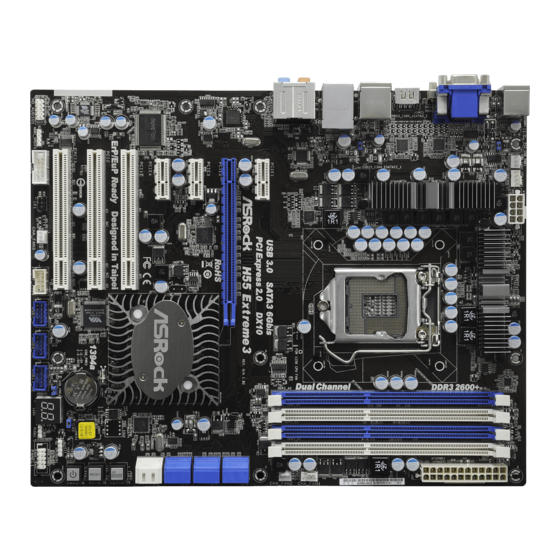

H55 Extreme3
Intel H55 Chipset
®
Product Brief
- ASRock DuraCap (2.5 x longer life time),
100% Japan-made high-quality Conductive
Polymer Capacitors
- Advanced V8 + 2 Power Phase Design
- Supports Dual Channel DDR3 2600+ (OC)
- Multi VGA Output options: D-Sub, DVI-D and
HDMI
- 1 x eSATAIII Connector, 2 x SATA3 6.0 Gb/s
connector, 1 x USB 3.0 Port, 2 x IEEE1394 Ports
- ErP/EuP Ready, Combo Cooler Option (C.C.O.),
Dr. Debug
- Smart Swith Design : Power / Reset / Clear
CMOS Switch with LED
- Turbo 50 / Turbo 100 GPU Overclocking
- Supports ASRock Instant Boot, Instant Flash,
OC DNA, Good Night LED, Multi-Speed Fan
Control, OC Tuner, IES
- 7.1 CH HD Audio (VT2020 Audio Codec with
QSound), 110dB & Premium Blu-ray audio
support
- Free Bundle: CyberLink DVD Suite - OEM and
Trial; Creative Sound Blaster X-Fi MB - Trial
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
ww w. a s ro ck. c om
Detail Specification
Platform
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- All Solid Capacitor design (100% Japan-made high-quality
Conductive Polymer Capacitors)
CPU
- Supports Intel
LGA1156 Package
- Advanced V8 + 2 Power Phase Design
- Supports Intel
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU
Chipset
- Intel H55
®
Memory
- Dual Channel DDR3 memory technology
- 4 x DDR3 DIMM slots
- Supports DDR3 2600+(OC)/2133(OC)/1866(OC)/1600/
1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB
- Supports Intel
- 1 x PCI Express 2.0 x16 slot (blue @ x16 mode)
Expansion Slot
- 3 x PCI Express 2.0 x1 slots (2.5GT/s)
- 3 x PCI slots
* Requires Processor with Intel
Graphics *
- Intel HD Graphics
®
- Pixel Shader 4.0, DirectX 10
- Max. shared memory 1759MB
- Multi VGA Output options: D-Sub, DVI-D and HDMI
- Supports HDMI 1.3a Technology with max. resolution up to
1920x1200
- Supports DVI with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR
(High Bit Rate Audio) with HDMI 1.3a
(Compliant HDMI monitor is required)
- Supports HDCP function with DVI and HDMI ports
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI
and HDMI ports
Audio
- 7.1 CH HD Audio with Content Protection
- DAC with 110dB dynamic range (VIA
- Supports HDMI Audio with Dolby True HD and DTS HD Master
Audio (when Intel
G6950 CPU is installed)
- Premium Blu-ray audio support
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111DL
- Supports Wake-On-LAN
I/O Panel
Rear Panel I/O
- 1 x PS/2 Keyboard Port
- 1 x VGA/D-Sub Port
- 1 x VGA/DVI-D Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 5 x Ready-to-Use USB 2.0 Ports
- 1 x eSATAIII Connector
- 1 x Ready-to-Use USB 3.0 Port
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- 1 x IEEE 1394 Port
- HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front
Speaker / Microphone
SATA3 - 2 x SATA3 6.0 Gb/s connectors by Marvell SE9123/9120, support
NCQ, AHCI and "Hot Plug" functions (SATA3_2 connector is shared
with eSATA3 port)
USB 3.0
- 1 x USB 3.0 port by Fresco FL1000G, supports USB 3.0 up to 5Gb/s
Connector
- 6 x SATAII 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug
functions
- 2 x SATA3 6.0 Gb/s connectors
- 1 x IR header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- 1 x IEEE 1394 header
- 1 x Chassis Intrusion header
- 1 x Power LED header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
- 1 x Dr. Debug with LED
Smart Switch
- 1 x Power Switch with LED
- 1 x Reset Switch with LED
- 1 x Clear CMOS Switch with LED
BIOS Feature
- 64Mb AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU VID, VCCM, SB, VTT, PCH_PLL Voltage Multi-adjustment
- Supports I. O. T. (Intelligent Overclocking Technology)
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version),
ASRock Software Suite (CyberLink DVD Suite - OEM
and Trial; Creative Sound Blaster X-Fi MB - Trial)
Unique Feature - ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Combo Cooler Option (C.C.O.)
- Good Night LED
- Turbo 50 / Turbo 100 GPU Overclocking (Requires Processor with
Intel ® Graphics Technology)
Hardware Monitor - CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- CPU/Chassis Fan Multi-Speed Control
- CASE OPEN detection
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
OS
- Microsoft Windows
®
XP / XP 64-bit compliant
Certifications
- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
- Quick Installation Guide, Support CD, I/O Shield
Accessories
- 4 x SATA Data Cables (Optional)
- 1 x SATA 1 to 1 Power Cable (Optional)
Core i7 / i5 / i3 and Pentium G6950 Processors in
® TM ®
Turbo Boost Technology
®
Extreme Memory Profile (XMP)
®
® HD Graphics Technology
® VT2020 Audio Codec)
Core i5 600 series / i3 500 series / Pentium
® TM
7 / 7 64-bit / Vista / Vista 64-bit /
® TM TM
®
