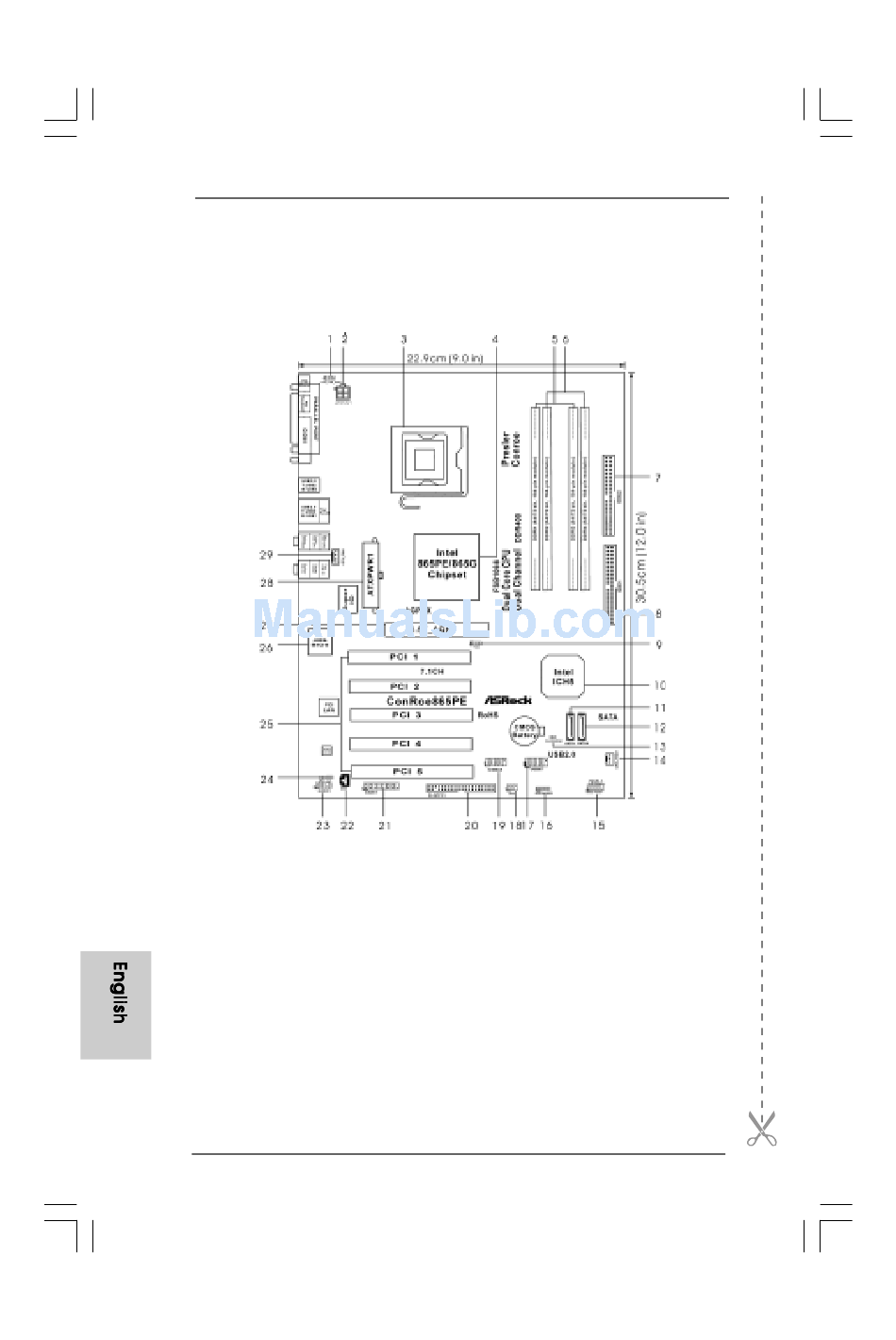

Motherboard Layout

Motherboard L
1 PS2_USB_PWR1 Jumper
2 ATX 12V Connector (ATX12V1)
3 775-Pin CPU Socket
4 North Bridge Controller
5 2 x 184-pin DDR DIMM Slots
(Dual Channel A: DDR1, DDR3; Blue)
6 2 x 184-pin DDR DIMM Slots
(Dual Channel B: DDR2, DDR4; Black)
7 Secondary IDE Connector (IDE2, Black)
8 Primary IDE Connector (IDE1, Blue)
9 FSB Select Jumper (FSB1)
10 South Bridge Controller
11 Primary Serial ATA Connector (SATA1)
12 Secondary Serial ATA Connector (SATA2)
13 Clear CMOS Jumper (CLRCMOS0)
14 Chassis Fan Connector (CHA_FAN1)
2 2 2 2 2
ayout ayout
ayout ayout
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
ASRock ConRoe865PE Motherboard
System Panel Header (PANEL1)
Chassis Speaker Header (SPEAKER 1)
USB 2.0 Header (USB67, Blue)
Infrared Module Header (IR1)
USB 2.0 Header (USB45, Blue)
Floppy Connector (FLOPPY1)
Game Connector (GAME1)
Internal Audio Connector: CD1 (Black)
Front Panel Audio Header (AUDIO1)
JR1 / JL1 Jumpers
PCI Slots (PCI1- 5)
BIOS FWH Chip
AGP Slot (1.5V_AGP1)
ATX Power Connector (ATXPWR1)
CPU Fan Connector (CPU_FAN1)
