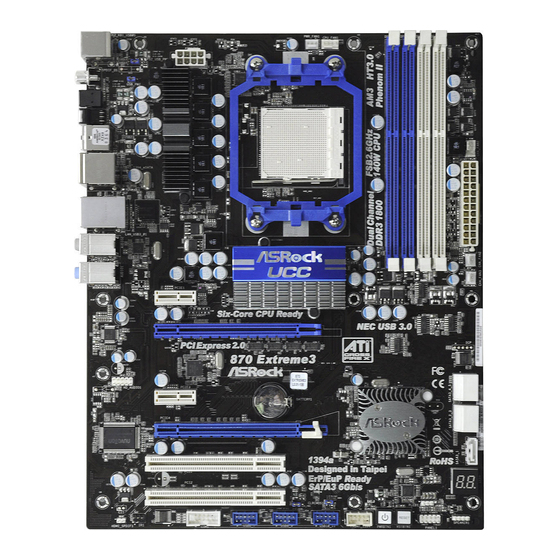

ASROCK 870 EXTREME3 Specifications

870 Extreme3
AMD 870 + SB850 Chipsets
Product Brief
- Phenom II X6 Six-Core CPU Ready
- Supports Exclusive ASRock UCC Chip - Unlock CPU
Core feature
- ASRock DuraCap (2.5 x longer life time), 100%
Japan-made high-quality Conductive Polymer
Capacitors
- Supports ATI Quad CrossFire
TM
- 1 x eSATAIII Connector, 5 x SATA3 6.0 Gb/s
connectors, 2 x USB 3.0 ports, 2 x IEEE1394 ports
- Smart Swith Design : 1 x Power Switch with LED,
1 x Reset Switch with LED, 1 x Clear CMOS Switch
with LED
- Supports ASRock Instant Boot, Instant Flash,
OC Tuner, IES, OC DNA, Multi-Speed Fan Control
- 7.1 CH HD Audio with Content Protection (Realtek
ALC892 Audio Codec) , Premium Blu-ray audio
support
- ErP/EuP Ready
- Free Software: CyberLink DVD Suite - OEM and Trial;
Creative Sound Blaster X-Fi MB - Trial
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
, CrossFireX
TM TM
w w w. a s rock. co m
Detail Specification
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Platform
- All Solid Capacitor design (100% Japan-made high-
quality Conductive Polymer Capacitors)
CPU
- Support for Socket AM3 processors: AMD Phenom
X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 /
Sempron processors
- Six-Core CPU Ready
- Supports UCC feature (Unlock CPU Core)
- V4 + 1 Power Phase Design
- Supports CPU up to 140W
- Supports AMD's Cool 'n' Quiet Technology
- FSB 2600 MHz (5.2 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport 3.0 (HT 3.0) Technology
Chipset - Northbridge: AMD 870
- Southbridge: AMD SB850
- Dual Channel DDR3 memory technology
Memory
- 4 x DDR3 DIMM slots
- Supports DDR3 1800(OC)/1600(OC)/1333/1066/800 non
-ECC, un-buffered memory
- Max. capacity of system memory: 16GB
- 2 x PCI Express 2.0 x16 slots (Single at x16 or dual at
Expansion Slot
x8/x8 mode)
- 2 x PCI Express 2.0 x1 slots
- 2 x PCI slots
- Supports ATI
- 7.1 CH HD Audio with Content Protection (Realtek
Audio
ALC892 Audio Codec)
- Premium Blu-ray audio support
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
LAN
- Realtek RTL8111E
- Supports Wake-On-LAN
- Supports LAN Cable Detection
I/O Panel
Rear Panel I/O
- 1 x PS/2 Keyboard Port
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 6 x Ready-to-Use USB 2.0 Ports
- 1 x eSATAIII Connector
- 2 x Ready-to-Use USB 3.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and
SPEED LED)
- 1 x IEEE 1394 Port
- 1 x Clear CMOS Switch with LED
- HD Audio Jack: Side Speaker / Rear Speaker / Central /
Bass / Line in / Front Speaker / Microphone
- 2 x USB 3.0 ports by NEC MPD720200, support USB
USB 3.0
1.0/2.0/3.0 up to 5Gb/s
- 5 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0,
SATA3
RAID 1, RAID 0+1 and RAID 5), NCQ, AHCI and
"Hot Plug" functions
Connector - 5 x SATA3 6.0 Gb/s connectors
- 1 x IR header
- 1 x COM port header
- 1 x IEEE 1394 header
- 1 x HDMI_SPDIF header
- 1 x Power LED header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
- 1 x Dr. Debug (7-Segment Debug LED)
- 1 x Power Switch with LED
Smart Switch
- 1 x Reset Switch with LED
- 1 x Clear CMOS Switch with LED
BIOS Feature
- 8Mb AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU VID, VCCM, NB, SB Voltage Multi-adjustment
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), AMD
OverDrive
TM
Explorer, ASRock Software Suite (CyberLink DVD Suite -
OEM and Trial; Creative Sound Blaster X-Fi MB - Trial)
Unique Feature - ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- CPU Temperature Sensing
Hardware Monitor
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
- Microsoft Windows
OS ®
/ XP / XP Media Center / XP 64-bit compliant
- FCC, CE, WHQL
Certifications
- ErP/EuP Ready (ErP/EuP ready power supply is required)
- Quick Installation Guide, Support CD, I/O Shield
Accessories
- 4 x SATA data cables (optional)
Quad CrossFireX and CrossFireX
TM TM
Utility, AMD Fusion, AMD Fusion Media
7 / 7 64-bit / Vista / Vista
® TM TM
II
TM
TM
64-bit
