Sennheiser ME 66 Technical Data

ME 66
Microphones |
General Description

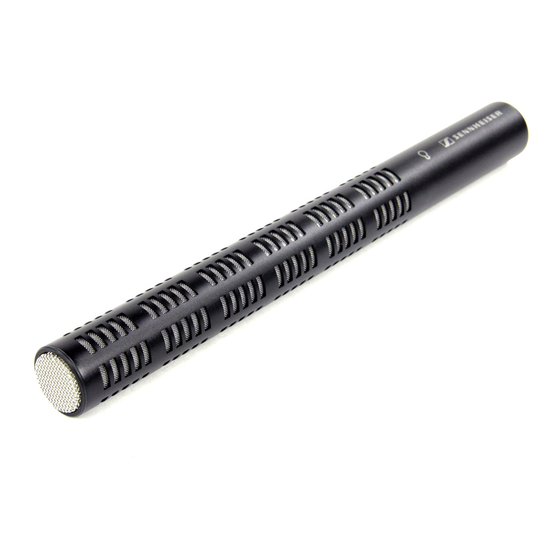

The ME 66 is a short gun microphone head designed for use with the K6
and K6P powering modules. It is especially suitable for reporting, film and
broadcast location applications and for picking up quiet signals in noisy
or acoustically live environments as it discriminates against sound not
emanating from the main pick-up direction. Matt black, anodised, scratch-
resistant finish.
Pictured with K6 powering module and cable (available separately)
Features
Super-cardioid/lobar pick-up pattern
Highly directional
Low inherent self-noise
High sensitivity
Wide frequency response
Delivery includes: 1 ME 66
Recommended Accessories
MZW 66 foam windshield
MZW 66 pro foam windshield
Back-Electret Microphone Head Suitable
for K6 and K6P Powering Modules
Cat. No. 003704
Cat. No. 003712
Technical Data
Pick-up pattern ............................................... super-cardioid/lobar
Frequency response .................................40 – 20,000 Hz ± 2.5 dB
Sensitivity
(free field, no load) (1 kHz) ............................ 50 mV/Pa ± 2.5 dB
Nominal impedance ............................................... 200 Ω (with K6)
Min. terminating impedance ...................................1 kΩ (with K6)
Equivalent noise level
A-weighted (DIN IEC 651)........................................................ 10 dB
CCIR-weighted (CCIR 468-3).................................................... 21 dB
Max. SPL (1 kHz)...............................................126 dB (THD = 1 %)
Dimensions .............................................................Ø 22.5 x 221 mm
Weight ............................................................................................65 g
Profile
Super-cardioid/lobar (short gun) microphone head suitable
for K6 and K6P powering modules. Frequency response 40 –
20,000 Hz ± 2.5 dB, sensitivity (free field, no load) 50 mV/
Pa ± 2.5 dB at 1 kHz, nominal impedance 200 Ω (with K6),
min. terminating impedance 1 kΩ (with K6), equivalent
noise level A-weighted 10 dB, CCIR-weighted 21 dB, max. SPL
126 dB at 1 kHz (THD = 1 %), dimensions Ø 22.5 x 221 mm,
weight 65 g.
Cat. No. 003284
