Sennheiser K 6 Datasheet

K6
Microphones |

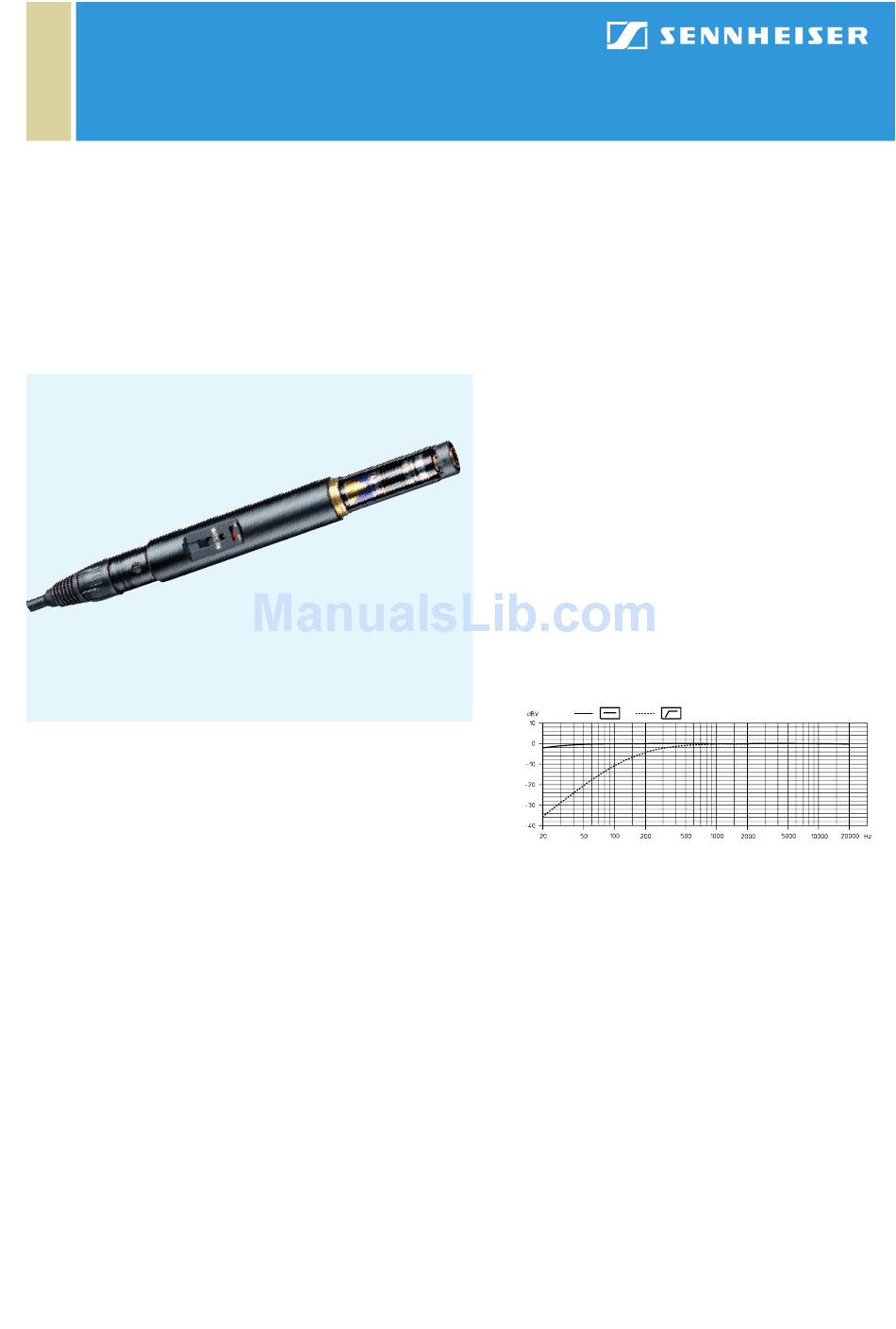

General Description
The K6 powering module is the heart of this Sennheiser professional modu-
lar microphone system and can be powered either by its internal 'AA' size
1.5 V battery or by 12 – 48 V phantom power. The K6 can be combined
with different condenser microphone heads to provide a wide variety of
polar patterns. Matt black, anodised scratch-resistant finish.
Cable pictured is an accessory not supplied with the powering module
Features
Switchable bass roll-off filter protects against rumble, handling,
pop and wind noise
On/off switch with battery test
High output, low noise
Transformerless balanced output on 3-pin XLR connector
Delivery includes: 1 K6 powering module
1 MZQ 200 microphone clamp
1 AA battery
1 protective carrying case
Recommended Accessories
ME 62 microphone head, omni-directional
ME 64 microphone head, cardioid
ME 65 microphone head, super-cardioid
ME 66 microphone head, short gun
ME 67 microphone head, long gun
MKE 2-60 Gold-C clip-on microphone, omni-directional
ME 102/104/105 mini-modular system
MZS 6 shock mount
MZQ 6 quick release clamp
Product Variants
K6-C: as K6, but without accessories
K6-CL: as K6-C, but with lower sensitivity
Powering Module
Cat. No. 003281
Cat. No. 003282
Cat. No. 003283
Cat. No. 003284
Cat. No. 003285
Cat. No. 004733
Cat. No. 003287
Cat. No. 003288
Cat. No. 003861
Cat. No. 004032
Technical Data
Frequency response ..................................... 30 – 20,000 Hz - 1 dB
Transmission factor (1 kHz).......................................................0 dB
Nominal impedance ................................................................. 200 Ω
Min. terminating impedance ..................................................... 1 kΩ
Max. output voltage................................................... 2 V (at 1 kHz)
Power supply ........................................ phantom 12 - 48 V (± 4 V)
Supply current..........................................................................2.2 mA
Battery life ................................................................ approx. 150 hrs
Dimensions ................................................................ 155 x Ø 22 mm
Resultant length* .................................................................... 94 mm
Weight ............................................................................. approx. 45 g
* Resultant length: this is the figure you need to add to the microphone head
length to give the overall length of the complete microphone.
Profile
Powering module for battery/phantom powering with
switchable roll-off filter, battery on/off switch with battery
test. Suitable for ME 62 – ME 67 microphone heads and -60
versions of MKE microphones. Transmission factor 0 dB at
1 kHz, nominal impedance 200 Ω, min. terminating imped-
ance 1 kΩ, max. output voltage 2 V (at 1 kHz), power sup-
ply: phantom powering 12 – 48 V or 1.5 V (AA size) alkaline
battery, supply current 2.2 mA, battery life approx. 150 hrs,
dimensions: Ø 22 x 155 mm, resultant length 94 mm, weight
approx. 45 g.
Cat. No. 003279
or 1.5 V AA size battery
