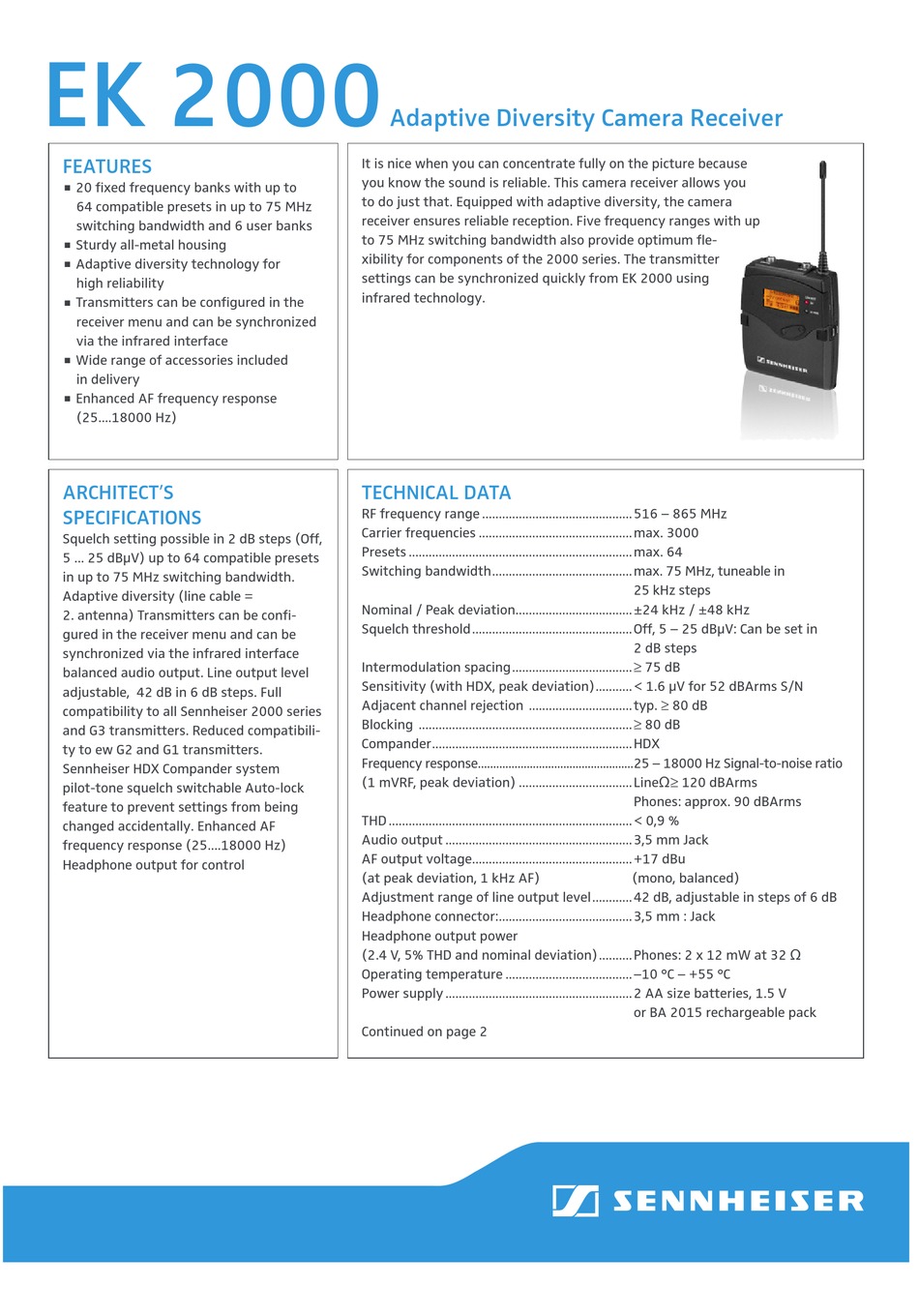

Sennheiser EK 2000 Specifications

EK 2000
FEATURES
20 fixed frequency banks with up to
64 compatible presets in up to 75 MHz
switching bandwidth and 6 user banks
Sturdy all-metal housing
Adaptive diversity technology for
high reliability
Transmitters can be configured in the
receiver menu and can be synchronized
via the infrared interface
Wide range of accessories included
in delivery
Enhanced AF frequency response
(25....18000 Hz)
ARCHITECT'S

SPECIFICATIONS

Squelch setting possible in 2 dB steps (Off,
5 ... 25 dBμV) up to 64 compatible presets
in up to 75 MHz switching bandwidth.
Adaptive diversity (line cable =
2. antenna) Transmitters can be confi-
gured in the receiver menu and can be
synchronized via the infrared interface
balanced audio output. Line output level
adjustable, 42 dB in 6 dB steps. Full
compatibility to all Sennheiser 2000 series
and G3 transmitters. Reduced compatibili-
ty to ew G2 and G1 transmitters.
Sennheiser HDX Compander system
pilot-tone squelch switchable Auto-lock
feature to prevent settings from being
changed accidentally. Enhanced AF
frequency response (25....18000 Hz)
Headphone output for control
Adaptive Diversity Camera Receiver
It is nice when you can concentrate fully on the picture because
you know the sound is reliable. This camera receiver allows you
to do just that. Equipped with adaptive diversity, the camera
receiver ensures reliable reception. Five frequency ranges with up
to 75 MHz switching bandwidth also provide optimum fle-
xibility for components of the 2000 series. The transmitter
settings can be synchronized quickly from EK 2000 using
infrared technology.

TECHNICAL DATA

RF frequency range ............................................. 516 – 865 MHz
Carrier frequencies .............................................. max. 3000
Presets ................................................................... max. 64
Switching bandwidth .......................................... max. 75 MHz, tuneable in
Nominal / Peak deviation................................... ±24 kHz / ±48 kHz
Squelch threshold ................................................ Off, 5 – 25 dBμV: Can be set in
Intermodulation spacing .................................... ≥ 75 dB
Sensitivity (with HDX, peak deviation) ........... < 1.6 μV for 52 dBArms S/N
Adjacent channel rejection ............................... typ. ≥ 80 dB
Blocking ................................................................ ≥ 80 dB
Compander ............................................................ HDX
Frequency response...................................................25 – 18000 Hz Signal-to-noise ratio
(1 mVRF, peak deviation) .................................. LineO≥ 120 dBArms
THD ......................................................................... < 0,9 %
Audio output ........................................................ 3,5 mm Jack
AF output voltage................................................ +17 dBu
(at peak deviation, 1 kHz AF)
Adjustment range of line output level ............ 42 dB, adjustable in steps of 6 dB
Headphone connector: ........................................ 3,5 mm : Jack
Headphone output power
(2.4 V, 5% THD and nominal deviation) .......... Phones: 2 x 12 mW at 32 O
Operating temperature ...................................... –10 °C – +55 °C
Power supply ........................................................ 2 AA size batteries, 1.5 V
Continued on page 2
25 kHz steps
2 dB steps
Phones: approx. 90 dBArms
(mono, balanced)
or BA 2015 rechargeable pack
