Connections

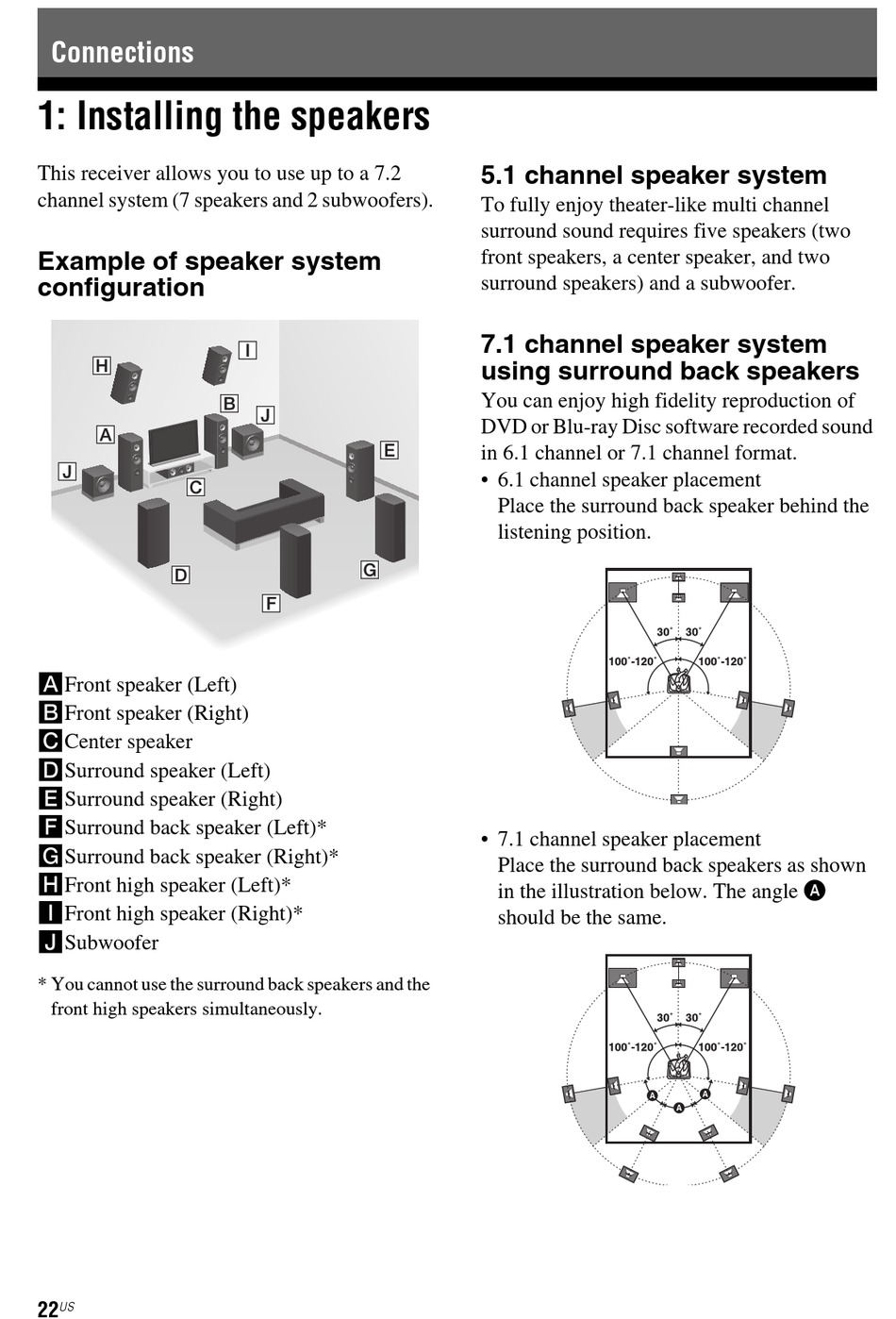

1: Installing the speakers

This receiver allows you to use up to a 7.2
channel system (7 speakers and 2 subwoofers).
Example of speaker system
configuration
AFront speaker (Left)
BFront speaker (Right)
CCenter speaker
DSurround speaker (Left)
ESurround speaker (Right)
FSurround back speaker (Left)*
GSurround back speaker (Right)*
HFront high speaker (Left)*
IFront high speaker (Right)*
JSubwoofer
* You cannot use the surround back speakers and the
front high speakers simultaneously.
US
22
5.1 channel speaker system
To fully enjoy theater-like multi channel
surround sound requires five speakers (two
front speakers, a center speaker, and two
surround speakers) and a subwoofer.
7.1 channel speaker system
using surround back speakers
You can enjoy high fidelity reproduction of
DVD or Blu-ray Disc software recorded sound
in 6.1 channel or 7.1 channel format.
• 6.1 channel speaker placement
Place the surround back speaker behind the
listening position.
• 7.1 channel speaker placement
Place the surround back speakers as shown
in the illustration below. The angle A
should be the same.
