Sony NSZ-GS7 Quick Setup Manual

Sony NSZ-GS7 Quick Setup Manual

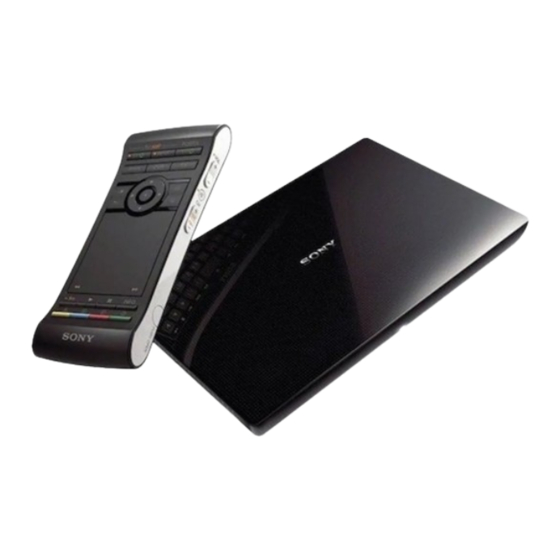

Network media player
Hide thumbs Also See for NSZ-GS7:
1
2

Advertisement

Quick Links

Download this manual See also: Reference Manual
Quick Setup Guide
Sony Customer Support
Network Media Player
USA: http://esupport.sony.com/ | 1‑800‑222‑SONY
NSZ-GS7/NSZ-GX70
Canada: http://esupport.sony.com/CA/ | 1‑877‑899‑SONY
Please Do Not Return the Product to the Store
(NSZ-GX70 is only for the US)
Connection
1
Connect to your TV
step
A
Follow :
to connect to your TV directly.
B
:
to connect to your TV via AV Receiver
C
:
if your connection differs from the diagrams below.
A
Direct to TV
(supplied with NSZ-GX70 only)
TV
(optional)
HDMI cable (not supplied)
Set Top Box /
Digital Video Recorder
2
Prepare for Network
step
connection
Wireless LAN
router*1*2
Broadband
router*2
LAN cable (not supplied)
*1 When using wireless connection, you need to set the Network Setup in the Initial Setup Wizard (on step 4).
*2 You can find MAC address in the Initial Setup Wizard (step 4) as needed. Select "Explain step" on "Connect to the Internet" screen.
To control connected devices using the remote
This player is equipped with a built‑in IR Blaster that accepts remote commands and sends them to various connected devices to control them with your remote.
When you set the player close to a connected device (as illustrated on the
right), you can control the device using the remote, including operations such as
changing TV channels or adjusting the volume of an AV Receiver.
However, if you place the player in a location where IR signals cannot reach,
you cannot control connected devices with the built‑in IR Blaster. In this case,
connect the supplied IR Blaster as follows:
 Connect the IR Blaster cable to the player.
 Place the IR Blaster so that the infrared transmitter points to the IR receiver
(sensor) on the device you want to control, as illustrated on the right.
US
B
To TV via AV Receiver
HDMI cable   
TV
(optional)
Set Top Box /
Digital Video Recorder
3
Connect to the power
step
source
AC power cord
In the Box
Network Media Player
Remote control
(Remote) (1)
To insert batteries into the 
remote control
AV Receiver
HDMI cable   
(supplied with NSZ-GX70 only)
HDMI cable (not supplied)
 Connect to the power
source
 Change the TV input
Switch the input selector on the TV
so that the signal from the player
appears on your TV screen.
Then, a screen that shows how to
setup your remote appears.
Note
This will only appear the first time you setup your
player.
IR Blaster
© 2012 Sony Corporation
Printed in China
4‑421‑770‑11 (1)
AC power cord (1)
Quick Setup Guide (1)
HDMI cable (1)
Getting Started (1)
(NSZ‑GX70 only)
Reference Guide and
Size AA batteries (2)
other documents
What's this?
IR (infrared)
The IR Blaster enables you to control
connected devices with your remote.
Blaster
Please see "To control connected
cable (1)
devices using the remote" shown below
for more information.
C
Other connection
See Help Guide for other connection patterns.
From your PC
http://www.sony.net/helpguide/r/networkplayer/
From your smartphone 
4
Start the Initial Setup
step
Wizard
Follow the directions for the Initial Setup
displayed on screen.
– Complete the Network setup process, otherwise the Initial
Setup Wizard cannot be closed.
– The screen may stay dark for several seconds after the
Sony logo appears, then the Initial Setup screen appears.
– It takes about 15 minutes to complete the Initial Setup.
– If the remote does not function, see "Troubleshooting" on
the back side of this guide.
*
* Location of the IR receiver may vary depending on the product you are using.

Advertisement

loading

Related Manuals for Sony NSZ-GS7

Summary of Contents for Sony NSZ-GS7

  • Page 1 © 2012 Sony Corporation Printed in China 4‑421‑770‑11 (1) In the Box Quick Setup Guide Network Media Player AC power cord (1) Quick Setup Guide (1) Remote control HDMI cable (1) Getting Started (1) (Remote) (1) (NSZ‑GX70 only) Reference Guide and Size AA batteries (2) other documents To insert batteries into the  remote control What’s this? IR (infrared) The IR Blaster enables you to control connected devices with your remote. Blaster Please see “To control connected cable (1) devices using the remote” shown below Sony Customer Support for more information. Network Media Player USA: http://esupport.sony.com/ | 1‑800‑222‑SONY NSZ-GS7/NSZ-GX70 Canada: http://esupport.sony.com/CA/ | 1‑877‑899‑SONY Please Do Not Return the Product to the Store (NSZ-GX70 is only for the US) Connection Connect to your TV step Follow : to connect to your TV directly.

  • Page 2: Troubleshooting

    – When this player and the TV are connected with HDMI cables via an AV Receiver, pictures may not be displayed properly due to the copyright protection feature of some Set Top – Make sure that the LAN router or Wireless LAN router is on. Boxes. In this case, contact your Cable/Satellite TV Operators. – Make sure that the LAN cable is connected correctly when using a wired network connection. The remote does not function. – Check the settings of the LAN router or Wireless LAN router. For details, refer to the operating instructions supplied with the LAN router or Wireless LAN router. – Make sure that the batteries are inserted correctly. – Move the player and the Wireless LAN router closer to each other. The Wireless LAN – Operate the remote closer to the player. connection is affected by the surrounding environment (the wall material, radio wave – Disconnect and reconnect the AC power cord. receiving condition, obstacles between the player and the Wireless LAN router, etc.). – Move the player away from devices that use a 2.4 GHz frequency band (microwaves, – Perform re‑pairing according to the following procedure. Bluetooth devices, cordless digital devices, etc.), or turn off such devices. These devices  Press the CONNECT button, located on the bottom of the player, with a thin, sharp may interrupt the communication between the player and the Wireless LAN router. object such as the point of a pen, etc. – If you cannot get Wi‑Fi over the Internet, please make sure you do not have a LAN cable  Follow the instructions on the screen. connected. The player places priority on a LAN connection over a Wi‑Fi connection. The player cannot connect to the Internet after Wi-Fi Protected Setup™  Use a thin, sharp object such as the point of a pen to press the CONNECT button. (WPS) is finished. – The wireless setting of the router may change automatically if you have used the Wi‑Fi Protected Setup (WPS) function before. In this case, retry the Wireless setup on your player – If the touch‑pad of the remote is not operated for a while, it will not sense any attempts at using the Wi‑Fi Protected Setup (WPS) function. operations. When you want to use it again, hold the remote up, or after clicking the touch‑ Wi‑Fi Protected Setup™ is a mark of the Wi‑Fi Alliance. pad, lift your finger off it for a few seconds. ...
