Summary of Contents for LG 49UF8400-CA

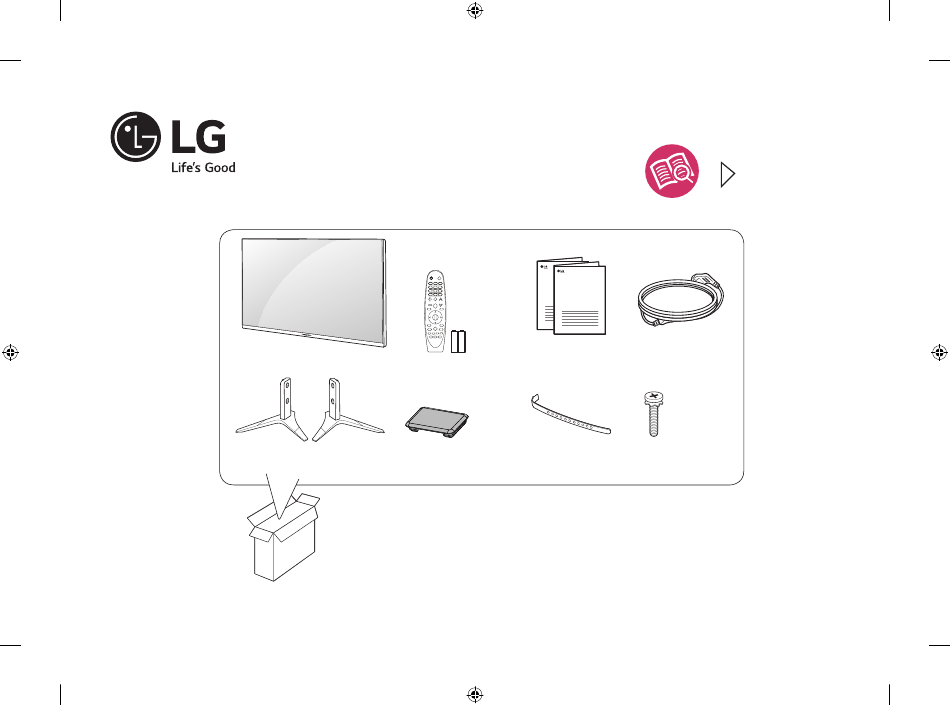

- Page 1 LED TV UF84** www.lg.com (M4 X L20) P/No: MFL67852411(1508-REV00) 韓國印刷...
- Page 2 • Read Safety and Reference. English • For the power supply and power consumption, refer to the label attached to the product. • 閲讀安全及參考資料。 粵語 • 關於電源供應及耗電量，參閱於產品上的標籤。...
- Page 3 55UF84** 49/55UF84** 49/55UF84** 55UF84**...
- Page 4 HDMI...
- Page 5 OPTICAL DIGITAL AUDIO OUT ANTENNA / CABLE IN VIDEO AUDIO VIDEO MONO...
- Page 7 49UF8400-CA 55UF8400-CA 含底座 (毫米) 1104 X 709 X 218 1239 X 783 X 218 尺寸 (寬 x 高 x 深) With stand (mm) 不含底座 (毫米) Dimensions (W x H x D) 1104 X 652 X 51.0 1239 X 726 X 51.2 Without stand (mm) 含底座...
- Page 9 OWNER’S MANUAL Safety and Reference LED TV* *LG LED TVs are LCD TVs with LED backlighting. Please read this manual carefully before operating your set and retain it for future reference. www.lg.com...
-
Page 10: Safety Instructions
structions Safety instructions Please read these safety precautions carefully before using the product. Insert power cable plug completely into wall socket otherwise if not WARNING secured completely into socket, fire ignition may break out. Ensure the power cord does not come into contact with hot objects such as a heater. - Page 11 Keep the anti-moisture packing material or vinyl packing out of the Do not spray water on the product or scrub with an inflammable reach of children. Anti-moisture material is harmful if swallowed. If substance (thinner or benzene). Fire or electric shock accident can swallowed by mistake, force the patient to vomit and visit the nearest occur.
- Page 12 Only use an authorized AC adapter and power cord approved by may cause injury. LG Electronics. Otherwise, this may result in fire, electric shock, If you intend to mount the product to a wall, attach VESA standard malfunction or product deformation.
- Page 13 We recommend that you maintain a distance of at least 2 to 7 times Do not turn the product On/Off by plugging-in or unplugging the power the diagonal screen size when watching TV. If you watch TV for a long plug to the wall outlet.
- Page 14 Do not press strongly upon the panel with a hand or sharp object such When moving or unpacking the product, work in pairs because the as nail, pencil or pen, or make a scratch on it, as it may cause damage product is heavy.
- Page 15 Viewing 3D imaging (Only 3D models) WARNING You may find different brightness and color of the panel depending on Viewing environment your viewing position(left/right/top/down). This phenomenon occurs due to the characteristic of the panel. It is not • Viewing Time related with the product performance, and it is not malfunction.
- Page 16 *A ≤ 10 mm Cautions when using the 3D glasses *B ≤ 18 mm • Make sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly. • Use a certified cable with the HDMI logo attached.
-
Page 17: Separate Purchase
• Hold the top and bottom of the TV frame firmly. Make sure not to * Some models require Wi-Fi/Bluetooth Dongle for using Magic Remote hold the transparent part, speaker, or speaker grill area. or LG Audio Device. * Supporting device of Wi-Fi/Bluetooth Dongle is a different in accordance with model. -
Page 18: Using The Joystick Button
Using the joystick button NOTE • When your finger over the joystick button and push it to the up, down, left or right, be careful not to press the joystick button. If you (Image shown may differ from your TV.) press the joystick button first, you may not be able to adjust the volume level and saved programmes. -
Page 19: Mounting On A Wall
We recommend the specifications. use of LG’s wall mount bracket. The LG wall mount is easy to adjust or • The wall mount kit includes an installation manual and necessary to connect the cables. When you do not use LG’s wall mount bracket, parts. -
Page 20: Antenna Connection
Antenna connection • Depending on the shape of the stand, use a flat tool to remove the stand cover as illustrated below. (e.g., a flat screwdriver) Connect the TV to a wall antenna socket with an RF cable (75 Ω). • Use a signal splitter to use more than 2 TVs. • If the image quality is poor, install a signal amplifier properly to improve the image quality. • If the image quality is poor with an antenna connected, try to realign the antenna in the correct direction. • An antenna cable and converter are not supplied. • Supported DTV Audio: MPEG, Dolby Digital, Dolby Digital Plus, HE-AAC. • This TV cannot receive ULTRA HD (3840 x 2160 pixels) broadcasts directly because the related standards have not been confirmed. Other connections Connect your TV to external devices. For the best picture and audio Connections (notifications) quality, Connect the external device and the TV with the HDMI cable . Some separate cable is not provided. NOTE Connect various external devices to the TV and switch input modes to select an external device. For more information of external device’s • → → → Picture → HDMI ULTRA HD Deep Colour connection, refer to the manual provided with each device. - On: Support 4K @ 60 Hz (4:4:4, 4:2:2, 4:2:0) ... -
Page 21: Remote Control
GUIDE Remote control RECENT MY APPS (Depending on model) The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the ends to the label inside the compartment, and close the battery cover. -
Page 22: Magic Remote Functions
Magic Remote Functions Adjusts the volume level. Scrolls through the saved programmes. (Depending on model) (MUTE) Mutes all sounds. When the message “Magic remote battery is low. Change the battery.” is displayed, replace the battery. * By pressing and holding the button, audio descriptions To replace batteries, open the battery cover, replace batteries (1.5 V AA) function will be enabled. -
Page 23: Open Source Software Notice Information
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to • ... -
Page 24: Specifications
Specifications (Only UF95**) Wireless module (LGSBW51) Specification Wireless LAN Bluetooth Wireless module specification y Because band channel used by the country could be different, the Bluetooth Standard IEEE 802.11a/b/g/n/ac Standard user can not change or adjust the operating frequency and this Version 4.0 product is set for the regional frequency table. - Page 26 Record the model number and serial number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service. MODEL SERIAL...
-
Page 27: External Control Device Setup
OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com... -
Page 28: Key Codes
KEY CODES KEY CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR + R/C Button List R/C Button CH -, PR - R/C Button Exit R/C Button Volume + R/C Button PIP(AD) R/C Button... -
Page 29: Usb To Serial Converter With Usb Cable
(TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter RS-232C IN which is not made nor provided by LG. (CONTROL & SERVICE) (PC) (TV) • It can be purchased from computer stores that carry accessories for IT support professionals. -
Page 30: Customer Computer
EXTERNAL CONTROL DEVICE SETUP (TV) (PC) (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &... -
Page 31: Communication Parameters
EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA... -
Page 32: Transmission / Receiving Protocol
EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99. - Page 33 EXTERNAL CONTROL DEVICE SETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD).
- Page 34 EXTERNAL CONTROL DEVICE SETUP Data Min : 00 to Max : 64 * (Depending on model) Ack [i][ ][Set ID][ ][OK/NG][Data][x] 14. Bass (Command: k s) 09. Tint (Command: k j) ► To adjust Bass. ► To adjust the screen tint. You can also adjust in the AUDIO menu.
- Page 35 EXTERNAL CONTROL DEVICE SETUP Set ID = All = 00 5th Band 20(decimal) Data 00 & 01 = Channel Data is 10 = 00 0a Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][x] Data 02 = Analog Antenna TV = 00 Result = ma 00 00 0a 00 * It depends on model, and can adjust when sound mode is EQ adjustable value.
- Page 36 EXTERNAL CONTROL DEVICE SETUP Number Data 05 = Digital Antenna TV = 02 - 22 : Antenna TV (DTV) – Don’t Use Physical Total = ma 00 00 00 11 00 01 02 Channel Number - 26 : Cable TV (CADTV) - Don’t Use Physical 2.
- Page 37 11 11 EXTERNAL CONTROL DEVICE SETUP 24. Input select (Command: x b) (Main Picture Input) ► To select input source for main picture. Transmission [x][b][ ][Set ID][ ][Data][Cr] Data X : don’t care 00 : DTV 01 : CADTV 02 : Satellite DTV 10 : ATV Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02] ISDB-BS (Japan)
- Page 38 EXTERNAL CONTROL DEVICE SETUP 27. Auto Configure (Command: j u) (Depending on model) ► To adjust picture position and minimize image shaking automatically. It works only in RGB (PC) mode. Transmission [j][u][ ][Set ID][ ][Data][Cr] Data 01 : To set Ack [u][ ][Set ID][ ][OK/NG][Data][x]...
