- Page 1 INSTRUCTION MANUAL DISHWASHER...
-
Page 2: Table Of Contents
Operating instructions ___________________________________15 Cleaning and maintenance _______________________________26 Thank you for choosing this product. We advise you to carefully read all the instructions contained in this manual, in order to understand how to operate your dishwasher safely and correctly. The manual is divided into paragraphs, which provide a step by step description of the dishwasher functions, with clear instructions accompanied by detailed illustrations. -
Page 3: Safety And Operating Instructions
THE NAME PLATE FEATURING THE TECHNICAL DATA, SERIAL NUMBER AND MARKINGS IS VISIBLY POSITIONED ON THE INNER EDGE OF THE DOOR. THE NAME PLATE ON THE INNER EDGE OF THE DOOR MUST NEVER BE REMOVED. DO NOT LEAVE THE DISCARDED PACKAGING MATERIALS UNSUPERVISED WITHIN THE HOME. -
Page 4: Safety Instructions
IRREVERSIBLE DAMAGE TO THE EYES, MOUTH, AND THROAT, AS WELL AS POSSIBLE DEATH BY SUFFOCATION. DO NOT INTRODUCE SOLVENTS SUCH AS ALCOHOL OR TURPENTINE WHICH MAY CAUSE AN EXPLOSION. DO NOT LOAD DISHES THAT ARE SOILED WITH ASH, WAX OR PAINTS. - Page 5 WARRANTY, AS WELL AS POSING A POTENTIAL HAZARD TO THE USER. The manufacturer declines all responsibility for damage to persons or property resulting from failure to observe the above precautions, from tampering with even a single component of the appliance, or from the use of non original spare parts.
-
Page 6: Installation And Hook-Up
Some models are equipped with only one adjustable foot at the rear, which can be adjusted by turning the screw on the lower front part of the appliance. 2.1 Water supply connection... - Page 7 The free end should be positioned at a height of between 30 and 100 cm, and should never be submerged in water. If a horizontal drain extension hose is used (for a maximum of 3 m) the drain hose can be placed at a maximum height of 85 cm from the ground.
-
Page 8: Description Of The Controls

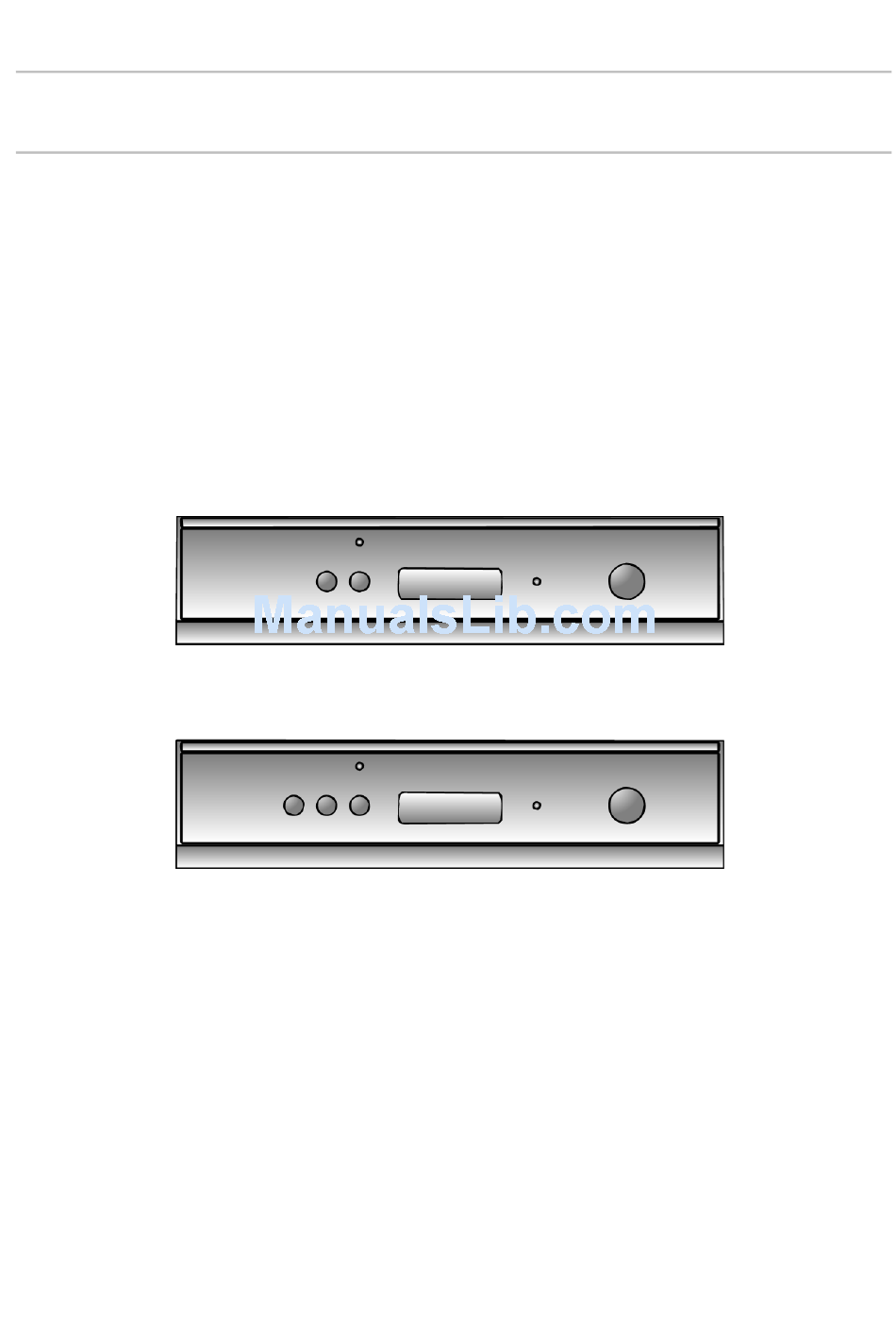

User instructions 3. Description of the controls 3.1 Front panel All the dishwasher controls are grouped on the front panel. CONTROL LEGEND (2 buttons models) WASHING PROGRAM SELECTOR ON/OFF BUTTON ½ LOAD WASH BUTTON POWER ON LIGHT NO RINSE AID WARNING LIGHT... -
Page 9: Setting Washing Program
After using the table to identify the most appropriate washing program, turn the PROGRAM SELECTION knob (1) (see section “3. Description of the controls”) to set the program of choice by aligning the pointer with the program number. If necessary, depending on the programme selected, press one of the keys (3 or 4) allowing selection of the ½... -
Page 10: Table Of Programs (3 Buttons Model)
) Not present. (1) Average power consumption with the softener set on level 2. (2) The cycle duration and power consumption may vary according to the water and room temperatures, and the type and amount of dishes. The washing cycle will not take place if the dishwasher door is left open... - Page 11 3.2 Washing programs Before starting a washing program make sure that: • The water supply tap is open. • The correct amount of detergent has been added to the dispenser. • The baskets have been correctly loaded. • The spray arms are able to rotate freely and without obstruction.
-
Page 12: Cancelling Current Program
If available, connect the dishwasher to a hot water supply up to 60°C. • When possible, disable the drying cycle and leave the door open at the end of the washing cycle: the residual air and heat will dry the dishes perfectly. - Page 13 END OF CYCLE At the end of the washing program the selector will be on one of the STOP markers, depending on the program carried out. Switch off the dishwasher by pressing the ON/OFF key (2) (see section "3. Description of the controls").
-
Page 14: Operating Instructions
Before replacing the cap, remove any salt residues from around the opening. • When using the dishwasher for the first time, in addition to the salt it is also necessary to add one litre of water to the container. •... - Page 15 ADJUSTING THE WATER SOFTENING SYSTEM The dishwasher is equipped with an device for the user to adjust the water softening system according to the hardness of the water supply.
-
Page 16: Using The Rinse Aid And Detergent Dispensers
With the exception of the SOAK program, before every washing cycle it is necessary to add the required amount of detergent to the detergent dispenser. The rinse aid, on the other hand, should only be added as required. - Page 17 • Replace the cover and turn it in a clockwise direction. • Use a cloth to remove any spillage of rinse aid which might lead to the formation of excess foam. ADJUSTING THE RINSE AID DISPENSER SETTING The dishwasher is factory set for medium water hardness. However it possible to change the setting by turning the dispenser’s selector to the...
- Page 18 • The detergent packs must be sealed and stored in a dry place to prevent the formation of lumps which may negatively affect washing results. Once opened the detergent packs should not be kept for too long, otherwise the detergent loses its effectiveness.
-
Page 19: General Warnings And Recommendations
LOWER BASKET. If a small quantity of dishes has to be washed, use the “½ load wash” option; this saves electricity and water. - Page 20 If in doubt as to the fastness of the colours, it is advisable to wash just a few items at a time for approximately one month.
- Page 21 The dishwasher has a capacity of 12 place-settings, including serving dishes. LOWER BASKET The lower basket receives the full force of the lower spray arm, and should therefore be used for the “toughest” items with a heavier degree of soiling.
- Page 22 User instructions CUTLERY BASKET The cutlery should be arranged in an orderly manner inside the basket, with the handles pointing downwards. Take care during loading to avoid injury from the knife blades. The basket is suitable for all types of cutlery, except those long enough to interfere with the upper spray arm.
- Page 23 Load the dishes with the top side facing forwards; cups and concave containers should always be loaded with the opening facing down. The left side of the basket can be loaded with cups and glasses on two levels. In the centre section, plates and saucers can be loaded vertically into the supports provided.
- Page 24 User instructions Push-button version: • pull out the basket to its limit position and pull the right side upwards. At this point it is possible to load larger sized plates into the lower basket. • To return to the original position, pull out the upper basket again and...
-
Page 25: Cleaning And Maintenance
CLEANING THE WATER INTAKE FILTER The water intake filter A located at the outlet of the water supply tap needs to be cleaned periodically. After having closed the water supply tap, unscrew the end of the water intake hose, remove the filter A and clean it delicately under running water. - Page 26 CLEANING THE FILTER UNIT • It is advisable to periodically inspect the centre filter C and, if necessary, to clean it. To remove the filter, grip the tabs, turn them anticlockwise and lift upwards; • push the centre filter D from the underside to remove it from the micro-filter: •...
- Page 27 DISUSE: • Check that there are no deposits of sludge or rust inside the water pipe: if there are, allow the water to run from the water supply tap for a few minutes. • Plug the power cord back into the socket.
- Page 28 If there are visible traces of rust inside the tank: • the tank is made of steel, and therefore any rust marks are due to external elements (fragments of rust from the water pipes, pots, cutlery, etc.). Special products are commercially available t o remove such marks;...
- Page 29 Solosualcunimodelli Certainmodelsonly Seulementsurcertainsmodèles nurbeieinigeModellen Sóloenalgunosmodelos alleenindienvantoepassing...
- Page 30 LATOSUPERIORE SUPERFICIEINTERNA SURFACEINTERNE BORDSUPERIEURE UPPEREDGE INNERSURFACE OBERKANTE INNENFLACHE...
