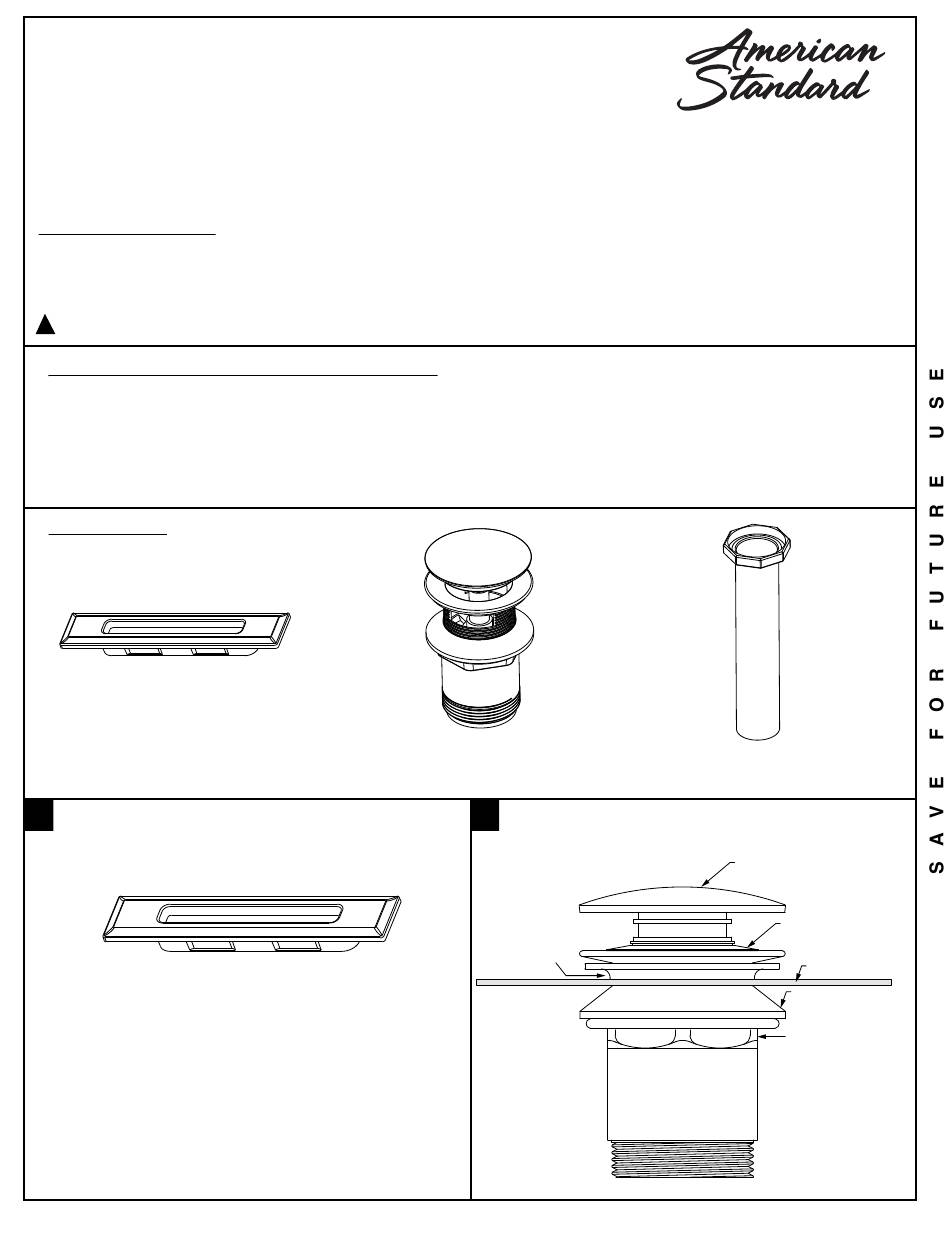

INSTALLATION INSTRUCTIONS
DRAIN KIT
Model: 1614305.YYY FOR FREESTANDING TUB 2546
Thank you for selecting American Standard...the benchmark of fine quality for over 100 years. To ensure
that your installation proceeds smoothly--please read these instructions carefully before you begin.
BEFORE YOU BEGIN....
Local building codes vary by location. Observe all local plumbing and building codes.
Your new bath is shipped to you after careful inspection.
To insure maximum performance and pleasure from this product, please follow the instructions and cautions.
!
NOTE: Take extra care in handling surfaces of the bath. Use only non-abrasive cloths to avoid scratching.
TOOLS & MATERIALS MAY BE REQUIRED
TOOLS:
• Level
• Square
• Tape Measure
• Pipe Wrench
KIT INCLUDES:
OVERFLOW COVER
1
Snap "Overflow" cover into overflow of tub.
Ensure it is securely in place. (See Fig. 1)
Fig. 1
OVERFLOW COVER
All product names listed herein are trademarks of AS America, Inc. unless otherwise noted.
© AS America, Inc. 2018
• Slip Joint Pliers
• Personal Safety Equipment
• Caulking Gun
MATERIALS:
• Silicone Caulking
• Tub & Tile Caulk
DRAIN
2
Install drain as shown in Fig. 2.
SILICONE
SEAL
Fig. 2
8" (203mm)
EXTENSION TAILPIECE
DRAIN COVER
SILICONE SEAL
TUB FLOOR
SILICONE SEAL
PLUG NUT
755507-100 Rev. A 4/18
