Maintenance Indicators - Sharp Notevision XR-32X-L Operation Manual

Tempera-
ture
warning
indicator
Lamp
indicator
Power
indicator

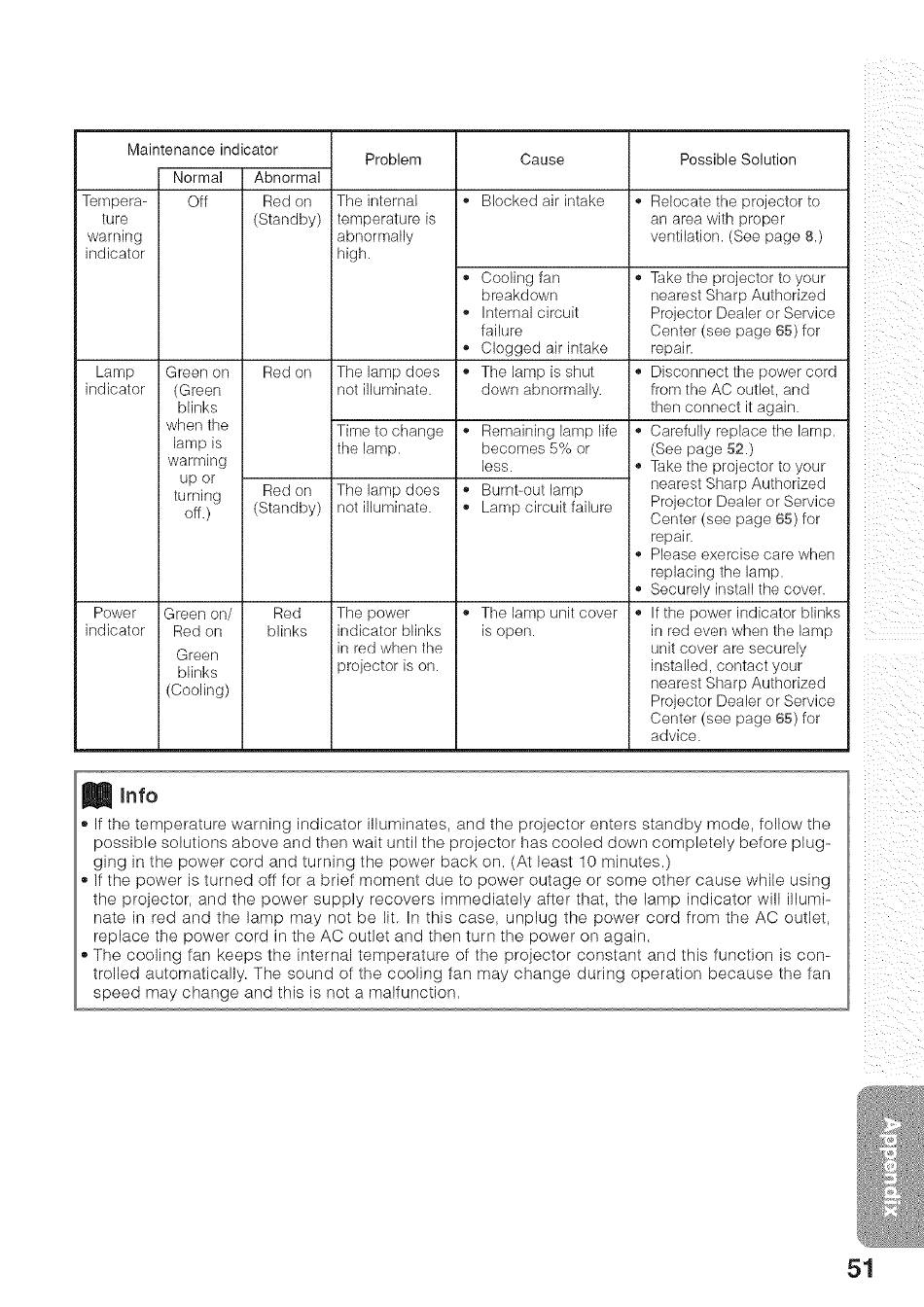

Maintenance indicator
Normal Abnormal
Off Red on
(Standby)
Green on Red on
(Green
blinks
when the
lamp is
warming
up or
turning Red on
off.) (Standby)
Green on/ Red
Red on blinks
Green
blinks
(Cooling)
Problem
The internal
temperature is
abnormally
high.
The lamp does
not illuminate.
Time to change
the lamp.
The lamp does
not illuminate.
The power
indicator blinks
in red when the
projector is on.
Cause
i ° Blocked air intake
i ° Cooling fan °
breakdown
_° Internal circuit
failure
i ° Clogged air intake
i ° The lamp is shut °
down abnormally.
i° Remaining lamp life °
becomes 5% or
less. •
i ° Burnt-out lamp
i ° Lamp circuit failure
e
e
i ° The lamp unit cover °
is open.
Possible Solution
° Relocate the projector to
an area with proper
ventilation. (See page 8.)
Take the projector to your
nearest Sharp Authorized
Projector Dealer or Service
Center (see page 65) for
repair.
Disconnect the power cord
from the AC outbt, and
then connect it again.
Carefully replace the lamp.
(See page 52.)
Take the projector to your
nearest Sharp Authorized
Projector Dealer or Service
Center (see page 65) for
repair.
Please exercise care when
replacing the lamp.
Securely install the cover.
If the power indicator blinks
in red even when the lamp
unit cover are securely
installed, contact your
nearest Sharp Authorized
Projector Dealer or Service
Center (see page 65) for
advice.
Info
If the temperature warning indicator illuminates, and the projector enters standby mode, follow the
possible solutions above and then wait until the projector has cooled down completely before plug-
ging in the power cord and turning the power back on, (At least 10 minutes,)
If the power is turned off for a brief moment due to power outage or some other cause while using
the projector, and the power supply recovers immediately after that, the lamp indicator will illumi-
nate in red and the lamp may not be lit. In this case, unplug the power cord from the AC outlet,
replace the power cord in the AC outlet and then turn the power on again,
The cooling fan keeps the internal temperature of the projector constant and this function is con-
trolled automatically. The sound of the cooling fan may change during operation because the fan
speed may change and this is not a malfunction.
51
