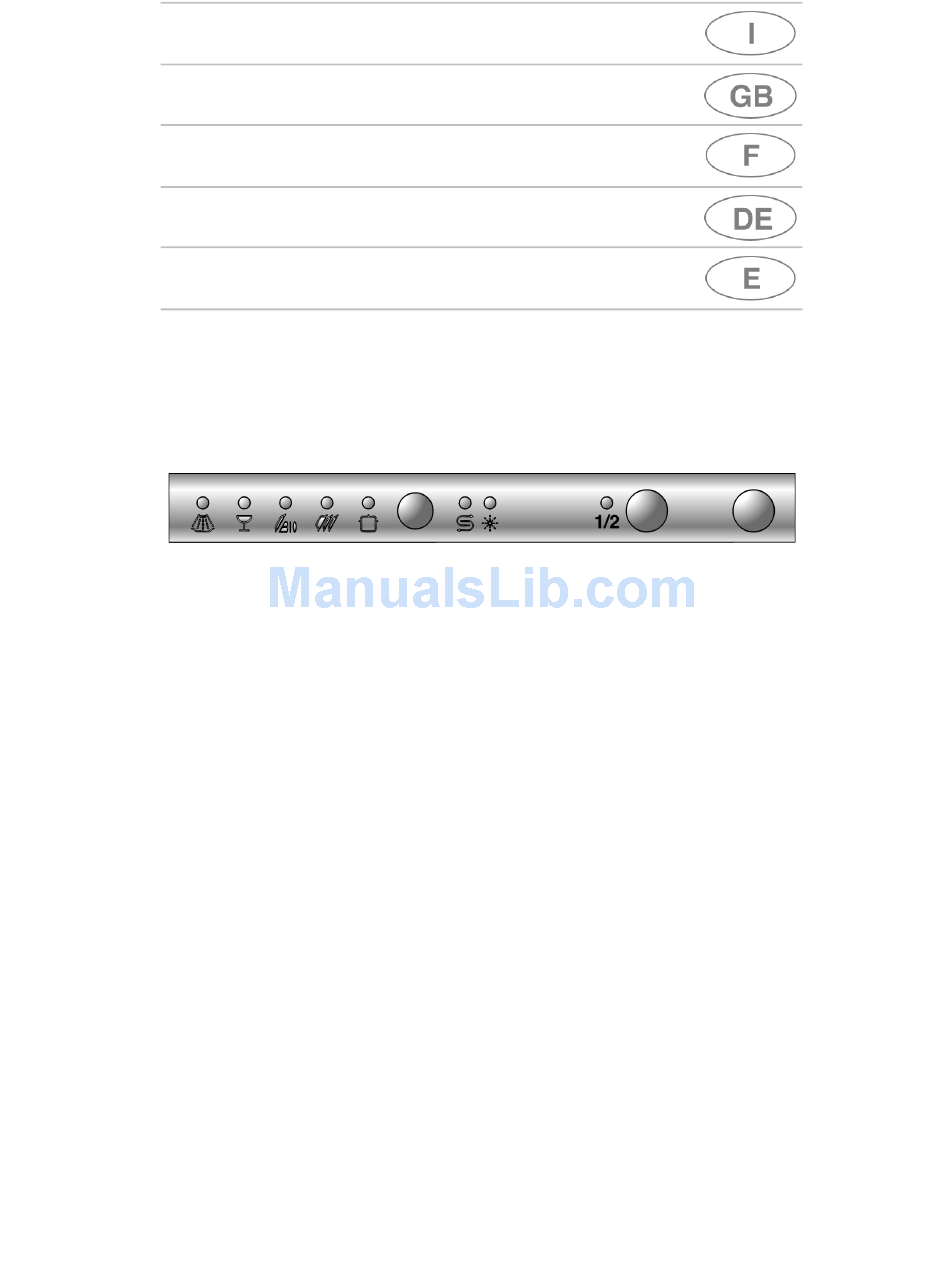

- Page 1 MANUALE D’USO INSTRUCTION MANUAL NOTICE D’UTILISATION GEBRAUCHSANWEISUNG MANUAL DE USO LAVASTOVIGLIE DISHWASHER LAVE-VAISSELLE GESCHIRRSPÜLER LAVAVAJILLAS...
- Page 2 ITALIANO ENGLISH FRANÇAIS DEUTSCH ESPAÑOL 3-30 31-58 59-86 87-114 115-142...
-
Page 3: Table Of Contents
Contents Safety and operating instructions __________________________32 Installation and hook-up _________________________________35 Description of the controls________________________________37 Operating instructions ___________________________________42 Cleaning and maintenance _______________________________53 Troubleshooting _______________________________________57 Thank you for choosing this product. We advise you to carefully read all the instructions contained in this manual, in order to understand how to operate your dishwasher safely and correctly. -
Page 4: Safety And Operating Instructions
Safety instructions 1. Safety and operating instructions THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE: IT MUST ALWAYS BE KEPT INTACT TOGETHER WITH THE DISHWASHER. BEFORE USING THE APPLIANCE, CAREFULLY READ ALL THE INSTRUCTIONS CONTAINED IN THIS MANUAL. INSTALLATION MUST BE PERFORMED BY A QUALIFIED TECHNICIAN, IN COMPLIANCE WITH THE REGULATIONS IN FORCE. -
Page 5: Safety Instructions
Safety instructions • AFTER INSTALLATION, THE PLUG MUST REMAIN ACCESSIBLE. • IN THE EVENT OF DAMAGE TO THE POWER CORD, HAVE IT REPLACED BY A QUALIFIED TECHNICIAN. • AFTER REPLACING THE POWER CORD, MAKE SURE THAT THE TERMINAL BLOCK COMPARTMENT COVER IS CLOSED CORRECTLY. IF THE APPLIANCE IS INSTALLED ON A CARPETED OR COVERED FLOOR, ENSURE THAT... - Page 6 Safety instructions DO NOT LEAN OR SIT ON THE OPEN DOOR: THIS MAY CAUSE THE DISHWASHER TO OVERTURN. DO NOT UNDER ANY CIRCUMSTANCES TOUCH THE HEATING ELEMENT IMMEDIATELY AFTER THE END OF A WASHING PROGRAM. DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE THE DISHES OR DISHWASHER AT THE END OF THE WASHING PROGRAM AND BEFORE THE DRYING CYCLE.
-
Page 7: Installation And Hook-Up
Installation instructions 2. Installation and hook-up Remove the polystyrene basket retainers. Position the appliance in the desired place of installation. The back or sides of the dishwasher may be placed up against walls or other furniture units. If the dishwasher is installed near a heat source, fit the special insulating panel to prevent overheating and malfunction of the appliance. - Page 8 Installation instructions The dishwasher can also be connected to a hot water supply not exceeding 60°C. Supplying the appliance with hot water cuts down the washing time by approximately 20 minutes, but slightly reduces its effectiveness. Make the connection to the domestic hot water supply using the same procedure described for connecting to the cold water supply.
-
Page 9: Description Of The Controls
User instructions 3. Description of the controls 3.1 Upper panel All the dishwasher controls are grouped on the upper panel. ON/OFF button Pressing this button energises the appliance. SELECTED PROGRAM indicator lights Illumination of this light denotes the program selected and the occurrence of a fault (troubleshooting). - Page 10 User instructions After using the table to identify the most appropriate washing program: • press the ON/OFF button (1) and wait for the PROGRAM INDICATOR LIGHT (2) to illuminate; • keep pressing the PROGRAM SELECTION button (3) until the indicator light corresponding to the desired program illuminates; •...
- Page 11 User instructions TABLE FOR CERTIFICATION BODIES Reference standard Reference program Load Type of detergent Amount of detergent Rinse aid setting Depending on the model 3/4 or 4/6 EN 50242 3.2 Washing programs Before starting a washing program make sure that: •...
- Page 12 User instructions A cutlery basket can be placed in the upper basket, while the lower basket must be left empty. CAUTION: there is no point in loading dishes and cutlery in the lower basket, since the jet of water will only reach the upper basket. CANCELLING THE CURRENT PROGRAM •...
- Page 13 User instructions TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT • Always try to run the dishwasher fully loaded. • Do not wash the dishes in running water. • Use the washing program that is most appropriate for each type of load.
-
Page 14: Operating Instructions
User instructions 4. Operating instructions Once the dishwasher has been correctly installed, prepare for use as follows: • Adjust the water softening system; • Add the regenerating salt; • Add the rinse aid and detergent. 4.1 Using the water softening system The amount of scale contained in the water (water hardness index) can cause whitish staining on the dry dishes, which... - Page 15 User instructions • Do not use table salt as it contains insoluble substances which, over time, may damage the water softening system. • When necessary, refill the regenerating salt container before starting the washing program. In this way, the excess saline solution will be immediately removed by the water;...
- Page 16 User instructions 4.2 Using the rinse aid and detergent dispensers detergent dispensers are situated on the inner part of the door: the detergent dispenser is on the left, and the rinse aid dispenser is on the right. With the exception of the SOAK program, before every washing cycle it is necessary to add the required amount of detergent to the detergent dispenser.
- Page 17 User instructions ADJUSTING THE RINSE AID DISPENSER SETTING The dishwasher is factory set for medium water hardness. However it possible to change the setting by turning the dispenser’s selector to the desired position: the amount of rinse aid dispensed is proportional to the selector position.
- Page 18 User instructions • Use only detergents specially formulated for dishwashers. For optimal washing results it is important to use a good quality detergent. • The detergent packs must be sealed and stored in a dry place to prevent the formation of lumps which may negatively affect washing results.
- Page 19 User instructions 4.3 General warnings and recommendations Before using the dishwasher for the first time, it is advisable to read the following recommendations concerning dish types to be washed and their loading. There are generally no constraints on the washing of domestic dishes, but in certain cases it is necessary to take their characteristics into account.
- Page 20 User instructions Items which are not dishwasher-safe: • Wooden dishes, pots or pans: these may be damaged by the high washing temperatures. • Handcrafted items: these are rarely suitable for washing in a dishwasher. The relatively high water temperatures and the detergents used may damage them.
- Page 21 User instructions 4.4 Using the baskets The dishwasher has a capacity of 12 place-settings, including serving dishes. LOWER BASKET The lower basket receives the full force of the lower spray arm, and should therefore be used for the “toughest” items with a heavier degree of soiling.
- Page 22 User instructions CUTLERY BASKET The cutlery should be arranged in an orderly manner inside the basket, with the handles pointing downwards. Take care during loading to avoid injury from the knife blades. The basket is suitable for all types of cutlery, except those long enough to interfere with the upper spray arm.
- Page 23 User instructions LOADING THE UPPER BASKET Load the dishes with the top side facing forwards; cups and concave containers should always be loaded with the opening facing down. The left side of the basket can be loaded with cups and glasses on two levels.
- Page 24 User instructions Push-button version: • pull out the basket to its limit position and pull the right side upwards. At this point it is possible to load larger sized plates into the lower basket. • To return to the original position, pull out the upper basket again and press the release lever.
-
Page 25: Cleaning And Maintenance
User instructions 5. Cleaning and maintenance Before carrying out any work, always disconnect the appliance from the electrical power supply. 5.1 General warnings and recommendations Avoid the use of acidic or abrasive detergents. Clean the outer surfaces and door-lining of the dishwasher regularly using a soft cloth moistened with water or with a normal detergent suitable for painted surfaces. - Page 26 User instructions CLEANING THE FILTER UNIT • It is advisable to periodically inspect the centre filter C and, if necessary, to clean it. To remove the filter, grip the tabs, turn them anticlockwise and lift upwards; • push the centre filter D from the underside to remove it from the micro-filter: •...
-
Page 27: Troubleshooting
User instructions BEFORE STARTING THE DISHWASHER AFTER PROLONGED DISUSE: • Check that there are no deposits of sludge or rust inside the water pipe: if there are, allow the water to run from the water supply tap for a few minutes. •... - Page 28 User instructions If the dishes fail to dry or remain dull, check that: • there is rinse aid inside the special container; • the rinse aid dispenser setting is correct; • the detergent used is of good quality and has not lost its effectiveness (for example, through incorrect storage, with the box left open).
-
Page 29: Troubleshooting
User instructions 6. Troubleshooting The dishwasher is capable of signalling a number of faults through the simultaneous illumination of several indicator lights, with the following meanings: FAULT The dishwasher’s anti-flooding system has been activated (only for models equipped with the "TOTAL ACQUASTOP” device). This alarm is triggered in the event of a water leak in the dishwasher. - Page 30 User instructions TECHNICAL DATA Width Depth measured flush with the outer edge of the control panel Height Capacity Water supply pressure Electrical characteristics 597 ÷ 599 mm 570 mm from 820 mm to 870 mm Standard place settings min. 50 – max. 900 KPa (min. 0.5 – max. 9 bar) See rating plate...
