Westinghouse WFE9756DD Installation Manual

Installation Guide

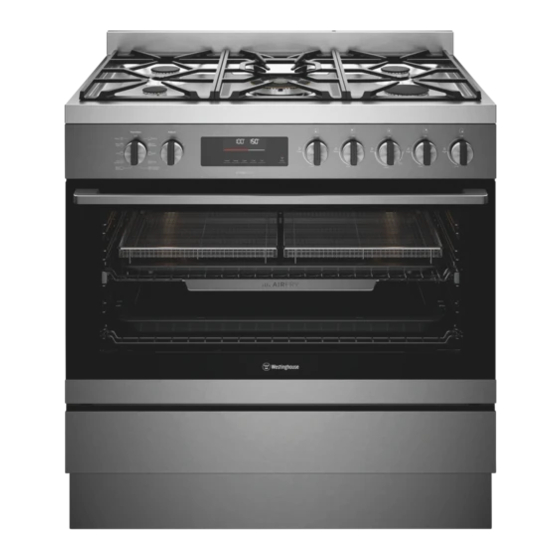

90cm freestanding cookers
Your freestanding cooker is designed to fit into a 900mm wide gap
between standard kitchen cabinets. The appliance integrates with
the kitchen cabinets by matching the height, depth and kick panel.
The cooker may also be installed at the end of a line of benches or
with a free space either side. In addition, a slot-in type installation is
catered for allowing a continuous cabinetry kick panel to be used.
WARNING
WARNING
• The cooker must be installed and serviced only by an authorised
person.
• A Certificate of Compliance MUST be supplied to be kept by the
customer.
• The packing materials must be removed before you install the
cooker.
• The surrounding kitchen cabinets must be able to withstand 85°C.
Electrolux WILL NOT accept responsibility for damage caused by
installation into kitchen cabinets which cannot withstand 85°C.
• The pipes used for installation MUST have sufficient loops so the
cooker can be moved for service (gas models).
• The vents, openings and air spaces MUST NOT be blocked.
• Two anti-tilt brackets are supplied and stored in the base of the
packaging
• The anti-tilt brackets MUST be installed to avoid accidental
tipping (freestanding and slot-in models).
• You MUST NOT lift or pull the cooker by the door handle.
• The cooker MUST be checked every five years.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
• The appliance must not be installed behind a decorative door in
order to avoid overheating.
• Due to the weight (95-100kg) and size of the cooker, 2 persons
are required to install it.
Gas model clearance requirements
• Ensure the appliance is installed in accordance with AS/NZS
5601.1 or AS/NZS 5601.2 with regard to clearances to combustible
surfaces and materials, and clearances to rangehoods and exhaust
fans, to ensure clearances of 200mm from burners to vertical
combustible surfaces. Observe the minimum dimension of 100mm
from each side of the cooker to combustible surfaces.
• Clearances to combustible surfaces may be reduced if combustible
surfaces are protected in accordance with AS/NZS 5601.1, or AS/
NZS 5601.2.
• When setting the cooker height, ensure the top of the cooker is at
least 10mm higher than the level of the benchtop.
To access your detailed user manual simply scan the QR code on your
smart phone.
For more detailed information and installation guide refer to user manual at
westinghouse.com.au/manuals
and WESTINGHOUSE are trademarks of Westinghouse Electric Corporation. Used under license by Electrolux Home Products Pty Ltd. All Rights
Reserved. © 2021 Electrolux Home Products Pty Ltd. ABN 51 004 762 341 ANC A26723201 Rev C W_INS_FS_90_Cooker_A4_Oct23
Dimensions
600mm minimum
vertical clearance
from combustible
surfaces
Gas hob 910mm
(adjustable 910-930mm)
Ceramic hob 906mm
(adjustable 906-926mm)
Splashback
The splashback is secured to the back of the cooker.
REMOVE the splashback before installing the feet.
15mm
(height of trivet above hob)
