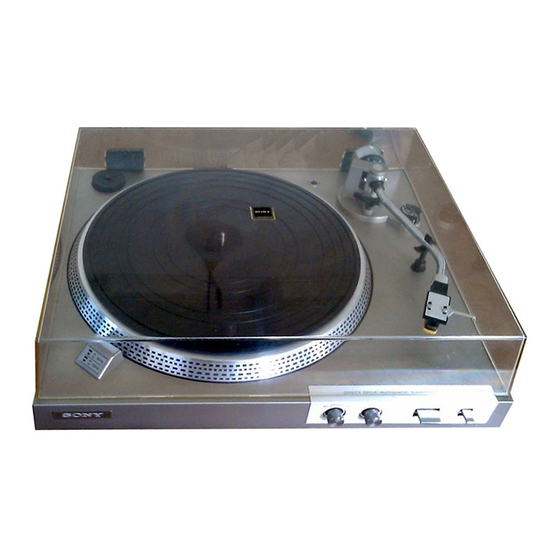

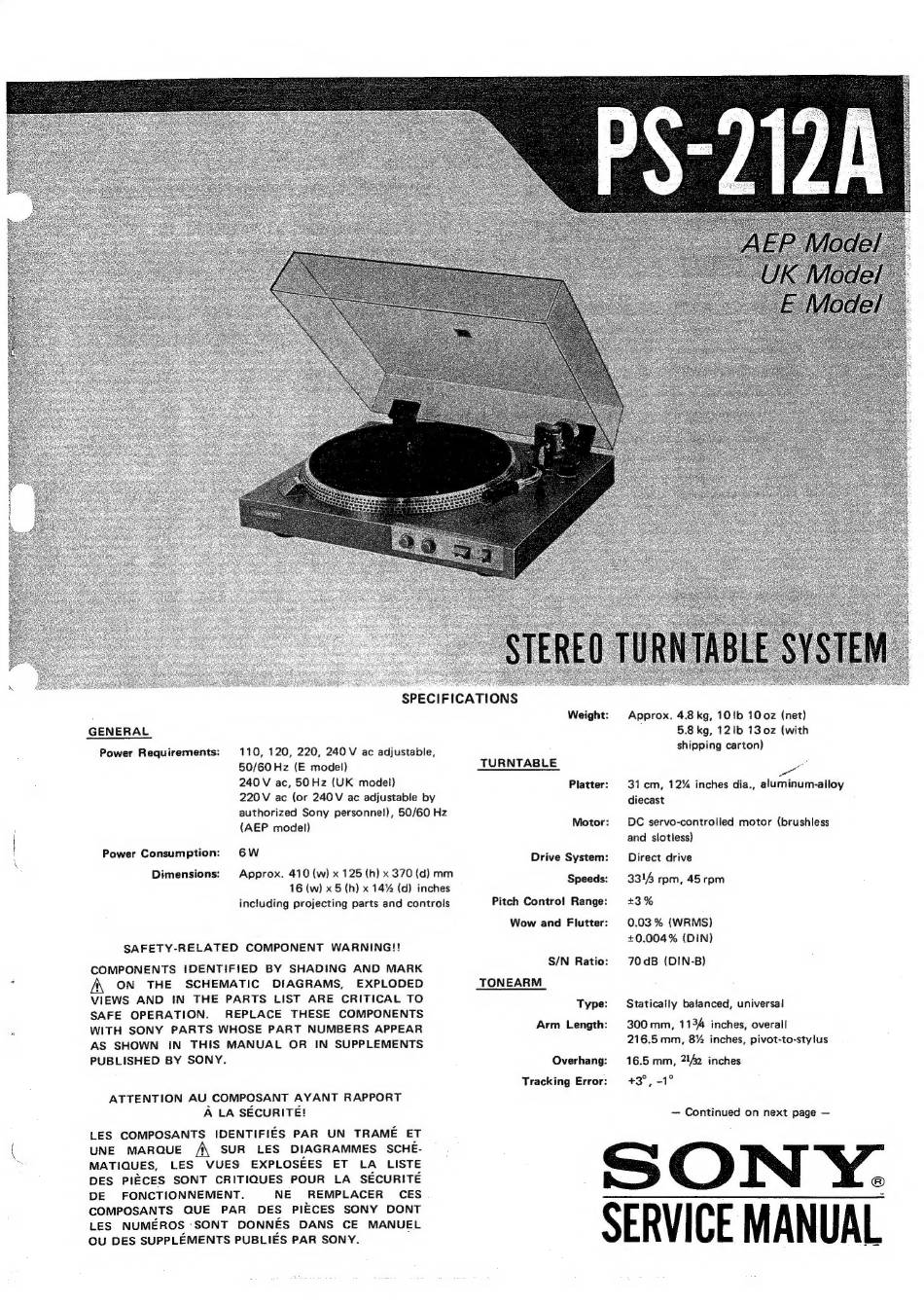

Sony PS-212A Service Manual

GENERAL
Power Requirements:
Power Consumption:
Dimensions:
110, 120, 220, 240 V ac adjustable,
50/60 Hz (E model)
240 V ac, 50Hz (UK mode!)
220V ac (or 240V ac adjustable by
authorized Sony personnel), 50/60 Hz
{AEP model)
6W
Approx. 410 (w) x 125 (h} x 370 (d) mm
16 (w) x 5 (h) x 14% (d) inches
including projecting parts and controls
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY SHADING AND MARK
'i A ON THE SCHEMATIC DIAGRAMS,
EXPLODED
VIEWS AND IN THE PARTS LIST ARE CRITICAL TO
SAFE OPERATION.
REPLACE THESE COMPONENTS
WITH SONY PARTS WHOSE PART NUMBERS APPEAR
AS SHOWN
IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE!
LES COMPOSANTS IDENTIFIES PAR UN TRAME ET
(
UNE MARQUE
A SUR LES DIAGRAMMES
SCHE-
MATIQUES,
LES VUES EXPLOSEES ET LA LISTE
DES PIECES SONT CRITIQUES POUR LA SECURITE
DE FONCTIONNEMENT.
NE REMPLACER' CES
COMPOSANTS QUE PAR DES PIECES SONY DONT
LES NUMEROS -SONT DONNES DANS CE MANUEL
OU DES SUPPLEMENTS PUBLIES PAR SONY.
SPECIFICATIONS
Weight:
TURNTABLE
Platter:
Motor:
Drive System:
Speeds:
Pitch Control Range:
Wow and Flutter:
S/N Ratio:
TONEARM
Type:
Arm Length:
Overhang:
Tracking Error:
Approx. 4.8 kg, 10 ib 10 0z (net)
5.8 kg, 121b 13 0z (with
shipping carton)
a
31cm, 12% inches dia., aluminum-alloy
diecast
DC servo-controlled motor (brushless
and slotless)
Direct drive
3314 rpm, 45 rpm
+3%
0.03 % (WRMS)
+0.004% (DIN)
70 dB (DIN-B)
Statically balanced, universal
300 mm, 1134 inches, overall
216.5 mm, 8% inches, pivot-to-stylus
16.5 mm, 2142 inches
+3°, -1°
~ Continued on next page —
®
