Amtrol SURGE-TROL Series Quick Start Manual

NOTE: Inspect for shipping damage and notify freight carrier or store where purchased immediately if damage is present. To avoid risk of personal
injury and property damage, if the product appears to be malfunctioning or shows signs of corrosion, call a licensed professional immediately. Current
copies of the Product manual can be viewed at www.amtrol.com. Use proper safety equipment when installing.
THIS IS THE SAFETY ALERT SYMBOL. IT IS USED TO ALERT YOU TO POTENTIAL PERSONAL INJURY AND OTHER
HAZARDS. OBEY ALL SAFETY MESSAGES THAT FOLLOW THIS SYMBOL TO REDUCE THE RISK OF PERSONAL
INJURY AS WELL AS PROPERTY DAMAGE.
READ CAREFULLY THE REPLACEMENT
BLADDER INSTRUCTIONS TO AVOID
SERIOUS PERSONAL INJURY AND PROPERTY HAZARDS AND
TO ENSURE SAFE USE
THIS PRODUCT.
EXPLOSION OR RUPTURE HAZARD. THE
EXPANSION TANK MUST BE OPERATED
SO THAT THE PRESSURE DOES NOT EXCEED THE MAXIMUM
WORKING PRESSURE.
THIS PRODUCT, LIKE MOST PRODUCTS
UNDER PRESSURE, MAY OVER TIME
CORRODE, WEAKEN AND BURST OR EXPLODE, CAUSING
SERIOUS OR FATAL INJURY, LEAKING OR FLOODING AND/
OR PROPERTY DAMAGE. TO MINIMIZE RISK, A LICENSED
PROFESSIONAL MUST INSTALL AND PERIODICALLY INSPECT
AND SERVICE THE PRODUCT. A DRIP PAN CONNECTED TO
AN ADEQUATE DRAIN MUST BE INSTALLED IF LEAKING OR
FLOODING COULD CAUSE PROPERTY DAMAGE.
LOCATE IN AN AREA WHERE LEAKAGE OF THE TANK OR
CONNECTIONS COULD CAUSE PROPERTY DAMAGE TO THE
AREA ADJACENT TO THE APPLIANCE OR TO LOWER FLOORS
OF THE STRUCTURE.
This product can expose you to chemicals
including lead, which is known to the State of
California to cause cancer and birth defects or other reproductive
harm. For more information go to www.P65Warnings.ca.gov.

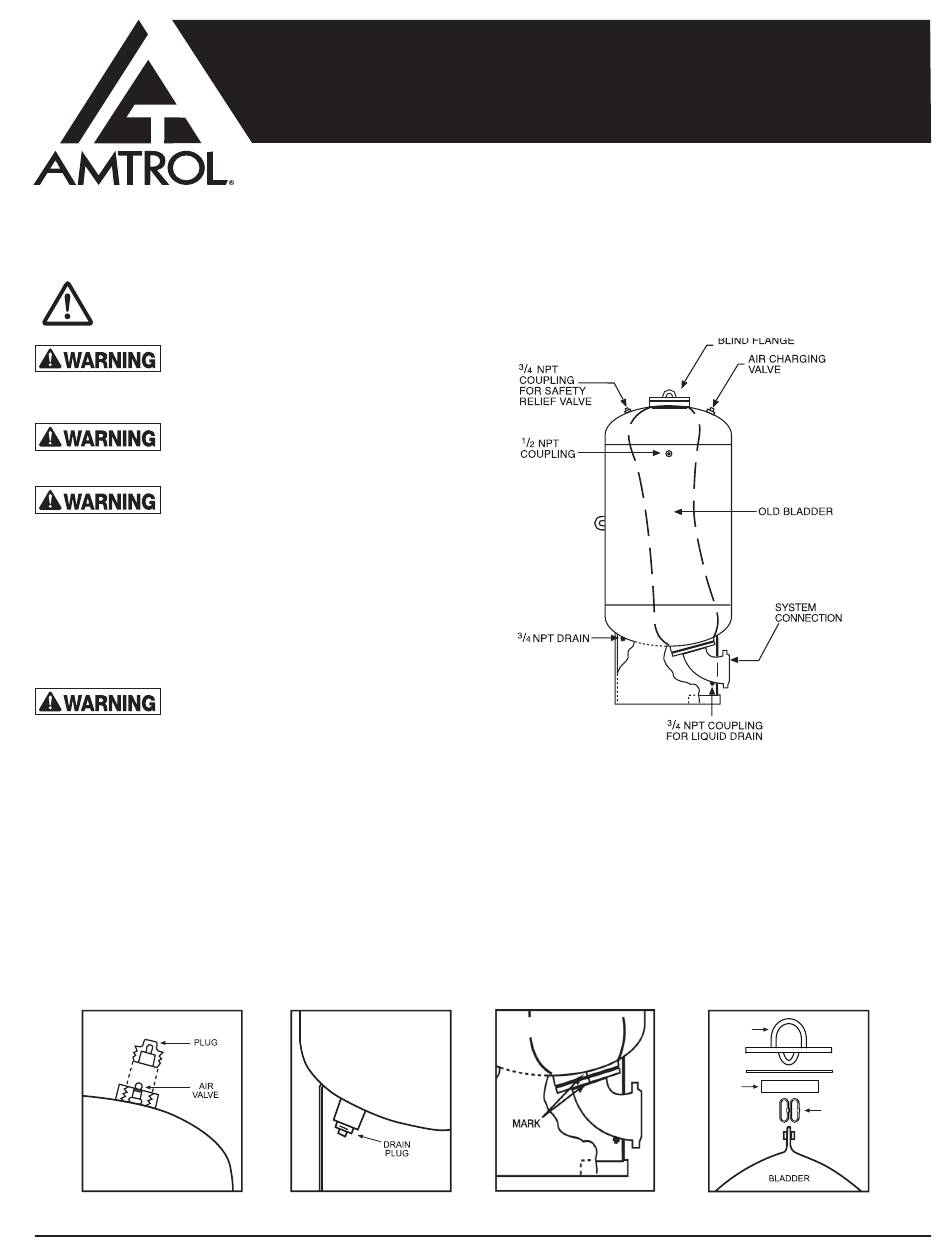

Installation
1. Isolate tank from system.
2. Drain water from bladder.
3. Remove air valve core (Figure 1) to bleed remaining
air charge.
4. Remove drain plug (Figure 2).
5. Disconnect system connection.
6. Unbolt and remove system connection after
marking flanges in order to align during reassembly
(Figure 3).
Figure 1
REPLACEMENT BLADDER INSTRUCTIONS
AND PROPER CARE OF
DO NOT
Figure 2
SURGE-TROL
7. Unbolt blind flange from tank and attach suitable
lifting equipment to lifting eye. Turn top flange
counter clockwise to wrap bladder around itself.
8. Push bladder flange into tank at system connection.
9. Pull old bladder from tank.
10. Cut off existing wire ties attaching blind flange
(Figure 4) to the old bladder and remove old gasket.
The flange filler piece will need to be re-used.
Figure 3
SERIES
®
BLIND
FLANGE
GASKET
FILLER
PIECE
TIES
Figure 4
