Fostex DP-8 Owner's Manual

Digital Audio Patchbay
to the output.
and all inputs and outputs controlled at one location.
Please read this Manual before using the DP-8.
Fostex wishes to thank you for purchasing our Model DP-8.

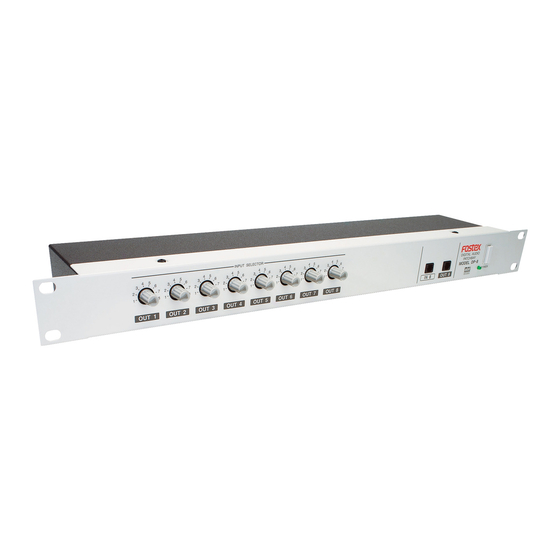

The DP-8 is a digital audio patchbay for interconnecting eight inputs (OPTICAL IN x 6, COAXIAL IN x 2) and
eight outputs (OPTICAL OUT x 6, COAXIAL OUT x 2) between digital audio equipment.
Individual INPUT SELECTORS are provided for all outputs, which allows selecting any input signal routed
By using the DP-8 between multiple units of digital equipment, complex connections can be assembled
