- Page 1 LM40 – LM40DS INJECTION WASHING TROLLEY FOR GLASSWARE WASHERS USER MANUAL TRANSLATION OF THE ORIGINAL INSTRUCTIONS...
- Page 2 This document relates to Smeg accessory “LM40 – LM40DS”. The accessory may only be installed on Smeg devices. For proper, safe use, this manual must be used together with the manual of the instrument or glassware washer on which the accessory is installed.
-
Page 3: Table Of Contents

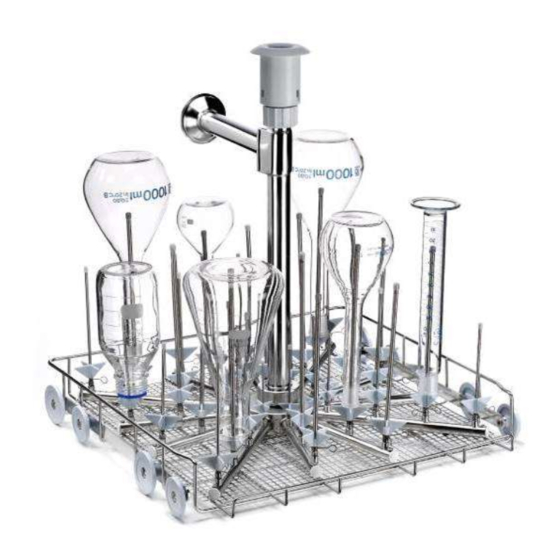

MANUFACTURER'S CONTACT INFORMATION ......................12 1 DESCRIPTION The “LM40” product is a washing trolley produced for the injection washing of various glassware and accessories; it can only be used with Smeg “GW” laboratory glassware washers. This device was created to provide two injection washing racks which can be fitted with up to 40 injector nozzles plus 1 curved nozzle for washing out the detergent dispenser mounted in the door. -
Page 4: Dimensions
2 DIMENSIONS The following are the rack mounting distances referring to use with the LM40 product, on which the washing rack must be installed. Lower nozzle manifold dimensions Front view LM40 USER MANUAL... -
Page 5: Accessory - Device Compatibility
4 CONTENTS OF THE PACK PART PART Qt.y DESCRIPTION Qt.y DESCRIPTION NUMBER NUMBER stainless steel nozzle TC LM40 LM40/DS central pipe U6240 diam.6 height 240 (mm) Stainless steel nozzle stainless steel nozzle U390 diam. 3 U6260 diam.6 height 260 Height 90 (mm) -
Page 6: Warnings For Use
Consult your dealer for further information Take great care that the material loaded does not interfere with rotation of any spray arms and that the glassware is positioned so that water cannot stagnate in it. LM40 USER MANUAL... -
Page 7: Assembly Instructions
U4160 U4180 U6220 U6240 U6260 CURVED NOZZLE WARNING: The curved nozzle must only be installed on the bottom rack and only on devices with powder detergent tank on the door. ( check the side where installed ) LM40 USER MANUAL... -
Page 8: Assembly Sequence
3, i.e. with the pipe projecting towards the rear of the rack, so that once it is inside the disinfector it will be aligned with the connection (illustration below). Fig. 2 Fig.3 LM40 USER MANUAL... - Page 9 Fig. 5 When inserting the rack in the disinfector, the greatest care must be taken to ensure that the tapered connection on the rack is aligned with the one on the device. Fig.6 LM40 USER MANUAL...
- Page 10 (see photo of position on door). This nozzle is fitted to wash out the powder dispenser tank, and must therefore never be covered over. Fit the nozzle and fix it to the rack with the screw at the bottom. LM40 USER MANUAL...
-
Page 11: Use And Loading The Glassware
Move the spring underneath the support to prevent it from descending. Ensure that no glassware or any other instrument for washing projects above the Ensure that no instrument for washing water intake. projects from the rack after loading. LM40 USER MANUAL... -
Page 12: Maintenance
After-Sales Service (Service and Technical Information) contact: Single contact number for Italy +39 0522.160.60.50 Email: assistenza.instruments@smeg.it For Other Information Email : instruments@smeg.it International Customers Please contact your Local Smeg Distributor or write an email to service.instruments@smeg.it LM40 USER MANUAL...
