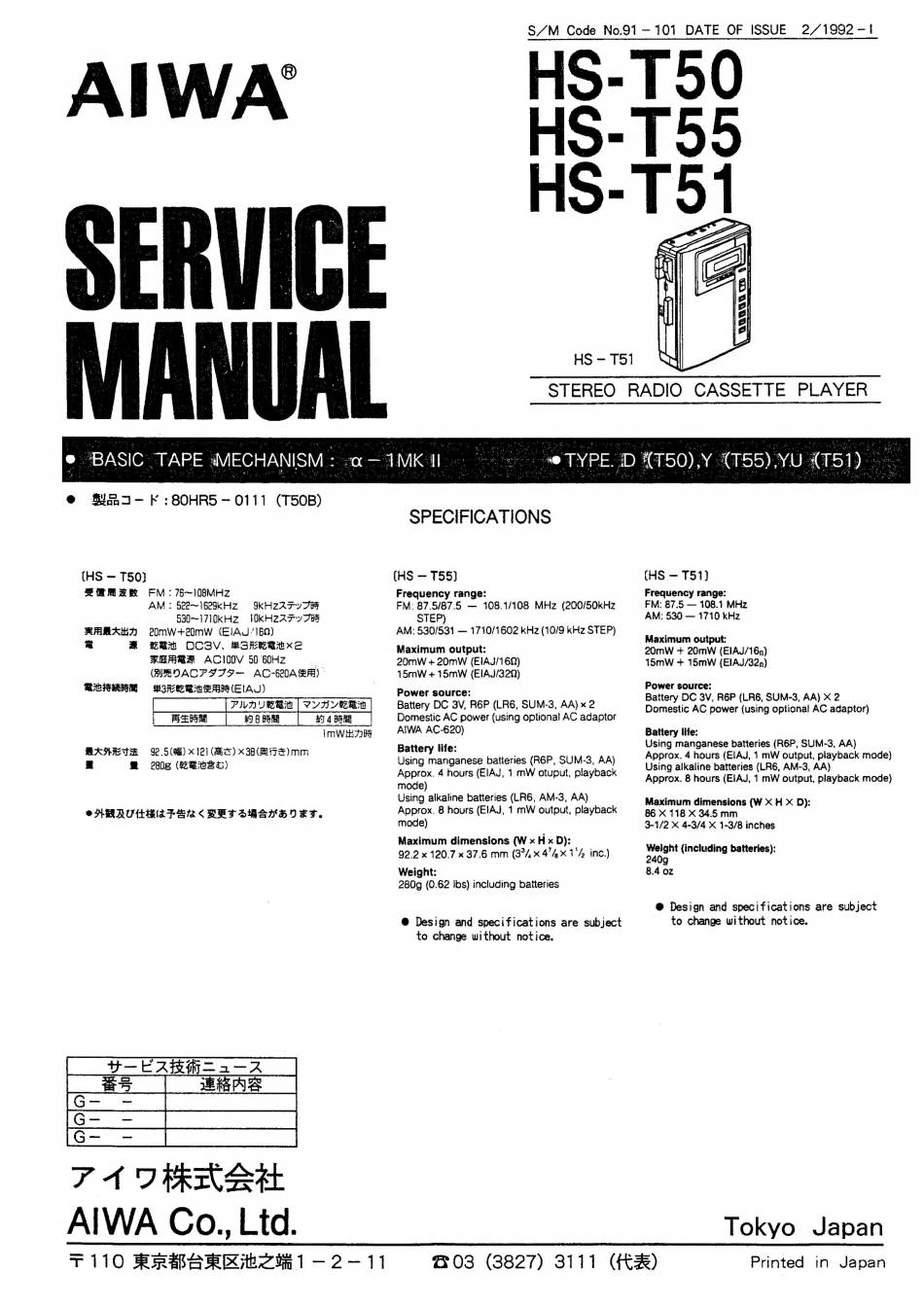

Aiwa HS-T50 Service Manual

S/M Code No.91—101 DATE OF ISSUE 2/1992 —-i
@ S23- F :80HR5—0111 (T50B)
(HS — T50}
Re FM: 76~108MHZ
AM : S22~l629KHZ 9 SKHZA2TY 7B
530~1710KHZ WWkKHZ2A TY FRR
RARAGA eOmW+e0mW (EIA TO)
mz BM Hh OCSV. Sheet xe
KEBWR ACIOOV 50 60HZ 7
HROACPITS— AC-620A fF) ©
ISG | ACA EE BR (EIAU)
PL PUA URE | VU eR
ImMWHD BF
BAAR TR 92.5(98) X12] (AX) X38(RAS) mm
a M 0s (Bes)
CHMAUUHRIFPSR< REF SHAavHVET.
HY—-ERARH— a —A
es
G)/G) lil
G- =
7A DASE
AIWA Co., Ltd.
SPECIFICATIONS
(HS — T55)
Frequency range:
FM: 87.5/87.5 — 108.1/108 MHz (200/50kHz
STEP)
AM: §30/531 — 1710/1602 kHz (10/9 kHz STEP)
Maximum output:
20mW + 20mW (EIAU/169)
15mW + 15mW (EIAJ/32Q)
Power source:
Battery DC 3V, REP (LR6, SUM-3, AA) x 2
Domestic AC power (using optional AC adaptor
AIWA AC-620)
Battery life:
Using manganese batteries (R6P, SUM-3, AA)
Approx. 4 hours (EIAJ, 1 mW otuput, playback
mode)
Using alkaline batteries (LR6, AM-3, AA)
Approx. 8 hours (EIAJ, 1 mW output, playback
mode)
Maximum dimensions (W x H x D):
92.2 x 120.7 x 37.6 mm (3°41. 44x 1'4 inc.)
Weight:
280g (0.62 Ibs) including batteries
@ Design and specifications are subject
to change without notice.
(HS — T51)
Frequency range:
FM: 87.5 — 108.1 MHz
AM: 530 — 1710 kHz
Maximum output:
20mMW + 20mW (EIAJ/16n)
15mW + 15mW (EIAJ/32n)
Power source:
Battery DC 3V, R6P (LR6, SUM-3, AA) X 2
Domestic AC power (using optional AC adaptor)
Battery life:
Using manganese batteries (R6P, SUM-3, AA)
Approx. 4 hours (ElAJ, 1 mW output, playback mode}
Using alkaline batteries (LR6, AM-3, AA)
Approx. 8 hours (EIAJ, 1 mW output, playback mode)
Maximum dimensions (W X H X D):
86 X 118 XK 34.5 mm
3-1/2 X 4-3/4 X 1-3/8 inches
Weight (including batteries):
2
409
8.4 0z
@ Design and specifications are subject
to change without notice.
Tokyo Japan
T110 RRAGRR hin 1—-2-11
@03 (3827) 3111 (HK)
Printed in Japan
