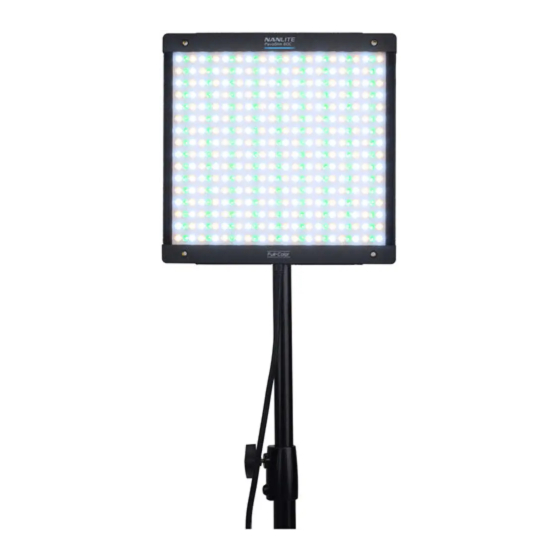

NANLITE PavoSlim 60C User Manual

Led rgbww panel light
Hide thumbs

Advertisement

Quick Links

Download this manual
PavoSlim 60C
LED RGBWW Panel Light
USER MANUAL
Guangdong NanGuang Photo&Video Systems Co., Ltd.

Advertisement

loading

Related Manuals for NANLITE PavoSlim 60C

Summary of Contents for NANLITE PavoSlim 60C

  • Page 1 PavoSlim 60C LED RGBWW Panel Light USER MANUAL Guangdong NanGuang Photo&Video Systems Co., Ltd.
  • Page 2 The included softbox, diffuser and eggcrate will further unleash users’ creativity. With slim and lightweight fixture body of 1×1” size, PavoSlim 60C is particularly suitable for small space, run & gun situations, providing a great help on content creation, commercial, film and television production lighting setup.
  • Page 3 PavoSlim 60C LED RGBWW Panel Light Product Diagram Technical Data Rated Power: 72W Input: DC (Battery) 14.4-26V DC (Battery) 7.4V×2 AC100-240V 50/60Hz Color Temperature: 2700K-7500K(GM±150) CRI: Average 96 TLCI: Average 97 WWW.NANLITE.COM...
  • Page 4 7. Baby Pin Holder 1. USB Port 3. Display Screen 2. NP-F 4. Control Battery Holder 8. Universal Holder Panel 9. DC Output Socket 10. AC Power 5. Quick Input Socket Release Plate 11. Power 6. Battery Switch Holder 12. DMX In/Out WWW.NANLITE.COM...
  • Page 5 10. AC Power Input Socket: To connect the AC power cable to power the control unit. 11. Power Switch: To turn on/off the fixture. 12. DMX In/Out: Connect to DMX adapter cable for DMX signal input and output. (Note: DMX adapter cable is sold separately). WWW.NANLITE.COM...
  • Page 6 Includes PavoSlim 60C x 1 Control Unit x 1 DC Connection Cable x 1 AC Power Cable x 1 Universal Holder x 1 Baby Pin Holder x 1 Quick Release Clamp x 1 Diffuser x 2 Softbox x 1 Eggcrate x 1...
  • Page 7 1.1. When connecting the power supply, please make sure the power voltage is consistent with that indicated on the control unit. 1.2. Make sure to use the included AC power cable and control unit. The connection between the DC output socket and the DC connection cable from the fixture body should be done as shown above. WWW.NANLITE.COM...
  • Page 8 2.2 Please press the battery lock catch when removing the battery, to avoid damage of the battery holder. 2.3 NP-F battery holder is for mounting NP-F batteries. 2.4 V-mount battery holder is for mounting 14.4-14.8V or 26V V-mount batteries. WWW.NANLITE.COM...
  • Page 9 Align the quick release plate on the control unit Press the lock catch on the clamp to remove the with the quick release mount on the clamp to control unit from the light stand. mount the control unit on to the clamp. WWW.NANLITE.COM...
  • Page 10 4. Installation of Softbox and Diffuser 4.1 Installation and Storage of Softbox ① Set the softbox upright, wrap it around the fixture and stick at the interface. WWW.NANLITE.COM...
  • Page 11 ② Fasten the hook and loop fasteners to the back of fixture. WWW.NANLITE.COM...
  • Page 12 ③ After use, flatten the softbox and fasten the hook and loop fasteners on both sides to the back of fixture for storage. WWW.NANLITE.COM...
  • Page 13 4.2 Installation of Diffuser and Eggcrate ① Tear open the hook and loop fasteners on both sides, and set the softbox upright. WWW.NANLITE.COM...
  • Page 14 ② Attach the diffuser to the hook and loop fasteners that inside the softbox. Note: There are included two diffusers: lite diffuser and standard diffuser. WWW.NANLITE.COM...
  • Page 15 ③ Wrap the eggcrate around the softbox. WWW.NANLITE.COM...
  • Page 16 5. Installation and Detachment of Universal Holder and Baby Pin Holder align to the icons align to the icons 5.1 Align to the icons that on the back of fixture and follow the direction shown as the picture to install the universal holder. WWW.NANLITE.COM...
  • Page 17 5.2 Pull up the knob of the universal holder, and slide the universal holder in the direction shown as picture above to remove it from the fixture. The installation and detachment method of baby pin holder is the same as that of universal holder. · WWW.NANLITE.COM...
  • Page 18 Remote Control ·PavoSlim 60C supports DMX/RDM, 2.4G and LumenRadio remote control, and it also has built-in Bluetooth module. The address needs to be set before operating the remote control via DMX/RDM, 2.4G and LumenRadio. ▲ 1. ADDRESS/DMX Seting, including ADDRESS, DMX MODE, DMX REDUCED CHANNELS, DMX DIMMING CURVE and DMX SMOOTHING.
  • Page 19 CH: 512 CH: 512 ADDRESS DMX MODE ADDRESS DMX REDUCED CHANNELS DMX DIMMING CURVE DMX SMOOTHING PRESS “MENU” TO RETURN PRESS “MENU” TO RETURN Rotate the right knob to ADDRESS, and press the right knob to enter the tertiary menu. WWW.NANLITE.COM...
  • Page 20 Rotate the right knob to select needed address, and press the right knob to set. Note: PavoSlim 60C has 20 channels, for multiple lights remote control via DMX/RDM and LumenRadio, the address of the first light should be set to 001, the second one to 021, the third one to 041, and so on.
  • Page 21 CH: 512 ADDRESS DMX MODE DMX REDUCED CHANNELS DMX DIMMING CURVE DMX SMOOTHING PRESS “MENU” TO RETURN PRESS “MENU” TO RETURN Rotate the right knob to DMX REDUCED CHANNELS, and press the right knob to enter the tertiary menu. WWW.NANLITE.COM...
  • Page 22 DMX REDUCED CHANNELS LOGARITHM DMX DIMMING CURVE S CURVE DMX SMOOTHING GAMMA 2.2 PRESS “MENU” TO RETURN PRESS “MENU” TO RETURN Rotate the right knob to DMX DIMMING CURVE, and press the right knob to enter the tertiary menu. WWW.NANLITE.COM...
  • Page 23 CH: 512 CH: 512 ADDRESS DMX MODE DMX REDUCED CHANNELS DMX DIMMING CURVE DMX SMOOTHING PRESS “MENU” TO RETURN PRESS “MENU” TO RETURN Rotate the right knob to DMX SMOOTHING, and press the right knob to enter the tertiary menu. WWW.NANLITE.COM...
  • Page 24 ·5-pin shielded cable with a diameter not less than 0.3mm must be used for connection between light fixture and DMX/RDM console, or between light fixture and light fixture. XLR plug/socket and the cable should be connected as shown above. ·Pin1, Pin2, Pin3 for connecting DMX signal. Pin4, Pin5 have no connection. WWW.NANLITE.COM...
  • Page 25 This prevents interference caused by DMX signals in the transmitting process. DMX Terminator Connection Connect a 120Ω(OHM) resistor across Pin 2 and Pin 3 in an XLR plug and insert into the DMX 120Ω OUT socket on the last unit. PIN 2 PIN 3 WWW.NANLITE.COM...
  • Page 26 2.4 Refer to the DMX reference guide and control the fixture via DMX/RDM console. (For detailed operation please refer to the DMX/RDM console operation manual.) 2.5 The latest technical data can be download from www.nanlite.com. 3. RDM Control 3.1 Connect the light fixture to the console with RDM function by using a connection cable, the connecting method is the same as that of DMX/RDM console.
  • Page 27 4. WIRELESS CONTROL 4.1 Bluetooth Setting PavoSlim 60C has built-in Bluetooth function for connection via Bluetooth. MENU MENU CH: 512 CH: 512 ADDRESS/DMX BLUETOOTH SETTINGS WIRELESS CONTROL 2.4G SETTINGS ROTATE SCREEN LUMENRADIO SETTINGS SCREEN BRIGHTNESS ALL WIRELESS ON/OFF BUTTON BACKLIGHT PRESS “MENU”...
  • Page 28 MENU CH: 512 CH: 512 PRESS “MENU” TO RETURN PRESS “MENU” TO RETURN Rotate the right knob to select ON or OFF, and press the right knob to set. The RESET BLUETOOTH is available when the Bluetooth is on. WWW.NANLITE.COM...
  • Page 29 Rotate the right knob to RESET BLUETOOTH, and press the right knob to enter the next menu. MENU MENU CH: 512 CH: 512 RESET BLUETOOTH BACK RESET PRESS “MENU” TO RETURN PRESS “MENU” TO RETURN Rotate the right knob to RESET, and press the right knob to set. WWW.NANLITE.COM...
  • Page 30 Note: ① 2.4G remote controller and WS-TB-1 transmitter box are sold separately. ② PavoSlim 60C supports the 2.4G wireless protocol V1.0 and V2.0. The fixture should be set in V2.0 while using WS-RC-C2 remote controller, set in V1.0 while using other remote controllers.
  • Page 31 MENU CH: 512 CH: 512 2.4G ON/OFF WIRELESS PROTOCOL 2.4G WIRELESS PROTOCOL V1.0 V2.0 PRESS “MENU” TO RETURN PRESS “MENU” TO RETURN Rotate the right knob to WIRELESS PROTOCOL, and press the right knob to enter the next menu. WWW.NANLITE.COM...
  • Page 32 Rotate the right knob to select V1.0 or V2.0, and press the right knob to set. 4.3 LumenRadio Setting PavoSlim 60C has built-in TIMO RX module, enabling it to receive CRMX wireless DMX signals. The specific operations are as below: ①Set the fixtures that need to receive CRMX wireless DMX signals to unlink.
  • Page 33 Rotate the right knob to LUMENRADIO SETTINGS, and press the right knob to enter the tertiary menu. MENU MENU CH: 512 CH: 512 LUMENRADIO ON/OFF LINK PRESS “MENU” TO RETURN PRESS “MENU” TO RETURN Rotate the right knob to LUMENRADIO ON/OFF, and press the right knob to enter the next menu. WWW.NANLITE.COM...
  • Page 34 PRESS “MENU” TO RETURN PRESS “MENU” TO RETURN Rotate the right knob to select ON or OFF, and press the right knob to set. The PavoSlim 60C can receive CRMX wireless DMX signals when the LumenRadio is set to be on. MENU MENU...
  • Page 35 ② Connect and control the light fixture that set to transmitter mode or CRMX wireless DMX transmitter with the light fixture that needs to receive the CRMX wireless DMX signal. Note: The light fixture can only be reconnected to the new fixtures or transmitters after set to unlink. WWW.NANLITE.COM...
  • Page 36 2.4G SETTINGS ON OR OFF ALL LUMENRADIO SETTINGS WIRELSS FUNCTIONS? ALL WIRELESS ON/OFF PRESS “MENU” TO RETURN PRESS “MENU” TO RETURN Rotate the right knob to ALL WIRELESS ON/OFF, and press the right knob to enter the tertiary menu. WWW.NANLITE.COM...
  • Page 37 When all wireless functions are set to be on, the Bluetooth, 2.4G and LumenRadio settings will be in the ON state. When all wireless functions are set to be off, the Bluetooth, 2.4G and LumenRadio settings will be in the OFF state. WWW.NANLITE.COM...
  • Page 38 1. Make sure the control unit is off, connect with the fixture, and connect to mains electricity via the power cable or mount the battery, and turn on the power switch, the screen will display "NANLITE". 2. MODE button: Press the MODE button to enter the lighting mode interface.

  • Page 39: Table Of Contents

    Rotate the right knob to select the needed lighting mode, and press the right knob to enter the corresponding lighting mode. CCT MODE MODE CH: 512 CH: 512 CCT MODE HSI MODE 100% 5600K RGBW MODE GEL MODE EFFECT MODE MODE MENU Press the MODE button again to return to the lighting mode list interface. WWW.NANLITE.COM...

  • Page 40: Hsi Mode Rgbw Mode Gel Mode Effect Mode

    Press the MODE button to enter the lighting mode list interface. MODE CCT MODE CH: 512 CH: 512 CCT MODE HSI MODE 100% 5600K RGBW MODE GEL MODE EFFECT MODE Rotate the right knob to CCT MODE, and press the right knob to enter the interface. WWW.NANLITE.COM...

  • Page 41: Cct Mode Ch

    CH: 512 CH: 512 100% 5600K 100% 5600K Rotate the right knob to select DIM, CCT or G/M. CCT MODE CCT MODE CH: 512 CH: 512 100% 5600K 100% 5700K Rotate the left knob to set the corresponding parameters. WWW.NANLITE.COM...
  • Page 42 Rotate the right knob to select DIM, HUE or SAT. HSI MODE HSI MODE CH: 512 CH: 512 Rotate the left knob to set the corresponding parameters. Note: In other modes, the adjustment range of HUE and SAT is the same as that in HSI Mode. WWW.NANLITE.COM...

  • Page 43: Rgbw Mode

    CH: 512 CH: 512 Rotate the right knob to select DIM, red, green, blue or white. RGBW MODE RGBW MODE CH: 512 CH: 512 Rotate the left knob to adjust DIM and the corresponding red, green, blue and white values. WWW.NANLITE.COM...
  • Page 44 CH: 512 CH: 512 Clear Clear 5600K 3200K Rotate the right knob to adjust the DIM, CCT and GEL. GEL MODE GEL MODE CH: 512 CH: 512 Clear Clear 3200K 5600K Rotate the left knob to set the corresponding parameters. WWW.NANLITE.COM...

  • Page 45: Effect Mode

    2.5 EFFECT MODE PavoSlim 60C has built-in effects including: HUE Loop, CCT Loop, INT Loop, Flash, Pulse, Storm Auto, Storm Manual, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion Auto, Explosion Manual and Welding. EFFECT MODE EFFECT MODE...
  • Page 46 Rotate the right knob to select DIM, HUE, SAT or SPEED. EFFECT MODE EFFECT MODE CH: 512 CH: 512 EFFECT: HUE LOOP EFFECT: HUE LOOP DIM: DIM: HUE: 0-360 HUE: 0-360 SAT: 100 SAT: 100 SPEED: 8S SPEED: 8S Rotate the left knob to set the corresponding parameters. WWW.NANLITE.COM...
  • Page 47 Rotate the right knob to select DIM, CCT, G/M or SPEED. EFFECT MODE EFFECT MODE CH: 512 CH: 512 EFFECT: CCT LOOP EFFECT: CCT LOOP DIM: DIM: CCT: 3200K-5600K CCT: 3200K-5600K G/M: 0 G/M: 0 SPEED: 8S SPEED: 8S Rotate the left knob to set the corresponding parameters. WWW.NANLITE.COM...
  • Page 48 Rotate the left knob to set the corresponding parameters. When the color is HSI, rotate the right knob to select HUE, SAT or SPEED (range: 2s -30s), and rotate the left knob to set the corresponding parameters (same operation method as in CCT). WWW.NANLITE.COM...
  • Page 49 Rotate the left knob to set the corresponding parameters. When the color is HSI, rotate the right knob to select HUE, SAT or INTERVALS, and rotate the left knob to set the corresponding parameters (same operation method as in CCT). WWW.NANLITE.COM...
  • Page 50 Rotate the left knob to set the corresponding parameters. When the color is HSI, rotate the right knob to select HUE, SAT or PULSES/MIN (range: 1-240), and rotate the left knob to set the corresponding parameters (same operation method as in CCT). WWW.NANLITE.COM...
  • Page 51 Rotate the right knob to select DIM, CCT or INTERVAL RANGE. EFFECT MODE EFFECT MODE CH: 512 CH: 512 EFFECT: STORM AUTO EFFECT: STORM AUTO DIM: DIM: CCT: 5600K CCT: 5600K INTVL RANGE: 2S-6S INTVL RANGE: 2S-6S Rotate the left knob to set the corresponding parameters. WWW.NANLITE.COM...
  • Page 52 EFFECT MODE EFFECT MODE CH: 512 CH: 512 EFFECT: STORM MANUAL EFFECT: STORM MANUAL DIM: DIM: CCT: 5600K CCT: 5600K PRESS RIGHT KNOB TO TRIGGER PRESS RIGHT KNOB TO TRIGGER Rotate the left knob to set the corresponding parameters. WWW.NANLITE.COM...
  • Page 53 EFFECT MODE EFFECT MODE CH: 512 CH: 512 EFFECT: POLTCE CAR EFFECT: CCT LOOP DIM: 0% DIM: COLOR: RED&BLUE COLOR: RED&BLUE MODE: DOUBLE MODE: DOUBLE SPEED: 50 SPEED: 50 Rotate the right knob to select DIM, COLOR, MODE or SPEED. WWW.NANLITE.COM...
  • Page 54 EFFECT MODE CH: 512 CH: 512 EFFECT: EFFECT: TV DIM: 0%-100% DIM: 0%-100% COLOR: CCT COLOR: CCT CCT: 5600K G/M: 0 CCT: 5600K G/M: 0 SPEED: 50 SPEED: 50 Rotate the right knob to select CCT, G/M or SPEED. WWW.NANLITE.COM...
  • Page 55 EFFECT MODE EFFECT MODE CH: 512 CH: 512 EFFECT: PAPARAZZI EFFECT: PAPARAZZI DIM: 0% DIM: CCT: 5600K G/M: 0 CCT: 5600K G/M: 0 SPEED: 50 SPEED: 50 Rotate the right knob to select DIM, CCT, G/M or SPEED. WWW.NANLITE.COM...
  • Page 56 EFFECT MODE CH: 512 CH: 512 EFFECT: CANDLE/FIRE EFFECT: CANDLE/FIRE DIM: 0%-100% DIM: 0%-100% COLOR: CCT COLOR: CCT CCT: 5600K G/M: 0 CCT: 5600K G/M: 0 SPEED: 50 SPEED: 50 Rotate the right knob to select CCT, G/M or SPEED. WWW.NANLITE.COM...
  • Page 57 SAT, and rotate the left knob to set the corresponding parameters. EFFECT MODE EFFECT MODE CH: 512 CH: 512 EFFECT: DISCO EFFECT: DISCO DIM: 0% DIM: AMOUNT: 9 AMOUNT: 9 SPEED: 50 SPEED: 50 SAT: 100 SAT: 100 Rotate the right knob to select DIM, AMOUNT, SPEED or SAT. WWW.NANLITE.COM...
  • Page 58 CH: 512 CH: 512 EFFECT: BAD BULB EFFECT: BAD BULB DIM: 0% DIM: COLOR: CCT COLOR: CCT CCT: 5600K G/M: 0 CCT: 5600K G/M: 0 SPEED: 50 SPEED: 50 Rotate the right knob to select CCT, G/M or SPEED. WWW.NANLITE.COM...
  • Page 59 CH: 512 CH: 512 EFFECT: FIREWORK EFFECT: FIREWORK DIM: 0% DIM: AMOUNT: 9 AMOUNT: 9 SPEED: 50 SPEED: 50 DECAY: 50 SAT: 100 DECAY: 50 SAT: 100 Rotate the right knob to select DIM, AMOUNT, SPEED, DECAY or SAT. WWW.NANLITE.COM...
  • Page 60 CH: 512 CH: 512 EFFECT: EXPLOSION AUTO EFFECT: EXPLOSION AUTO DIM: 0% DIM: COLOR: CCT COLOR: CCT CCT: 5600K G/M: 0 CCT: 5600K G/M: 0 SPEED: 50 SPEED: 50 Rotate the right knob to select CCT, G/M or SPEED. WWW.NANLITE.COM...
  • Page 61 EXPLOSION MANUAL EFFECT: EXPLOSION MANUAL DIM: 0% DIM: COLOR: CCT COLOR: CCT CCT: 5600K G/M: 0 CCT: 5600K G/M: 0 PRESS RIGHT KNOB TO TRIGGER PRESS RIGHT KNOB TO TRIGGER Rotate the right knob to select CCT or G/M. WWW.NANLITE.COM...
  • Page 62 Press the right knob to trigger the storm effect. When the color is HSI, rotate the right knob to select HUE or SAT, and rotate the left knob to set the corresponding parameters (same operation method as in CCT). WWW.NANLITE.COM...
  • Page 63 Rotate the left knob to set the corresponding parameters. When the color is HSI, rotate the right knob to select HUE, SAT, SPEED or PAUSE, and rotate the left knob to set the corresponding parameters (same operation method as in CCT). WWW.NANLITE.COM...
  • Page 64 MENU CH: 512 ADDRESS/DMX WIRELESS CONTROL ROTATE SCREEN SCREEN BRIGHTNESS Left knob Right Knob BUTTON BACKLIGHT MODE MENU 3.1 ADDRESS/DMX For detailed operations please refer to P17. 3.2 WIRELESS CONTROL For detailed operations please refer to P26. WWW.NANLITE.COM...
  • Page 65 Rotate the right knob to ROTATE SCREEN, and press the right knob to enter the secondary menu. MENU MENU CH: 512 CH: 512 DO YOU WANT TO ROTATE SCREEN? PRESS “MENU” TO RETURN PRESS “MENU” TO RETURN Rotate the right knob to select YES or NO, and press the right knob to set. WWW.NANLITE.COM...
  • Page 66 Rotate the right knob to SCREEN BRIGHTNESS, and press the right knob to enter the secondary menu. MENU MENU CH: 512 CH: 512 SCREEN BRIGHTNESS PRESS “MENU” TO RETURN PRESS “MENU” TO RETURN Rotate the right knob to select the screen brightness, and press the right knob to set. WWW.NANLITE.COM...
  • Page 67 Rotate the right knob to BUTTON BACKLIGHT, and press the right knob to enter the secondary menu. MENU MENU CH: 512 CH: 512 PRESS “MENU” TO RETURN PRESS “MENU” TO RETURN Rotate the right knob to select ON or OFF, and press the right knob to set. WWW.NANLITE.COM...
  • Page 68 Rotate the right knob to the LANGUAGE, and press the right knob to enter the secondary menu. MENU MENU CH: 512 CH: 512 ENGLISH 简体中文 PRESS “MENU” TO RETURN PRESS “MENU” TO RETURN Rotate the right knob to ENGLISH or 简体中文 , and press the right knob to set. WWW.NANLITE.COM...
  • Page 69 USB drive, or whether the USB drive format is FAT, FAT32 or exFAT. ④If all the above steps are done and the firmware files still cannot be found, please format the USB drive again. ⑤If the fixture still cannot identify the USB drive, please replace the USB drive. WWW.NANLITE.COM...
  • Page 70 After firmware file is found, enter the firmware update interface, rotate the right knob to select UPDATE, and press the right knob to make update. After update, the light fixture will automatically restart. MENU CH: 512 FIRMWARE UPDATED PRESS “MENU” TO RETURN WWW.NANLITE.COM...
  • Page 71 CH: 512 Reset all settings of this light? This will take up to about 1 minute. PRESS “MENU” TO RETURN PRESS “MENU” TO RETURN Rotate the right knob to select YES or NO, and press the right knob to set. WWW.NANLITE.COM...
  • Page 72 RESET ALL SERRINGS in the menu. VERSION www.nanlite.com PRESS “MENU” TO RETURN Rotate the right knob to VERSION, and press the right knob to check the current version. 4. When the fixture is not in use, please turn off the power switch.
  • Page 73 1. Please check whether the DMX address setting is correct. The fixture can be operated manually, 2. Please check whether the DMX cable is connected correctly but DMX control is not working. and without damage. WWW.NANLITE.COM...
