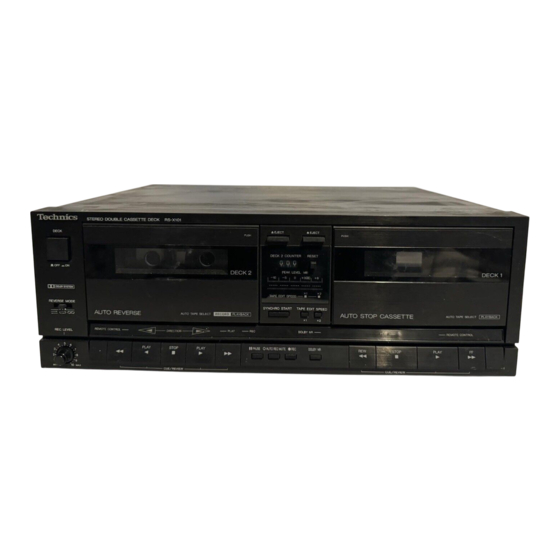

Technics RS-X101 Service Manual

Dolby NR-Equipped
Stereo Double Cassette Deck
DC) [easy avetem]
"Pechnics © seco coven casserre vex As-xio1
RS-X911 MECHANISM SERIES (AR300)
SPECIFICATIONS
@ CASSETTE DECK SECTION
Deck system Stereo cassette deck
Track system 4-track, 2-channel
Heads
(tape deck 2) Rec/play Permalloy head
Erasing Double-gap ferrite head
(tape deck 1) play Permalloy head
Motors
(tape deck 2) Capstan/reel table drive | DC servo motor
(tape deck 1) Capstan/reel table drive DC servo motor
Recording system AC bias
Bias frequency 80 kHz
Erasing system AC erase
Tape speeds 4.8 cm/sec. (1-7/8 ips)
Frequency response (w/o Dolby NR)
NORMAL 30 Hz~16 kHz
40 Hz~15 kHz (DIN)
Cro, 30 Hz~16 kHz
40 Hz~15 kHz (DIN)
METAL 30 Hz~18 kHz
40 Hz~17 kHz (DIN)
SIN (signal level = max recording level, CrO2 type tape)
Dolby B NR on 66 dB (CCIR)
Dolby NR off 56 dB (A weighted)
Technics
ORDER NO. AD9002023C8
Cassette Deck
RS-X101
Color
(K)... Black Type
"Cone"
r
68) [erat seta
r
Area
3
Wow and flutter 0.1 % (WRMS)
Fast forward and rewind times
Approx. 110 seconds with C-60 cassette tape
Input sensitivity and impedance
LINE 60 mV/47 kQ
Output voltage and impedance
LINE 400 mV/800 Q
Mi GENERAL
Power consumption 15 W
Power supply AC 50/60 Hz 220V
[(EG) area only]
Dimensions (W x H x D) 360 x 129 x 285mm
(14-3/16"" x 5-3/32" x 11:7/32")
Weight
For [EG] area 4.0kg (8.8 Ib.)
For others 3.5kg (7.7 Ib.)
Note:
Specifications are subject to change without notice.
Weight and dimensions are approximate.
* Dolby noise reduction manufactured under license
from Dolby Laboratories Licensing Corporation.
"Dolby" and the double-D symbol are trade marks of
Dolby Laboratories Licensing Corporation.
