Circuit
Frequency
Coverage
Antenna
System
Intermediate Frequency
Maximum
Sensitivity
{at 10 mW
output)
'Selectivity
Output
Power
Current
Drain
Speaker
Power
Source
Dimensions
Weight
26
ae
os
oe
oe
on
oe
ae

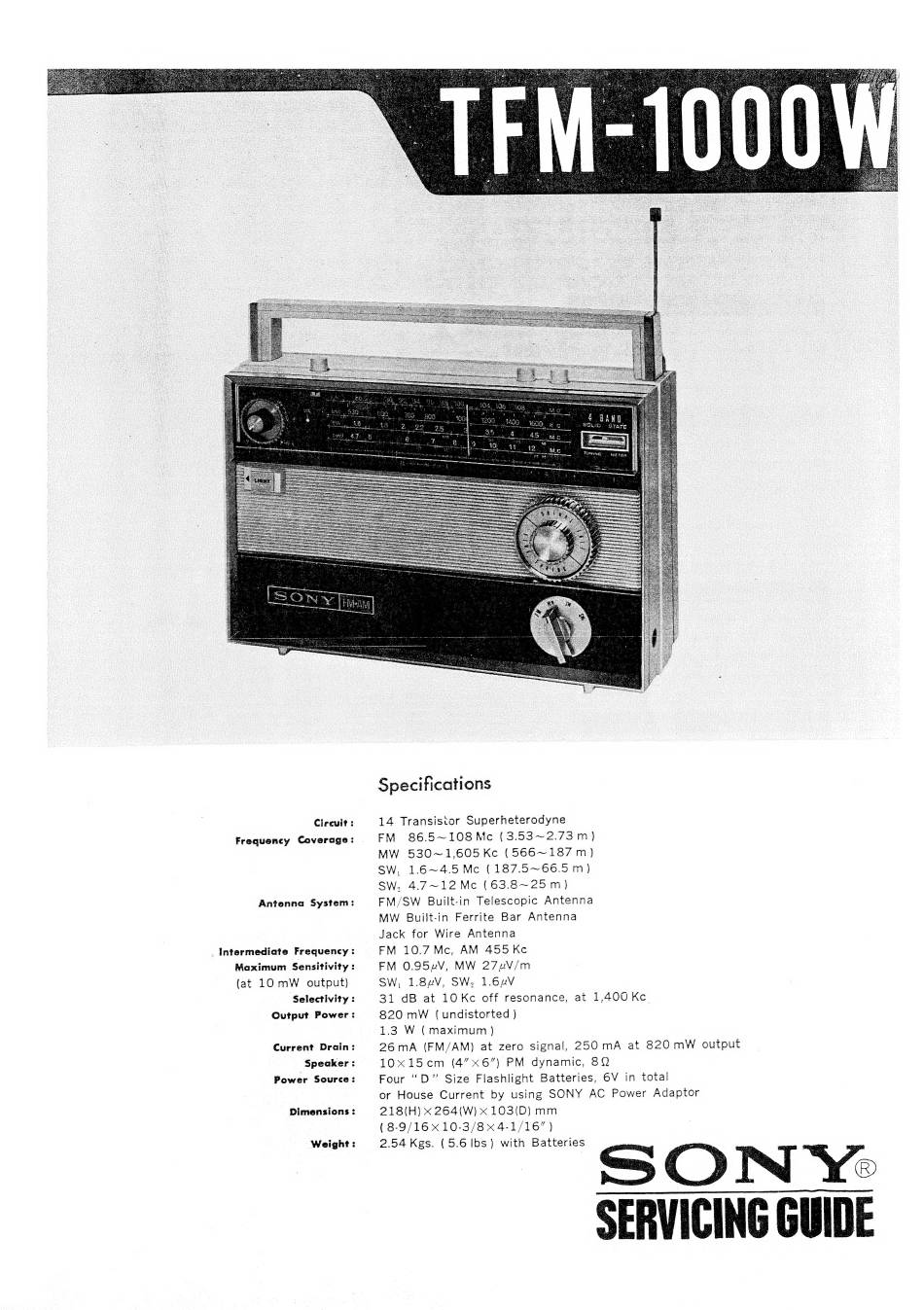

Specifications
14 Transistor
Superheterodyne
FM
86.5~108Mc
(3.53~2.73m)
MW
530~1,605 Ke (566~187m)
SW,
1.6~4.5 Mc
(187.5~66.5
m)
SW.
4.7~12Mc
(63.8~25
m)
FM/SW
Built-in Telescopic
Antenna
MW
Built-in
Ferrite
Bar Antenna
Jack for Wire Antenna
FM
10.7 Mc, AM
455 Ke
FM
0.95zV,
MW
27zV/m
SW,
1.8zV, SW.
1.64V
31 dB at 10Kc
off resonance,
at 1,400 Kc.
820 mW
(undistorted
)
1.3 W (maximum)
Four ''D"
Size Flashlight
Batteries,
6V in total
or House
Current
by using SONY
AC Power
Adaptor
218(H)
x 264(W) x 103(D) mm
(8-9/16x10-3/8x4-1/16")
2.54 Kgs. (5.6 lbs) with Batteries
