Uniden iGO CAM 60 - 2K Smart Dash Cam Manual

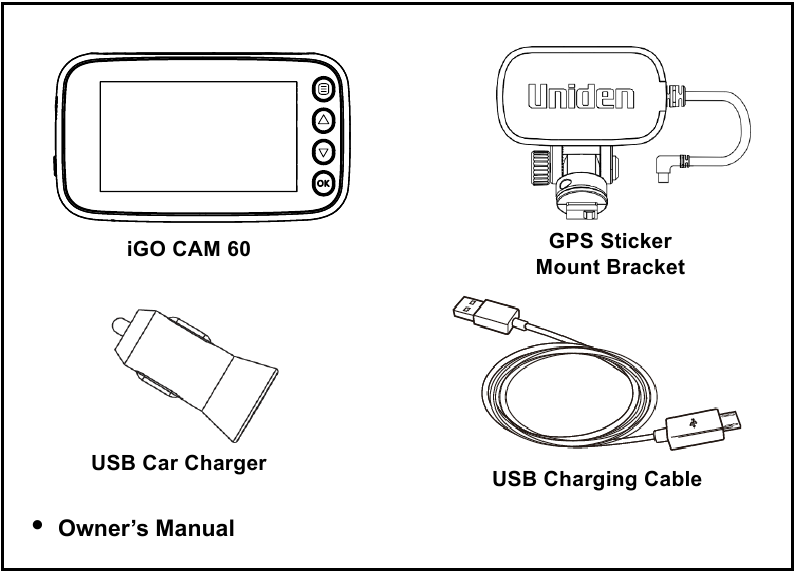

What's In The Box

Make Sure These Items Arrived in the Box

• If any item is missing or damaged, contact your place of purchase immediately. Never use damaged products!
• Need help? Get answers at our website: www.uniden.com.au for Australian model.

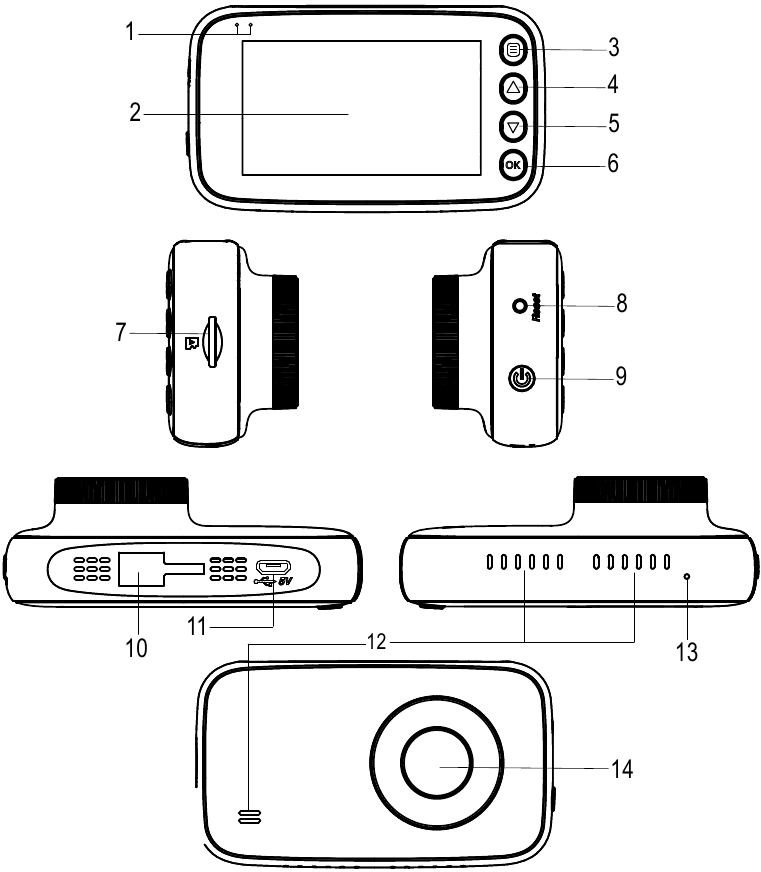

Controls & Indicators

Ref	Component	Description
1	LED	RED - Flashing indicates recording. BLUE - Indicates charging battery.
2	LCD Screen
3	MENU	Recording Mode: Start emergency recording. Record Mode: Enter Settings menu. Playback Mode: Return to previous screen/mode.
4	UP	Recording Mode: Turn on/off audio recording. Record Mode: Enter Playback mode. Playback Mode: Toggle to previous file.
5	DOWN	Recording Mode: Take a snapshot. Record Mode: Take a snapshot. Playback Mode: Toggle to next file.
6	OK	Recording Mode: Stop video recording. Record Mode: Start video recording. Playback Mode: Confirm Selection/Play/Pause/ Resume.
7	Card Slot	Insert micro SD Card (up to 128GB min class 10).
8	Reset	If the device fails to operate, try resetting the device. Press the reset button using a fine pen or paperclip.
9	POWER	Press & hold for 3 seconds to turn power on. Press & hold for 5 seconds to turn power off.
10	Bracket Slot	Slot in the GPS sticker mount bracket.
11	Micro USB Port	Connect micro USB cable & charge battery. Connect to PC for data (SD card) transfer (USB data cable is not supplied).
12	Speaker
13	MIC	Records sound.
14	Lens

*Record Mode is when the device is not recording.
*Recording Mode is when the device is recording.

Installation

Location

To have a better view, try to install at the center of the windshield. Make sure the lens is located in a place where the windshield wiper can clean the window to ensure view is clear.

Make sure the device is not installed in a place where it will interfere with the safety bag. Make sure the GPS will not be obstructed by the windshield's sun control film (window tint).

Installing the Mount onto the Windshield

1. Slide the sticker mount bracket into the device bracket slot and make sure it fits tightly.
2. Clean the area you desire to have the dash cam placed before sticking the device.
3. Peel off the sticker protective film from the 3M sticker
4. Press and apply force on the mount onto the windshield behind the rear- view mirror.
5. Adjust the viewing angle of the camera by loosening the screw of the bracket and fasten it back to secure the viewing angle. We recommend the camera should point slightly downwards ~10° below eye level.

GPS Reception information

Surrounded with tall buildings, in a tunnel or poor weather conditions may result in poor GPS reception or even lose GPS signal. Over-tinting or a rain sensor on the windshield can affect GPS reception.

If the signal is unstable even when you are driving, please try changing the installation spot of your dash camera. For the first time use, it takes about 15~20 minutes to get GPS signal, and after that, it normally takes about 3 minutes.

NOTE
Sticker mount is difficult to remove after it is installed and will not stick well on a curved/textured or wet surface.

NOTE
Do not install the product in a location where it can obstruct the driver's field of vision.

Operation

Micro SD Card

NOTE
A compatible micro SD card (not supplied) is required to record and store videos and photos.

The device can support micro SDHC cards (High Capacity SD) up to 128GB in capacity. A micro SDHC card of at least 8GB capacity and minimum Class 10 speed is recommended.

Insert a formatted micro SD card gently in the slot at the side of the device. To remove the card from the slot, press the edge of the SD card inwards for it to pop out and then pull it out of the slot.

Uniden only recommends using good quality MLC/SLC micro SD cards. Please ensure that the SD card used is rated for Dash Cam use.

Video Storage Capacity
Refer to the table below for the recording capacity for different card capacity and some of the recording resolution.

Battery Information

Although primarily designed for in-car use, the device can operate from its built-in battery for up to 12 minutes. Please note, the power usage would depend on day/night recording and resolution setting.

The device will charge the battery whenever power is detected through the USB port. The device will take about 180 minutes to charge completely.

NOTE
Please ensure that the battery is fully charged before using it for the first time. To extend the battery life, fully charge the device once every 3 months. The battery life will degrade over a period of time especially when the device is exposed to high temperature.

Power On

NOTE
When connected to a car charger with power, the device will automatically power on and start recording.

1. Ensure the USB Charging Cable is connected to the USB car charger.
2. Plug in the USB car charger to the car's cigarette lighter port.
3. Connect the other end of the USB charging cable into the micro USB port found on top of the GPS mount bracket.
4. Connect the USB cable from the side of the GPS mount bracket into the micro USB port found on the device.
5. The device will power on automatically when the car supplies the power to the device.
6. The red dot on the screen will start flashing and recording starts automatically.

At other times, press and hold the power button for at least 3 seconds.

NOTE
Be sure insert the SD card before powering up the device. Format the SD card before you start recording for the first time.

Power Off

When the car's engine is turned off, the device will automatically turn off in a few seconds.
At other times, press and hold the power button for at least 5 seconds to turn off the device. Do no eject the SD card immediately to prevent damage to the last recorded file.
If you wish to switch the device back on, press and hold the power button for at least 3 seconds.

NOTE
Only use the USB Car Charger Adaptor and USB Charging cable that comes with your device. Any other adaptor might damage the device.

Record Mode

NOTE
To record a video, ensure that a valid micro SD card (not supplied) is inserted in the given slot. Also note, that inserting/ removing the SD card when the device is recording causes the device to shutdown and in worst case malfunction.

Recording

When connected to a car charger, the device automatically goes into the record mode and starts recording. The icon will display on the screen.

A red dot icon and a recording timer indicates that the device is recording. To stop recording, press OK and the red dot disappears, indicating that the recording has stopped.

Emergency Recording

An Emergency Recording is triggered when the Menu Button is pressed or when the G-Sensor registers an impact while recording. Emergency Recordings create locked files that are not overwritten by Loop Recording. Emergency recording will only last for 30 seconds.

Snapshot

While the device is recording, press DOWN button to take a quick snapshot. The photo resolution is 1920x1080. If you wish to take a higher resolution photo, you will need to stop the recording and press DOWN button. You can only take a snapshot every 5 seconds.

Playback

While the device is not recording, you can view and play recorded files. Press UP button when the device is not recording to enter Playback mode.

To delete a file, you will need to access Delete option in General Settings menu. You can delete individual file or delete all at once in the selected folder.

Record Settings

NOTE
Please note, you cannot access MENU when the device is recording. To access the Menu, you will need to stop recording by pressing OK.

In record mode, press the MENU button to access the record menu settings.
Press twice to display the General Settings menu. Press the relevant UP and DOWN keys to scan through the various settings and then press OK to select or confirm selection.

Press the MENU button to return and exit the Menu.

Playback Mode

In Record mode (when the device is not recording), press the UP button to enter Playback mode. The device stores video and photos on the SD Card. Playback mode will allow you to review the saved video and photos and play back the video with sound.
The device will display two folders. You can choose Event Video to view Protected/Locked video or Normal Video to view General Record File. All snapshots can be found in the Normal Video folder.

Choose which file you want to preview and press OK button to view or play the files. You can press UP or DOWN button to toggle to the previous or next file. Press OK button to pause the video or MENU button to return to files selection.
To delete a file, you will need to access Delete option in General Settings menu. Select a file you wish to delete and press OK button to reveal the options, Delete this file, Delete all files.

Press MENU button to return folder selection page and press again to return record mode.

General Settings

In record the mode, press the MENU button twice to open the general settings menu.

Connecting to a PC

The iGO CAM 60 can be connected to a PC by using a USB data cable (not supplied). The supplied USB cable is for charging and supplying power only. When the device is connected to the PC, 'Data transfer mode' is displayed on the device's screen.

You can view the SD card contents on the PC. When the device is detected on the PC as an external drive, select to view the Event folder or Normal folder. Select Event Folder to view Protected/Locked video files. Select Normal Folder to view General Record files.

The park mode recording files are saved in Event Folder. All snapshots can be found in the Normal Video folder. Recordings or images arranged in folders according to the specified date.

GPSTrackerPlayer

GPSTrackerPlayer allows you to view the recordings on the iGo Cam 60 and trace them on a map.
iGO CAM Player software is supported on Windows 7, Windows 10 and macOS. Download the correct software designated for different platform.

Installing iGO CAM Player

Download the GPSTrackerPlayer from the Uniden website. You may need to unzip the file using the appropriate archiving software before you can use the player.

Access the Recorded Files

Before playing the recorded files on the GPSTrackerPlayer, ensure that you can access the files easily.

Either remove the micro SD card from the recorder, and access the files on the computer via a card reader.
or
Connect one end of the USB data cable to the recorder and the other end to the USB port on your computer.

NOTE
The supplied USB cable is for charging and supplying power only. You will need a USB data cable (not supplied) for transferring videos and photos from the device to the PC.

View the Recorded Files

To view the recorded files on the GPSTrackerPlayer, follow the steps below:

1. Start the GPSTrackerPlayer (i.e., double click on the iGO CAM Player icon on your desktop, or click windows start and search from the program listing). Ensure that the PC is connected to the internet to view the map screen.
2. Click on the option Open File and go to the folder that contains the recordings of the iGo Cam 60. You may select and open all files and have it listed in the play list for easier playback.

3. The player will automatically play the first file. If you wish to play the next file, double click on the file name in the play list to start playback.

Click on the 'Screenshot' to take photos of the recording. These photos will automatically save into the PC local folder.

NOTE
GPS Player version is subject to change without notice. See Uniden website to download the latest GPS Player.

Special Features

GPS

The iGo Cam 60 comes with GPS, allowing your device to automatically sync the time with GPS. Ensure to select the correct time zone and also enable Daylight saving if needed.

GPS also allowing your videos to be geo-tagged. Please ensure that the GPS bracket is fitted onto the device ensure the device is able to detect the GPS signal. You can view the recorded videos on the GPSTrackerPlayer and trace them on a map.

Camera Alerts

The iGo Cam 60 has the ability to alerts the user when there is a fixed Speed/Red Light/Red Light-Speed or Average Speed Camera.
For this feature to work, please ensure that the Menu option, Camera Alert, in the Record Settings menu is turned on.

When the vehicle is close to any of the fixed cameras, the LCD will display the camera alert icon along with specific information. This information will include the distance from the vehicle to the camera, the specified speed limit and the current speed of the vehicle. The display is accompanied by a voice alert.
The camera alerts will not work when the device loses the GPS signal.

ADAS

ADAS includes the following 4 functions: Headlight Alert, Forward Collision Alert, Front Vehicle Departure Alert and Lane Departure Alert. Ensure to follow the steps listed and read the notes below to get the most out of this feature.

The ADAS detect will not function when the resolution were set to HDR 1920x1080 30P.

Please Note:

• ADAS Alerts will be limited in poor visibility or where there is inconsistent or faded road markings.
• ADAS best work when the iGo Cam 60 is pointed 10° below eye level and the bottom of the Live View screen is recording part of the car.
• ADAS Alert features is best suited for drivers who spend time on long roads who are worried about falling asleep at the wheel – truck drivers, etc. The feature is not suited for drivers traversing short roads in city areas where deliberate lane changing is done often.
• It is NOT a substitute for careful driving and paying attention to the road.

Troubleshooting

Listed below are some of the problems and the possible solutions.

If you still need help, visit our website or call our customer service.

Specification

Important Safety Instructions

NOTE
Uniden does not represent this product to be waterproof. Do not expose this product to Rain or Moisture.

NOTE
This product is intended for use in a motor vehicle. Don't install the device where it will block the driver's view of the road (including the mirrors!) or the deployment of the airbag.

NOTE
Keep your attention on the road! Don't try to operate or focus on any device while driving. If you have to concentrate on a device, pull off the road for a few minutes.

NOTE
Ensure that the camera lens is kept clean and there is nothing blocking the lens.

NOTE
Don't leave the device in direct sunlight for a long period of time or where the temperature could go above 60°C.

NOTE
You should examine, check and/or verify the device at least once a month including the associated SD card, to ensure the recording are working properly.

NOTE
Never attempt to disassemble, repair or make any modifications to your device.

Warranty

UNIDEN AUSTRALIA PTY LTD
Phone: 1300 366 895
Email: custservice@uniden.com.au

For more exciting new products please visit our website:
Australia: www.uniden.com.au
