Scan to see the online manual.
OWNER'S MANUAL
CERAMIC-GLASS
RADIANT COOKTOP
Read this owner's manual thoroughly before operating the
appliance and keep it handy for reference at all times.
ENGLISH
LCE3010SBE LCE3610SBE
www.lg.com
MFL54169116
Copyright © 2023 LG Electronics Inc. All Rights Reserved.
Rev.01_120123
Advertisement
Table of Contents
Related Manuals for LG LCE3010SBE
Summary of Contents for LG LCE3010SBE
- Page 1 Scan to see the online manual. OWNER'S MANUAL CERAMIC-GLASS RADIANT COOKTOP Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times. ENGLISH LCE3010SBE LCE3610SBE www.lg.com MFL54169116 Copyright © 2023 LG Electronics Inc. All Rights Reserved. Rev.01_120123...
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE WARNING STATEMENTS CAUTION STATEMENTS PRODUCT OVERVIEW Product Features INSTALLATION Before Installing Installing the Cooktop 18 OPERATION Cookware Control Panel 25 MAINTENANCE Care and Cleaning 27 TROUBLESHOOTING Before Calling for Service 29 LIMITED WARRANTY... -
Page 3: Important Safety Instructions
We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages. Download this owner's manual at http://www.lg.com This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages will follow the safety alert symbol and either the word WARNING or CAUTION. - Page 4 IMPORTANT SAFETY INSTRUCTIONS burns. During and after use, do not touch, or let clothing or other flammable materials touch these areas until they have had sufficient time to cool. • Never wear loose fitting or hanging garments while using this appliance. •...
- Page 5 • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. • If your appliance malfunctions or fractures, switch off all cooking zones, and contact an LG Customer Information Center for service.
-
Page 6: Caution Statements
IMPORTANT SAFETY INSTRUCTIONS CAUTION STATEMENTS CAUTION • To reduce the risk of minor or moderate injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following: Operation • This appliance may only be used for normal cooking and frying in the home. It is not designed for commercial or industrial purposes. - Page 7 IMPORTANT SAFETY INSTRUCTIONS • If sugar or a mixture containing sugar falls onto a hot cooking zone and melts, remove it with a metal scraper immediately, while still hot. If left to cool down, it may damage the surface when removed. Use caution and wear an oven mitt to avoid burns.
-

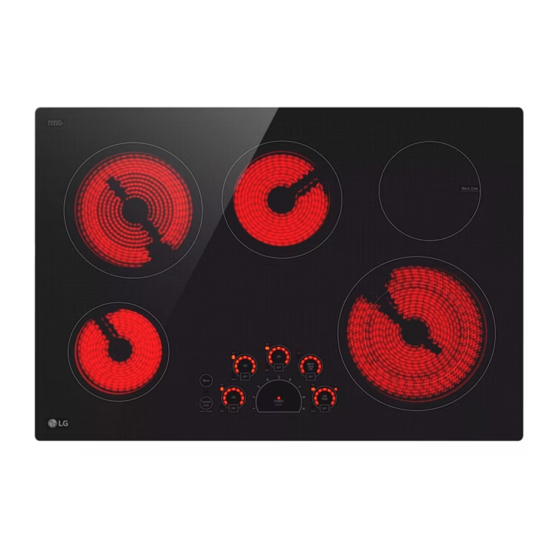

Page 8: Product Overview
Parts and Features Throughout this manual, features and appearance Triple Cooking Zone 12 5/16"/9"/6" (313 mm/ may vary from your model. 229 mm/152 mm) LCE3010SBE Warming Zone 6" (152 mm) Dual Cooking Zone 9 15/16"/6" (253 mm/152 Control Panel Accessories... -
Page 9: Installation
INSTALLATION INSTALLATION Before Installing Tools Needed Before You Begin Installation and service must be performed by a qualified installer. Important: Save these instructions for the local electrical inspector’s use. Read and save these instructions for future reference. Read these instructions completely and carefully. CAUTION •... - Page 10 Be sure the bottle of cleaner and conditioner warranty registration. packed in the literature bag is left where the user can find it easily. It is important that the Technical Specifications Models LCE3010SBE Description Radiant Cooktop Connection 240/208 VAC 60 Hz., 32.1 A/27.9 A voltage...
- Page 11 INSTALLATION Models LCE3610SBE Front Left 6 7/16" (163 mm) 1200 W 9 15/16"/6" (253 mm/ Front Right 3000 W/1400 W 152 mm) 8 3/4"/5" (223 mm/127 Cooking Zones Rear Left 1900 W/950 W LCE3610SBE Rear Right 6" (152 mm) 100 W (Warm) 12 5/16"/9"/6"...
- Page 12 Do not obstruct these areas. 4″ X 8″ (102 mm x 203 mm) opening to route armored cable if panel is present. Approximate location of junction box Dimension/Clearance LCE3010SBE LCE3610SBE Width of upper plate 30 3/4" (781 mm) 36 5/8" (930 mm) Depth of upper plate 21 7/16"...
-
Page 13: Installing The Cooktop
INSTALLATION Dimension/Clearance LCE3010SBE LCE3610SBE Distance from side edge of cutout to side of counter 13/16" (20 mm) Distance from edge of cooktop to nearest 3 3/4" (95 mm) combustible wall (either side of unit) Height below cutout 5 23/32" (145 mm) (Empty space is needed underneath the cooktop for installation purposes.) - Page 14 14 INSTALLATION sheathed cable. The flexible armored cable WARNING extending from this appliance should be connected directly to the grounded junction • The electrical power to the cooktop must be shut box. The junction box should be located as off while line connections are being made. shown in Dimensions and Clearances with Failure to do so could result in serious injury or as much slack as possible remaining in the...
- Page 15 INSTALLATION Where Local Codes Permit Connecting If Cooktop is Used in a New Branch the Appliance-Grounding Conductor to Circuit Installation (1996 NEC), Mobile the Neutral (White) Wire Home, Recreational Vehicle, or where Local Codes Do Not Permit Grounding Observe all governing codes and local ordinances. to the Neutral (White) Wire Disconnect the power supply.
- Page 16 Bolt any wires. Retainer Brackets Type A Screw Alternative installation LCE3010SBE NOTE • Do not use caulking compound. The cooktop must be removable, should service be required. Attach the retainer brackets to the bottom LCE3610SBE of the cooktop;...
- Page 17 INSTALLATION Final Check Perform a final operational check of the cooktop, making sure the cooktop powers on properly and that each cooking zone operates correctly. Refer to the Operating Instructions in this guide for details.
-
Page 18: Operation
18 OPERATION OPERATION Cookware Cookware should always be lifted over the ceramic cooktop surface to prevent scratching. Over time, sliding ANY type of cookware over the ceramic Selecting Cookware cooktop may alter the overall appearance of the cooktop. Eventually, the buildup of scratches can Pots and Pans make cleaning the surface difficult and degrade the overall appearance of the cooktop. - Page 19 OPERATION • The base of the pot should be the same size as the element. • Using a pressure cooker shortens cooking times by up to 50%.
-
Page 20: Control Panel
Control Panel Features Locations of Surface Elements and Controls The surface burner elements are positioned in the same locations on the cooktop and the control panel for ease of use. LCE3010SBE LCE3610SBE LCE3010SBE LCE3610SBE Warm: Lowers the selected active element to the lowest setting. - Page 21 OPERATION The display for the selected element will light. The CAUTION power level indicator lights flash, but no power level is set. • Never use abrasive scrubbing pads or cleaners. They can cause permanent damage to the cooktop surface. Setting the Controls To operate the control panel, press firmly with the flat part of your fingertip.
- Page 22 22 OPERATION is off, the light will stay lit until the cooktop has Selecting a number on the element power cooled down. settings activates the element. The indicator lights flash once and lock in your selection. NOTE Setting Function Used for •...
- Page 23 OPERATION To activate: • Use only cookware and dishes recommended as safe for cooktop use. Press the ON control to activate the desired element and press the Warm control. The selected • Always use potholders when removing food from the warming zone as cookware and plates element is set to the LOW setting.
- Page 24 24 OPERATION The indicator above the POWER ON/OFF control turns off. Press and hold the Control Lock control for 3 seconds. The indicator light above the Control Lock control will turn on to indicate that the cooktop is locked. Select the desired power level. Using the Dual Elements The dual element, located in the right front position, offers two different sized elements to...
-
Page 25: Maintenance
MAINTENANCE MAINTENANCE Care and Cleaning Rinse with clear water and use a dry cloth or paper towel to remove all cleaning residue. Make sure that the electrical power is off and all surfaces are cool before cleaning any part of the NOTE cooktop. - Page 26 NOTE on the cooktop surface. Always clean the cooktop surface before cooking. • For additional product information, visit our website at www.lg.com NOTE Metal Marks and Scratches • Any damage or failure of the product resulting from the items below may not be covered under the LIMITED WARRANTY.
-
Page 27: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING Before Calling for Service Before calling for service, review this list. It may save you time and expense. This list includes common occurrences that are not the result of a defect in workmanship or materials. Parts and Features Problem Possible Cause &... - Page 28 28 TROUBLESHOOTING Control Panel Problem Possible Cause & Solution There is a fault with the thermistor or micom. Flashing Flashing • Turn the cooktop off using the POWER ON/OFF. Turn cooktop back on Flashing using the POWER ON/OFF. Food spill/soil on the control panel Flashing •...
-
Page 29: Limited Warranty
Should your LG Radiant Cooktop (“Product”) fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, LG will, at its option, repair or replace the Product. This limited warranty is valid only to the original retail purchaser of the Product (“You”) and applies only when purchased lawfully and used within the United States including U.S. - Page 30 Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LG at LG Electronics, USA, Inc. Attn: Legal Department- Arbitration 111 Sylvan Avenue, Englewood Cliffs, NJ 07632.
- Page 31 Agreement to Binding Arbitration and Class Action Waiver. Upon failure to resolve the dispute during the 30 day period after sending written notice to LG, you and LG agree to resolve any claims between us only by binding arbitration on an individual basis, unless you opt out as provided below. Any dispute between you and LG shall not be combined or consolidated with a dispute involving any other person’s or...
- Page 32 32 LIMITED WARRANTY Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and you will continue to enjoy the full benefits of the Limited Warranty. If you keep this product and do not opt out, then you accept all terms and conditions of the arbitration provision described above.
- Page 33 Memo...
- Page 34 34 Memo...
- Page 35 Memo...
- Page 36 LG Customer Information Center For inquiries or comments, visit www.lg.com or call: U.S.A. 1-800-243-0000 1-888-542-2623 CANADA Register your product Online! www.lg.com...
