Kohler 97367T-4E Installation Instructions

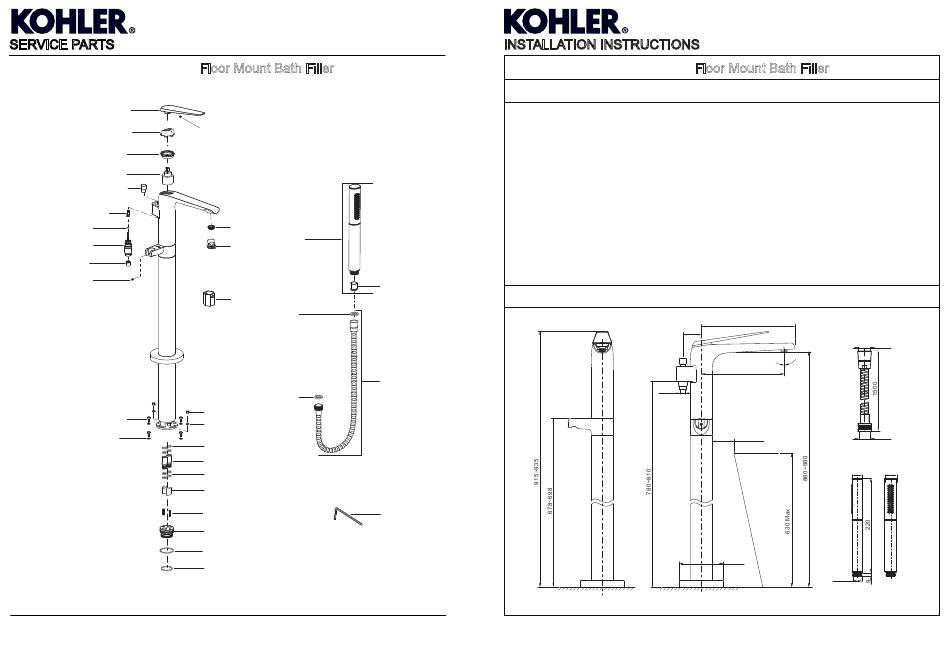

SERVICE PARTS
97367T-4E
1244431**
1241814**
1242418
1229992
1302003**
CP: 1227389**
TT: 1287813**
3008519
1302004**
831752
3013706
1082901
65218
**Color code must be specified when ordering.
1248999-AN2-A
Floor Mount Bath Filler
1249005
1258088
1096037**
3006148
1243755**
880010
880010
836547
1084120
34263
1245194
34263
1174121
1226889
1245189
871128
3008316
AVID
INSTALLATION INSTRUCTIONS
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. An inline water filter must be used with this product.
3. Inspect the supply tubing for damage. Replace as necessary.
4. Observe local plumbing codes.
5. The minimum inlet water pressure for the diverter is 0.05MPa(0.5bar).
6. Check for leaks before covering the pipes, repairs as needed.
7. The highest working pressure for handshower is 0.5MPa(5 bar). If it exceeds 0.5MPa(5 bar), a pressure
reducer is needed. The highest water and environment temperature is 60ºC. Please keep handshower
and shower arm away from heater, or it may become damaged and cause injury to the user.
8. Please purchase the matched mounting base 97904T-DR when install the faucet.
9. All installations should comply with the relevant requirements of AS/NZS 3500 and AS/NZS 6400.
79680
ROUGH-IN DIMENSIONS
831727**
1177225
* Please purchase the appropriate bathtub according to the dimension.
4 1248999-AN2-A
97367T-4E Floor Mount Bath Filler
255
50
3º
*226
G1/2˝
*70 Min.
Bathtub
Ø120
AVID
Hose
G1/2˝
G1/2˝
Handshower
24 28
G1/2"
97367T-4E
1
