Akai AM-A335 Service Manual

AKAI

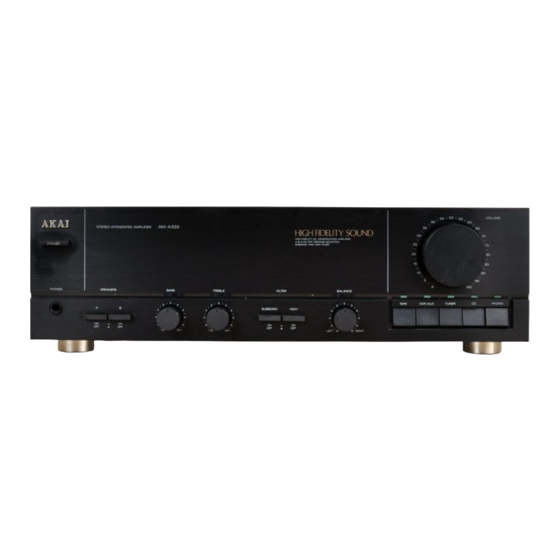

STEREQ INTEGRATED AMPUIER = AM-A335
HIGH FIDELITY SOUND
STEREO INTEGRATED AMPLIFIER
move. AM-A335
move. AM-A535
SPECIFICATIONS
Power output (DIN 1 kHz) Filters
AM-A335 oe cece eeeeeee ees 35 W+35 W High: fteesesdea seated selanaaes 7 kHz, -6 dB/oct
AM-A535 .cccccccceccccceees 60 W+60 W Subsonic ............cceee noes 18 Hz, -6 dB/oct
Music power output Power requirements .......... 220V, 50 Hz for Europe except
AM—A335 ....cc ce see eee enes 160 W UK.
AM~A535 ...cccccceseeees 270 W ae Hz for UK and
Se a soud 110V/120V/220V/240V,
DOME) acct ssnnendt ec 50/60 Hz convertible for other
Tumer etc. .......ccceee eee 100 dB counties:
Residual noise Drereeneseettenes 0.4mV
Dimensions ...............00005 425(W) X 130(H)X 270(D)rnm
Channel separation (16.7X5.1X10.6 inches)
qa KHZ) oo... eects 60 dB Weight
Damping factor AM-—A335 ...ceccccceeeeeee 8.0 kg(17.6 Ibs)
(1 kHz, 8 ohms) ............ 35 AM—A535 ...cccccseeeeeeees 9.0 kg(19.8 Ibs)
Required speaker impedance
BOOP Be oaccicceuesihadssiaveet 4 ohms to 16 ohms
Avand. Bis. ec cecides coe 8 ohms to 16 ohms
Input sensitivity/Impedance
Phono (MM) ...........0666 3 mV/47 kohms
Tuner, et ......ececeeee eres 150 mV/47 kohms
soi Standard accessories
perator's manual ........... ccc cece cece eee e erence ee ee tie eae |
* For improvement purposes, specifications and design are subject to change without notice.
