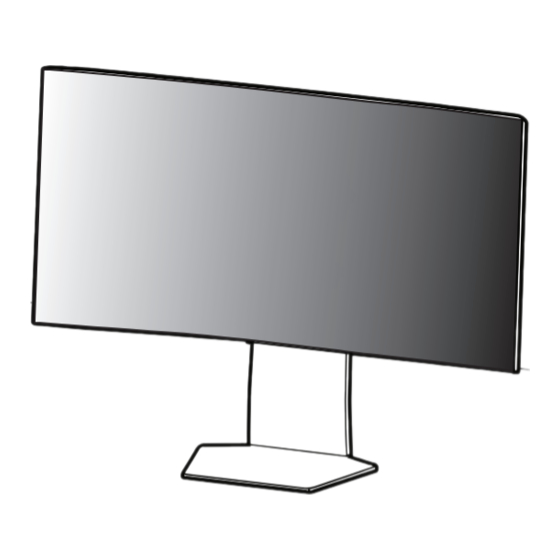

LG UltraGear 32GS95UE Owner's Manual
Oled monitor
Hide thumbs
Also See for UltraGear 32GS95UE:
- Quick setup manual (12 pages) ,
- Owner's manual (30 pages) ,
- Owner's manual (29 pages)
Related Manuals for LG UltraGear 32GS95UE
Summary of Contents for LG UltraGear 32GS95UE
- Page 1 Owner's Manual (OLED Monitor) Please read this manual carefully before operating your set and retain it for future reference. 32GS95UE www.lg.com Copyright 2024 LG Electronics Inc. All Rights Reserved.
-
Page 2: Table Of Contents
TABLE OF CONTENTS ASSEMBLING AND PREPARING ............4 USING THE MONITOR ............... 14 - Installing ..........................5 - Connecting to a PC ......................14 Moving and Lifting the Monitor ..................5 HDMI Connection ......................14 Installing on a Table ......................6 DisplayPort Connection ....................15 - Connecting AV Devices .....................15 Using the Kensington Lock ....................6 HDMI Connection ......................15 Installing on the Wall ......................7... - Page 3 PRODUCT SPECIFICATION ..............23 - Support Mode ........................24 (Preset Mode, HDMI) ......................24 (Preset Mode, DisplayPort) ....................25 HDMI Timing (Video) ......................26 TROUBLESHOOTING ................ 27 LICENSE ................... 28 OPEN SOURCE SOFTWARE NOTICE INFORMATION ......29 BEEP GUIDE ..................30...
-
Page 4: Assembling And Preparing
• To purchase optional accessories, visit an electronics store or an online shopping site, or contact the retailer • Always use genuine LG components to ensure safety and product performance. from which you purchased the product. • The product warranty will not cover damage or injury caused by the use of unauthorized components. -
Page 5: Installing
Installing CAUTION • Avoid touching the monitor screen as much as possible. Moving and Lifting the Monitor - This may result in damage to the screen or some of the pixels used to create images. • If you use the monitor panel without the stand base, its power button may cause the monitor to become When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or unstable and fall, resulting in damage to the monitor or human injury. -
Page 6: Installing On A Table
Installing on a Table Using the Kensington Lock • Lift the monitor and place it on the table in an upright position. Place the monitor at least 100 mm For more information on installation and usage, refer to the Kensington lock owner’ s manual or visit the website (3.9 inches) away from the wall to ensure sufficient ventilation. -
Page 7: Installing On The Wall
Installing on the Wall Installing the Wall Mount Plate To install the monitor to a wall, attach a wall mounting bracket (optional) to the back of the monitor. This monitor meets the specifications for the wall mount plate or other compatible devices. Make sure that the wall mounting bracket is securely fixed to the monitor and to the wall. - Page 8 Installing the monitor on the ceiling or on a slanted wall may result in the monitor falling off, which could • The wall mounting bracket is optional. You can obtain optional accessories from your local dealer. lead to injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel. • •...
-
Page 9: Product And Button Description
Product and Button Description : Wall Mount Plate : Back of the Monitor : Standard screw : Max. 8 mm (0.3 inches) A: Joystick Button B: [Dual-Mode] Button... -
Page 10: How To Use The Joystick Button
How to Use the Joystick Button Adjusting the Stand Height You can easily control the functions of the monitor by pressing the joystick button or moving it left/right/up/ Place the monitor mounted on the stand base in an upright position. down with your finger. -
Page 11: Adjusting The Angle
Adjusting the Angle Pivot Feature The pivot feature allows the monitor to rotate 90° clockwise. Place the monitor mounted on the stand base in an upright position. Adjust the angle of the screen. WARNING The angle of the screen can be adjusted forward or backward from -10° to 15° for a comfortable viewing •... - Page 12 Raise the monitor up to the maximum height. Rotate the monitor clockwise as shown in the figure. Adjust the angle of the monitor in the direction of the arrow as shown in the figure. Complete the installation by rotating the monitor 90° as shown in the figure.
-
Page 13: Supported Drivers And Software
• Auto Pivot feature of the display is not supported. You can download and install the latest version from the LGE website (www.lg.com). • The screen can be rotated easily using the screen pivot shortcut key provided with your Windows operating - Monitor Driver / system. -
Page 14: Using The Monitor
CAUTION HDMI Connection • If you use generic cables not certified by LG, the screen may not display or there may be image noises. Transmits digital video and audio signals from your PC to the monitor. • Do not press the screen for a prolonged time. This may cause image distortion. -
Page 15: Displayport Connection
Connecting AV Devices DisplayPort Connection Transmits digital video and audio signals from your PC to the monitor. HDMI Connection NOTE HDMI transmits digital video and audio signals from your AV device to the monitor. • There may be no video or audio output depending on the DP (DisplayPort) version of the PC. •... -
Page 16: Connecting Peripherals
Connecting Peripherals Headset Connection Connect peripherals to the monitor via the headset port. USB Device connection NOTE The USB port on the product functions as a USB hub. • Peripheral devices are sold separately. To use USB 3.0, connect the A-B type USB 3.0 cable of the product to the PC. •... -
Page 17: User Settings
USER SETTINGS Main Menu Features NOTE • Your monitor’ s OSD (On Screen Display) may differ slightly from that shown in this manual. Activating the Main Menu Press the joystick button on the back of the monitor. Move the joystick up/down and left/right to set the options. Joystick Button Main Menu Description... -
Page 18: Menu Settings
Menu Settings [Game Adjust] [Settings] > [Game Adjust] To view the OSD menu, press the joystick button at the back of the monitor and then enter the [Settings]. • [Game Mode]: you can select picture modes for game display settings. Move the joystick up/down and left/right to set the options. -
Page 19: [Picture Adjust]
[Picture Adjust] • [Dual-Mode]: By increasing the refresh rate, you can experience smoother and faster motion. - [Off]: It can support up to 3840 x 2160 at 240 Hz, and may vary depending on PC performance. [Settings] > [Picture Adjust] - [On(Full Wide)] / [On(27")] / [On(24")]: It can support up to 1920 x 1080 at 480 Hz, and may vary •... -
Page 20: [Sound]
[Input] • [Six Color]: Meets the user requirements for colors by adjusting the hue and saturation of the six colors (red, green, blue, cyan, magenta, and yellow) and then saving the settings. [Settings] > [Input] - Hue: Adjusts the tone of the screen colors. •... -
Page 21: [General]
[General] • [SMART ENERGY SAVING]: Conserve energy by using luminance compensation algorithm. - [High]: Saves energy using the high-efficiency [SMART ENERGY SAVING] feature. [Settings] > [General] - [Low]: Saves energy using the low-efficiency [SMART ENERGY SAVING] feature. • [Language]: Sets the menu screen to the desired language. - [Off]: Disables the feature. -
Page 22: Important Information For Preventing Image Retention
Important Information for Preventing Image Retention Safety precautions for prolonged use Due to the unique properties of OLED panels, the brightness may be reduced with prolonged use. Reduced Unlike regular LED/LCD monitors, pixels in the OLED monitors emit light on their own, achieving a perfect black brightness is permanent. -
Page 23: Product Specification
PRODUCT SPECIFICATION Power Sources • Power Rating: 19.5 V 9.0 A Specifications are subject to change without notice. Dimensions: Monitor Size (Width x Height x Depth) The symbol ~ means alternating current, and the symbol means direct current. • With Stand: - 714.1 x 627.0 x 266.0 (mm) Color Depth: - 28.1 x 24.6 x 10.5 (inches) •... -
Page 24: Support Mode
Support Mode (Preset Mode, HDMI) Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks 640 x 480 31.469 59.940 800 x 600 37.879 60.317 1024 x 768 48.363 60.004 1280 x 720 45.000 60.000 1280 x 1024 79.976 75.025 1920 x 1080 67.500 60.000... -
Page 25: (Preset Mode, Displayport)
(Preset Mode, DisplayPort) Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks 640 x 480 31.469 59.940 800 x 600 37.879 60.317 1024 x 768 48.363 60.004 1280 x 720 45.000 60.000 1280 x 1024 79.976 75.025 1920 x 1080 67.500 60.000 1920 x 1080... -
Page 26: Hdmi Timing (Video)
HDMI Timing (Video) Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) 480P 31.5 720P 1080P 67.5 1080P 2160P 2160P... -
Page 27: Troubleshooting
Do you see an "Unrecognized monitor, monitor found" message? • Have you installed the display driver? - Be sure to install the display driver from our web site: http://www.lg.com. - Make sure to check if the graphics card supports function. -
Page 28: License
LICENSE Each model has different licenses. Visit www.lg.com for more information on the license. The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. The SuperSpeed USB Trident logo is a registered trademark of USB Implementers Forum, Inc. -
Page 29: Open Source Software Notice Information
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge. -
Page 30: Beep Guide
BEEP GUIDE Menu Location Menu Location Game Adjust - Crosshair - Green Dot 1 5 4 Picture Adjust - R/G/B Game Adjust - Crosshair - Off 1 5 5 Picture Adjust - R/G/B - Red 2 7 1 Menu Location Game Adjust - FPS Counter Picture Adjust - R/G/B - Red 2 7 1 1 Slider... - Page 31 Menu Location Menu Location Menu Location Picture Adjust - Six Color - Yellow Saturation 2 8 12 Input - Aspect Ratio - Full Wide 4 2 1 General - OLED Screen Move - Mode 4 5 2 5 Picture Adjust - Six Color - Yellow Saturation 2 8 12 1 Slider Input - Aspect Ratio - Original 4 2 2...
- Page 32 Menu Location Menu Location General - User-defined Key 2 - Input 5 7 1 General - OSD Lock 5 13 General - User-defined Key 2 - Game Mode 5 7 2 General - OSD Lock - On 5 13 1 General - User-defined Key 2 - OLED Image Cleaning 5 7 3 General - OSD Lock - Off...
- Page 33 The model and serial number of the product are located on the back and on one side Trade Name of the product. Responsible Party LG Electronics USA, Inc. Record them below in case you ever need service. Address 111 Sylvan Avenue, North...
