NCR 5907-K301 Kit Instructions

Xl7w spacepole

Download this manual

Kit Instructions

XL7W SpacePole

5907–K301

Issue A

Page 1 Kit Instructions XL7W SpacePole 5907–K301 Issue A...
Page 2: Revision Record
NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.
Page 3: Kit Contents

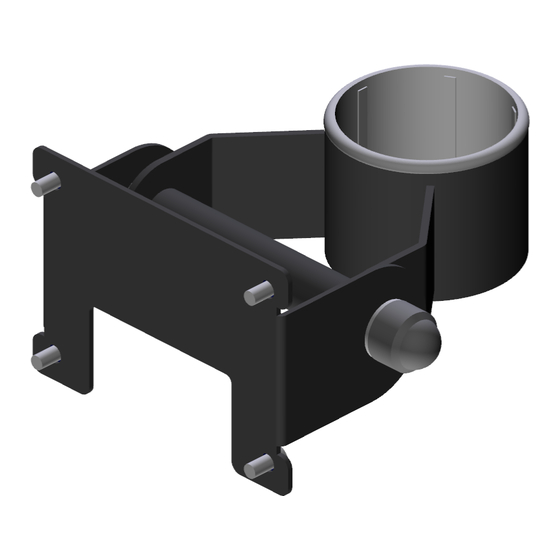

XL7W SpacePole This kit provides a bracket to mount the NCR XL7W (5907) Display to a SpacePole. Kit Contents Installation Procedure 1. Connect the USB-C end of the Display Cable to the back of the Display. Tighten the thumbscrew. Note: Avoid overtightening the thumbscrew by turning it only until the silver knurled portion touches the black plastic overmold.
Page 4 XL7W SpacePole 2. Install the Bracket on the back of the Display (4 screws). 3. Mount the Display on the Pole. Using an allen key, tighten the set screw on the connection arm to secure it to the Pole.
Page 5 XL7W SpacePole 4. Route the cable through the Cable Management Clip. 5. Connect the Display Cable to the host terminal.
