Summary of Contents for NCR 7734-K170

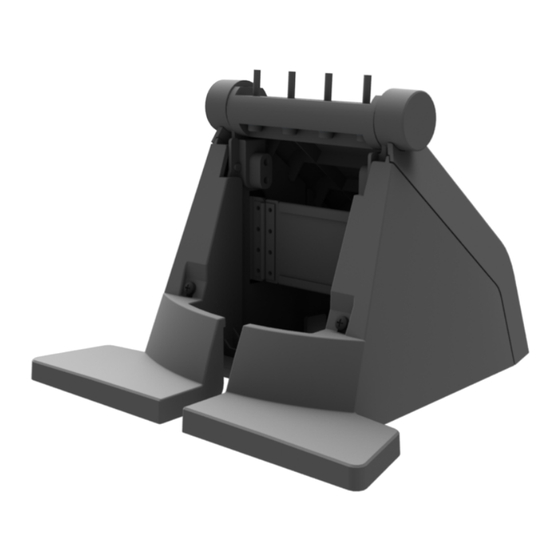

- Page 1 KIT INSTRUCTIONS Table Top Tilt Stand Release 1.0 7734–K170 Issue A...
- Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.
-
Page 3: Revision Record
Revision Record Issue Date Remarks Apr 2017 First Issue... -
Page 4: Kit Content
Table Top Tilt Stand Introduction This kit provides a Table Top Tilt Stand for the P1532 POS (7734). Kit Content... -
Page 5: Installation Procedure
7734-K170 (Table Top Tilt Stand) Installation Procedure 1. Place the Table Top Tilt Stand on top of the display assembly. 2. Secure the Table Top Tilt Stand with M4 x 30 screws (4). -
Page 6: Installing The Power Supply
Installing the Power Supply Caution: The P1532 terminal requires the NCR 19 V or 24 V power supply that is shipped with the terminal. Use of other power supply may cause damage to the unit. Do not connect or disconnect the 19 V or 24 V Power Cable from the terminal with the AC Power Cord still connected to an AC outlet. - Page 7 7734-K170 (Table Top Tilt Stand) 3. Open the CableLock™ Cover. 4. Slide and install the power brick to the base. Ensure that the power brick's label is facing down.
- Page 8 7734-K170 (Table Top Tilt Stand) 5. Route the AC power cord to the right of the power brick and then down the opening at the base of the terminal. 6. Route the power cable up the stand and connect to the Power In port.
