Ryobi FVH56 - USB LITHIUM GLUE PEN Manual

INCLUDES

Glue Pen, Drip Tray Stand, Mini Glue Sticks (3), USB Lithium Battery, USB Cable, Operator's Manual

IMPORTANT SAFETY INSTRUCTIONS

WARNING:
READ ALL INSTRUCTIONS. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Know your glue pen. Read operator's manual carefully. Learn its applications and limitations, as well as the specific potential hazards related to this product. Following this rule will reduce the risk of electric shock, fire, or serious injury.
Do not lay a hot glue pen on its side.
Place a piece of paper or cardboard underneath the product to catch hot glue drips and prevent damage to the underlying surface.
Do not touch the heated nozzle of the glue pen.
Use the glue pen in a well-ventilated area to avoid breathing hot glue vapors.
Do not point the nozzle of the glue pen at another person.
Do not tilt the glue pen nozzle upwards or use the product to glue overhead items.
Always allow hot glue to cool and dry completely before handling the item to which it is applied.
Do not insert anything except glue sticks into this product, and insert only from the back of the glue pen.
Do not place your hands or fingers near the nozzle of the glue pen when inserting a new glue stick.
Never leave the glue pen unattended while it is in the on position.
Do not apply more hot glue than is needed for your application.
Keep work area clean and well lit. Cluttered or dark areas invite accidents.
Do not operate battery products in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Battery products create sparks which may ignite the dust or fumes.
Keep children and bystanders away while operating a glue pen. Distractions can cause you to lose control.
Do not allow children to use the glue pen. It is not a toy.
Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
Do not expose battery products to rain or wet conditions. Water entering a battery product will increase the risk of electric shock.
For use with 4V lithium-ion battery packs.
Stay alert, watch what you are doing and use common sense when operating a battery product. Do not use the product while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating battery products may result in serious personal injury.
Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the product. Carrying battery products with your finger on the switch or energizing battery products that have the switch on invites accidents.
Do not overreach. Keep proper footing and balance at all times. Do not use on a ladder or unstable support. This enables better control of the battery product in unexpected situations.
Do not wear loose clothing or jewelry. Contain long hair. Loose clothes, jewelry, or long hair can contact a heated nozzle.
Do not use the battery product if the switch does not turn it on and off. Any battery product that cannot be controlled with the switch is dangerous and must be repaired.
Remove the battery pack from the product before making any adjustments, changing accessories, or storing the product. Such preventive safety measures reduce the risk of starting the product accidentally.
Store idle products out of the reach of children and do not allow persons unfamiliar with the product or these instructions to operate the product. Battery products are dangerous in the hands of untrained users.
Maintain battery products. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the product's operation. If damaged, have the product repaired before use. Many accidents are caused by poorly maintained battery products.
Use the battery product, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the product for operations different from those intended could result in a hazardous situation.
Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
Use battery products only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
Battery products do not have to be plugged into an electrical outlet; therefore, they are always in operating condition. Be aware of possible hazards when not using your battery product or when changing accessories. Following this rule will reduce the risk of electric shock, fire, or serious personal injury.
Do not place battery products or their batteries near fire or heat. This will reduce the risk of explosion and possibly injury.
Do not crush, drop or damage battery pack. Do not use a battery pack or charger that has been dropped or received a sharp blow. A damaged battery is subject to explosion. Properly dispose of a dropped or damaged battery immediately.
Batteries can explode in the presence of a source of ignition, such as a pilot light. To reduce the risk of serious personal injury, never use any cordless product in the presence of open flame. An exploded battery can propel debris and chemicals. If exposed, flush with water immediately.
Do not charge battery product in a damp or wet location. Following this rule will reduce the risk of electric shock.
For best results, your battery product should be charged in a location where the temperature is more than 50°F but less than 100°F. To reduce the risk of serious personal injury, do not store outside or in vehicles.
Under extreme usage or temperature conditions, battery leakage may occur. If liquid comes in contact with your skin, wash immediately with soap and water. If liquid gets into your eyes, flush them with clean water for at least 10 minutes, then seek immediate medical attention. Following this rule will reduce the risk of serious personal injury.
Have your battery product serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the battery product is maintained.
When servicing a battery product, use only identical replacement parts. Follow instructions in the Maintenance section of this manual. Use of unauthorized parts or failure to follow Maintenance instructions may create a risk of shock or injury.
Save these instructions. Refer to them frequently and use them to instruct others who may use this tool. If you loan someone this tool, loan them these instructions also.

SYMBOLS

ASSEMBLY

WARNING:
Do not use this product if it is not completely assembled or if any parts appear to be missing or damaged. Use of a product that is not properly and completely assembled or with damaged or missing parts could result in serious personal injury.

WARNING:
Do not attempt to modify this product or create accessories or attachments not recommended for use with this product. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.

If any parts are damaged or missing, please call 1-800-525-2579 for assistance. In Mexico, please call 01-800-843-1111.

OPERATION

WARNING:
Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.

WARNING:
Always remove battery pack from the tool when you are assembling parts, making adjustments, cleaning, or when not in use. Removing battery pack will prevent accidental starting that could cause serious personal injury.

WARNING:
Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury.

APPLICATIONS

You may use this product for the purposes listed below:

Applying hot glue adhesive

WARNING:
Battery tools are always in operating condition. Make sure the power button is off and remove the battery pack when the product is not in use or when carrying at your side.

INSTALLING/REMOVING BATTERY PACK

battery pack
battery compartment cover

WARNING:
To reduce the risk of injury, the glue pen should be considered to be HOT whenever the LED on the unit is illuminated. Following this rule will reduce the risk of burns, fire, or serious personal injury.

To install:

Unscrew and remove the battery cap.
Insert the battery pack into the product as shown.
Place the cap over the battery pack and push down until the cap meets the threads at the end of the tool.
Screw the cap on securely.
NOTE: Do not attempt to use this product if the battery cap is not securely closed.

To remove:

Unscrew and remove the battery cap.
Remove the battery pack from the tool.

For complete charging instructions, see the operator's manual for your battery pack.

LED LIGHT FUNCTIONS

Glue stick
LED on/off indicator

C - Glue stick chamber

When a charged battery pack is installed in the tool, the LED light will indicate the status of the tool when the tool is powered on.

TOOL STATUS	LED LIGHT SCENARIO
Heating	Flashing Green
Ready for Use	Solid Green
Low Battery (5- 25%)	Solid Red
Low Battery (0- 5%)	Flashing Red (3 Flashes)

INSERTING GLUE STICKS

See Figure 2.
Use mini 0.28 in. (7.11 mm) diameter glue sticks in this glue pen. Use Ryobi glue sticks for best performance.

The LED indicator will light up when a charged battery pack is installed and the power button has been pressed on.

Make sure the power button is off.
Insert a glue stick through the opening at the back of the glue pen. Guide the glue stick into the glue chamber until it will go no further.
Install the battery pack.
Press and hold the power button for three seconds. The LED will flash green for 30 seconds while glue pen begins to heat.

NOTE: The LED will remain solid green when the glue pen is ready for use.

NOTE: Different types of glue sticks will heat to working temperature at different rates. Always test on a scrap piece to make sure the glue is at optimum temperature.

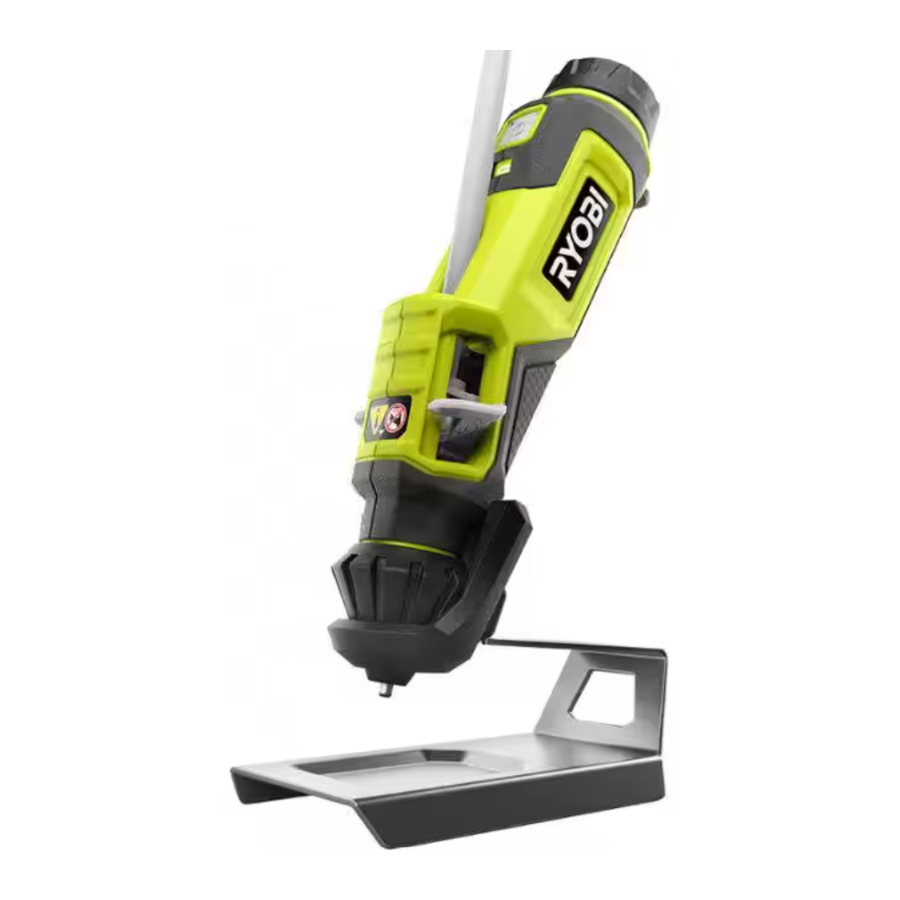

Place the glue pen in the stand while heating.
NOTE: The drip tray stand will catch any drips while the glue pen is heating.

WARNING:
Always place the glue pen so that nozzle does not come in contact with anything while it is heating or when not in use. Following this rule will reduce the risk of damage to items, burns, fire, or serious personal injury.

HELPFUL HINTS FOR USE

Before applying glue to a surface or workpiece, use a scrap piece of paper or material that is similar to your workpiece as a test.
Use caution when applying hot glue to thin or porous material. The underlying surface could be damaged or glue could adhere to the surface and be difficult to remove.
Do not force the pen tab when applying hot glue. This could damage the glue pen. Use a test piece of material to make sure the glue has melted enough to flow without forcing.
Apply only as much glue as needed for your application. n When gluing two objects together, do not pick up the object to which hot glue has been applied. Instead, pick up the other object and join it to the object to which you have applied hot glue.
Do not use your fingers to press down on an object to which hot glue has just been applied. This can cause hot glue to escape from the edges or heat up the bonding surface and possibly cause burns or damage to surrounding objects.
Allow glue to dry completely before moving your work to ensure proper adhesion and reduce the risk of burns.
If applying glue to very small objects, use tweezers or tongs to avoid getting the nozzle close to your fingers.

APPLYING HOT GLUE

Install the battery pack.
Press and hold the power button for three seconds. The LED will flash green for 30 seconds while glue pen begins to heat.
NOTE: The LED will remain solid green when the glue pen is ready for use.
Allow time for the glue to melt so that it flows freely from the nozzle.
Hold the glue pen firmly, as shown in figure 3. Place the nozzle close to the surface where glue will be applied.
NOTE: Holding the glue pen too far from the intended surface may result in applying glue to a surface other than your workpiece or may result in "strings" of glue between your work and the nozzle.
Press the tab on either side of the glue pen until glue flows from the nozzle. Do not over-apply glue.
When the desired amount of glue has been applied, release the tab. Tilt the nozzle slightly to the side and carefully pull the nozzle away from the object. This helps avoid strings of glue clinging to the work.

NOTE: The glue pen will stop dispensing glue when the glue stick in the chamber is almost used up. Insert another glue stick into the chamber.

NOTE: The LED will show a solid red when battery charge is low. The LED will flash red three times before turning off due to low battery charge.

Always press the power button off when you are finished using the glue pen. The LED will turn off when the glue pen is no longer heating.
Set the glue pen on the drip tray stand while the product cools to catch possible glue drips.
Allow the glue stick and glue pen nozzle to completely cool before removing the battery pack, and before storage.

MAINTENANCE

WARNING:
When servicing, use only identical replacement parts. Use of any other parts could create a hazard or cause product damage.

GENERAL MAINTENANCE

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.

STORAGE

Ensure the glue pen is off and allow the glue pen to cool completely before storing. Remove the battery pack.

WARNING:
Always remove the battery pack before storage to ensure the product is off. Allow a minimum of 30 minutes of cool-down time before storage. Storing a glue pen with a hot nozzle can cause serious burns and/or ignite combustible objects.

To help prevent drips and clogs the next time the glue pen is used, remove dried glue from the nozzle area.
