Technics SH-8045 E Service Manual

ORDER NO. $D82042179C8

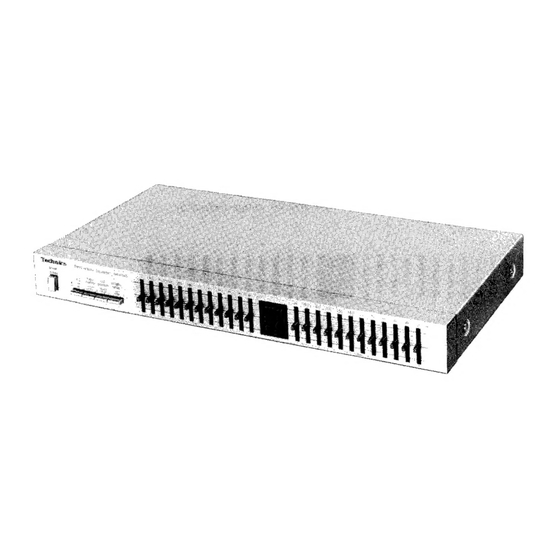

Stereo Graphic Equalizer
SH- 8049
, [EB]
SH 8045 (K)
[E], [EK], [XA], [XL], |
Areas
[E], [
* [E] is available in Switzerland and Scandinavia.
* [EK] is available in United Kingdom.
* [XA] is available in Southeast Asia, Oceania, Africa,
Middle Near East and Central South America.
* [XL] is available in Australia.
* (EF] is available in France.
* [EB] is available in Belgium.
* The cabinet and front panel are avilable in black color and
silver types.
* The black type model is provided with (K) in the Service Manual.
Specifications
(DIN 45 500)
Frequency response
(center position)
Maximum output
voltage
Rated output voltage
(Specifications are subject to change without notice for further improvement. )
:+12dB~-—-12dB, +3dB~-3dB
(12 elements continuously variable
per channel)
:1V 250 Hz, 500 Hz, 1 kHz, 2 kHz,
Band level controls
-5 Hz~100 kHz, —1dB
Rated total harmonic
0.003% (1 kHz)
Input sensitivity 21V
GENERAL
Power supply
4 kHz, 8 kHz, 16 kHz, 32 KHz
> AC 110 V/120 V/220 V/240V,
Matsushita Electric Trading Co., Ltd.
P.O. Box 288, Central O;aka Japan
'Technics
