TP-Link TL-WA860RE Quick Installation Manual

TP-LINK
The Reliable Choice
Quick
Installation
Guide
Applicable Models:
EAL
(ves) Option ONE: Quick Setup using the WPS Button
eG Option TWO: Setup using your Web Browser
LED Legend
an HD (Signal) C3 (ETHERNET)
Off: TL-WA860RE isn't connected to the router. Off: No device is connected to ETHERNET port.
Blinking Green: TL-VVASGORE is connecting to Green: A device is connected to the ETHERNET
the router. port.
Solid Green: TL-WA86ORE is connected to the
router and is in a good location. zk
Blinking Orange: TL-WA860RE is connected to (System)
the router but is too far away from the router, Off: TL-WAS860RE is off.
Solid Orange: TL-WA860RE is connected to Orange: TL-WA860RE is booting.
the router but is too close to the router. Green: TL-WAS860RE is on.
f you push the ON/OFF button on the side panel, all LEDs will be off as TL-WA860RE :
is powered off, A
EAL
For more information, please visit our website: http:/Awww.tp-link.com
7106505049 REV1.1.0

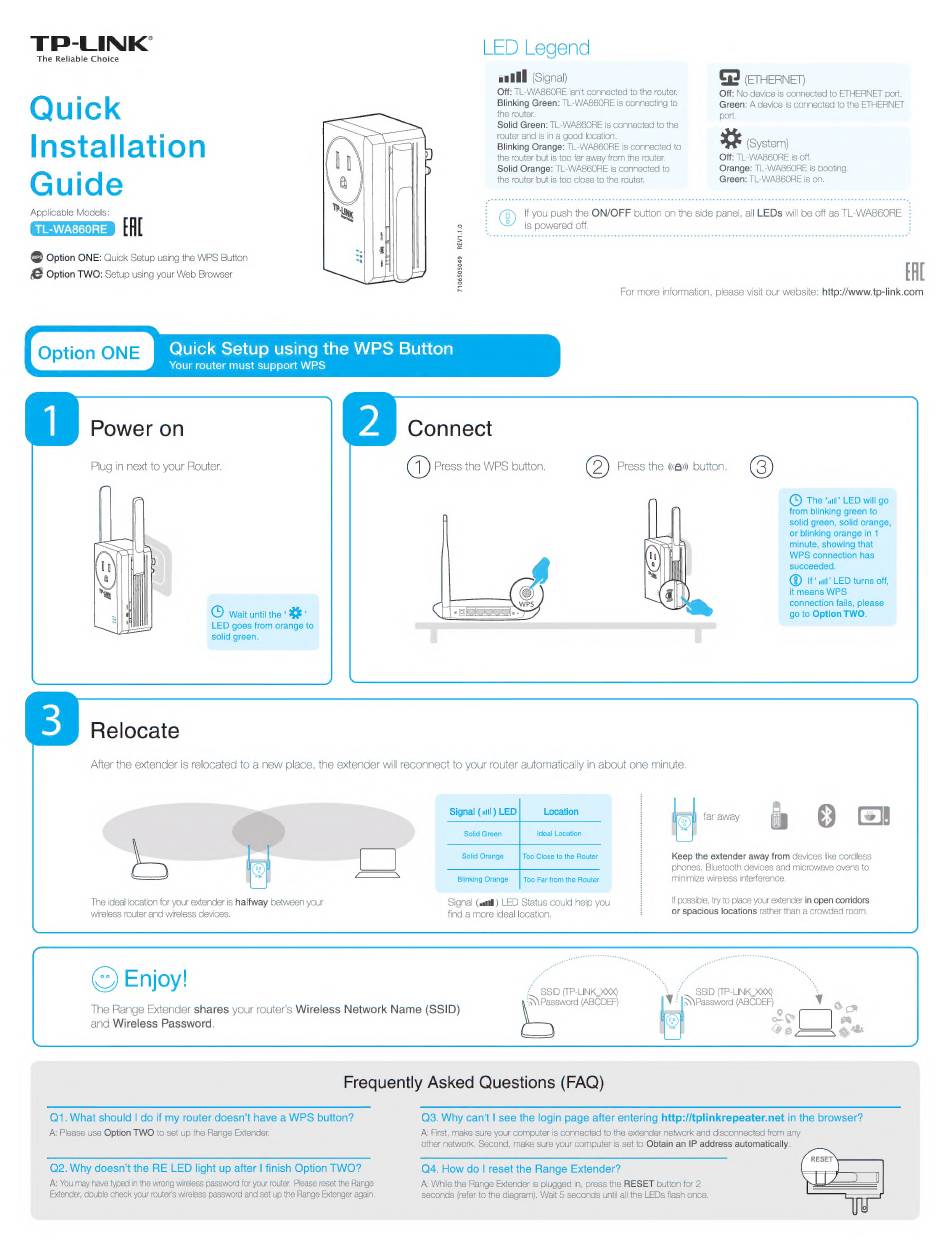

Option ONE Quick Setup using the WPS Button
Your router must support WPS
Power on
Plug in next to your Router,
© wait until the «$e
LED goes from orange to
solid green.
Relocate
PS button. (2) Press the «@») button.
© The 'mi' LED will go
from blinking green to
solid green, solid orange,
or blinking orange in 1
minute, showing that
WPS connection has
succeeded.
If' wil' LED turns off,
it means WPS
connection fails, please
go to Option TWO.
After the extender is relocated to a new place, the extender will reconnect to your router automatically in about one minute.
The ideal location for your extender is halfway between your
wireless router and wireless devices.
Enjoy!
The Range Extender shares your router's Wireless Network Name (SSID)
and Wireless Password.
Signal (wil) LED Location
Solid Green Ideal Location
Solid Orange Too Close to the Router ; Keep the extender away from devices like cordless
i phones, Bluetooth devices and microwave ovens to
Blinking Orange | Too Far from the Router : minimize wireless interference.
Signal (aml) LED Status could helo you : If possible, try to place your extender in open corridors
find a more ideal location. ; or spacious locations rather than a crowded room,
Š SSID (TP-LINK_Xxx) SSID (TP-LINK_XXX)
'N Password (ABCDEF)
: | >\Password (ABCDEF)
j
Frequently Asked Questions (FAQ)
Q1. What should | do if my router doesn't have a WPS button?
A; Please use Option TWO to set up the Range Extender.
Q2. Why doesn't the RE LED light up after | finish Option TWO?
A: You may have typed in the wrong wireless password for your router, Please reset the Range
Extender, double check your router's wireless password and set up the Range Extenger again.
Q3. Why can't | see the login page after entering http://tplinkrepeater.net in the browser?
A; First, make sure your computer is connected to the extender network and disconnected from any
other network. Second, make sure your computer is set to Obtain an IP address automatically.
Q4. How do | reset the Range Extender?
A: While the Range Extender is plugged in, press the RESET button for 2
seconds (refer to the diagram). Wait 5 seconds until all the LEDs flash once.
