- Page 1 Manual for Propeller Type H30V Propeller Type: Propeller Serial No.: Date of Sale: Seal and Signature of Manufacturer:...
-
Page 2: Table Of Contents
Hubs ............5 Specification of Propeller Type ........6 Operating Limitations ..........7 Installation ............. 8 Setting Up ............. 9 Pre-Flight Checks ..........12 Maintenance ..........12 Warranty ............. 12 Handbuch H30V - Englisch Page 2 / 13 Version 27.07.2011... -
Page 3: List Of Modifications
List of Modifications Version (Date) Chapter Description Name Version First Edition 02/2009 1 List of Modifications Insert the Chapter “List of Modifications“ 27.07.2011 7 Maintenance Paragraph → new 8 Maintenance Handbuch H30V - Englisch Page 3 / 13 Version 27.07.2011... -
Page 4: Description

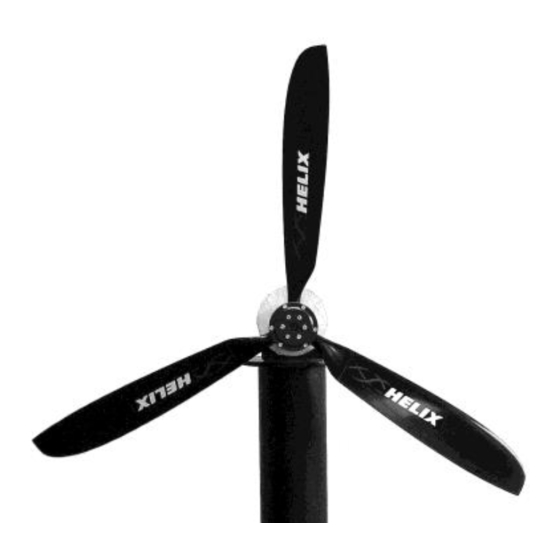

Description HELIX propeller have been built since 1990 using composite materials such as carbon fibre, epoxy-resin, epoxy resin foam and aluminium. This combination of materials provides: - High Thrust - Low Noise - Durability Figure 1: 2-blade, 3-blade and 4-blade propeller of type H30V 2.1 Blades... -
Page 5: Hubs
The hub has a hard anodised finish providing good corrosion resistance. Inside weight reducing drillings and blind holes are arranged and embedded. Optional are Adapter-center-discs for different engine-flanges available. Figure 2: 2-Blade and 3-Blade Hub Handbuch H30V - Englisch Page 5 / 13 Version 27.07.2011... -
Page 6: Specification Of Propeller Type
Rotating Direction L = Left R = Right Profile and Shape for H30V M = Straight Shape with medium profile-depth and -thickness L = Straight Shape with large profile-depth and -thickness S = Straight Shape with thin profile-depth and -thickness... -
Page 7: Operating Limitations
1 and 100 kW using 2-stroke, 4-stroke, Wankel- or electric engine. The operating limitations for the here described propeller types of H30V as 2-, 3- 4-Blade-Version in clockwise and anti-clockwise rotation are for Diameters from 1,00m to 1,55m. -
Page 8: Installation
Now the propeller is ready for adjustment. It is strongly recommended to do this on the aircraft because it achieves the highest precision. Figure 3: Composing of the Propeller Handbuch H30V - Englisch Page 8 / 13 Version 27.07.2011... -
Page 9: Setting Up
B) The flange and the aircraft respectively has not to be aligned horizontal. Now the angle between the flange (aircraft) and the horizontal has to be allow for the setting up. setting an g le settin g a n g le Handbuch H30V - Englisch Page 9 / 13 Version 27.07.2011... - Page 10 Figure 5: Adjust of the angle at the gauge Figure 6: Motor-flange angel referring to the horizontal Handbuch H30V - Englisch Page 10 / 13 Version 27.07.2011...
- Page 11 - the preferred solution is to use a wire as bolt retaining device. - for Propeller flanges with through holes self locking nuts can be used. - if the first alternatives are not possible also loctite 372 can be used. Handbuch H30V - Englisch Page 11 / 13 Version 27.07.2011...
-
Page 12: Pre-Flight Checks
Warranty HELIX Carbon GmbH warrants the Propeller for two years from the date of purchase (according to German law). The warranty covers material defects but does not cover subsequent losses. - Page 13 Any claim will only be considered if the Propeller has been installed and used in accordance with this manual. Handbuch H30V - Englisch Page 13 / 13 Version 27.07.2011...
