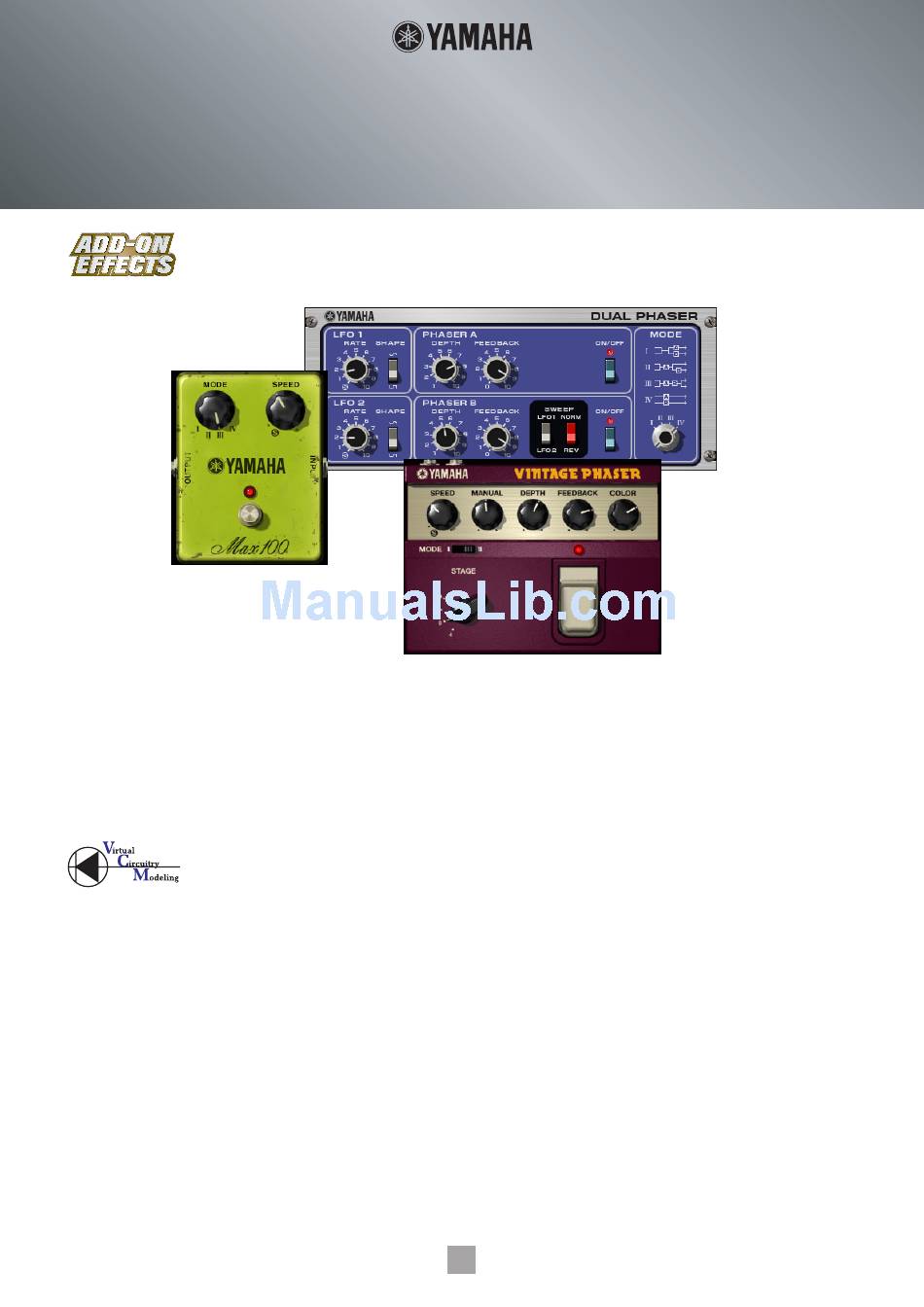

VINTAGE STOMP PACKAGE
VINTAGE STOMP PACKAGE
VINTAGE STOMP PACKAGE
What Are ADD-ON EFFECTS?
ADD-ON EFFECTS are software packages that install additional high-quality effects programs on digital
consoles.
What is the Vintage Stomp Package?
Vintage Stomp is one of the ADD-ON EFFECTS packages.
It simulates the characteristics of analog phasers from the 1970s.
It offers three program types that you can use to match your purposes: Max100, Vintage Phaser, and Dual Phaser.
Max100 is a model that reproduces vintage effects manufactured only during the second half of the Seventies.
Dual Phaser is a model that reproduces vintage effects manufactured only during the mid-Seventies. The Vintage Phaser does
not limit itself to reproducing any particular model. Instead, it offers an extremely high level of freedom in creating the sounds
expected from phasers.
What is VCM (Virtual Circuitry Modeling)?
VCM is a technology that enables you to model element levels in analog circuits (such as resistors and
capacitors). This technology was developed by an engineering group led by Mr. Kunimoto, an engineer
who developed the first physical modeling synthesizers, VL1 and VP1.
Vintage Stomp utilizes VCM technology.
Special Note
• Copying of the commercially available music sequence data and/or digital audio files is strictly prohibited except for your personal use.
• The software and this Owner's Manual are exclusive copyrights of Yamaha Corporation.
• Copying of the software or reproduction of this manual in whole or in part by any means is expressly forbidden without the written consent of
the manufacturer.
• Yamaha makes no representations or warranties with regard to the use of the software and documentation and cannot be held responsible for
the results of the use of this manual and the software.
• The screen displays as illustrated in this Owner's Manual are for instructional purposes, and may appear somewhat different from the screens
which appear on your computer.
• The company names and product names in this Owner's Manual are the trademarks or registered trademarks of their respective companies.
Owner's Manual
Owner's Manual
Owner's Manual
© 2005 Yamaha Corporation. All rights reserved.
1
Advertisement
Related Manuals for Yamaha AE051
Summary of Contents for Yamaha AE051
- Page 1 • Copying of the software or reproduction of this manual in whole or in part by any means is expressly forbidden without the written consent of the manufacturer. • Yamaha makes no representations or warranties with regard to the use of the software and documentation and cannot be held responsible for the results of the use of this manual and the software.
- Page 2 Installing the Vintage Stomp Package See the “ADD-ON EFFECTS Installation Guide” for information about the installation method for Vintage Stomp Package. Max100 Using Max100 As with other effects, you can recall and edit the Max100 program on the console or in Studio Manager. The basic operation is as follows: Select one of the internal effects processors.
-
Page 3: Part Names And Functions
Part Names and Functions Studio Manager Max100 window 1 MODE Switches the sound quality (tone). There are four types available, each with differences in modulation amplitude and in the amount of feedback. 2 SPEED Adjusts the rate of modulation. 3 FOOT SW The foot switch acts as a bypass. - Page 4 Dual Phaser Using Dual Phaser As with other effects, you can recall and edit the Dual Phaser program on the console or in Studio Manager. The basic operation is as follows: Select one of the internal effects processors. Patch the signal to and from the currently selected effects processor. Locate the Effects Library page.
- Page 5 Part Names and Functions The Dual Phaser consists of two low frequency oscillators (LFOs) and two phasers. The Phase A LFO is fixed as LFO 1, but either LFO 1 or LFO 2 can be selected as the Phaser B LFO. You can also select normal or reverse for the phase.
-
Page 6: Vintage Phaser
Vintage Phaser Using Vintage Phaser As with other effects, you can recall and edit the Vintage Phaser program on the console or in Studio Manager. The basic operation is as follows: Select one of the internal effects processors. Patch the signal to and from the currently selected effects processor. Locate the Effects Library page. - Page 7 Part Names and Functions Studio Manager Vintage Phaser window 1 SPEED Adjusts the rate of modulation. 2 MANUAL Adjusts the center frequency of modulation. 3 DEPTH Adjusts the depth of modulation. 4 FEEDBACK Adjusts the amount of feedback. 5 COLOR Fine tunes the sound quality (tone).
