Sealey MS130.V2 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and properly
maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
Familiarise yourself with the applications, limitations and hazards of the saw.
!
Keep the saw and blade in good order and condition. DO NOT use the mitre saw if it is damaged. Contact your local Sealey dealer.
!
Always use genuine Sealey blades. Contact your Sealey dealer for further information.
!
Keep children and other persons away from the work area.
!
Keep good footing and balance, wear non-slip shoes, roll up sleeves, remove ties and loose jewellery.
!
DO NOT use saw for any purpose other than that for which it is designed. DO NOT remove saw for other use, always use with pivot and base.
%
DO NOT hold the workpiece by hand. Use the vice clamp provided to secure the workpiece.
%
DO NOT place hands, arms or body in path of saw blade (blade is very sharp).
%
WARNING! DO NOT cut, grind, saw, sand any materials containing asbestos.
F
2. SPECIFICATION
Length of blade . . . . . . . . . . . . . . . . . . 550mm (21-21/32”)
Height of blade. . . . . . . . . . . . . . . . . . . . . . . 45mm (1-3/4”)
Length of table . . . . . . . . . . . . . . . . . . . . 395mm (15-9/16”)
Width of table. . . . . . . . . . . . . . . . . . . . . . . . . . . 75mm (3”)
3. ASSEMBLY
Unpack the saw and ensure that it is not damaged. If there are any damaged or missing parts contact your supplier immediately.
Refer to fig.1
3.1. Fit the two plastic bases (C) to the mitre table using screws (E), washers (D) and hex. key (F) provided.
3.2. Slide cutting depth adjusters (3) onto left rear and right front guide rods.
3.3. Screw the workpiece clamp (1) and stop (2) into the holes provided in the mitre base and tighten the lock nuts.
3.4. Mount the saw by sliding the two saw guides (G) down the guide rods (H).
4. INSTRUCTIONS FOR USE
F WARNING! Before you use the mitre saw ensure that you read, understand and apply the safety instructions in Section 1.
4.1. VICE CLAMP
According to the angle being cut, the vice clamp (fig.1.1) may be fitted to either side of saw by screwing the clamp into the holes (fig.1.A)
in the base. Ensure that the lock nut is tightened. Always clamp the workpiece firmly.
4.2. LENGTH STOP
The length stop (fig.1.2) may be fitted to either side of saw by screwing into holes (fig.1.B) in the base according to the feeding direction.
Ensure that the lock nut is tightened. The stop may be used to cut several workpieces to the same length.
4.3. DEPTH STOP
To adjust cutting depth loosen the front and rear depth-stops (fig.1.3), slide them to the required height and re-tighten.
INSTRUCTIONS FOR:
MS130.V2
Model:
Max. cutting height. . . . . . . . . . . . . . . . . . . . 98mm (3-7/8”)
Max. cutting width at 45 . . . . . . . . . . . . . . 110mm (4-5/16”)
O
Max. cutting width at 90 . . . . . . . . . . . . . 170mm (6-11/16”)
O

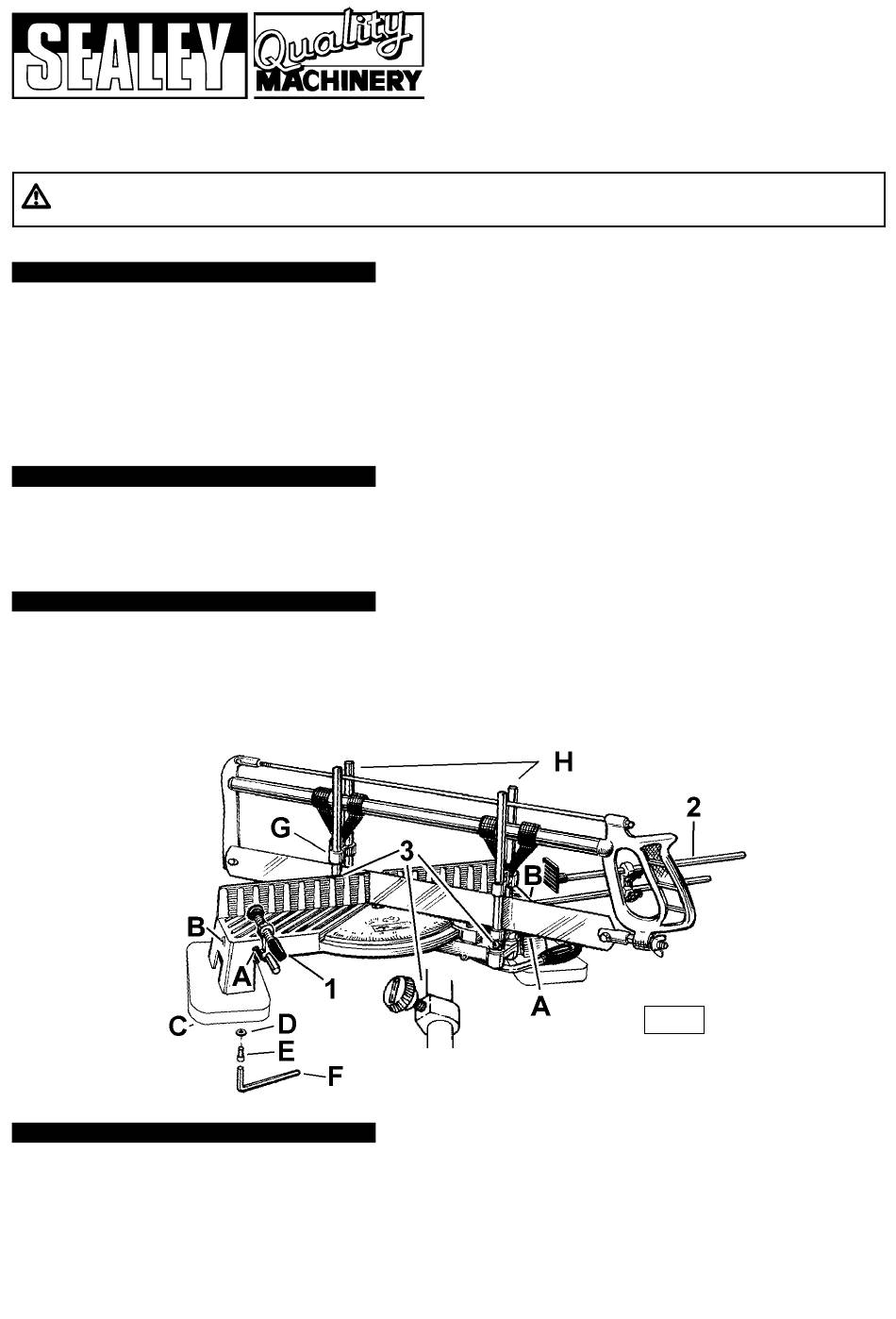

fig. 1
MITRE SAW
MS130.V2 - 1 - 051102
