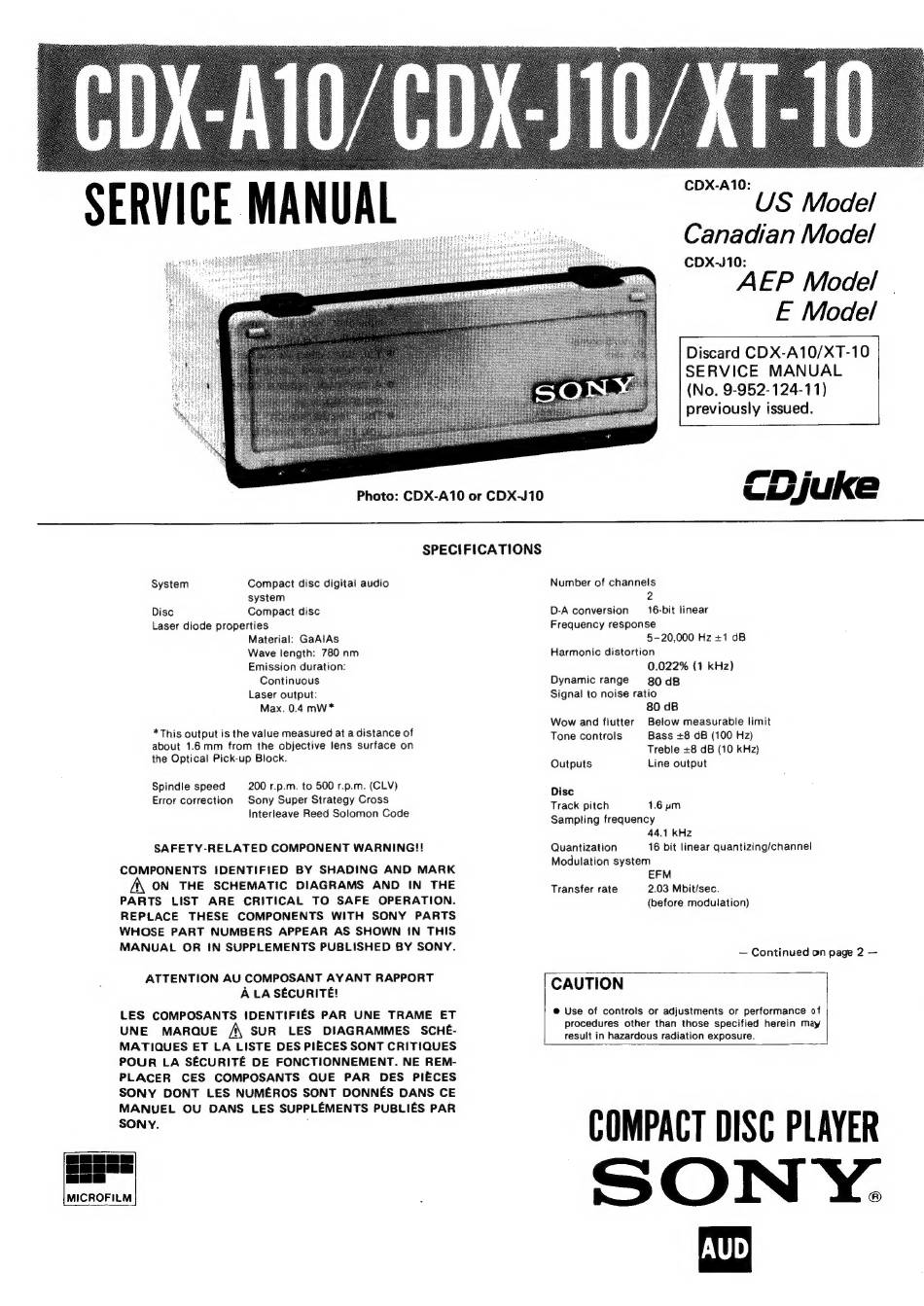

SERVICE MANUAL
Photo: CDX-A10 or CDX-J10
SPECIFICATIONS
System
Compact disc digital audio
system
Disc
Compact disc
Laser diode properties
Material: GaAlAs
Wave length: 780 nm
Emission duration:
Continuous
Laser output:
Max. 0.4 mW*
*This output is the value measured at a distance of
about 1.6mm
from the objective lens surface on
the Optical Pick-up Block.
Spindle speed
200 r.p.m. to 500 r.p.m. (CLV)
Error correction
Sony Super Strategy Cross
Interleave Reed Solomon Code
SAFETY-RELATED COMPONENT
WARNING!!
COMPONENTS
IDENTIFIED
BY SHADING
AND
MARK
A ON
THE
SCHEMATIC
DIAGRAMS
AND
IN
THE
PARTS
LIST
ARE
CRITICAL
TO
SAFE
OPERATION.
REPLACE
THESE
COMPONENTS
WITH
SONY
PARTS
WHOSE
PART
NUMBERS
APPEAR
AS SHOWN
IN THIS
MANUAL
OR
IN SUPPLEMENTS
PUBLISHED
BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE!
LES COMPOSANTS
IDENTIFIES PAR
UNE
TRAME
ET
UNE
MARQUE
/\ SUR
LES
DIAGRAMMES
SCHE-
MATIQUES ET LA LISTE DES PIECES SONT CRITIQUES
POUR
LA SECURITE
DE FONCTIONNEMENT.
NE REM-
PLACER
CES
COMPOSANTS
QUE
PAR
DES
PIECES
SONY
DONT
LES NUMEROS SONT DONNES DANS CE
MANUEL
OU DANS
LES SUPPLEMENTS PUBLIES PAR
SONY.
MICROFILM
CDX-A10:
US Model
Canadian Model
CDX-J10:
AEP Model
E Model
Discard CDX-A10/XT-10
SERVICE
MANUAL
(No, 9-952-124-11)
previously issued.
Cojuke
Number of channels
2
D-A conversion
16-bit linear
Frequency response
5-20,000 Hz +1 dB
Harmonic distortion
0.022% (1 kHz)
Dynamic range
g0dB8
Signal to noise ratio
80 dB
Wow and flutter
Below measurable limit
Tone controls
Bass +8 GB (100 Hz)
Treble +8 dB (10 kHz)
Outputs
Line output
Disc
Track pitch
1.6 um
Sampling frequency
44.1 kHz
Quantization
16 bit linear quantizing/channel
Modulation system
EFM
Transfer rate
2.03 Mbit/sec.
(before modulation)
— Continued on page 2 —
CAUTION
@ Use of controls or adjustments
or performance
of
procedures other than those specified herein may
result in hazardous radiation exposure.
COMPACT DISC PLAYER
SON
Y.
