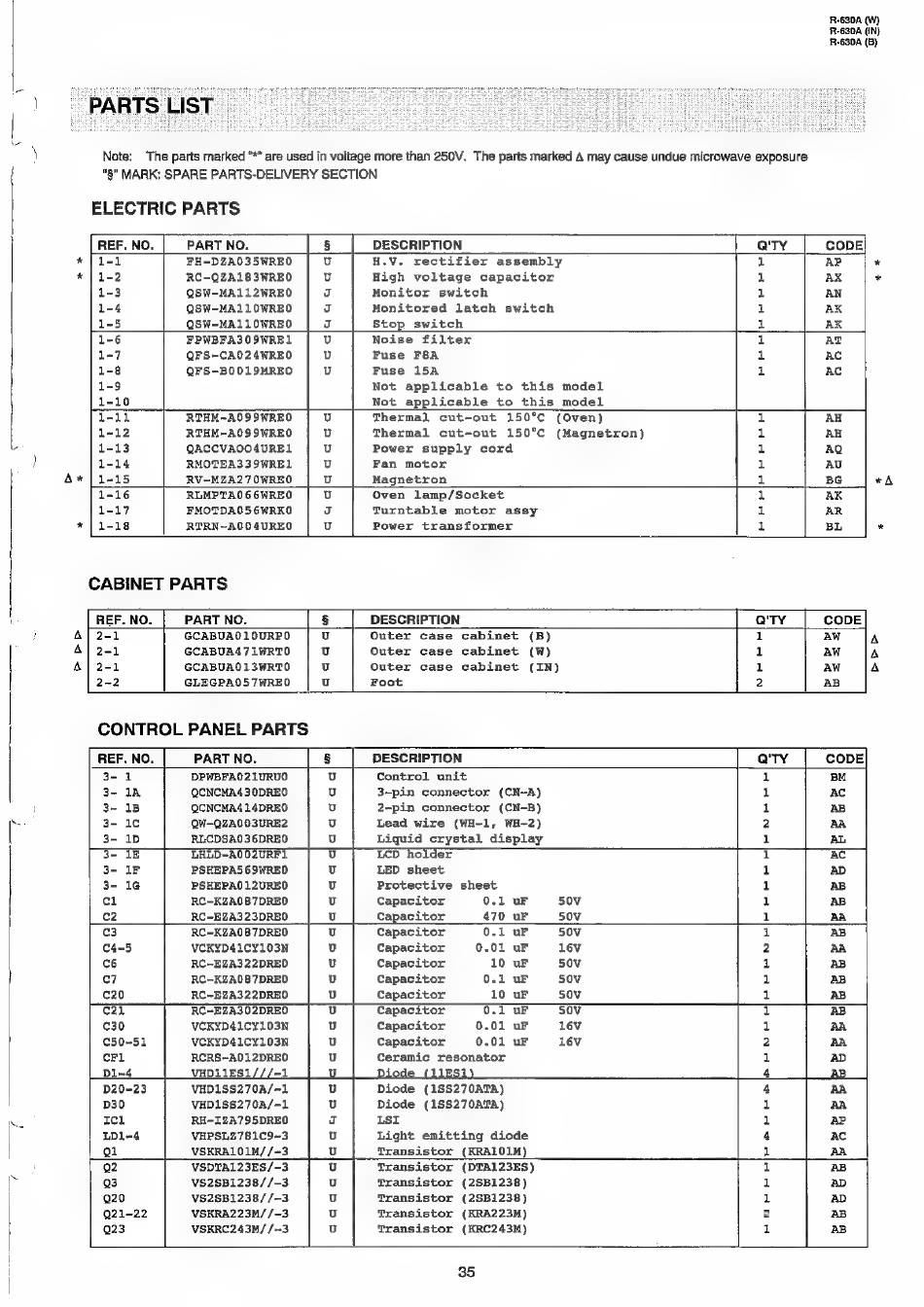

PARTS LIST
Ax
bP
Note: The parts marked "*" are used in voltage more than 250V. The parts marked A may cause undue microwave exposure
"§" MARK: SPARE PARTS-DELIVERY SECTION
ELECTRIC PARTS
R-630A (W)
R-630A (IN)
R-630A (B)
REF. NO. PART NO. § DESCRIPTION Q'ty | CODE
1-1 PH-DZA035WREO U H.V. rectifier assembly 1
1-2 RC-QZA183WREO U High voltage capacitor 1
1-3 QSW-MA112WREO J Monitor switch 1
1-4 QSW-MA11LOWREO a Monitored latch switch 1
1-5 QSW-MA110WREO J Stop switch i
1-6 FPWBFA309WRE1 U Noise filter 1
1-7 QFS-CA024WREO U Fuse F8A 1
1-8 QFS-BO019MREO U Fuse 15A 1
1-9 Not applicable to this model
1-10 Not applicable to this model
1-11 RTHM~A099WREO U Thermal cut-out 150°C (Oven) 1 AH
1-12 RTHM-AO099WREO U Thermal cut-out 150°C (Magnetron) 1 AH
1-13 QACCVAOO4URE1 U Power supply cord 1 AQ
1-14 RMOTEA339WRE1 U Fan motor 1 AU
1-15 RV-MZA270WREO U Magnetron 1 BG vA
1-16 RLMPTA066WREO U Oven lamp/Socket 1 AK
1-17 FMOTDAO56WRKO a Turntable motor assy 1 AR
1-18 RTRN-AOO4UREO U Power transformer 1 BL *
CABINET PARTS
REF.NO. | PART NO. § DESCRIPTION Q'ty CODE
2-1 GCABUACGLOURPO U Outer case cabinet (B) 1 AW A
2-1 GCABUA47iWRTO U Outer case cabinet (W) 1 AW A
2-1 GCABUA013WRTO U Outer case cabinet (IN) 1 AW A
2-2 GLEGPAO57WREO U Foot 2 AB
CONTROL PANEL PARTS
REF. NO. PART NO. § DESCRIPTION Q'TY CODE
3-1 DPWBFAO21URU0 U Control unit 1 BM
3- 1A QCNCMA430DREO U 3-pin connector (CN~A) 1 AC
3- 1B QCNCMA414DREO U 2-pin connector (CN-B) 1 AB
3- 1c QW-QZA003URE2 U Lead wire (WH-1, WH-2) 2 BA
3- 1D RLCDSA036DRE0 U Liquid crystal display 1 AL
3- 1E LHLD-A002URF1 U LCD holder 1 AC
3- 1F PSHEPA5S69WRED U LED sheet 1 AD
3- 16 PSHEPAO12UREO U Protective sheet 1 AB
C1 RC-KZA087DREO U Capacitor 0.1 uF 50V 1 BB
C2 RC-EZA323DRE0 U Capacitor 470 uF 50V. 1 AA
c3 RC-KZA087DREO U Capacitor 0.1 uF 50V 1, AB
C4-5 VCKYD41CY103N U Capacitor 0.01 uF 16V 2 AA
cé RC-EZA322DREO uv Capacitor 10 uF 50V 1 AB
C7 RC-KZA087DREO U Capacitor 0.1 uF 50V 1 AB
c20 RC~EZA322DRE0 U Capacitor 10 uF 50V 1 AB
RC~EZA302DRE0 U Capacitor T BB
c30 VCKYD41CY103N U Capacitor 0.01 uF 16V 1 BA
C50~51 VCKYD41CY103N U Capacitor 0.01 uF 16V 2 AA
CFL RCRS~A012DREO U Ceramic resonator 1 AD
D1-4 VHD11ES1///-1 u Diode (11ESi 4 AB
D20-23 VHD1SS270A/-1 U Diode (1SS270ATA) 4 BA
D30 VHD1SS270A/-1 U Diode (1SS270ATA) 1 AA
Ic1 RH-IZA795DREO ivy LsI 1 AP
LD1-4 VHPSLZ781C9-3 U Light emitting diode 4 AC
Qi VSKRALO1M//-3 U Transistor (KRALOIM) 1 AA
U 1 AB
U 1 AD
U 1 AD
U 2 AB
U 1 AB
Q2 VSDTA123ES/-3 Transistor (DTA123ES)
Q3 VS2SB1238//-3 Transistor (2SB1238)
Q20 VS28B1238//-3 Transistor (2SB1238)
Q21-22 VSKRA223M//-3 Transistor (KRA223M)
Q23 VSKRC243M//-3 Transistor (KRC243M)
