4-3 PLL CIRCUIT (MAIN UNIT)
4-3-1 GENERAL
The PLL circuit provides stable oscillation of the transmit fre-
quency and receive 1st LO frequency. The PLL output com-
pares the phase of the divided VCO frequency to the refer-
ence frequency. The PLL output frequency is controlled by
the divided ratio (N-data) of a programmable divider. IC1 is
a PLL IC which controls both VCO circuit for TX and RX.
The PLL circuit, using a one chip PLL IC (IC1), directly gen-
erates the transmit frequency and receive 1st IF frequency
with VCOs. The PLL sets the divided ratio based on serial
data from the CPU on the LOGIC unit and compares the
phases of VCO signals with the reference oscillator fre-
quency. The PLL IC detects the out-of-step phase and out-
put from the pin 6 for TX and RX. The reference frequency
(15.3 MHz) is oscillated at X1.
4-3-2 TX AND RX LOOP CIRCUITS (MAIN UNIT)
The generated signal at the TX-VCO cuircuit (Q51,
D35–D38, L34, L51, C32, C33, C52–C54) or RX-VCO (Q41,
D31–D34, L32, L41, C31, C41–C43) enters the PLL IC (IC1,
pin 8) and is divided at the programmable divider section
and is then applied to the phase detector section.
The phase detector compares the input signal with a refer-
ence frequency, and then outputs the out-of-phase signal
(pulse-type signal) from pin 6.
The pulse-type signal is converted into DC voltage (lock
voltage) at the loop filter (R17–R19, C16–C19), and then
applied to varactor diodes (TX; D35–D38, RX; D31–D34) of
the TX-VCO and RX-VCO to stabilize the oscillated fre-
quency.
4-3-3 TX AND RX VCO CIRCUITS (MAIN UNIT)
The VCO circuit from Q41 (RX) and Q5 (TX) are buffer
amplified at the Q61 and Q62, and then sent to the TX/RX
swtich (D91, D92). The receive LO signal is applied to the
1st mixer circuit (Q191) through an attenuator (L203,
R203–R206, C202, C203), and the transmit signal is applied
to the buffer amplifier (Q91). A portion of the VCO output is
reapplied to the PLL IC (IC1, pin 8) via the Q71.

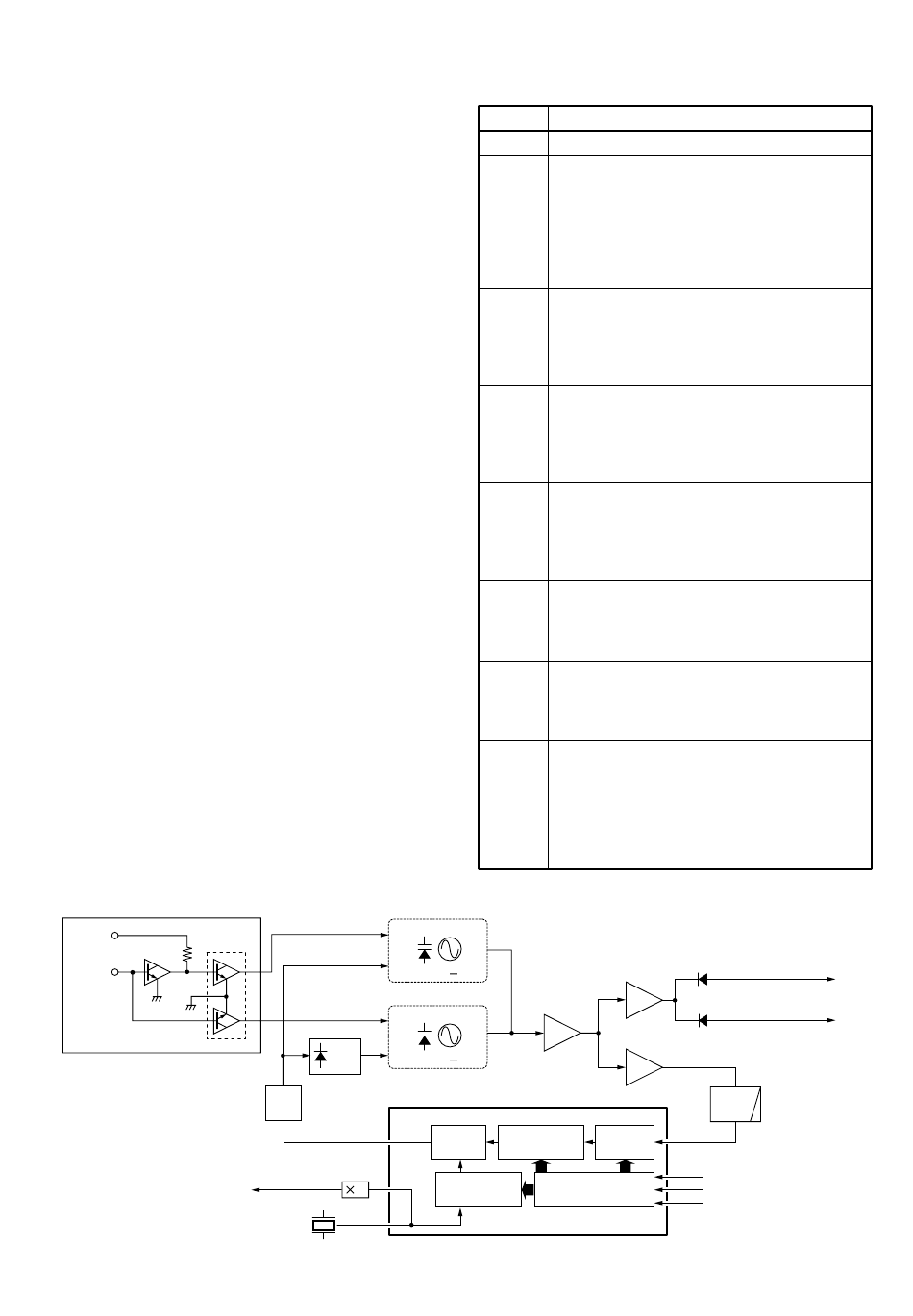

• PLL CIRCUIT
S5V
Q81
Q82
VCOS
VCO SWITCH
"2nd LO" signal (30.6 MHz)
to the FM IF IC (IC231, pin 2)
RX VCO
Q41, D31 D34
TX VCO
FM
Q51, D35 D38
DET
D39
Loop
filter
5
2
2
X1
1
15.3 MHz

4-4 POWER SUPPLY CIRCUITS

VOLTAGE LINES
LINE
HV The voltage from the attached battery pack.
The same voltage as the HV line (battery volt-
age) which is controlled by the power switch (VR
unit; [OFF/VOL] control).
VCC The output voltage is applied to the pre-drive
(MAIN unit; Q101), power amplifier (MAIN unit;
Q111), CPU5V and M5V regulator circuits
(LOGIC unit; IC551 and Q551–Q553).
Common 5 V converted from the VCC line by the
CPU5V regulator circuit (LOGIC unit; IC551).
CPU5V The output voltage is applied to the CPU (LOGIC
unit; IC661), REG5V regulator, RESET circuit
(LOGIC unit; IC581), etc.
Common 5V converted from the VCC line by the
M5V regulator circuit (LOGIC unit; Q551–Q553).
M5V The output voltage is applied to R5V, T5V, V5V
and S5V regulator circuits (LOGIC unit; Q322,
Q323, Q321 and Q561).
Receive 5V converted from the M5V line by the
R5V regulator circuit (MAIN unit; Q322).
R5V The regulated voltage is applied to the 1st mixer
circuit (MAIN unit; Q191), RF and IF amplifiers
(MAIN unit; Q165, Q211).
Transmit 5V converted from the M5V line by the
T5V regulator circuit (MAIN unit; Q222).
T5V
The regulated voltage is applied to the buffer
amplifier (MAIN unit; Q91).
Common 5V converted from the M5V line by the
V5V regulator circuit (MAIN unit; Q321).
V5V
The regulated voltage is applied to the ripple fil-
ter circuit (Q47).
Common 5V converted from the M5V line by the
S5V regulator circuit (LOGIC unit; Q561).
The regulated voltage is applied to the micro-
S5V
phone amplifier (LOGIC unit; IC471), limit ampli-
fier (LOGIC unit; IC491), LCD back light (LOGIC
unit; DS651–DS654), etc.
Buffer
Q61
IC1 (PLL IC)
Phase Programmable
Prescaler
counter
detector
Programmable
Shift register
divider
4 - 3
DESCRIPTION
D91
to transmitter circuit
Buffer
Q62
to the 1st mixer circuit
D92
Buffer
Q71
LPF
8
11
PLSTBO
10
SDATAO
9
SCLKO
