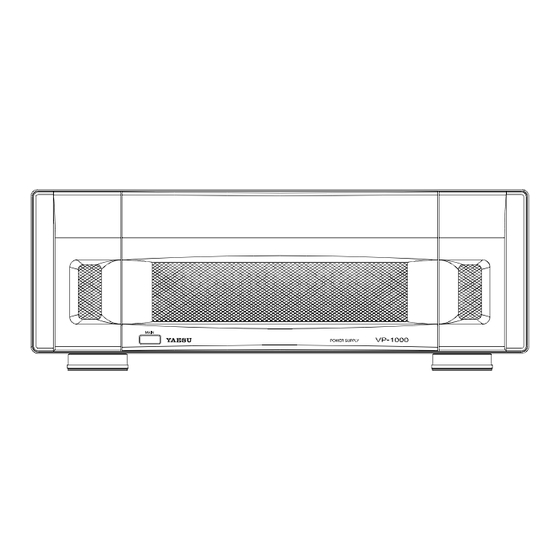

YAESU VP-1000
AC POWER SUPPLY
FOR THE VL-1000 LINEAR AMPLIFIER
The VP-1000 is an external AC power supply for use with the VL-1000 Linear Amplifier, providing 48
Volts DC at up to 48 amperes for extended periods.
Excellent regulation and conservative design assure the owner of many years of trouble-free opera-
tion, even in heavy duty applications, such as full power AM, FM, or RTTY transmission. A thermally
switched cooling fan automatically activates during long periods of high current demand, to maintain
a safe operating temperature in the power supply. An alarm signal output is provided to the VL-1000
to avoid damage in the event that excessive current, excessive voltage, or over-heating of the heatsink
should occur.
SPECIFICATIONS
—
Output Voltage: DC +48 V --- , DC +12 V
—
Output Current: DC +48 V
-- - : 22 A (AC 100-200 V~)
—
DC +48 V
-- - : 48 A (AC 200-240 V~)
—
DC +12 V
--- : 2.8 A
—
DC −12 V
--- : 0.1 A
Input Voltage: AC 100-240 V~, 50-60 Hz
Current Consumption: 15 A (AC 100-200 V~)
13 A (AC 200-240 V~)
Operating Temperature Range: −10 °C-+50 °C
Case Size: 410 x 135 x 369 mm (W x H x D)
Weight: 14.6 kg (Approx.)
SUPPLIED ACCESSORIES
DC Power Cable: T9021199 (2 meters) 1
Control Cable: T9101483 (2 meters) 1
— —
--- , DC −12 V
---
Specifications are subject to change without notice.
