New Holland 450FI Service Manual

Rotary harvesting header
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
450FI
Rotary
Harvesting
Header
84291050NA
6/2010
1st Printing
SERVICE
MANUAL

Advertisement

Table of Contents
loading

Related Manuals for New Holland 450FI

Summary of Contents for New Holland 450FI

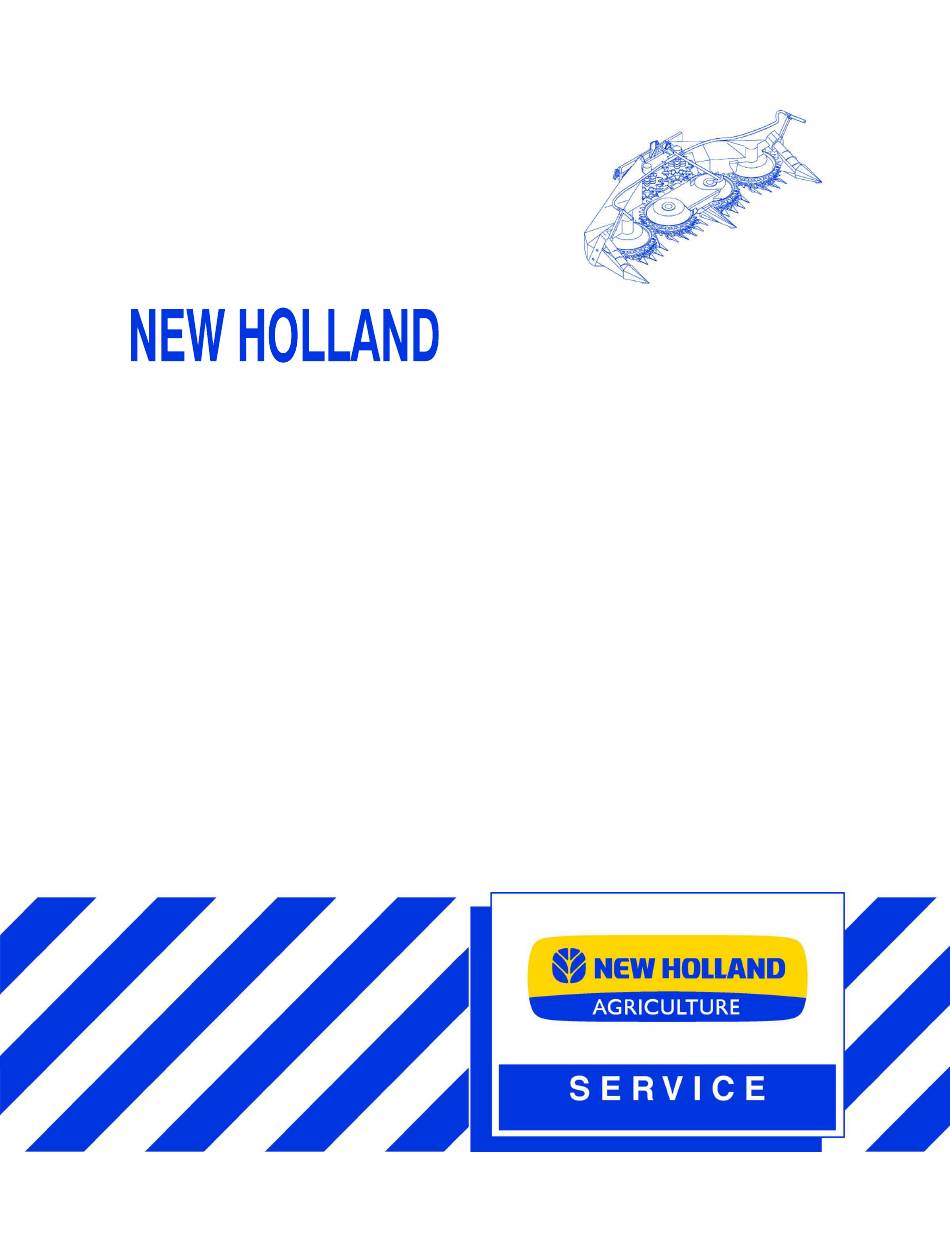

  • Page 1 SERVICE MANUAL 450FI Rotary Harvesting Header 84291050NA 6/2010 1st Printing...
  • Page 2 450FI Rotary Harvesting Unit TECHNICAL MANUAL 450FI Rotary Harvesting Unit 84291050 02DEC09 (ENGLISH) Find manuals at https://best-manuals.com...
  • Page 3 Operation and tests sections help you of failures and their causes. identify the majority of routine failures quickly. ARS,0000001 ­19­15AUG08­1/1 84291050 (02DEC09) 450FI Rotary Harvesting Unit 120309 PN=2 Find manuals at https://best-manuals.com...

  • Page 4: Group 05-Safety Measures

    Original Instructions. All information, illustrations and specifications in this manual are based on the latest information available at the time of publication. The right is reserved to make changes at any time without notice. 84291050 (02DEC09) 450FI Rotary Harvesting Unit 120309 PN=1 Find manuals at https://best-manuals.com...
  • Page 5 Contents 84291050 (02DEC09) 450FI Rotary Harvesting Unit 120309 PN=2 Find manuals at https://best-manuals.com...

  • Page 6: Table Of Contents

    Parking and Leaving the Forage Harvester ........... 05­05­7 Replace Safety Signs ........05­05­7 Dispose of Waste Properly ......05­05­8 Live With Safety..........05­05­8 Safety Measures on Electronic Control Units..........05­05­8 84291050 (02DEC09) 05­1 450FI Rotary Harvesting Unit 120309 PN=1 Find manuals at https://best-manuals.com...
  • Page 7 Contents 84291050 (02DEC09) 05­2 450FI Rotary Harvesting Unit 120309 PN=2 Find manuals at https://best-manuals.com...

  • Page 8: Recognize Safety Information

    Be prepared if a fire starts. Keep a first aid kit and fire extinguisher handy. Keep emergency numbers for doctors, ambulance service, hospital, and fire department near your telephone. DX,FIRE2 ­19­03MAR93­1/1 84291050 (02DEC09) 05­05­1 450FI Rotary Harvesting Unit 120309 PN=7 Find manuals at https://best-manuals.com...

  • Page 9: Avoid High­pressure Fluids

    Pressurized lines can accidentally burst when heat goes beyond the immediate flame area. DX,TORCH ­19­10DEC04­1/1 84291050 (02DEC09) 05­05­2 450FI Rotary Harvesting Unit 120309 PN=8 Find manuals at https://best-manuals.com...

  • Page 10: Work In Ventilated Area

    Operating equipment safely requires the full attention of the operator. Do not wear radio or music headphones while operating machine. DX,WEAR ­19­10SEP90­1/1 84291050 (02DEC09) 05­05­3 450FI Rotary Harvesting Unit 120309 PN=9 Find manuals at https://best-manuals.com...

  • Page 11: Practice Safe Maintenance

    Lower all equipment to the ground. • Stop the engine and remove the key. • Disconnect the battery ground strap. • Hang a "DO NOT OPERATE" tag in operator station. KM00113,0000036 ­19­23NOV09­1/1 84291050 (02DEC09) 05­05­4 450FI Rotary Harvesting Unit 120309 PN=10...

  • Page 12: Use Proper Lifting Equipment

    Follow recommended procedures in this manual. When implements or attachments are used with a machine, always follow safety precautions listed in the implement or attachment operator’s manual. DX,LOWER ­19­24FEB00­1/1 84291050 (02DEC09) 05­05­5 450FI Rotary Harvesting Unit 120309 PN=11...

  • Page 13: Work In Clean Area

    If these items were to get caught, severe injury could result. Remove rings and other jewelry to prevent electrical shorts and entanglement in moving parts. DX,LOOSE ­19­04JUN90­1/1 84291050 (02DEC09) 05­05­6 450FI Rotary Harvesting Unit 120309 PN=12...

  • Page 14: Use Proper Tools

    For loosening and tightening hardware, use the correct size tools. DO NOT use U.S. measurement tools on metric fasteners. Avoid bodily injury caused by slipping wrenches. Use only service parts meeting New Holland specifications. KM00113,0000065 ­19­03DEC09­1/1 Parking and Leaving the Forage Harvester Lower harvesting unit to the ground.

  • Page 15: Dispose Of Waste Properly

    Dispose of Waste Properly Improperly disposing of waste can threaten the environment and ecology. Potentially harmful waste used with New Holland equipment include such items as oil, fuel, coolant, brake fluid, filters, and batteries. Use leakproof containers when draining fluids. Do not use food or beverage containers that may mislead someone into drinking from them.
  • Page 16 Contents Page Group 00—Identification View and Description Identification View, 450FI Rotary Harvesting Unit .......... 10­00­1 Serial Number Plate, 450FI Rotary Harvesting Unit .......... 10­00­2 Assembly Designations ......... 10­00­3 Hanging Points ..........10­00­4 Group 05—Lubricants, Grease and Gear Oil Grease............10­05­1 Transmission Oil..........
  • Page 17 Contents 84291050 (02DEC09) 10­2 450FI Rotary Harvesting Unit 120309 PN=2...

  • Page 18: Identification View, 450Fi Rotary Harvesting Unit

    Group 00 Identification View and Description Identification View, 450FI Rotary Harvesting Unit KM00113,0000039 ­19­23NOV09­1/1 84291050 (02DEC09) 10­00­1 450FI Rotary Harvesting Unit 120309 PN=17...

  • Page 19: Serial Number Plate, 450Fi Rotary Harvesting Unit

    Identification View and Description Serial Number Plate, 450FI Rotary Harvesting Unit The serial number plate is located on the l.h. side of the attaching frame. A—Product Identification Number KM00113,000003A ­19­23NOV09­1/1 84291050 (02DEC09) 10­00­2 450FI Rotary Harvesting Unit 120309 PN=18...

  • Page 20: Assembly Designations

    12— Outer l.h. side dividers 18— Rotating crop divider drive scraper 5— R.h. side feed drum 23— Feed drum scraper 6— L.h. side feed drum 24— Friction clutch ­ main drive OULXBER,000165A ­19­01SEP08­1/1 84291050 (02DEC09) 10­00­3 450FI Rotary Harvesting Unit 120309 PN=19...

  • Page 21: Hanging Points

    CAUTION: Always use the hanging points (A). or straps that meet the weight requirements of This will prevent machine from tipping. Always the harvesting unit: The 450FI rotary harvesting use chains or straps whose lengths correspond unit weighs 3000 kg (6613,86 lb).

  • Page 22: Grease

    KM00113,000003D ­19­23NOV09­1/1 Transmission Oil Use oil with a viscosity based on the expected air temperature range during the period between oil changes. Transmission oils must meet API Service Classification GL­5. KM00321,0000195 ­19­10JUN09­1/1 84291050 (02DEC09) 10­05­1 450FI Rotary Harvesting Unit 120309 PN=21...

  • Page 23: Alternative And Synthetic Lubricants

    The temperature limits and service intervals shown in this Some New Holland brand coolants and lubricants may not manual apply to both conventional and synthetic oils. be available in your location.

  • Page 24: Unified Inch Bolt And Screw Torque Values

    Fasteners should be replaced with the same or higher grade. If higher grade fasteners are used, these should only be tightened to the strength of the original. ZX09263,0001D10 ­19­27JUN07­1/1 84291050 (02DEC09) 10­10­1 450FI Rotary Harvesting Unit 120309 PN=23...

  • Page 25: Metric Bolt And Screw Torque Values

    Fasteners should be replaced with the same or higher grade. If higher grade fasteners are used, these should only be tightened to the strength of the original. ZX09263,0001D11 ­19­27JUN07­1/1 84291050 (02DEC09) 10­10­2 450FI Rotary Harvesting Unit 120309 PN=24...

  • Page 26: Hydraulic System Inch Fitting Torque Values

    O­rings have been inserted When replacing fittings, be sure to use parts with an equal properly. or higher grade to the parts you are replacing. Items of ZX09263,0001D12 ­19­27JUN07­1/1 84291050 (02DEC09) 10­10­3 450FI Rotary Harvesting Unit 120309 PN=25...

  • Page 27: Hydraulic System Metric Fitting Torque Values

    O­rings have been inserted When replacing fittings, be sure to use parts with an equal properly. or higher grade to the parts you are replacing. Items of ZX09263,0001D13 ­19­27JUN07­1/1 84291050 (02DEC09) 10­10­4 450FI Rotary Harvesting Unit 120309 PN=26...

  • Page 28: 450Fi Rotary Harvesting Unit ­ Transmissions, Capacities

    Group 15 Capacities 450FI Rotary Harvesting Unit ­ Transmissions, Capacities A—Drain screw D—Oil level plug 3— Spur gear angle drive 1.1 kg B—Oil fill plug 1— Spur gear angle drive 4.4 L (2.42 lb) with a lifetime filling C—Bleeding (1.16 U.S. gal) of low­viscosity grease for...
  • Page 29 Capacities 84291050 (02DEC09) 10­15­2 450FI Rotary Harvesting Unit 120309 PN=28...

  • Page 30: 450Fi Rotary Harvesting Unit ­ Dimensions

    Group 20 Specifications 450FI Rotary Harvesting Unit ­ Dimensions Dimensions ........Length 2.40 m (94.4 in.) ......Overall width 6.00 m (236.22 in.) ........Height 1.32 m (52.1 in.) ......Working width 6.00 m (236.22 in.) ....... Transport width 3.00 m (118.11 in.) ........
