Z790 S WIFI DDR4
Z790 S DDR4
User's Manual
Rev. 1001
GIGABYTE will reduce paper use in order to fulfill the responsibilities of a global citizen.
Also, to reduce the impacts on global warming, the packaging materials of this product
are recyclable and reusable. GIGABYTE works with you to protect the environment.
For more product details, please visit GIGABYTE's website.

Advertisement

Table of Contents
loading

Related Manuals for Gigabyte Z790 S WIFI DDR4

Summary of Contents for Gigabyte Z790 S WIFI DDR4

  • Page 1 User's Manual Rev. 1001 GIGABYTE will reduce paper use in order to fulfill the responsibilities of a global citizen. Also, to reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYTE works with you to protect the environment.
  • Page 2 The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is protected by copyright laws and is the property of GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice.

  • Page 3: Table Of Contents

    Table of Contents Chapter 1 Product Introduction ..................4 Motherboard Layout ..................4 Box Contents ....................5 Chapter 2 Hardware Installation ..................6 Installation Precautions ..................6 Product Specifications ..................7 Installing the CPU and CPU Cooler ............... 10 Installing the Memory ..................13 Installing an Expansion Card .................

  • Page 4: Chapter 1 Product Introduction

    ® ® Super I/O CODEC PCIEX1_1 M_BIOS USB 2.0 Hub PCIEX1_2 QFLED SYS_FAN3 F_AUDIO CLR_CMOS SPDIF_O D_LED1 SPI_TPM F_USB1 F_PANEL DRAM LED_C1 F_USB2 QFLASH_ SYS_FAN4_ BOOT Temperature PLUS PUMP sensor j Only for Z790 S WIFI DDR4. - 4 -...

  • Page 5: Box Contents

    Box Contents Z790 S WIFI DDR4 or Z790 S DDR4 motherboard User's Manual Two antennas j Two SATA cables M.2 screws j Only for Z790 S WIFI DDR4. * The box contents above are for reference only and the actual items shall depend on the product package you obtain.

  • Page 6: Chapter 2 Hardware Installation

    Chapter 2 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: • Prior to installation, make sure the chassis is suitable for the motherboard. •...

  • Page 7: 2-2 Product Specifications

    Core ® ™ Š Pentium Gold and Celeron Processors ® ® (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU Š Chipset Intel Z790 Express Chipset ® Š Memory Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules Š...
  • Page 8 Expansion Slots Š CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: Š...
  • Page 9 ATX Form Factor; 30.5cm x 24.4cm Form Factor Š * GIGABYTE reserves the right to make any changes to the product specifications and product-related information without prior notice. j Only for Z790 S WIFI DDR4. & Please visit the SERVICE/SUPPORT\Utility page on GIGABYTE's website to download the latest version of apps.

  • Page 10: Installing The Cpu And Cpu Cooler

    Read the following guidelines before you begin to install the CPU: • Make sure that the motherboard supports the CPU. (Go to GIGABYTE's website for the latest CPU support list.) • Always turn off the computer and unplug the power cord from the power outlet before installing the CPU to prevent hardware damage.
  • Page 11 B. Installing the CPU Follow the steps below to correctly install the CPU into the motherboard CPU socket. Finger Tab j G ently press the CPU socket lever handle down and away from the socket. k C ompletely lift up the CPU socket lock- ing lever.
  • Page 12 C. Installing the CPU Cooler Be sure to install the CPU cooler after installing the CPU. (Actual installation process may differ depending the CPU cooler to be used. Refer to the user's manual for your CPU cooler.) Apply an even and thin layer of thermal grease on the surface of the installed CPU.

  • Page 13: Installing The Memory

    Read the following guidelines before you begin to install the memory: • Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) •...

  • Page 14: Installing An Expansion Card

    Installing an Expansion Card Read the following guidelines before you begin to install an expansion card: • Make sure the motherboard supports the expansion card. Carefully read the manual that came with your expansion card. • Always turn off the computer and unplug the power cord from the power outlet before installing an expansion card to prevent hardware damage.

  • Page 15: Back Panel Connectors

    No data transmission or receiving is occurring 100 Mbps data rate LAN Port j Only for Z790 S WIFI DDR4. • When removing the cable connected to a back panel connector, first remove the cable from your device and then remove it from the motherboard.
  • Page 16 You can change the functionality of an audio jack using the audio software. & Please visit GIGABYTE's website for details on configuring the audio software. https://www.gigabyte.com/WebPage/697/realtek897-audio.html (Note) To enable the Q-Flash Plus function, please navigate to the "Unique Features" page of GIGABYTE's website for more information. - 16 -...

  • Page 17: Onboard Buttons And Leds

    RST_SW The reset button provides you with several functions to use. To remap the button to perform different tasks, please navigate to the "BIOS Setup" page of GIGABYTE's website and search for "RST_SW (MULTIKEY)" for more information. QFLASH_PLUS (Q-Flash Plus Button) Q-Flash Plus allows you to update the BIOS when your system is off (S5 shutdown state).

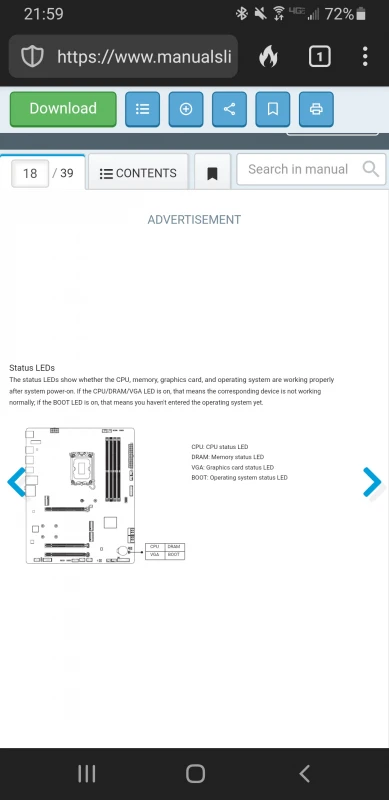

  • Page 18 Status LEDs The status LEDs show whether the CPU, memory, graphics card, and operating system are working properly after system power-on. If the CPU/DRAM/VGA LED is on, that means the corresponding device is not working normally; if the BOOT LED is on, that means you haven't entered the operating system yet. CPU: CPU status LED DRAM: Memory status LED VGA: Graphics card status LED...

  • Page 19: Internal Connectors

    Internal Connectors 3 7 8 11 19 ATX_12V_2X4 F_AUDIO SPDIF_O CPU_FAN F_U32C SYS_FAN1/2/3 F_U32 SYS_FAN4_PUMP F_USB1/F_USB2 CPU_OPT SPI_TPM D_LED1/D_LED2 LED_C1/LED_C2 CLR_CMOS SATA3 4/5/6/7 M2A_CPU/M2P_SB/M2M_SB F_PANEL Read the following guidelines before connecting external devices: • First make sure your devices are compliant with the connectors you wish to connect. •...
  • Page 20 1/2) ATX_12V_2X4/ATX (2x4 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and all devices are properly installed.
  • Page 21 For optimum heat dissipation, it is recommended that a system fan be installed inside the chassis. The header also provides speed control for a water cooling pump. Please navigate to the "BIOS Setup" page of GIGABYTE's website and search for "Smart Fan 6" for more information. Pin No. Definition...
  • Page 22 LED strip. For how to turn on/off the lights of the LED strip, please navigate to the "Unique Features" page of GIGABYTE's website. Before installing or removing the devices, be sure to turn off the devices and your computer. Unplug the power cord from the power outlet to prevent damage to the devices.
  • Page 23 1.5Gb/s standard. Each SATA connector supports a single SATA device. The Intel Chipset supports RAID 0, ® RAID 1, RAID 5, and RAID 10. Please navigate to the "Configuring a RAID Set" page of GIGABYTE's website for instructions on configuring a RAID array. Pin No. Definition...
  • Page 24 M.2 PCIe SSDs. Please note that an M.2 PCIe SSD cannot be used to create a RAID set with a SATA hard drive. Please navigate to the "Configuring a RAID Set" page of GIGABYTE's website for instructions on configuring a RAID array.
  • Page 25 Connects to the power switch on the chassis front panel. You may configure the way to turn off your system using the power switch (please navigate to the "BIOS Setup" page of GIGABYTE's website and search for "Soft-Off by PWR-BTTN" for more information).
  • Page 26 S B_ 12) F_AUDIO (Front Panel Audio Header) The front panel audio header supports High Definition audio (HD). You may connect your chassis front panel audio module to this header. Make sure the wire assignments of the module connector match the pin assignments of the motherboard header.
  • Page 27 14) F_U32C (USB Type-C Header, with USB 3.2 Gen 2 Support) ® The header conforms to USB 3.2 Gen 2 specification and can provide one USB port. F_USB3 F_USB30 3 Pin No. Definition Pin No. Definition VBUS VBUS USB 0_ B TX1+ TX2+ TX1-...
  • Page 28 16) F_USB1/F_USB2 (USB 2.0/1.1 Headers) The headers conform to USB 2.0/1.1 specification. Each USB header can provide two USB ports via an optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer. B S_ Pin No. Definition Power (5V) Power (5V) USB DX-...
  • Page 29 CMOS values. • After system restart, go to BIOS Setup to load factory defaults (select Load Optimized Defaults) or manually configure the BIOS settings (please navigate to the "BIOS Setup" page of GIGABYTE's website for more information). - 29 -...
  • Page 30 Reset The reset jumper provides you with several functions to use. To remap the button to perform different tasks, please navigate to the "BIOS Setup" page of GIGABYTE's website and search for "RST_SW (MULTIKEY)" for more information. 21) BAT (Battery) The battery provides power to keep the values (such as BIOS configurations, date, and time information) in the CMOS when the computer is turned off.

  • Page 31: Chapter 3 Bios Setup

    If this occurs, try to clear the CMOS values and reset the board to default values. • Refer to the introductions of the battery/clear CMOS jumper in Chapter 2 or navigate to the "BIOS Setup" page of GIGABYTE's website and search for "Load Optimized Defaults" for how to clear the CMOS values.
  • Page 32 Startup Screen: The following startup Logo screen will appear when the computer boots. Function Keys Function Keys: <DEL>: BIOS SETUP\Q-FLASH Press the <Delete> key to enter BIOS Setup or to access the Q-Flash utility in BIOS Setup. <F12>: BOOT MENU Boot Menu allows you to set the first boot device without entering BIOS Setup.

  • Page 33: Chapter 4 Installing The Operating System And Drivers

    OS installation process. Refer to the steps below: Step 1: Go to GIGABYTE's website, browse to the motherboard model's web page, download the Intel SATA Preinstall driver file on the Support\Download\SATA RAID/AHCI page, unzip the file and copy the files to your USB thumb drive.

  • Page 34: Drivers Installation

    (GCC). Click Install to proceed with the installation. (In BIOS Setup, make sure Settings\Gigabyte Utilities Downloader Configuration\Gigabyte Utilities Downloader is set to Enabled.) When the End User License Agreement dialog box appears, press <Accept> to install GIGABYTE Control Center (GCC). On the GIGABYTE CONTROL CENTER screen, select the drivers and applications you want to install and click Install.

  • Page 35: Chapter 5 Appendix

    • An Internet connected computer. • A USB thumb drive. An M.2 PCIe SSD cannot be used to set up a RAID set with a SATA hard drive. & Please visit GIGABYTE's website for details on configuring a RAID array. https://www.gigabyte.com/WebPage/927/intel700-raid.html - 35 -...

  • Page 36: Regulatory Notices

    Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information Product Name: Motherboard Trade Name: GIGABYTE Model Number: Z790 S WIFI DDR4/Z790 S DDR4 Responsible Party – U.S. Contact Information: G.B.T. Inc. Address: 17358 Railroad street, City Of Industry, CA91748 Tel.: 1-626-854-9338 Internet contact information: https://www.gigabyte.com...
  • Page 37 European Commission Delegated Directive (EU) 2015/863 Statement I prodotti con il marchio CE sono conformi con una o più delle seguenti GIGABYTE products have not intended to add and safe from hazardous Direttive UE, come applicabile: Direttiva EMC 2014/30/UE, Direttiva sulla substances (Cd, Pb, Hg, Cr+6, PBDE, PBB, DEHP, BBP, DBP and DIBP).
  • Page 38 To identify your Motherboard version or revision number, look for "REV: X.X" printed on the PCB on the top left corner of the Motherboard. For example, "REV:1.0" means the revision of the motherboard is 1.0. Motherboard revision no.: Wireless module manufacturer, model name: Z790 S WIFI DDR4 rev. 1.0 Intel Corporation 9560NGW ®...

  • Page 39: Contact Us

    Contact Us GIGA-BYTE TECHNOLOGY CO., LTD. Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231 TEL: +886-2-8912-4000, FAX: +886-2-8912-4005 Tech. and Non-Tech. Support (Sales/Marketing) : https://esupport.gigabyte.com WEB address (English): https://www.gigabyte.com WEB address (Chinese): https://www.gigabyte.com/tw GIGABYTE eSupport • To submit a technical or non-technical (Sales/Marketing) question, please link to: https://esupport.gigabyte.com...
