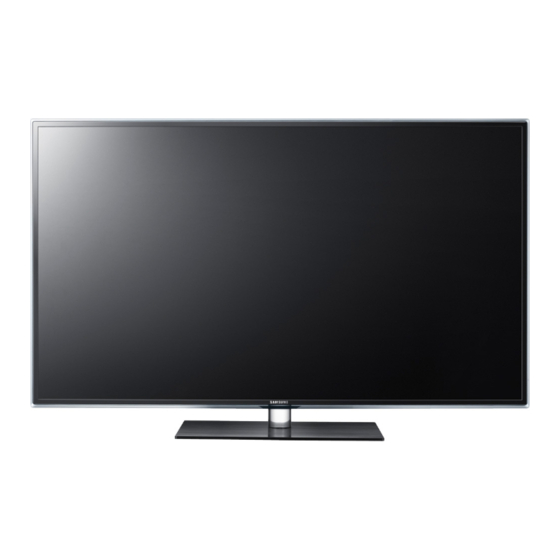

Samsung UE D65 V Series Service Manual
  1. Manuals
  2. Brands
  3. Samsung Manuals
  4. LED TV
  5. UE D65 V Series
  6. Service manual
Samsung UE D65 V Series Service Manual

Samsung UE D65 V Series Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SERVICE
TFT-LCD TV
UE**D65** / UE**D67**
LED-TV
Chassis : U69A
Model
: UE**D65**V*
UE**D65**W*
UE**D67**W*
Manual
1. Precautions
2. Product specifications
3. Disassembly and Reassembly
4. Troubleshooting
5. Wiring Diagram
Contents

Advertisement

Table of Contents
loading

Related Manuals for Samsung UE D65 V Series

Summary of Contents for Samsung UE D65 V Series

  • Page 1 LED-TV Chassis : U69A Model : UE**D65**V* UE**D65**W* UE**D67**W* SERVICE Manual TFT-LCD TV Contents 1. Precautions 2. Product specifications 3. Disassembly and Reassembly 4. Troubleshooting 5. Wiring Diagram UE**D65** / UE**D67**...

  • Page 2: Table Of Contents

    Contents 1. Precautions ......................1-1 1-1. Safety Precautions ......................1-1 1-2. Servicing Precautions ..................... 1-2 1-3. Electrostatically Sensitive Devices (ESD) Precautions ..........1-2 1-4. Installation Precautions ....................1-3 2. Product specifications .................... 2-1 2-1. Specifications Information ....................2-1 2-2. Detail Factory Option ....................2-10 2-3.

  • Page 3: Precautions

    1. Precautions 1. Precautions 1-1. Safety Precautions Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as electrical shock. 1-1-1. Warnings For continued safety, do not attempt to modify the circuit board. Disconnect the AC power and DC power jack before servicing.

  • Page 4: Servicing Precautions

    1. Precautions 1-2. Servicing Precautions WARNING: An electrolytic capacitor installed with the wrong polarity might explode. Caution: Before servicing units covered by this service manual, read and follow the Safety Precautions section of this manual. Note: If unforeseen circumstances create conflict between the following servicing precautions and any of the safety precautions, always follow the safety precautions.

  • Page 5: Installation Precautions

    1. Precautions 1-4. Installation Precautions For safety reasons, more than a people are required for carrying the product. Keep the power cord away from any heat emitting devices, as a melted covering may cause fire or electric shock. Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal temperature may cause fire.

  • Page 6: Product Specifications

    2. Product specifications 2. Product specifications 2-1. Specifications Information 2-1-1. Model Comparison Model UD650* UD653* UD657* Front view Detail view Front Color Tint Blue + Charcoal Black Clear + Charcoal Black Clear + Charcoal Black Without Stnand 745.8 x 29.9 x 443.4 736.3 x 29.9 x 434.2 736.3 x 29.9 x 434.2 32"...
  • Page 7 2. Product specifications Model UD651* UD654* UD67** Front view Detail view Front Color Clear + white Clear + Charcoal Balck Clear + Charcoal Black Without Stnand 736.3 x 29.9 x 434.2 742.2 x 29.9 x 439.8 736.3 x 29.9 x 434.2 32"...
  • Page 8 2. Product specifications 2-1-2. Feature & Specifications Model UE32D65** / UE32D67** Feature Digital-TV, RF, 4-HDMI, 1-Component, 1-A/V, 3-USB2.0(Media Play), D-SUB , LAN, 1-Scart ሪ Respons time : 6.5 ms ሪ Dynamic contrast , Super-PVA ሪ PIP(in HDMI 1, 2, 3, 4, Component 1, PC Mode and Sub picture is available only in TV mode(DTV/ATV)) ሪ...
  • Page 9 2. Product specifications Model UE37D65** / UE37D67** Feature Digital-TV, RF, 4-HDMI, 1-Component, 1-A/V, 3-USB2.0(Media Play), D-SUB , LAN, 1-Scart ሪ Respons time : 6.5 ms ሪ Dynamic contrast , Super-PVA ሪ PIP(in HDMI 1, 2, 3, 4, Component 1, PC Mode and Sub picture is available only in TV mode(DTV/ATV)) ሪ...
  • Page 10 2. Product specifications Model UE40D65** / UE40D67** Feature Digital-TV, RF, 4-HDMI, 1-Component, 1-A/V, 3-USB2.0(Media Play), D-SUB , LAN, 1-Scart ሪ Respons time : 6.5 ms ሪ Dynamic contrast , Super-PVA ሪ PIP(in HDMI 1, 2, 3, 4, Component 1, PC Mode and Sub picture is available only in TV mode(DTV/ATV)) ሪ...
  • Page 11 2. Product specifications Model UE46D65** / UE46D67** Feature Digital-TV, RF, 4-HDMI, 1-Component, 1-A/V, 3-USB2.0(Media Play), D-SUB , LAN, 1-Scart ሪ Respons time : 5.5 ms ሪ Dynamic contrast , Super-PVA ሪ PIP(in HDMI 1, 2, 3, 4, Component 1, PC Mode and Sub picture is available only in TV mode(DTV/ATV)) ሪ...
  • Page 12 2. Product specifications Model UE55D65** / UE55D67** Feature Digital-TV, RF, 4-HDMI, 1-Component, 1-A/V, 3-USB2.0(Media Play), D-SUB , LAN, 1-Scart ሪ Respons time : 5.5 ms ሪ Dynamic contrast , Super-PVA ሪ PIP(in HDMI 1, 2, 3, 4, Component 1, PC Mode and Sub picture is available only in TV mode(DTV/ATV)) ሪ...
  • Page 13 2. Product specifications Model UE60D65** Feature Digital-TV, RF, 4-HDMI, 1-Component, 1-A/V, 3-USB2.0(Media Play), D-SUB , LAN, 1-Scart ሪ Respons time : 4 ms ሪ Dynamic contrast , Super-PVA ሪ PIP(in HDMI 1, 2, 3, 4, Component 1, PC Mode and Sub picture is available only in TV mode(DTV/ATV)) ሪ...
  • Page 14 2. Product specifications 2-1-3. Spec Comparison to the Old Models Model UD6V UC6U UD650* UD653* UD657* UD651* Design UD654* UD670* Display Type LED TV LED TV Built-in Tuner Resolution 1920 x 1080 1920 x 1080 LCD Panel TFT LCD Panel 100Hz TFT LCD Panel 100Hz Screen Size 32"/37"/40"/46"/55"/60"...

  • Page 15: Detail Factory Option

    2. Product specifications 2-2. Detail Factory Option If you replace the main board with new one, please change the factory option as well. ※ The options you must change are "Type" and "Front Color". 2-2-1. UD65** Model Name UE32D65** UE37D65** UE40D65** UE46D65** UE55D65**...
  • Page 16 2. Product specifications 2-2-2. UD67** Model Name UE32D67** UE37D67** UE40D67** UE46D67** UE55D67** Vendor AMLCD(LCM) AMLCD(LCM) AMLCD(LCM) LD460CSC-C1 Panel BN07-00997A BN07-01034A CODE BN07-00996A BN07-00999A BN07-00984A BN95-00449A BN95-00451A BN95-00450A LD400CSC-C1 LD460CSB-A1 LD550CSC-C1 SPEC LD320CSC-C1 LD370CSB-C1 LTJ400HV01-V LTJ460HW01-V LTJ550HW01-V Vendor HANSOE HANSOE SMPS CODE BN44-00458B BN44-00458B...

  • Page 17: New Functions Explanation

    2. Product specifications 2-3. New Functions Explanation 2-3-1. Smart Hub '11 Smart Hub vs '10 Internet@TV „ '11 Smart Hub  C oncepts and Features Launcher : Internet TV, Media Play, Content Button  S earch All : Provides integrated search results for a variety of areas  F ull Browser : PC's Web browser, such as access to common web site content and applications so you can...
  • Page 18 2. Product specifications Smart Hub Concepts „ Gateway to access all type of diverse content • It's all integrated to guide you to easier diverse entertainment choice • Control your entertainment life with easy and simple user friends UI • Access to driverse Apps that are adding every day •...
  • Page 19  Your Movie: recommended movie or TV program  Top Application: popular Application list  Top Searched: popular searsh list  Search History The application provides Web and SNS based search engine.  YouTube  Facebook  Your Movie  Samsung Apps  AllShare  Websites 2-14...
  • Page 20 „ AllShare™ connects your TV and compatible Samsung mobile phones/ devices through a network. On your TV, you can view call arrivals and SMS messages, and received by your mobile phones. In addition, you can play media contents including videos, photos, and music saved on your mobile phones or the other devices (such as your PC) by controlling them on the TV via the network.
  • Page 21 2. Product specifications Using the Media Function An alarm window appears informing you that media contents (videos, photos, music) sent from a mobile phone will be displayed on your TV. The contents are played automatically 3 seconds after the alarm window appears. If you press the RETURN or EXIT button when the alarm window appears, the media contents are not played.
  • Page 22 2. Product specifications AllShare™ setup and checklists „ Problem Possible Solution Deleted mobile phone list showing up • [Menu > Application > Content View > AllShare™ > Message] again. Where need to block the added mobile phone or device again. Because deleted device would be added again if that device turns on or attempt to approach.
  • Page 23 Connected Home or Screen Share function which are found on Samsung Smartphones. • Check that the PC Share Manager is enabled, the Samsung TV is set to allow connections and the ScreenShare function on the connected cell phone is enabled. •...
  • Page 24 2. Product specifications Possible Solution Problem • AllShare (ScreenShare Server) I cannot find the remote control service Check that the ScreenShare Client device is correctly connected to the network of provided by the ScreenShare Server from the the sharing device that the DTV is connected to. ScreenShare Client.
  • Page 25 2. Product specifications 2-3-4. Media Play Media Play „ Functions that are not supported when connecting to a PC through a network: - Sorting files by preference in the Photos, Music, and Videos folders. - The � (REW) or μ (FF) button while a movie is playing. - Divx DRM, Multi-audio, embedded captions are not supported.
  • Page 26 2. Product specifications Other Restrictions N NOTE • If there are problems with the contents of a codec, the codec will not be supported. • If the information for a Container is incorrect and the file is in error, the Container will not be able to play correctly. •...
  • Page 27 2. Product specifications 2-3-5. 3D Display What is 3D Display? „ • A system that display 3D images artificially • How ?  Using binocular time delay 1 Left eye recognizes left image, right eye recognizes right image. 2 Human eyes be far away each other 65mm horizontally.
  • Page 28 2. Product specifications 3D Supporting Formats „ Internet ATV/AV Comp. A.PC HDMI HDMI_PC (Photo) (Video) Top-Bottom Over 720P All Resolution Over 720P Over 720P Over 720P All Resolution All Resolution Side by Side Over 720P All Resolution Over 720P Over 720P Over 720P All Resolution All Resolution...
  • Page 29 TV to your AP, a pop-up window appears on the screen notifying you of the failure. If you want to try using Plug&Access again, reset the AP, disconnect the Samsung Wireless LAN Adapter and then try again from Step 1.
  • Page 30 2. Product specifications Possible Solution Problem • Network Setup How do I setup the network? • Click the [Menu] button and open [Setup] to select [Network]. Configure wired or wireless network settings. For details, please refer to the IB. How do I check the network status? •...
  • Page 31 • If Samsung Wireless Link is Off or the product does not have the Samsung auto-configuration and a message that it is Wireless Link function, please retry searching to find the sharing device. (May not connecting is displayed only.
  • Page 32 2. Product specifications 2-3-7. DVB-T2 DVB-T vs T2 „ DVB-T2 Capacity „ DVB-T2 Channel capacity incresed 47% than DVB-T. 2-27...

  • Page 33: Accessories

    (6510, italy white models) 4301-000121 3903-000525 Power Cord 3903-000539 (UK) Warranty Card / Registration Card / Safety Guide Manual User Manual BN68-03482* (UE**D65**) Samsung Electronics (Simple Guide) BN68-03487* (UE**D675*) Service center Holder-Wire stand BN61-05491A Holder-Ring (4ea) BN61-05280A CI Gender 3709-001663 Scart Gender...

  • Page 34: Disassembly And Reassembly

    3. Disassembly and Reassemble 3. Disassembly and Reassembly This section of the service manual describes the disassembly and reassembly procedures for the LED TV. WARNING: This LED TV contains electrostatically sensitive devices. Use caution when handling these components. 3-1. Disassembly and Reassembly Cautions: 1.
  • Page 35 3. Disassembly and Reassemble Description Picture Description Screws Lift up and remove the middle-cover. * Caution : Remove the function cable before lift up the middle cover. • Rear view of 32"/37"/40"/46" * Notice : LVDS cable of the only 55" model is 51p FFC cable.
  • Page 36 3. Disassembly and Reassemble Description Picture Description Screws Remove the Wi-Fi module. 6001-002653 SCREW-MACHINE (M3, L6-WHT) Remove the screws of Main Board. • Main Board view of 32"/37"/40"/46" 6001-002653 SCREW-MACHINE (M3, L6-WHT) • Main Board view of 55" * Caution 1 : When you remove Boards, you must disconnect connectors.
  • Page 37 3. Disassembly and Reassemble Description Picture Description Screws Remove the T-CON Bracket. 6001-002653 SCREW-MACHINE (M3, L6-WHT) Remove the panel from cover front. Reassembly procedures are in the reverse order of disassembly procedures. ※...
  • Page 38 3. Disassembly and Reassemble Assembly of Function „ Description Picture Description Refer Push two cutting parts of middle cover. Push!! Push!! Disconnect the cable connector.

  • Page 39: Troubleshooting

    4. Troubleshooting 4. Troubleshooting 4-1. Troubleshooting 4-1-1. Previous check Check the various cable connections first. • Check to see if there is a burnt or damaged cable. • Check to see if there is a disconnected or loose cable connection. •...
  • Page 40 4. Troubleshooting Simple flow chart of malfunction „ Does the TV turn on? Can you see anything on the screen? Can you see OSD menu running on the screen? Can you see Digital Channel broadcast ? Check LVDS cable connected Check the Power Cord to Main Board.
  • Page 41 4. Troubleshooting USB3 USB2 OPTICAL USB1 CN201 Power HDMI4 IC1001 IC Video process HDMI3 CN1601 LVDS IC801 IC Video decoder HDMI2 CN1201_3D Function HDMI1 CN301 Speaker Component + AV PC sound SCART D-sub Headphone+ Audio L/R PIN 13 PIN 11 PIN 12 PIN 4...
  • Page 42 4. Troubleshooting 4-1-2. How to check fault symptom No Power „ Genoa-S N Refer to the next page to check the lacation such a CN201 or IC1001 SVC Manual mentioned. The LEDs on The front panel do not work when connecting The power cord. Symptom The SMPS relay does not work when connecting The power cord.
  • Page 43 4. Troubleshooting Location (Main) Detail PIN 11(B13V) PIN 7(B18VS) IC204 PIN 4(A5V) PIN 7(B18VS) IC207 IC201 IC208 IC210...
  • Page 44 4. Troubleshooting No Video (Analog PC signal) Genoa-S „ N Refer to the next page to check the lacation such a CN201 or IC1001 SVC Manual mentioned. Symptom Audio is normal but no picture is displayed on the screen. Check the PC source Major Check the Arsenal, Check the Valencia.
  • Page 45 4. Troubleshooting Location (Main) Detail IC801 CN401...
  • Page 46 4. Troubleshooting WAVEFORMS „ 1 PC input (V-sink, H-sink, R/G/B) 2 LVDS output...
  • Page 47 4. Troubleshooting No Video (HDMI 1, 2, 3, 4 - Digital Signal) „ Genoa-S N Refer to the next page to check the lacation such a CN201 or IC1001 SVC Manual mentioned. Symptom Audio is normal but no picture is displayed on the screen. Check the HDMI source Major Check the HDMI switch, Check the Valencia.
  • Page 48 4. Troubleshooting Location (Main) Detail IC601 IC1001 CN1601 4-10...
  • Page 49 4. Troubleshooting WAVEFORMS „ 1 PC input (V-sink, H-sink, R/G/B) 2 LVDS output 4-11...
  • Page 50 4. Troubleshooting No Video (Tuner_CVBS) „ Genoa-S N Refer to the next page to check the lacation such a CN201 or IC1001 SVC Manual mentioned. Symptom Audio is normal but no picture is displayed on the screen. Check the Tuner CVBS source Major Check the Tuner, Check the Valencia.
  • Page 51 4. Troubleshooting Location (Main) Detail TU702_FN IC1001 CN1601 4-13...
  • Page 52 4. Troubleshooting WAVEFORMS „ 1 CVBS OUT (Grey Bar) 2 LVDS output 4-14...
  • Page 53 4. Troubleshooting No Video (Tuner DTV) „ Genoa-S N Refer to the next page to check the lacation such a CN201 or IC1001 SVC Manual mentioned. Symptom Audio is normal but no picture is displayed on the screen. Check the DTV source. Major Check the Tuner, Check the Valencia.
  • Page 54 4. Troubleshooting Location (Main) Detail TU702_FN IC1001 CN1601 4-16...
  • Page 55 4. Troubleshooting WAVEFORMS „ 1 LVDS output 2 CH_CLK, CH_VALID 4-17...
  • Page 56 4. Troubleshooting No Video (Video CVBS) Genoa-S „ N Refer to the next page to check the lacation such a CN201 or IC1001 SVC Manual mentioned. Symptom Audio is normal but no picture is displayed on the screen. Check the Video CVBS source. Major Check the Valencia.
  • Page 57 4. Troubleshooting Location (Main) Detail R505 IC1001 CN503_EU CN1601 4-19...
  • Page 58 4. Troubleshooting WAVEFORMS „ 1 CVBS OUT (Grey Bar) 2 LVDS output 4-20...
  • Page 59 4. Troubleshooting No Video (Component) Genoa-S „ N Refer to the next page to check the location such a CN201 or IC201 SVC Manual mentioned. Symptom Audio is normal but no picture is displayed on the screen. Check the Component source Major Check the Valencia.
  • Page 60 4. Troubleshooting Location (Main) Detail COMP1_PR COMP1_PB COMP1_Y IC1001 CN1601 4-22...
  • Page 61 4. Troubleshooting WAVEFORMS „ 1 Compnent_Y (Gray scale) / Pb / Pr (Color bar) 2 LVDS output 4-23...
  • Page 62 4. Troubleshooting No Sound (1.Speaker 2.Monitor_out, 3.Optical) Genoa-S „ N Refer to the next page to check the location such a CN201 or IC201 SVC Manual mentioned. Symptom Video is normal but there is no sound. When the speaker connectors are disconnected or damaged. Major When the sound processing part of the Main Board is not functioning.
  • Page 63 4. Troubleshooting Location (Main) Detail IC303 IC1001 CN501 AV2_SR PC_SL AV2_SL PC_SR HP_SL COMP1_SL HP_SR COMP1_SR CN402 CN503_EU CN302 #4.CN301 : L- #1.CN302 #3.CN301 : L+ #2.CN301 : R- #1.CN301 : R+ 4-25...
  • Page 64 4. Troubleshooting WAVEFORMS „ 1 MCLK / LRCLK / PCM_I2C_DATA 2 Speaker / Monitor OUT , SPDIF OUT 4-26...

  • Page 65: Alignments And Adjustments

    4. Troubleshooting 4-2. Alignments and Adjustments 4-2-1. General Alignment instruction Usually, a color LED-TV needs only slight touch-up adjustment upon installation. Check the basic characteristics such as height, horizontal and vertical sync. Use the specified test equipment or its equivalent. Correct impedance matching is essential.

  • Page 66: Factory Mode Adjustments

    4. Troubleshooting 4-3. Factory Mode Adjustments 4-3-1. Entering Factory Mode To enter ‘Service Mode’ Press the remote -control keys in this sequence : ● If you do not have Factory remote - control Power OFF INFO MENU MUTE Power ON ●...

  • Page 67: Factory Data

    4. Troubleshooting 4-4. Factory Data Option Factory Menu Name Data Range Remark Factory Reset 32P1UF3E/37P1UF3E/40 Type P1UF6E/46L1UF6E Local set EU/EU_ITALY Model UD6500 TUNER SEC_TCS Light Effect Ch table … Country Front Color U-T-BL-M/U-T-CL-M Control Factory Menu Name Data Range Remark EDID EDID ON/OFF EDID WRITE ALL...
  • Page 68 4. Troubleshooting NETWORK Support Int-Wifi IPERF Stopped Info Link Country None Info Link Server Type development TTX List … TTX Group … ND ADJ Support 24Px4 Support Power Indicator Support BD Wise Support RF Remocon Support Data Service Support PVR Support 3D Support Gemstar Support WSS Support...
  • Page 69 4. Troubleshooting DDR SSC Value Napoli LVDS SSC On/Off Napoli LVDS SSC MFR Napoli LVDS SSC MRR Napoli DDR SSC ON/OFF Napoli DDR SSC MFR Napoli DDC SSC MRR DDR Margin A CTRL_OFFSET_0_3 A CTRL_OFFSET_D B CTRL_OFFSET_0_3 B CTRL_OFFSET_D H.264 Margin MPEGMargin 1000 TunerMargin...
  • Page 70 4. Troubleshooting S.DEV1 Checksum 0x0000 EEPROM RESET EER RESET NVR All Clear KEY SENSITIVITY NotUsed PDP Option LOGIC CONNECT PIXEL SHIFT TEST PANEL VERSION PANEL INCH PANEL TYPE PANEL TEMPERATURE LOGIC SW VERSION LOGIC SW CHECKSUM SAPC TIMER APC SPEED Real 100 Hz Support PLG_SHOP Shop Option...
  • Page 71 4. Troubleshooting Carrier Mute Volume Curve Type1 Pilot Level High Thld 0x30h Pilot Level Low Thld 0x10h Chattering Cnt FM Prescale 0x14h AM Prescale 0x1Ah NICAM Prescale 0x14h Amp Volume 0xCBh Amp Scale 0x3Dh AMP Speaker EQ AMP EQ CheckSum 0xBCC084 AMP PEQ Test Ready...
  • Page 72 4. Troubleshooting HDMI HOT PLUG Disable HOTPLUG SWITCHING Boot CLK TERMDURATION 300ms HOT PLUG OFF HOLD TIME 1200ms HDMI FLT CNT SIG 100ms HDMI FLT CNT LOS 100ms UNSTABLE BAN CNT 1250ms HDMI Err Cnt HDMI ROBIN HDMI Callback HDMI CTS Thld HDMI CTS Cnt1 HDMI 3D Det TMDS_EQ2_Boost...
  • Page 73 4. Troubleshooting pSCC Hx pSCC Hy pSCC Lx pSCC Ly SCC Source Data SWAP Factory Menu Name Data Range Remark Test Pattern LOGIC Pattern Sel LOGIC Level Sel LDAsic Pattern Sel GenaoP Pattern Sel GenoaS Pattern Sel Napoli Pre Test Pattern Napoli Post Test Pattern Napoli FDISPLAY ON/OFF Napoli PC Mode ON/OFF...
  • Page 74 4. Troubleshooting A_Segments Num_0 A_BER_0 B_Modulation_0 B_Code Rate_0 B_Timer InterLeave_0 B_Segments Num_0 B_BER_0 C_Modulation_0 C_Code Rate_0 C_Timer InterLeave_0 C_Segments Num_0 C_BER_0 MICOM UPGRADE Temp Last Temp Read DDC Version 0x40519 DDC_CHK_SEL DDC_Check_Total IR_ON_OFF 0xaa BT ADDRESS BT UPGRADE SVC Reset Expert Factory Menu Name Data...
  • Page 75 4. Troubleshooting 1st_COMP_Y_High 1st_COMP_Cb_High 1st_COMP_Cr_High 1st_COMP_Delta 1st_PC_Low 1st_PC_High 1004 2nd_AV_Low 2nd_AV_High 2nd_PC_Low 2nd_PC_High 2nd_Delta ADC Result 1st_Y_GH 1st_Y_GL 1st_Cb_BH 1st_Cb_BL 1st_Cr_RH 1st_Cr_RL 2nd_R_L 2nd_G_L 2nd_B_L 2nd_R_H 2nd_G_H 2nd_B_H White Balance Sub Brightness R-Offset G-Offset B-Offset Sub Contrast R-Gain G-Gain B-Gain Movie R-Offset Movie B-Offset Movie R-Gain...
  • Page 76 4. Troubleshooting FBE3 BM_slope BM_start BM_start_max Lfunc_gain Hfunc_gain ACR-Offset Skin-UV FBE Sub color M-Skin-UV M-Sub Color N_Skin_UV N_Sub_Gamma Color Gamut LFUNC_TH1 LFUNC_TH2 LFUNC_TH3 LFUNC_OUT2 LFUNC_OUT3 LFUNC_OUT4 LFUNC_OUT5 UFUNC_TH1 UFUNC_TH2 UFUNC_TH3 UFUNC_OUT2 UFUNC_OUT3 UFUNC_OUT4 UFUNC_OUT5 PPHC_Red PPHC_Green PPHC_Blue PPHC_Cyan PPHC_Magenta PPHC_Yellow WB Movie W/B MOVIE ON/OFF MODE...
  • Page 77 4. Troubleshooting N_Bgain N_Roffset N_Boffset W1_Rgain W1_Bgain W1_Roffset W1_Boffset W2_Rgain W2_Bgain W2_Roffset W2_Boffset Movie Contrast Movie Bright Movie Color Movie Sharpness Movie Tint Movie Backlight Movie Gamma M_Sub_Gamma HDMI Black Level SubSetting Gamma 0.95 PWM Max PWM Mid PWM Min Contrast Dimming 7.5 IRE NTSC 7.5 IRE OFFSET...
  • Page 78 4. Troubleshooting Auto_Yellow_R Auto_Yellow_G Auto_Yellow_B Auto_Cyan_R Auto_Cyan_G Auto_Cyan_B Auto_Magenta_R Auto_Magenta_G Auto_Magenta_B EPA 3D Standard Contrast Standard Brightness Standard Sharpness Standard Color Standard Tint Standard Backlight 3D Contrast 3D Brightness V_3D PWM Delay_60 V_3D ANA Delay_60 V_3D PWM Delay_50 V_3D ANA Delay_50 Motion plus Delay Home Delay Shop Delay...
  • Page 79 4. Troubleshooting scm_fdet_lvl bl_range AR_ADC PHASE SOG_BW SSC_PC RGB_DLY YC_Delay PAL_BG PAL_DK PAL_I PAL_M PAL_N SECAM_BG SECAM_DK SECAM_L NTSC_358 NTSC_443 AV_PAL AV_PAL_M AV_PAL_N AV_SECAM AV_NT358 AV_NT443 AV_PAL60 CH_DP BD_MAX_PERCENT_X BD_MAX_PERCENT_Y BD_DETAIL_AMT_MAX BD_TOUCH_SUPP BD_TOUCH_SUP_INV DR_SIGMA_FIL_GAIN DR_GAIN_IN_ETE SD2HD_Metric Sharpness Pre_GainH1 Pre_GainH2 Pre_GainH3 Pre_GainV1 Pre_GainV2 Pre_GainV3...
  • Page 80 4. Troubleshooting Post_GainH1 Post_GainH2 Post_GainH3 Post_GainV1 Post_GainV2 Post_GainV3 Post_GainPE1 Post_GainPE2 Post_GainPV1 Post_GainPV2 CTI_Gain Pre_LTIH LTI_H LTI_V PRE_CORING_H PRE_CORING_V POST_CORING Pre_TOT Post_TOT SH Sub Color Sharpness_LNA S1_Pre_GainH1 S1_Pre_GainH2 S1_Pre_GainH3 S1_Pre_GainV1 S1_Pre_GainV2 S1_Pre_GainV3 S1_Post_GainH1 S1_Post_GainH2 S1_Post_GainH3 S1_Post_GainV1 S1_Post_GainV2 S1_Post_GainV3 S1_Post_GainPE1 S1_Post_GainPE2 S1_Post_GainPV1 S1_Post_GainPV2 S2_Pre_GainH1 S2_Pre_GainH2...
  • Page 81 4. Troubleshooting S2_Pre_GainV2 S2_Pre_GainV3 S2_Post_GainH1 S2_Post_GainH2 S2_Post_GainH3 S2_Post_GainV1 S2_Post_GainV2 S2_Post_GainV3 S2_Post_GainPE1 S2_Post_GainPE2 S2_Post_GainPV1 S2_Post_GainPV2 S3_Pre_GainH1 S3_Pre_GainH2 S3_Pre_GainH3 S3_Pre_GainV1 S3_Pre_GainV2 S3_Pre_GainV3 S3_Post_GainH1 S3_Post_GainH2 S3_Post_GainH3 S3_Post_GainV1 S3_Post_GainV2 S3_Post_GainV3 S3_Post_GainPE1 S3_Post_GainPE2 S3_Post_GainPV1 S3_Post_GainPV2 LNA_Plus Synctip_Noise LNA+_Yfilter 4-43...
  • Page 82 4. Troubleshooting FRCS FRCS LVDS Format FRCS LVDS BitWidth FRCS LVDS Sequence FRCS Hangup Detection FRCS FMD Demo LDAsic R_LD4_L3DD_RATIO R_LD4_LD_ON R_DELAY R_ALL_READ R_LVDS_TX_FMT R_LVDS_SW EmitOn EmitStartPosi60 EmitStartPosi50 EmitStartPosi48 3DSyncVstart60 3DSyncVend60 3DSyncVstart50 3DSyncVend50 3DSyncVstart48 3DSyncVend48 2D3D Focus 2D3D Depth1 2D3D Depth2 2D3D Depth3 2D3D Depth4 2D3D Depth5...
  • Page 83 4. Troubleshooting Reading POST_FDISPLAY RAMP_SPEED POST_RAMP_SPEED LVDS_RX_FMT LVDS_TX_FMT LVDS_RX_BIT LVDS_TX_BIT POST_OUT1_ORDER POST_OUT2_ORDER POST_OUT3_ORDER POST_OUT4_ORDER CROSS_PATTERN EnableFB HMVSRMargin_2X_H HMVSRMargin_2X_M HMVSRMargin_2X_L VMVSRMargin_2X HSADPercentT1_2X HSADPercentT2_2X HMVSRMargin_FILM_H HMVSRMargin_FILM_M HMVSRMargin_FILM_L VMVSRMargin_FILM HSADPercentT1_FILM HSADPercentT2_FILM LEDDriver VSYNC_DELAY_3D_50 VSYNC_DELAY_3D_60 FRCQ Option SSC_OnOff SSC_Width SSC_Freq FMD_Demo CSB Vertical CSB Horizontal X_VStabStatVid X_VStabStatF X_VStabCorF...
  • Page 84 4. Troubleshooting X_HaloSizStatVid X_HaloSizStatF X_HaloSizCorF X_HaloSizSensF Film_Low_SD Film_Medium_SD Film_High_SD Film_Low_HD Film_Medium_HD Film_High_HD Video_Judder_Low Video_Judder_Med Video_Judder_High Hangup Detection Q LVDS Sequence Q LVDS Format Q LVDS bit width PC_Mode_OnOff FRCQ Fallback SensD_Film_Low SensD_Film_Medium SensD_Film_High Rel_Start_Film Rel_Slope_Film H_Len_Start_Film H_Len_Slope_Film V_Len_Start_Film V_Len_Slope_Film SensD_Video Rel_Start_Video Rel_Slope_Video H_Len_Start_Video...

  • Page 85: White Balance

    4. Troubleshooting 4-5. White Balance 4-5-1. Calibration ADC/WB AV Calibration Comp Calibration PC Calibration HDMI Calibration 4-6-2. Service Adjustment You must perform Calibration in the Lattice Pattern before adjusting the White Balance. Color Calibration „ Adjust spec. 1. Source : HDMI 2.
  • Page 86 4. Troubleshooting Method of Color Calibration (AV) „ 1) Apply the NTSC Lattice (N0. 3) pattern signal to the AV IN 1 port 2) Press the Source key to switch to "AV1" mode 3) Enter Service mode 4) Select the "ADC/WB" and "ADB" menu 5) Select the "AV Calibration"...

  • Page 87: Software Upgrade

    4. Troubleshooting 4-6. Software Upgrade Software Upgrade can be performed by network connection or downloading the latest firmware from “www. samsung.com” to a USB memory device. By USB „ Insert a USB drive containing the firmware upgrade file, downloaded from “www.samsung.com” into the TV.

  • Page 88: Sub Micom Upgrade

    4. Troubleshooting 4-7. Sub Micom Upgrade How to update submicom „ SUB MICOM FW is include in MAIN FW. In the Factory mode „ SVC  MICOM UPGRADE  (off  wait) about 7minutes later, It will be reset automatically (Turn off/on). Check version of sub micom FW in Factory mode.

  • Page 89: Rs-232C

    4. Troubleshooting 4-8. RS-232C 1. To RS232C Control Port : COM#(Serial) Bit rate : 115200 Data Bit : 8 bit Parity : None Stop Bits : 1 Flow Control : None 2. Description of RS232C Pin# Name Full Name Carrier Detect Received Data Transmitted Data Data Terminal Ready...

  • Page 90: Av Control Code

    4. Troubleshooting 4-9. AV control code Control Item Cmd1 Cmd2 Cmd3 Value Power Power 0x00 0x00 0x00 0x00 General 0x01 0x02 Volume Direct 0x01 0x00 0x00 (0~100) 0x01 0x00 Down 0x02 0x00 Mute 0x02 0x00 0x00 0x00 Direct 0x04 Continuous 0x01 0x00 0x03...
  • Page 91 4. Troubleshooting Control Item Cmd1 Cmd2 Cmd3 Value Mode Dynamic(Entertain) 0x0b 0x00 0x00 0x00 PICTURE Standard 0x01 Movie 0x02 Natural 0x03 CAL-NIGHT 0x04 CAL-DAY 0x05 BD Wise 0x06 BackLight 0x01 0x00 (0~20) Contrast 0x02 0x00 (0~100) Brightness 0x03 0x00 (0~100) Sharpness 0x04 0x00...
  • Page 92 4. Troubleshooting xvYCC 0x10 0x00 0x01 Motion Lighting 0x11 0x00 0x01 LED Motion Plus 0x07 0x00 On(Normal) 0x01 Cinema 0x02 Ticker 0x03 Picture Color Tone Cool 0x0a 0x00 0x00 Option Normal 0x01 Warm1 0x02 Warm2 0x03 Digital Noise Filter 0x02 0x00 0x01 Medium...
  • Page 93 4. Troubleshooting Smart View II 0x07 Reset Reset Picture 0x0b 0x0b 0x00 0x00 Picture 3D Mode 0x0b 0x0c 0x00 0x00 2D->3D 0x01 Side By Side 0x02 Top Bottom 0x03 Line By Line 0x04 Vertical Line 0x05 Checker BD 0x06 Frame 0x07 Sequence 3D 2D...
  • Page 94 4. Troubleshooting Multi-Track Sound Mono 0x05 0x00 0x00 Stereo 0x01 0x02 Auto Volume 0x06 0x00 0x00 Normal 0x01 Night 0x02 Speaker Select TV Speaker 0x07 0x00 0x00 External Speaker 0x01 Sound Select Main 0x08 0x00 0x00 0x01 Sound Reset Sound Reset 0x09 0x00 0x00...

  • Page 95: Wiring Diagram

    5. Wiring Diagram 5. Wiring Diagram 5-1. Wiring Diagram For 32"_37"_40"...
  • Page 96 5. Wiring Diagram For 46"_55"_60"...

  • Page 97: Connector

    5. Wiring Diagram 5-2. Connector CN1601 CN602(to HDMI1) TX1_AN HDMI1_RX2+ HDMI1_RXCLK- TCON_EEPROM_WP HDMI1_RX2- HDMI_CEC BLACK_INS_SYNC HDMI1_RX1+ TCON_RESET HDMI1_DDC_SCL PANEL_VCC HDMI1_RX1- HDMI1_DDC_SDA PANEL_VCC HDMI1_RX0+ SDA_TCON PANEL_VCC HDMI1_5V PANEL_WP PANEL_VCC HDMI1_RX0- HDMI1_HPD LUT_SELECT0 PANEL_VCC HDMI1_RXCLK+ 3D_ENABLE CN603(to HDMI2) SCL_TCON TX2_AN HDMI2_RX2+ TX2_AP HDMI2_RXCLK- TX3_EP TX2_BN...
  • Page 98 5. Wiring Diagram CN401(to PC) CN503_EU(to SCART) PC_RED PC_5V PC_GREEN IDENT_PC SC1_G PC_BLUE SDA_DOWN PC_H_SYNC SC1_AV_CVBS_IN IDENT_SC1_AV PC_V_SYNC SC1_B SCL_DOWN SC1_CVBS_OUT SC1_AV_SL_IN SC1_FB SC1_AC_SR_IN CN402(to PC Sound) SC1_R SC1_SL_OUT PC_SL_IN SC1_SR_OUT PC_SR_IN CN404(to Component & AV) CN301(to Speaker) COMP_Y_AV1 IDENT_COMP COMP_PB AV1_SL_IN CN303(to Optical Jack)

  • Page 99: Connector Functions

    5. Wiring Diagram 5-3. Connector Functions Connector Functions CN201  CN803 Supply power from SMPS to Main Board. The LVDS signal transfered from Main Board to Panel. CN1601  J101 5-4. Cables Main-SMPS Main-T-CON Function-Main 32" : BN39-01486A 32" : BN96-18130A 32"...
  • Page 100 Exploded Views and Parts List 1. Exploded View & Part List Exploded View Copyright© 1995-2011 SAMSUNG. All rights reserved.
  • Page 101 ASSY COVER P-REAR; UD6500 46,EO(SATELLITE BN96-16871B FB20A BN96-18232C ASSY BOARD P-TOUCH FUNCTION; UE32D6500,CT BN90-03172A SG03A BN96-16722A ASSY STAND P-GUIDE; UD5000-6000,W/W,PC,G/ BN90-03172A SB04A BN96-18953C ASSY STAND P-BASE; UD6500 46,AL STAND BN96-16858A CB18 BN61-07110A BRACKET-STAND LINK; 40UD7000,EGI-SECC,T2. Copyright© 1995-2011 SAMSUNG. All rights reserved.
  • Page 102 BN61-04248D BOSS-TAPE;#4920,acryl,0.45mm,20mm,3M,whi BN61-04692A BOSS-PRIMER;#94,clear,35cps SG01 BN61-06998A GUIDE-STAND NECK;LD550,46,PETG,V2,TP0003 ...4 0103-007257 RESIN-PETG;ECOZEN-SE,NP01,TP0003,3.2 V2, ...4 BN61-06079B GUIDE-NECK-INSERT;LC650,40,PETG HB,TP000 BN61-07119A HOLDER-NECK FRONT;LD550,46,PC+G/F 20%,BK BN61-07122A HOLDER-NECK REAR;LD550,46,PC+G/F 20%,BK0 BN61-07244A HOLDER-SWIVEL RING;LD550,40,POM,60pie,NC BN61-07317A BRACKET-STAND BOTTOM;UD6000 46",SECC,T3. RF01 BN61-07495A FOOT-RUBBER;RUBBER,CR Copyright© 1995-2011 SAMSUNG. All rights reserved.
  • Page 103 BN63-08082A SHEET-REFLECTOR;46" 5K6K, SLP7-85R,,360u ...4 BN63-08651A SHEET-PROTECT;46" 6.5K, SP722U-94,210um, ...4 BN64-01645A CHASSIS-BOTTOM BAR (L);NNB 5K,6K,6.5K_46 ...4 BN74-00100A TAPE-THERMAL;T460FBE1-FB,e-GRAF,200*100* ...4 BN96-16615A ASSY MISC P-LED BAR L;46" 6.5K_Left,Scan ...4 BN96-16616A ASSY MISC P-LED BAR R;46" 6.5K_Right,Sca Copyright© 1995-2011 SAMSUNG. All rights reserved.
  • Page 104 INSULATION-SOURCE L;NNB 46'' LCD-TYPE,PE ..5 BN62-00172A INSULATION-SOURCE R;NNB 46'' LCD-TYPE,PE ..5 CC02 BN64-01643A CHASSIS-BOTTOM;NNB 5K,6K,6.5K_46",AL3104 ..5 BN64-01644A CHASSIS-BOTTOM BAR (U);NNB 5K,6K,6.5K_46 ..5 BN74-00061A TAPE-BOTTOM CHASSIS;T460FAE1-FA , T550FA BN96-16501A ASSY OPEN CELL;LSJ460HW01-V,8bit,46inch, TCON BN96-16503A ASSY PCB P-T-CON;LSJ460HW01-S,FR4,SUWON, Copyright© 1995-2011 SAMSUNG. All rights reserved.
  • Page 105 SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0. HDP01 BN61-06644A HOLDER-PCB;LC750,NYNOL66,V0 CB01 BN61-07083H BRACKET-AV;UD6400,PCM,T0.45,BKN-P824,EUR BN97-05444A ASSY DRM-CI PLUS;BN46-00068A,U55A ...4 BN46-00068A KEY CODE-CI PLUS;Genoa,TCTC,SERIAL CODIN BN97-06011A ASSY SMD;UE32D6500VSXXN,BN94-05035A ...4 0202-001477 SOLDER-CREAM;LST309-M,D20~45um,96.5Sn/3A ...4 DS01A 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO ...4 0403-001783 DIODE-ZENER;BZB84-C6V2,5.8/6.6V,300mW,SO ...4 D0254 0404-001271 DIODE-SCHOTTKY;SSA34,40V,3000mA,SMA,TP Copyright© 1995-2011 SAMSUNG. All rights reserved.
  • Page 106 1203-006136 IC-POSI.FIXED REG.;AP1117D-18-GZ-13-89,T ...4 T0087 1203-006141 IC-POSI.FIXED REG.;S-1172B33-U5T1G,SOT-8 ...4 1203-006619 IC-DC/DC CONVERTER;AOZ1033AI,SO-8,8P,4.9 ...4 1203-006683 IC-DC/DC CONVERTER;A8294SESTR-T,QFN,20P, ...4 IC118 1204-003101 IC-VIDEO PROCESS;SDP94,PBGA,345P,19x19mm ...4 1204-003217 IC-DECODER;SDP1001,FCBGA,937P,35x35mm,PL ...4 1205-003201 IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2x2.3mm ...4 1205-003479 IC-SWITCH;TPS2051BDBVR,SOT-23,5P,2.9x1.6 ...4 1205-003733 IC-SWITCH;AP2191MPG-13,MSOP-8L-EP,8P,2.9 Copyright© 1995-2011 SAMSUNG. All rights reserved.
  • Page 107 ...4 OTR1 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 ...4 DR43 2007-001298 R-CHIP;51ohm,5%,1/16W,TP,1005 ...4 MR31 2007-001305 R-CHIP;120ohm,5%,1/16W,TP,1005 ...4 CER07 2007-001308 R-CHIP;200ohm,5%,1/16W,TP,1005 ...4 R19548 2007-001311 R-CHIP;270ohm,5%,1/16W,TP,1005 ...4 2007-001313 R-CHIP;330ohm,5%,1/16W,TP,1005 ...4 2007-001316 R-CHIP;820ohm,5%,1/16W,TP,1005 ...4 R326 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 ...4 PR24 2007-002970 R-CHIP;56ohm,5%,1/16W,TP,1005 Copyright© 1995-2011 SAMSUNG. All rights reserved.
  • Page 108 2011-001497 R-NETWORK;470ohm,5%,1/16W,L,CHIP,4P,TP,1 ...4 2011-001519 R-NETWORK;33OHM,5%,1/16W,L,CHIP,4P,TP,1..4 2011-001527 R-NETWORK;4.7Kohm,5%,1/16W,L,CHIP,4P,TP, ...4 PC43 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,TP,1005 ...4 DC54 2203-000278 C-CER,CHIP;0.01nF,0.5pF,50V,C0G,TP,1005 ...4 2203-000330 C-CER,CHIP;0.012nF,5%,50V,C0G,TP,1005 ...4 2203-000386 C-CER,CHIP;0.015nF,5%,50V,C0G,TP,1005 ...4 MC302 2203-000425 C-CER,CHIP;0.018nF,5%,50V,C0G,TP,1005 ...4 C254 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,TP,1005 ...4 C507 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1005 Copyright© 1995-2011 SAMSUNG. All rights reserved.
  • Page 109 ...4 2703-003879 INDUCTOR-SMD;33uH,20%,10.0mmX10.0mm ...4 2703-003930 INDUCTOR-SMD;4.7uH,20%,5050 ...4 X202 2801-003948 CRYSTAL-SMD;12MHz,30ppm,28-AAN,12pF,60oh ...4 2801-004021 CRYSTAL-SMD;24.576MHz,20ppm,28-AAN,12pF, ...4 X202 2801-004629 CRYSTAL-SMD;27MHz,20ppm,12pF,50ohm,TP ...4 X202 2801-004734 CRYSTAL-SMD;25.000000MHz,20ppm,28-AAN,12 ...4 X202 2801-004774 CRYSTAL-SMD;24MHz,30ppm,14pF,30ohm,TP ...4 X202 2801-004775 CRYSTAL-SMD;12MHz,30ppm,16pF,30ohm,TP ...4 F103 2901-001506 FILTER-EMI SMD;5V,0.13A,0pF,2x1x0.5mm,TP Copyright© 1995-2011 SAMSUNG. All rights reserved.
  • Page 110 LABEL BOX-00;ALL MODEL,MOJO 90G,60,110,W BN69-06007E BOX-SET;46UD6500-GS,CB,A-01,DW3,ECT60,YE BN92-07932A ASSY P/MATERIAL;UD6500 46 6902-000379 BAG AIR;LDPE,T0.2,W1000,L1800,TRP,1260.0 M040 6922-000003 BAND PP;PP,T0.8,W18,L1650M,TRP,DA69-9014 BN68-02422B LABEL-WARNING SHIPPING;ALL MODEL,A/P 100 BN69-00257Y PACKING-SHEET PALLET;PACKING SHEET PALLE BN69-03982F PAD PACKING-EDGE;LB6T,PAPER,6,120,2160,- BN69-05184L PALLET;UE46D6400,WOOD,1330,1080,135,1750 BN69-05418A PACKING-BAG WRAPPING;-,LDPE,-,0,019,500, 2410 Copyright© 1995-2011 SAMSUNG. All rights reserved.
  • Page 111 BN68-00513A LABEL-E,PASS;ALL MODEL,YUPO(110G),50X15, BN68-00514K MANUAL FLYER-WARRANTY CARD;comm,Samsung, BN68-03019A LEAFLET-SAFETY GUIDE;ALL,SAMSUNG,28LENGS BN68-03482F MANUAL USERS;UD6500~6570,Samsung,4Langs, BN68-03602F MANUAL FLYER-01,SAMART TV GUIDE;UD5500~, BN68-03608E LEAFLET-01,ACCESSORY GUIDE;All,SAMSUNG,E BN92-08655H ASSY LABEL;UE46D6507* BN68-03542D LABEL-01,TV POP;5500,PET,T0.1,100,100,Bl BN68-03652Q LABEL-STICKER;UD6V,T0.05,60,120,Energy R T0527 BP68-00052B LABEL-00,RATING;CCTV,TETRON PAPER,T0.05, Copyright© 1995-2011 SAMSUNG. All rights reserved.
