Summary of Contents for Russell Hobbs 24080
- Page 1 User Manual of Product 1: Russell Hobbs RHM2076S Freestanding Compact Microwave, 800 W, 20 liters, Silver User Manual of Product 2: Russell Hobbs 24080 Adventure Two Slice Toaster, Stainless Steel, 2 Slice, Brushed and Polished...
- Page 2 Microwave USER’S GUIDE Model No: RHM2072S For Customer Services & Spare Parts please call 0845 209 7461 Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at www.productcareuk.com IMPORTANT: RETAIN FOR FUTURE REFERENCE...
-
Page 3: Table Of Contents
Contents Page Safety instructions …………………………….……….. Product Overview ………………………………..….. About this microwave oven ……………………………….…….. Unpacking the microwave ……………………………………… Microwave oven installation ……………………………………… Turn table installation ……………………………………… Control panel ……………………………………… Using the microwave oven ……………………………………… Cleaning and care ……………………………………… Important utensil information ………………………………………... -
Page 4: Safety Instructions
Safety instructions IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE WARNING: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Page 5 Safety instructions WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
- Page 6 Safety instructions If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
- Page 7 Safety instructions The rear surface of appliance shall be placed against a wall. Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required betweeen the oven and any adjacent walls. The microwave oven should be used freestanding only and must not be built-in or used in a cabinet.
- Page 8 Safety instructions Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
- Page 9 Safety instructions Do Not obstruct the ventilation from the microwave Only use thermometers that are approved for microwave ovens.
- Page 10 Safety instructions • Food containing a mixture of fat and water (for example, stock) should stand for 30 to 60 seconds in the oven after it has been turned off. This is to allow the mixture to settle and to prevent it from bubbling when a spoon is placed in it, or a stock cube is added.
- Page 11 Safety instructions • The microwave is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, wheat bags, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire. • Heat from the contents of a container may be transmitted to the container itself, so please be careful when removing it from the oven.
- Page 12 Safety instructions • Do not use metal pans or dishes with metal handles. • Do not use anything with a metal trim. • Do not use paper covered wire twist-ties on plastic bags. • Do not use melamine dishes as they contain a material which will absorb microwave energy.
-
Page 13: Product Overview

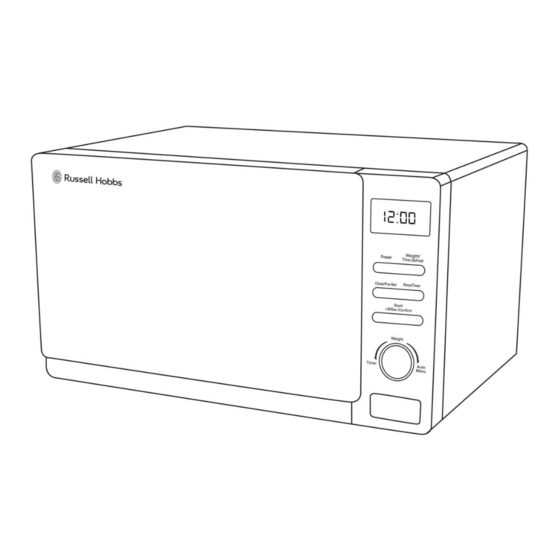

Product overview Control panel (including door release button) Turntable shaft Turntable ring assembly Glass turntable Observation window Door assembly G. Safety interlock latches H. Waveguide cover Oven cavity Ventilation slots For Customer Services & Spare Parts please call 0845 209 7461 Opening times: Monday - Friday 8am –... -
Page 14: About This Microwave Oven
About this microwave oven Microwaves are high-frequency electromagnetic waves similar to radio waves. While radio waves may vary in length from one metre to many kilometres, microwaves are very short (less than 12.5 centimetres). Microwaves do not make any heat themselves but only cause water molecules in food to vibrate. -
Page 15: Unpacking The Microwave
Unpacking the microwave Before you use your microwave oven 1. Remove all the packaging. Do not remove the small piece of card from the right hand side of the cavity wall. This is called a wave-guide cover and allows the microwaves to pass through to cook the food. Please ensure you keep this cover clean at all times. -
Page 16: Microwave Oven Installation
Microwave oven installation • Select a level surface that provides enough space for the outlet vents. • The rear surface of appliance shall be placed against a wall. Leave a minimum clearance of 30cm above the oven,a minimum clearance of 20cm is required betweeen the oven and any adjacent walls. •... -
Page 17: Turn Table Installation
Turn table installation • Before first use, check that any securing tape has been removed from the glass tray and turntable ring assembly. These parts must never be restricted from rotating. • Never place the glass tray upside down. • Both the glass tray and turntable ring assembly must always be used during cooking. -
Page 18: Control Panel
Control panel MENU ACTION SCREEN Cooking time, power, auto, and the clock time are displayed. POWER Press to select the power level for microwave cooking. Press the Left Hand Side of the button. WEIGHT/TIME DEFROST Press this button to input weight for defrosting. CLOCK/PRE-SET Press this button to set the clock and use the preset function. -
Page 19: Using The Microwave Oven
Using the microwave oven Clock Setting When the microwave oven is first turned on, the oven will display "0:00", the buzzer will ring once. 1) Press “CLOCK/PRE-SET” to choose hours or minutes for alteration. The hour figures will flash. When altering the hours the ‘’0’’ on the Left Hand Side will flash. - Page 20 Using the microwave oven Microwave Cooking 1) Press the “POWER“ button once, and “P100” will display and flash. 2) Turn the “TIMER/WEIGHT” to select the microwave power. "P100", "P80","P50", "P30","P10"will display in order. Press the “POWER“ button to scroll through the power levels. 3) Press “START/+30SEC/CONFIRM“...
- Page 21 Using the microwave oven Speedy Cooking Press the "START/+30SEC/CONFIRM" button to microwave cook at 100% power level for 30 seconds. The microwave will start cooking immediately. Each press on the same key will increase the cooking time by 30 seconds. The maximum cooking time is 95 minutes.
- Page 22 Using the microwave oven Multi-Stage Cooking To set a maximum of two different stages. For instance, to defrost an item and the follow it with the cooking cycle. Note: The auto menu cannot be set as one of the multi-stage cooking functions.
- Page 23 Using the microwave oven Pre-set time to start functions Set the clock first. (Consult the instructions for setting the clock) Input the cooking program. It’s possible to input a maximum of 2 cooking stages. Do not use the defrost function in the pre-set function. The auto menu can be set for a single stage only.
- Page 24 Using the microwave oven Auto Menu The microwave can automatically calculate the cooking time based on the type of food and weight. 1) Turn the "TIMER/WEIGHT . AUTO MENU“ dial clockwise, "A-1" will display on the screen. Continue to rotate the dial to access the other auto selections ,up to A-8.
- Page 25 Using the microwave oven Checking Functions 1) During the cooking cycle, press the “POWER" button and the current power will be displayed for 2-3 seconds. 2) In pre-set state, press the " CLOCK/PRE-SET “ button to check the time when the cooking will start. The pre-set time will flash for 2-3 seconds, then the oven will turn back to the clock display.
-
Page 26: Cleaning And Care
Cleaning and care • Before you clean the oven, turn it off and unplug it. • Keep the inside of the oven clean. When food or liquids stick to the oven walls, wipe with a damp cloth. We recommend that you do not use harsh detergent or abrasives. -
Page 27: Important Utensil Information
Important utensil information • Do not use metal pans or dishes with metal handles. • Do not use anything with a metal trim. • Do not use paper covered wire twist-ties on plastic bags. • Do not use melamine dishes as they contain a material which will absorb microwave energy. -
Page 28: Connection To The Mains Supply
Connection to the mains supply WARNING- THIS APPLIANCE MUST BE EARTHED This appliance is designed to operate from a mains supply of AC230-240V 50 z. Check that the voltage marked on the product corresponds with your supply voltage. This product is fitted with a 13A plug complying with BS1363. If this plug is unsuitable or needs to be replaced, please note the following: Important: The wires in the mains lead are coloured in accordance with the following code:... - Page 29 Connection to the mains supply For UK use only – Plug fitting details (where applicable): As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The GREEN/YELLOW wire is the EARTH and must be connected to the terminal which...
-
Page 30: Problem Solving & Plug
Problems solving & plug Problem solving The microwave oven may cause interference to your radio, TV or similar equipment. If it does, you can get rid of the interference by moving the radio, TV or equipment as far away from your microwave oven as possible. -
Page 31: Guarantee
Guarantee This product is guaranteed for 12 months from the date of the original purchase. If any defect arises due to faulty materials or workmanship the faulty product must be returned to the place of purchase. Refund or replacement is at the discretion of the store. The following conditions apply: •... -
Page 32: Technical Specification
Technical Specification 230V – 240V ~ 50Hz Rated Voltage Rated Input Power(Microwave) 1200 -1270 W Rated Output Power(Microwave) 750 -800 W 20 L Oven Capacity 255 mm Turntable Diameter External Dimensions( HxWxD) 258.2mm x 439.5mm x 336mm 10.6 kg Net Weight For Customer Services &... -
Page 33: Spare Parts
Spare parts The following spare parts are available from www.productcareuk.com Glass turntable Turntable ring assembly Wave Guide cover For Customer Services & Spare Parts please call 0845 209 7461 Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at www.productcareuk.com... - Page 34 Notes For Customer Services & Spare Parts please call 0845 209 7461 Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at www.productcareuk.com...
- Page 35 For Customer Services & Spare Parts please call 0845 209 7461 Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at www.productcareuk.com Revision 1 This symbol is known as the 'Crossed-out wheelie bin Symbol'. When this symbol is marked on a product/batteries, it means that the product/batteries should not be disposed of with your general household waste.
- Page 36 24080 I www.russellhobbs.com Register online for an EXTRA year guarantee Visit uk.russellhobbs.com/product-registration You must register within 28 days of purchase...
- Page 38 Read the instructions, keep them safe, pass them on if you pass the appliance on. Remove all packaging before use. IMPORTANT SAFEGUARDS Follow basic safety precautions, including: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/ instructed and understand the hazards involved.
- Page 39 PARTS Toasting slots Browning control Lever Crumb tray BEFORE USING FOR THE FIRST TIME Set the browning level to maximum. Operate the appliance empty, to cure the new elements. This may smell a bit, but it’s nothing to worry about. Ensure the room is well ventilated.
- Page 40 REHEATING TOAST Leave the browning control at your favoured setting, insert the bread, lower the lever, then press m. The m light will come on, and the toast will be given a short burst of heat. Don’t reheat “buttered”, torn, or misshapen bread. HINTS AND TIPS •...
- Page 43 RECYCLING To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non- rechargeable batteries, at an appropriate official recycling/collection point.
