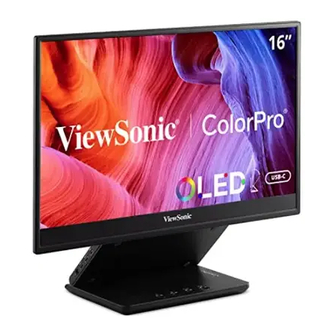

VX1655-4K-OLED
Display
User Guide
IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in
a safe manner, as well as registering your product for future service. Warranty information contained in this User
Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at
http://www.viewsonic.com in English, or in specific languages using the Regional selection box of our website.
Model No. VS19591
P/N: VX1655-4K-OLED
Advertisement
Table of Contents
Related Manuals for ViewSonic VX1655-4K-OLED
Summary of Contents for ViewSonic VX1655-4K-OLED
- Page 1 Warranty information contained in this User Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at http://www.viewsonic.com in English, or in specific languages using the Regional selection box of our website.
- Page 2 As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding the world’s expectations for technological evolution, innovation, and simplicity. At ViewSonic®, we believe that our products have the potential to make a positive impact in the world, and we are confident that the ViewSonic® product you have chosen will serve you well.
-
Page 3: Safety Precautions
Safety Precautions • Read these instructions completely before using the equipment. • Keep these instructions in a safe place. • Heed all warnings and follow all instructions. • Sit at least 18” / 45 cm from the monitor. • When installing the monitor, please leave 4” / 10 cm of open space around the monitor for ventilation safety purposes. - Page 4 • If smoke appears, an abnormal noise, or a strange odor is present, immediately switch the display off and contact your dealer or ViewSonic. It is dangerous to continue using the display. •...
- Page 5 • Stability Hazard: The display may fall, causing serious personal injury or death. To prevent injury, this display must be securely attached to the floor/wall in accordance with the installation instructions. • If the existing monitor is going to be retained and relocated, the same considerations as above should be applied.
-
Page 6: Table Of Contents
Contents Safety Precautions ............3 Introduction ..............8 Package Contents ....................8 Product Overview ....................9 Front and Left Side View ..................9 Rear and Right Side View ..................9 I/O Ports ......................... 9 Initial Setup ............... 10 Installing the Cover ....................10 Using the Cover and Stand ...................10 Making Connections .......... - Page 7 Regulatory and Service Information ......35 Compliance Information ..................35 FCC Compliance Statement ................... 35 Industry Canada Statement ................... 35 CE Conformity for European Countries ..............35 Declaration of RoHS2 Compliance................. 36 Indian Restriction of Hazardous Substances ............37 Product Disposal at End of Product Life ..............37 Copyright Information ..................38 Customer Service ....................
-
Page 8: Introduction
Introduction Package Contents • Portable display • Power adapter • USB Type C cable • USB Type C to Type A cable • Mini HDMI to HDMI cable • Protective cover • Quick start guide NOTE: The power adapter and video cables included in your package may vary depending on your country. -
Page 9: Product Overview
Product Overview Front and Left Side View Rear and Right Side View Power LED Joy Key Stand I/O Ports Type C Type C HDMI USB Type C Mini HDMI Audio Out NOTE: For more information about the Joy Key and its functions, refer to “Hot Keys”... -
Page 10: Initial Setup
Initial Setup Installing the Cover Using the Cover and Stand NOTE: Always place the device on a flat, stable surface. Failure to do so may cause the device to fall and damage the device and/or result in personal injury. -
Page 11: Making Connections
Making Connections Connecting to Power The monitor can be powered in any of the following configurations: • Type C Connection (The power output must be greater than 20W) • Type A Connection (The power output must be greater than 20W) •... -
Page 12: Connecting External Devices
Connecting External Devices Your external device(s) can be connected in any of the following configurations: • Type C Connection Connect a Type C cable from your external device to a Type C port on the monitor. or or (The power output must be greater than 20W) •... -
Page 13: Power Delivery
Power Delivery Powering a Notebook or Mobile Phone If the included power adapter is connected to the monitor, then the monitor can charge a connected notebook or mobile phone. NOTE: Power Delivery Output: DC 5V/9V/12V/15V/20V/Max 3A. 100-240 Vac 50/60 Hz Power Supply Detection This product will detect if the power supply device is an adapter, laptop or mobile phone. -
Page 14: Power Delivery - Further Information
• Only when one of the Type C ports is recognized as a power adapter can the other one deliver two-way power. If a laptop is connected first to the VX1655-4K-OLED, then a mobile phone is connected second, the mobile phone’s battery will not be charged as neither Type C port recognizes the connection as being connected to a power adapter. -
Page 15: Using The Monitor
Using the Monitor Adjusting the Viewing Angle Tilt Angle Adjustment Tilt the monitor backwards to the desired viewing angle via the attached stand (0˚ to 62˚). NOTE: When adjusting, support the monitor firmly with one hand while tilting the stand backwards with the other hand. -
Page 16: Turning The Device On/Off
Turning the Device On/Off 1. Connect to a power source in one of the available configurations. For more information, see page 11. 2. Press the Joy Key to turn on the monitor. 3. To turn the monitor off, press and hold the Joy Key for three (3) seconds. NOTE: ... -
Page 17: Quick Menu
Quick Menu Move the Joy Key ▲/▼/◄/► to activate the Quick Menu. ViewMode Contrast/Brightness Input Select Menu Exit NOTE: Follow the key guide that appears on the screen to select the option or make adjustments. Menu Description ViewMode Select one of the preset color settings. Contrast/Brightness Adjust the contrast or brightness level. -
Page 18: Hot Keys
Hot Keys When the On-Screen Display (OSD) Menu is off, you can quickly access special functions by using the Joy Key. Description ◄ Press and hold the key to lock/unlock the OSD Menu. When the menu appears on the screen, continue holding the key for 5 seconds to lock/unlock the OSD Menu. - Page 19 Description ► Press and hold the key to lock/unlock the Power button. When the menu appears on the screen, continue holding the key for 5 seconds to lock/unlock the Power button. Power Lock/Unlock Locking Power Button Press and hold for 10s to lock power If the Power...
-
Page 20: Configuring The Settings
Configuring the Settings General Operations 1. Move the Joy Key ▲/▼/◄/► to display the Quick Menu. Then press the Joy Key to display the On-Screen Display (OSD) Menu. Input Audio Adjust ViewMode Color Adjust Manual Image Setup Menu Select Adjust Type C HDMI 3840 x 2160 @ 60Hz... - Page 21 3. Move the Joy Key ▲ or ▼ to select the desired menu option. Then press the Joy Key to enter the sub-menu. Input Audio Adjust ViewMode Color Adjust Manual Image Setup Menu Select Adjust Contrast/Brightness sRGB 6-axis Color Bluish Color Temperature Cool Color Space...
-
Page 22: On-Screen Display (Osd) Menu Tree
On-Screen Display (OSD) Menu Tree Main Menu Sub-menu Menu Option Type C Input Select HDMI Volume (-/+, 0~100) Audio Adjust Mute Text Low Input Lag Black (-/+, 0/10/20/30/40/50/6 Stabilization 0/70/80/90/100) Advanced DCR (-/+, 0/25/50/75/100) Standard Response Time Advanced Ultra Fast (-/+, 0~100) Green (-/+, 0~100) - Page 23 Main Menu Sub-menu Menu Option Contrast (-/+, 0~100) Contrast/ Brightness Brightness (-/+, 0~100) (-/+, 0~100) Green (-/+, 0~100) Blue (-/+, 0~100) Cyan (-/+, 0~100) Magenta (-/+, 0~100) Yellow (-/+, 0~100) 6-axis Color (-/+, 0~100) Green (-/+, 0~100) Blue (-/+, 0~100) Saturation Cyan (-/+, 0~100)
- Page 24 Main Menu Sub-menu Menu Option (-/+, Sharpness 0/25/50/75/100) Aspect Ratio Manual Full Screen Image Adjust Overscan Blue Light (-/+, 0~100) Filter English Français Deutsch Español Italiano Suomi Svenska Language Select Русский Türkçe Česká 日本語 한국어 繁體中文 Setup Menu 简体中文 Resolution Notice Information Native...
- Page 25 Main Menu Sub-menu Menu Option 30 Minutes 45 Minutes Sleep 60 Minutes 120 Minutes Setup Menu DDC/CI Auto Detect All Recall...
-
Page 26: Appendix
Appendix Specifications Item Category Specifications AMOLED type, LTPS TFT Active Matrix Type 3840 x 2160 OLED 89.64 (H)mm x 89.64 (V)mm pixel pitch Display Size 40 cm, 15.6” Color Filter RGB Vertical stripe Glass Surface Anti-Glare type, Hard Coating (3H) TMDS digital (100 Ω) HDMI (v. - Page 27 24W (Tyipcal) with 50% audio modes ≤ 0.3W Do not set the graphics card in your computer to exceed these timing modes; doing so may result in permanent damage to the display. Please use the power adapter from ViewSonic® or an authorized source only.
-
Page 28: Glossary
Glossary This section describes the standard glossary of terms used in all LCD display models. All terms are listed in alphabetical order. NOTE: Some terms may not be applicable to your monitor. Advanced DCR Advanced DCR technology automatically detects the image signal and intelligently controls the backlight brightness and color to improve on the ability to make the black blacker in a dark scene, and make the white whiter in a bright environment. - Page 29 Displays the timing mode (video signal input) coming from the graphics card in the computer, the LCD model number, the serial number, and the ViewSonic® website URL. See your graphics cards’s user guide for instructions on changing the resolution and refresh rate (vertical frequency).
- Page 30 Manual Image Adjust Displays the “Manual Image Adjust” menu. You can manually set a variety of image quality adjustments. Memory Recall Returns the adjustments back to factory settings if the display is operating in a factory preset timing mode listed in the “Specifications” of this manual. NOTE: ...
- Page 31 Sharpness Adjusts the picture quality of the monitor. ViewMode ViewSonic’s unique ViewMode feature offers “Game”, “Movie”, “Web”, “Text”, “MAC”, and “Mono” presets. These presets are specifically designed to deliver an optimized viewing experience for different screen applications.
-
Page 32: Troubleshooting
• Connect the monitor to another computer. • If you have an older graphics card, contact ViewSonic® for a non-DDC adapter. • Adjust brightness and contrast settings via the OSD Screen image is too Menu. light or dark •... - Page 33 Problem or Issue Possible Solutions The screen appears • Make sure the “Blue Light Filter” is Off. yellow The OSD Menu • Check whether the OSD Menu is locked. does not appear • Turn off the monitor, unplug the power cord, plug it on the screen/the back in, and then turn on the monitor.
-
Page 34: Maintenance
• ViewSonic® does not recommend the use of any ammonia or alcohol-based cleaners on the display screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the monitor. • ViewSonic® will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners. -
Page 35: Regulatory And Service Information
Regulatory and Service Information Compliance Information This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit. FCC Compliance Statement This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 36: Declaration Of Rohs2 Compliance
The following information is only for EU-member states: The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law. -
Page 37: Indian Restriction Of Hazardous Substances
Schedule 2 of the Rule. Product Disposal at End of Product Life ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic®... -
Page 38: Copyright Information
ENERGY STAR® is a registered trademark of the U.S. Environmental Protection Agency (EPA). As an ENERGY STAR® partner, ViewSonic® Corporation has determined that this product meets the ENERGY STAR® guidelines for energy efficiency. Disclaimer: ViewSonic® Corporation shall not be liable for technical or editorial errors or omissions contained herein;... -
Page 39: Customer Service
For technical support or product service, see the table below or contact your reseller. NOTE: You will need the product’s serial number. Country/ Region Website Country/ Region Website Asia Pacific & Africa Australia Bangladesh www.viewsonic.com/au/ www.viewsonic.com/bd/ 中国 (China) www.viewsonic.com.cn 香港 (繁體中文) www.viewsonic.com/hk/ Hong Kong (English) India www.viewsonic.com/hk-en/ www.viewsonic.com/in/... -
Page 40: Limited Warranty
How long the warranty is effective: ViewSonic® displays are warranted for between 1 and 3 years, depending on your country of purchase, for all parts including the light source and for all labor from the date of the first consumer purchase. - Page 41 (e) the serial number of the product. • Take or ship the product, freight prepaid, in the original container to an authorized ViewSonic® service center or ViewSonic®. • For additional information or the name of the nearest ViewSonic® service center, contact ViewSonic®. Limitation of implied warranties:...
- Page 42 Exclusion of damages: ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for: • Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of...
-
Page 43: Mexico Limited Warranty
If a product proves to be defective in material or workmanship during the warranty period, ViewSonic® will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components &... - Page 44 Exclusion of damages: ViewSonic®’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for: • Damage to other property caused by any defects in the product, damages...
- Page 45 Name, address, of manufacturer and importers: México, Av. de la Palma #8 Piso 2 Despacho 203, Corporativo Interpalmas, Col. San Fernando Huixquilucan, Estado de México Tel: (55) 3605-1099 http://www.viewsonic.com/la/soporte/index.htm NÚMERO GRATIS DE ASISTENCIA TÉCNICA PARA TODO MÉXICO: 001.866.823.2004 Hermosillo: Villahermosa: Distribuciones y Servicios Computacionales SA de CV.
