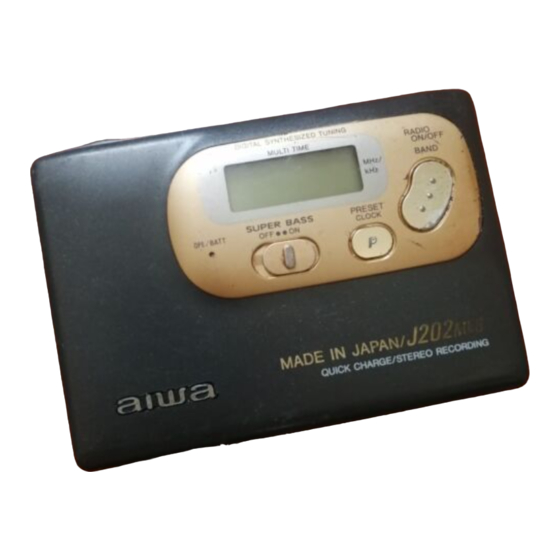

Aiwa HS-JX609 Service Manual

ana
HS - JX609
HS - JZ02MK6
STEREO RADIO
CASSETTE RECORDER
e BASIC TAPE MECHANISM : 2ZM-—2 RI e TYPE. AH
x FE WK
[REVISION PUBLISHING]
SPECIFICATIONS
Frequency range <AC adaptor/AC-207>
FM: 87.5/87.5-108.1/108MHz (200/50kHz STEP) Rated voltage
AM: 530/531-1,710/1,602kHz (10/9kHz STEP) AC-207H AC 115V/230V, switchable
Maximum output AC-207E AC 230V
10mW+10mW (EIAJ/32Q) Rated output
12mW+12mW (EIAJ/16Q ) DC 2V 350mA
Power source
Battery DC 2V, rechargeable battery (PB-4S)
Battery DC 3V, R03 (size AAA) x 2
Domestic AC power (using the supplied AC adaptor)
Battery life
Using rechargeable battery (PB-4S) @ Design and specifications are subject to change without notice.
Approx. 2 hours (EIAJ, REC/1 hour recharging)
Approx. 1.5 hours (EIAJ, PB 1mW/10 minutes recharging)
Approx. 3.5 hours (EIAJ, PB imW/1 hour recharging)
Using two LROS (size AAA) alkaline batteries
Approx. 3 hours (ElAJ, REC)
Approx. 6.5 hours (EIAJ, PB 1mW)
Dimensions
109.4 (W) x 78.5 (H) x 32.2 (D) mm
(4% x 3% x 1%c in.)
Weight
Approx. 230 g (0.48 Ib) including rechargeable battery
